ST62T20BB6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ST62T20BB6

ST62T20BB6: Description8-BIT, OTPROM, 8MHz, MICROCONTROLLER, PDIP20, PLASTIC, DIP-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size474KB，15 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

ST62T20BB6 Overview

8-BIT, OTPROM, 8MHz, MICROCONTROLLER, PDIP20, PLASTIC, DIP-20

ST62T20BB6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	PLASTIC, DIP-20
Contacts	20
Reach Compliance Code	not_compliant
Has ADC	YES
Other features	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM
Address bus width
bit size	8
boundary scan	NO
CPU series	ST6200
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	12
Number of serial I/Os
Number of terminals	20
Number of timers	1
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	64
RAM (number of words)	64
rom(word)	4000
ROM programmability	OTPROM
speed	8 MHz
Maximum slew rate	3.5 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

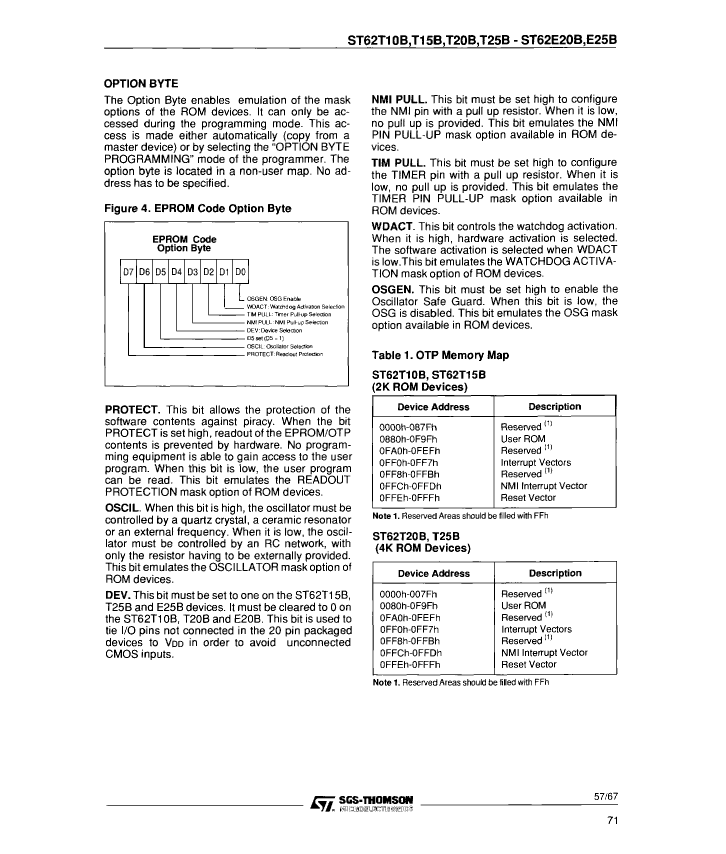

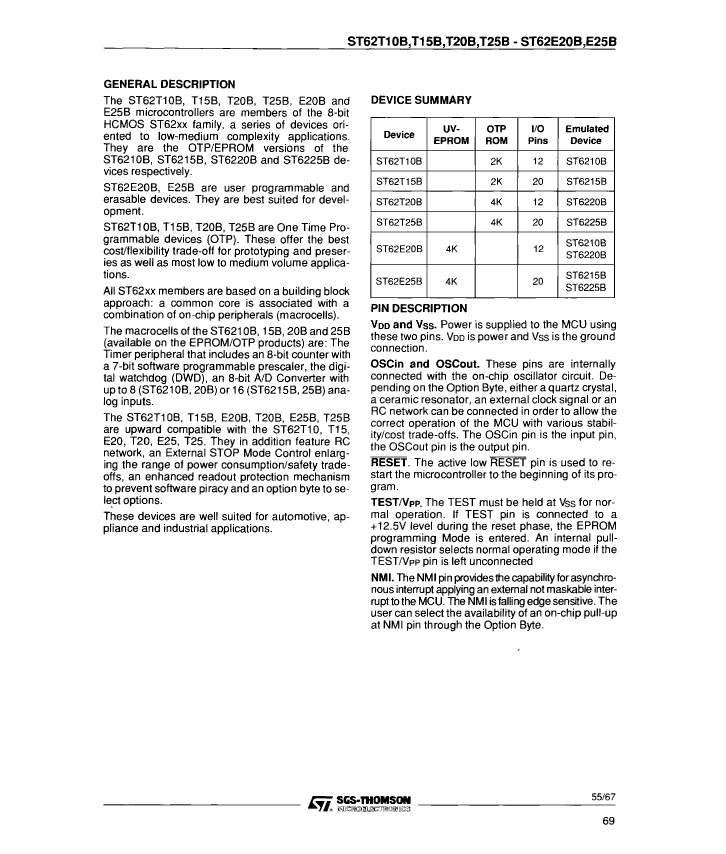

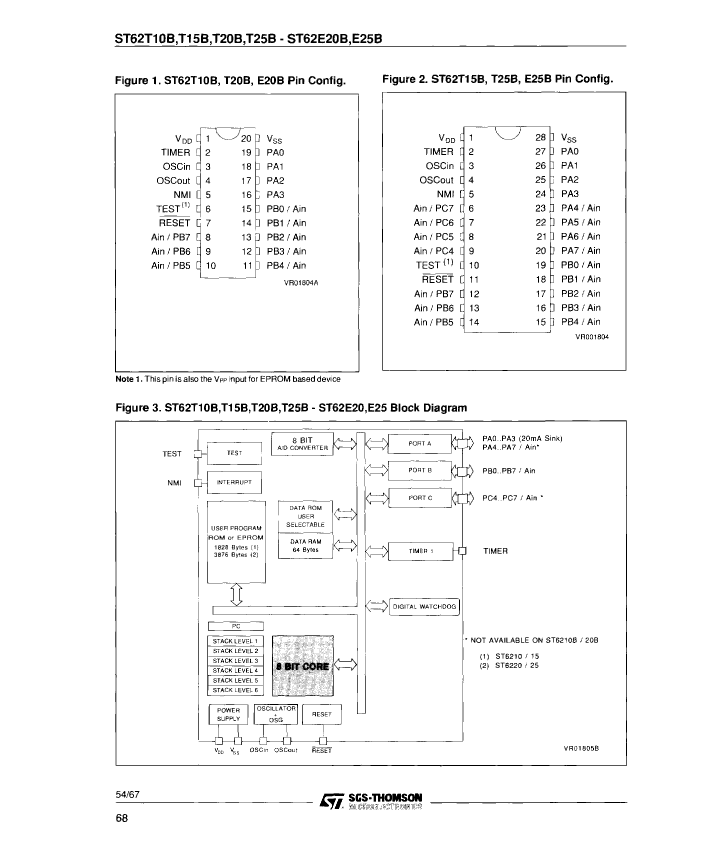

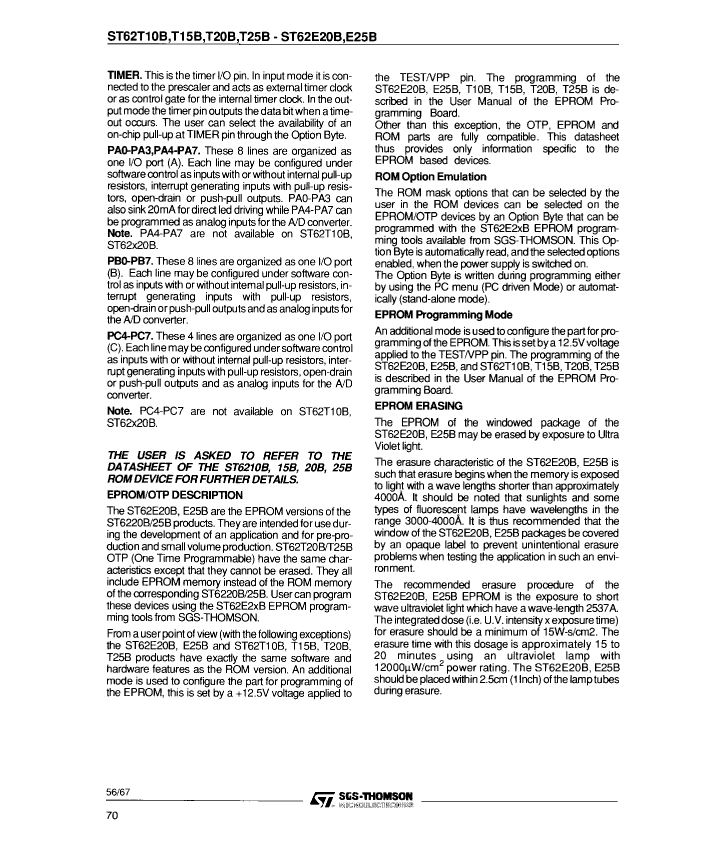

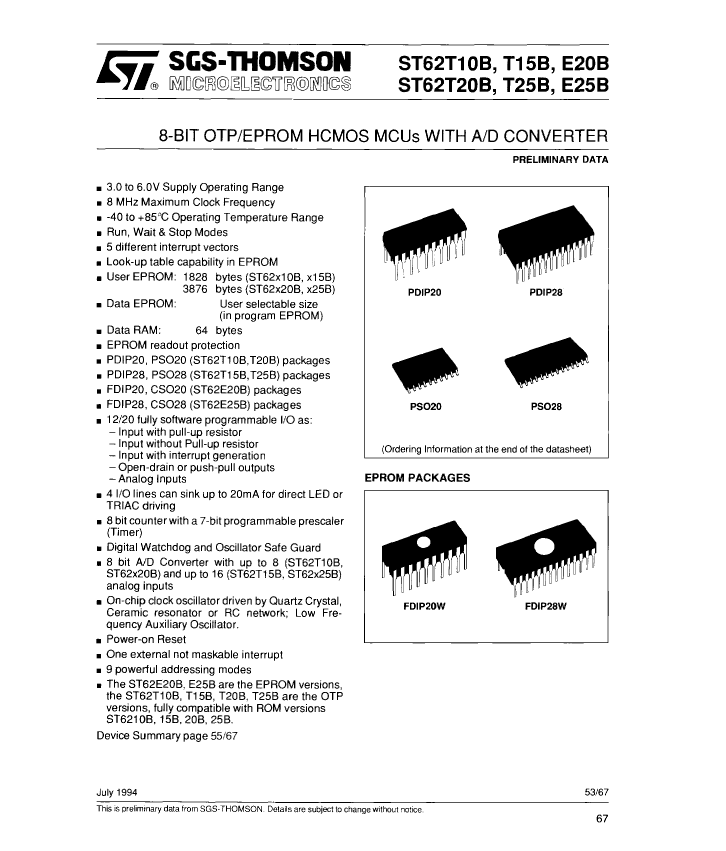

Preview

Download Datasheet

View All

ST62T20BB6 Related Products

	ST62T20BB6	ST62T10BM6	ST62T10BB6	ST62T20BM6	ST62T15BB6	ST62T15BM6	ST62E20BF1	ST62E25BF1
Description	8-BIT, OTPROM, 8MHz, MICROCONTROLLER, PDIP20, PLASTIC, DIP-20	8-BIT, OTPROM, 8MHz, MICROCONTROLLER, PDSO20, PLASTIC, SO-20	8-BIT, OTPROM, 8MHz, MICROCONTROLLER, PDIP20, PLASTIC, DIP-20	8-BIT, OTPROM, 8MHz, MICROCONTROLLER, PDSO20, PLASTIC, SO-20	8-BIT, OTPROM, 8MHz, MICROCONTROLLER, PDIP28, PLASTIC, DIP-28	8-BIT, OTPROM, 8MHz, MICROCONTROLLER, PDSO28, PLASTIC, SO-28	8-BIT, UVPROM, 8MHz, MICROCONTROLLER, CDIP20, 0.300 INCH, FRIT SEALED, WINDOWED, CERAMIC, DIP-20	8-BIT, UVPROM, 8MHz, MICROCONTROLLER, CDIP28, 0.600 INCH, FRIT SEALED, WINDOWED, CERAMIC, DIP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	SOIC	DIP	SOIC	DIP	SOIC	DIP	DIP
package instruction	PLASTIC, DIP-20	PLASTIC, SO-20	PLASTIC, DIP-20	PLASTIC, SO-20	PLASTIC, DIP-28	PLASTIC, SO-28	0.300 INCH, FRIT SEALED, WINDOWED, CERAMIC, DIP-20	0.600 INCH, FRIT SEALED, WINDOWED, CERAMIC, DIP-28
Contacts	20	20	20	20	28	28	20	28
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Has ADC	YES	YES	YES	YES	YES	YES	YES	YES
Other features	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM	3 TO 6 V @ 2 MHZ; EPROM PROTECT; USER SELECTABLE DATA ROM
bit size	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
CPU series	ST6200	ST6200	ST6200	ST6200	ST6200	ST6200	ST6200	ST6200
maximum clock frequency	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T28	R-PDSO-G28	R-GDIP-T20	R-GDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	1	1	1	1	1	1	1	1
Number of I/O lines	12	12	12	12	20	20	12	20
Number of terminals	20	20	20	20	28	28	20	28
Number of timers	1	1	1	1	1	1	1	1
On-chip data RAM width	8	8	8	8	8	8	8	8
On-chip program ROM width	8	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	SOP	DIP	SOP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	SOP20,.4	DIP20,.3	SOP20,.4	DIP28,.6	SOP28,.4	DIP20,.3	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	64	64	64	64	64	64	64	64
RAM (number of words)	64	64	64	64	64	64	64	64
rom(word)	4000	2000	2000	4000	2000	2000	4000	4000
ROM programmability	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM	UVPROM	UVPROM
speed	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
