Suppression Chokes
https://www.schurter.com /PG81_82
DLFL
Linear/Saturating Choke
Approvals and Compliances

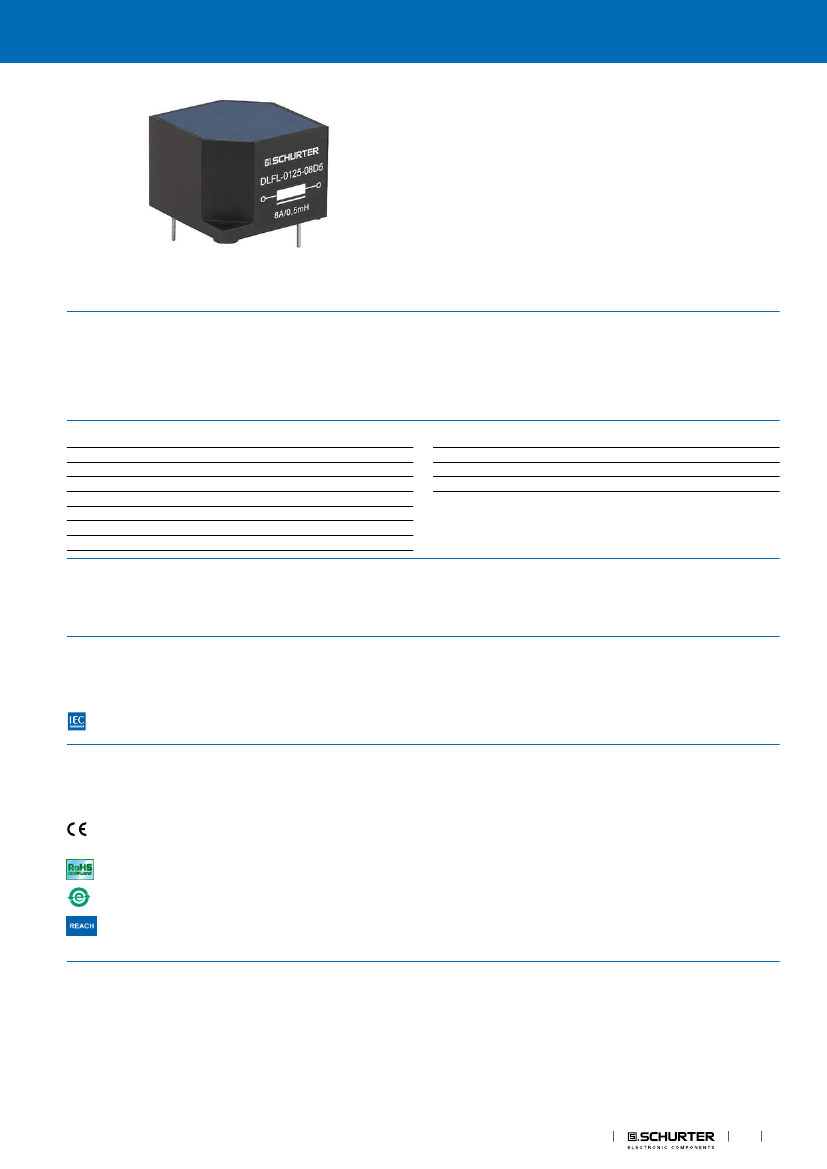

Description
- Linear/saturating choke
- THT-terminals
- Low noise development by using iron powder toroids instead of con-
ventional iron lamination cores
- Flange for mounting onto printed circuit board
- Fully potted resign
Applications
- Phase angle control circuits with thyristors, triacs or transistors
- The choke acts at its optimum when it is mounted directly at the inter-
ference originator (thyristor, triac)
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product
Technical Data
Rated voltage
Rated Current
Power Operating Frequency
Terminal Type
Weight
Material: Housing
Sealing Compound
up to 440 VAC
5 - 45 A @ Ta 45 °C
50 Hz
THT, Flexible wire
144 - 1423 g
UL 94V-0
UL 94V-0
Isolation Voltage
Climatic Category
Allowable Operation Temp.
2 kV eff., winding to ambient
25/100/21 acc. to IEC 60068-1
-25 °C to 100 °C
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
EMC Products

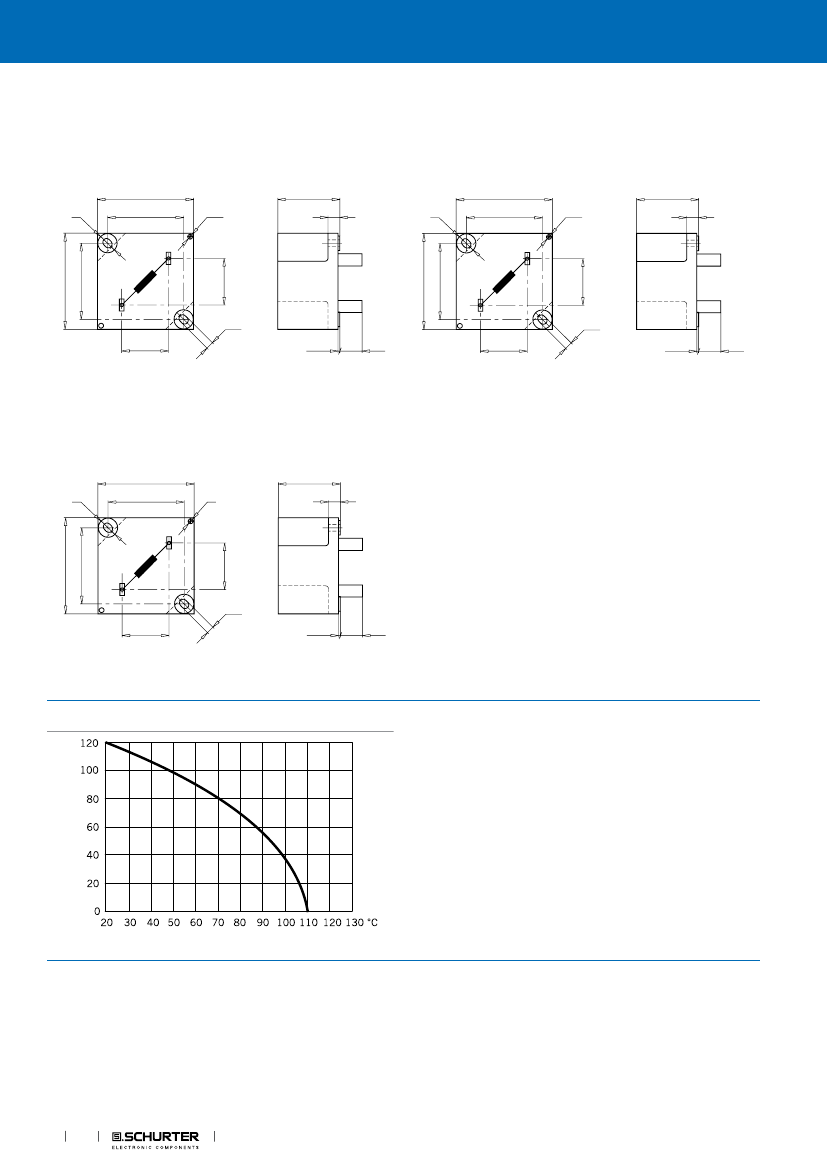

1
Suppression Chokes
https://www.schurter.com /PG81_82
DLFL
All Variants
I
n
[A]
5
8
45
12
16
25
35
L
n
[mH]
1
0.5
0.2
0.5
0.3
0.15
0.05
Inductance
drop max [%]
60
60
70
60
60
60
60
R
cu
[mΩ]
120
54
6
38
25
10
5.3
Tripped Power
Dissipation
3
3.5
12
5.5
6.4
6.3
6.5
f
RES
[MHz]
0.8
1.32
1.1
1.16
1.69
2.5
3.5
Cx [µF]
0.047
0.1
1
0.1
0.22
0.47
1.5
Copper ø
[mm]
1
1.25
5
1.7
1.8
2.36
1.5 x 4.5
Weight [g]
144 g
154 g
1423 g
333 g
325 g
336 g
338 g
Housings
25-P
25-P
32-P
47-P
47-P
47-P
47-P
Packing unit [pcs.]
20
20
2
10
10
10
10
Order Number
DLFL-0125-0501
DLFL-0125-08D5
DLFL-0132-45D2
DLFL-0147-12D5
DLFL-0147-16D3
DLFL-0147-25D2
DLFL-0147-35C5
█
█
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Inductance drop at In
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
3
30.11.2017
