KYL-300H-96: DescriptionKYL-300H High Speed Data RadioModule; File Size687KB，14 Pages; ManufacturerKYL; Websitehttp://www.rf-data.com/

Download Datasheet Compare View All

KYL-300H-96 Overview

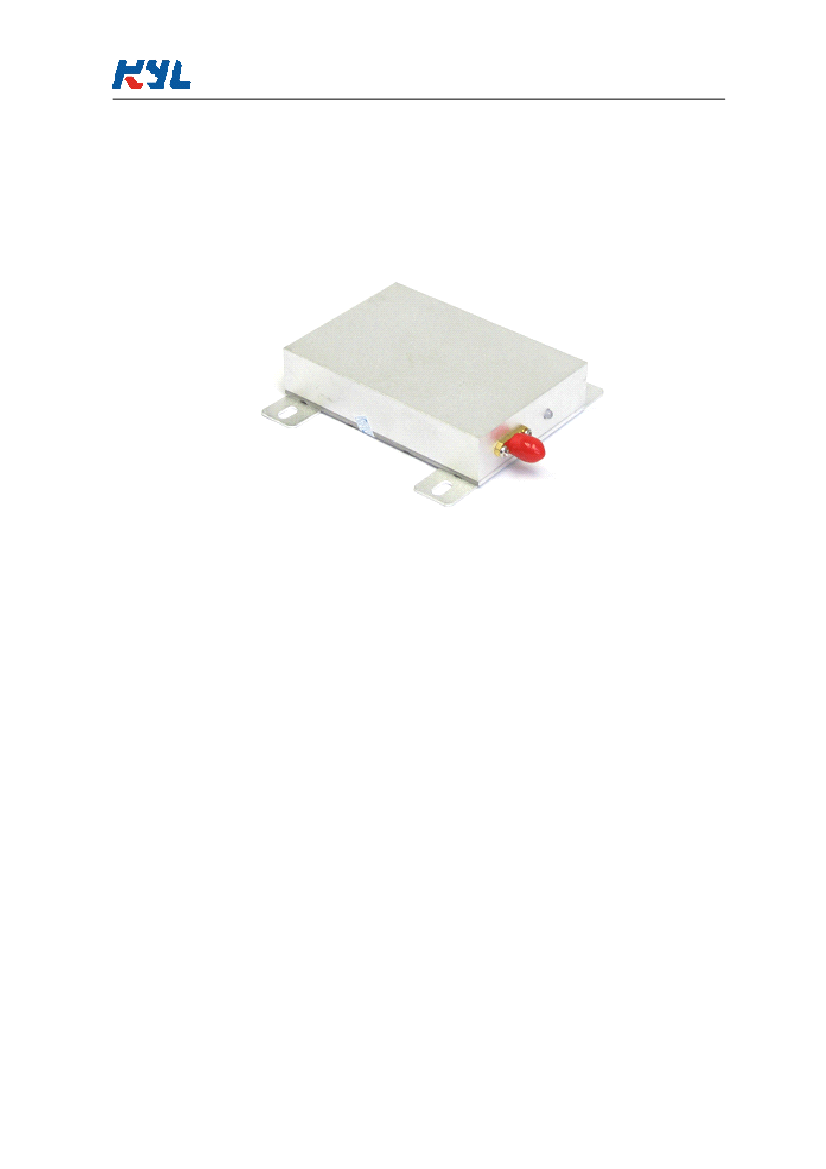

KYL-300H High Speed Data RadioModule

Preview

Download Datasheet

View All

Shenzhen KYL Communication Equipment Co., Ltd

Shenz

Co.

KYL-300H

High Speed Data Radio Module

Shenzhen KYL Communication Equipment Co., Ltd

Address:

Unit 5-7, Building3, Huangdu Square, South of Exhibition Center,Yitian Road,

Futian District, Shenzhen Guangdong China

Tel:

+86-0755-83410815

Fax:

+86-0755-83408785

Skype：lxmlosia

Yahoo messenger: losia2012@yahoo.com

MSN:

kylcom01.com@hotmail.com

E_mail:

sales01@rf-data.com/kyl03losia@gmail.com

Website:

http://www.rf-data.com

Fax: +86-0755-83408785

kyl03losia@gmail.com

www.rf-data.com

Shenzhen KYL Communication Equipment Co., Ltd

Shenz

Co.

I. Features of KYL-300H

1. Low power transmission with 5W, 6W~7W is available if needed.

2. With 433MHz as factory default carrier frequency, but 400-470MHz is available if

needed.

3. High anti- interference and Low BER (Bit error Rate)

Based on the Gaussian Frequency Shift Keying (GFSK) modulation, the high-efficiency

forward error correction channel encoding technology is used to enhance data’s

resistance to both transient interference and random interference and the actual bit error

rate of 10

-5

~ 10

-6

can be achieved when channel bit error rate is 10

-2

4. Long Transmission Distance

Within the visible range, when the height of antenna is higher than 2m and The Bit Error

Rate (BER) is 10

-3

, the reliable transmission distances respectively is 10km @1200bps,

and is 8km@9600bps.

5. Transparent data transmission

Transparent data interface used in transceivers is for meeting many standard or

nonstandard user protocols. Any false data generated in air can be filtrated automatically

(What has been received is exactly what has been transmitted).

6. Multi-channels

KYL-300H transceivers offer 8 channels, if needed, 16 or 32 channels are available to

satisfy various configuration of communication under user’s demand at the same time.

7. 2 ports with three connection methods

KYL-300H transceivers provide 2 ports with three connections, ports: a UART interface

of TTL level, a non-standard RS-232 port and a non-standard RS-485 port.

8. Big data buffer area

With optional interface baud rate: 1200/4800/9600/19200bps and 8N1/8E1/8O1 data

format (set by user), the transceiver can transmit unlimited data frames with flexible user

program.

Note: the RF data rate is only settled down before delivery, please inform our sales when

placing your orders.

9. Intelligent data control and no any extra programs required

Even for half duplex communication, no any excessive programs required. All RF

system data transmission/reception and other On-the-Fly conversion and control are

performed by KYL-300H transceivers automatically.

10. Lower power consumption & Sleep function

With +12V power, the receiving current is less than 30mA, the transmitting current is

less than 1.5A, and the sleeping current is less than 1mA.

11. High reliability, small and light

By using monolithic radio-frequency integrated circuit and single-chip MCU, the

transceivers have less peripheral circuit s, high reliability, and low failure rate.

12. More options of configurable antennas for user different applications.

Fax: +86-0755-83408785

kyl03losia@gmail.com

www.rf-data.com

Shenzhen KYL Communication Equipment Co., Ltd

Shenz

Co.

II. Applications of KYL-300H

KYL-300H Ultra low power data radio module is suitable for:

* AMR Automatic Meter Reading

* Wireless alarm and security systems

* Building automation, security, wireless monitoring and control of room equipment,

Access Control System;

* Wireless data transmission, automatic data collection system;

* Radio modem can be used for Sports training & competition;

* Wireless dishes ordering;

* Wireless POS, PDA wireless smart terminal;

* RF modem can be used for Electronic bus station and intelligent traffic;

* RF transmitter Wireless electronic display screen and queuing machine;

* Wireless telemetry Charging for parking, parking lot;

* Wireless modem Automobile inspection and four-wheel orientation;

* Wireless sensor Industrial wireless remote control and air conditioning remote controller;

* Data communication used for railway, oil field, dock and army.

* LED display in thruway and public places

* Point to multi-point wireless network, wireless on-the-spot bus and automatic data

collection system;

III. How to use KYL-300H

KYL-300H can provides RS-232,RS-485 and TTL level interface port for direct connection

with PC, RS485 devices, monolithic processors. The schematic diagram is shown below:

Power supply

The factory default setting is +12,

±1.2V

DC. By using better ripple factor, KYL-300H

transceivers can also share power supply with other equipment. If possible, a

voltage-stabilizing chip with 12V voltage is more recommended as the only power

supply than Switch power supply. But if only switch power supply available, the jam by

switch pulse to the transceivers should be avoided. In addition, the reliable grounding

must be used if there is other device in the system equipment. In case of failing to

connect with the ground, it can form its own grounding but must be absolutely separated

from the municipal electric supply.

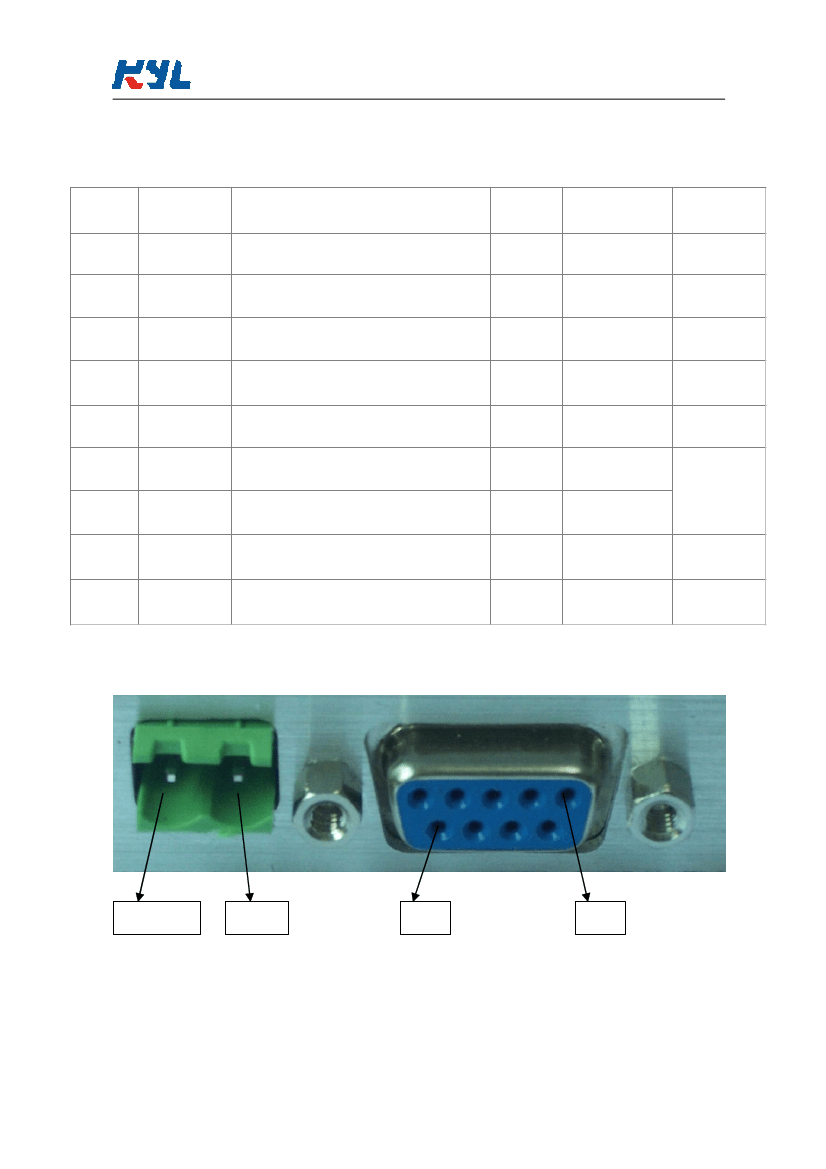

Connection Definition with terminal

Fax: +86-0755-83408785

kyl03losia@gmail.com

www.rf-data.com
