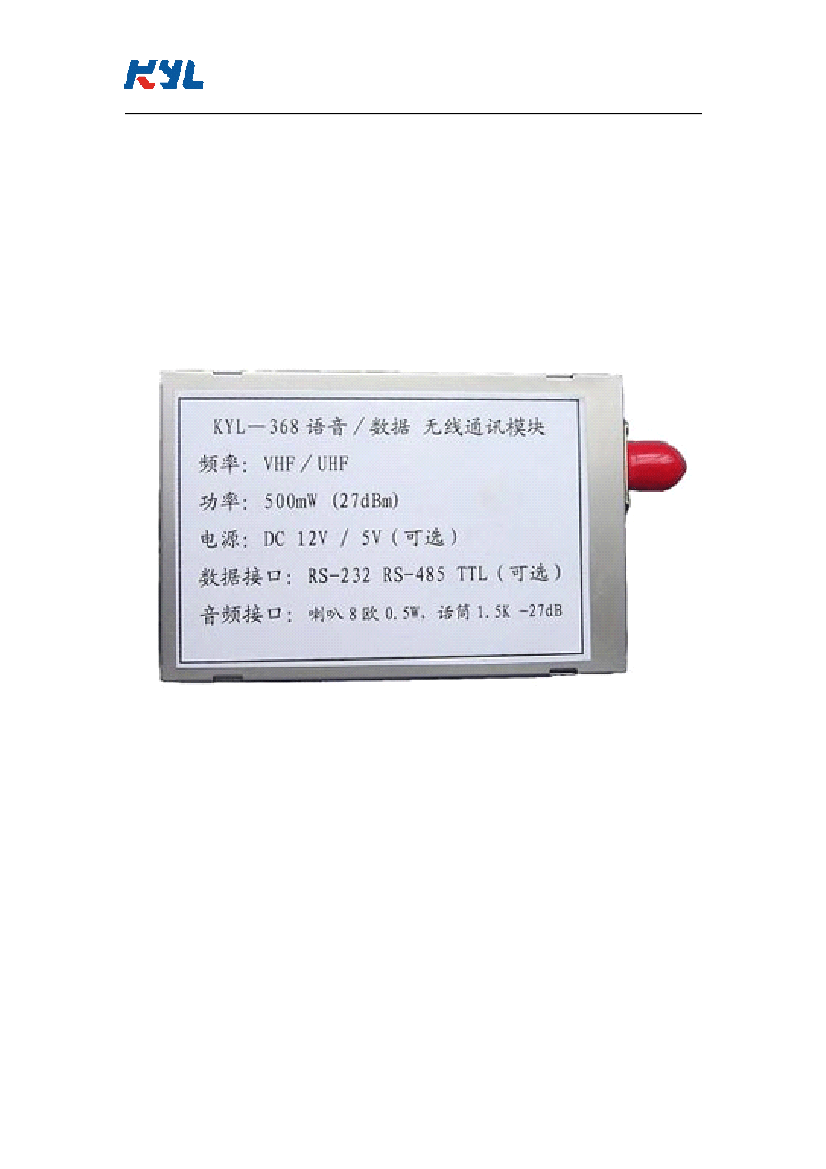

KYL-600L Wireless audio and
Data Radio Module User
Manual
Shenzhen KYL Communication Equipment Co., Ltd
Address:
Unit 5-7, Building3, Huangdu Square, South of Exhibition Center, Yitian Road,
Futian District, Shenzhen Guangdong China
Tel:
+86-0755-83410815
Fax:
+86-0755-83408785
Skype：lxmlosia
Yahoo messenger: losia2012
MSN:
kylcom01.com@hotmail.com
E_mail:
sales01@rf-data.com/ kyl03losia@gmail.com
Website: www.rf-data.com
Fax: +86-0755-83408785
kyl03losia@gmail.com
www.rf-data.com
Shenzhen KYL Communication Equipment Co., Ltd
Shenz
Co.
Before using the product please read the use manual carefully.
Any question in technical, you can contact us.
Tel: +86-755-83410815.
About KYL-600L:
KYL-600L:
KYL-600L, the data radio module adopt double VCO structure, high
stability TXCO, integration RF and so on advanced technique; at the
same time it use the advanced rectify fault arithmetic in software. So
it has high stability and reliability. It is the first equipment for the user
in the field of industry control, water conservancy, electric power, oil
field and so on. This product can provide multiple MODEM
communication protocols so that users have more choice. Of course,
we can design according to users’ demands, or we can provide
technique support and second development for users for free.
1. Specifications:
Operating Voltage: DC 5V
Carrier Frequency:
VHF/UHF
230-400MHz
Interface: standard RS-232/RS-485/TTL Selectable
Baud Rate: 1200/2400/4800bps Selectable
Channel spacing: 25kHz
Frequency stability: ±2.5ppm
Modulation: FFSK;
Channels: 16
Impedance: 50Ω
Transfer distance:3km(BER=10-3@9600bps);
Temperature: -25℃~+65℃
Size: 70x46x12mm(without antenna port)
Weight:180g
2. Receiver:
* Receiving sensibility:
≤0.25μV
(12dB SINAD)
* Signal-to-Noise: ≤-40dB
* Adjacent channel selectivity: ≥70dB
Fax: +86-0755-83408785
kyl03losia@gmail.com
www.rf-data.com
Shenzhen KYL Communication Equipment Co., Ltd
Shenz
Co.
* Intermodulation rejection: ≥65dB
* Clutter and images rejection: ≥70dB
* Receiving current: 50mA
* Audio Output power:
0.5W（8Ω，10％ distortion）
* Receiving distortion:
≤3％
3. Transmitter:
* RF power: ≤500mW
（1W/2W
customized）
* Transmitting current: 300mA
* Modulation: FFSK
* Audio distortion: ≤3%
* Frequency deviation: ±5.0kHz
* Adjacent channel power: ≥70dB
* Transmitter startup time: ≤50m
* Surplus Frequency Modulation: ≤-40dB
* Modulation distortion:
≤3％
* Modulation sensibility:
5mV
* Transmission distance: 3Km
* Volts D.C.: 5V (12V optional)
4. Features about KYL-600L:
KYL-600L:
1) Design based on the special use of the wireless data transmission in
the industrial automatization field.
2) Provide high stability, high reliability and low cost data
transmission.
3) Standard connection: RS-232/485/TTL
Fax: +86-0755-83408785
kyl03losia@gmail.com
www.rf-data.com
Shenzhen KYL Communication Equipment Co., Ltd
Shenz
Co.
4) Facility for installation and maintenance, Flexible networking
configuration, suitable for the field of multiple point but
decentralization and complex geography environment.
5) Metal shell, good shielding performance, providing frequency
passage.
6) Providing many MODEM communication protocols
7) To adapt different user structure, we can develop various size
modules and offer sufficient technology support for client use the
module and second development for free.
5. Size
* Product dimension: 70x46x12mm
* Antenna connection: TNC(SMA) -50Ω
* Interface definition:
Pin
No.
1
2
3
4
5
6
7
8
9
10
Signal
Name
VCC
GND
A(TXD)
B(RXD)
PTT
MIC
SP
SQ
Function
Input power
Grounding of the power
RS-485 A or TXD of
RS-232
RS-485 B or RXD of
RS-232
Level
Connection with
terminal
5V optional
12V
Choose RS-485 or
RS-232
TTL
Low level
transmitt controlling
Input audio
Output audio
Receiveing
Using micphone
of 1-2k
Ω and -27dB
8Ω 0.5
TTL
High level
6. Applications:
* Industrial automatic control and remote control
* Wireless data acquisition and SCADA
Fax: +86-0755-83408785
kyl03losia@gmail.com
www.rf-data.com
Shenzhen KYL Communication Equipment Co., Ltd
Shenz
Co.
* Environment monitoring systems
* AMR Automatic Meter Reading
* Wireless alarm and security systems
* Building automation, security, wireless monitoring and control of
room equipment, Access Control System;
* Wireless data transmission, automatic data collection system;
* Low power telemetry
* Data radio can be used for Wireless conference voting system;
* Mapping;
* Radio modem can be used for Sports training & competition;
* Wireless dishes ordering;
* Wireless POS, PDA wireless smart terminal;
* RF modem can be used for Electronic bus station and intelligent
traffic;
* RF transmitter Wireless electronic display screen and queuing
machine;
* Wireless telemetry Charging for parking, parking lot;
* Wireless modem Automobile inspection and four-wheel orientation;
* Wireless sensor Industrial wireless remote control and air
conditioning remote controller;
* Data communication used for railway, oil field, dock and army.
* LED display in thruway and public places
* Point to multi-point wireless network, wireless on-the-spot bus and
automatic data collection system;
7. The installing schematic
8.
