KYL-813 wireless ON-OFF input and output module is a wireless
transmission equipment with four 2-channel DI and 2-channel relay DO.
I. Function
2 channel ON-OFF DI and DO transmitting timely. The 2 channel
switching condition for the transmitting equipment can be output
timely at the receiver equipment. That is the switching condition for
the transmitting equipment is shut down, while the switching condition
will be shut down at the receiver equipment; and the transmitting
equipment is disconnect, while the receiver equipment will disconnect.
The following is the schematic diagram of the ON-OFF transmission.
Schematic diagram
II Feature:
II、Feature:
1、
2、
3、
2-channel coupler isolated inputs, high reliability and stability.
2-channel relay dry contact output, contact current is 30V 1A.
collocate wireless data transmission module with 2-3km.
Working frequency 433MHz(400-470MHz);
Fax: +86-0755-83408785
kyl03losia@gmail.com
www.rf-data.com
Shenzhen KYL Communication Equipment Co., Ltd
Shenz
Co.
RF power: 500mW;
Receive sensitivity: -123dBm
4、
5、
6、
Receive current: 30mA; transmitting current: 300mA
Power supply: DC 12V

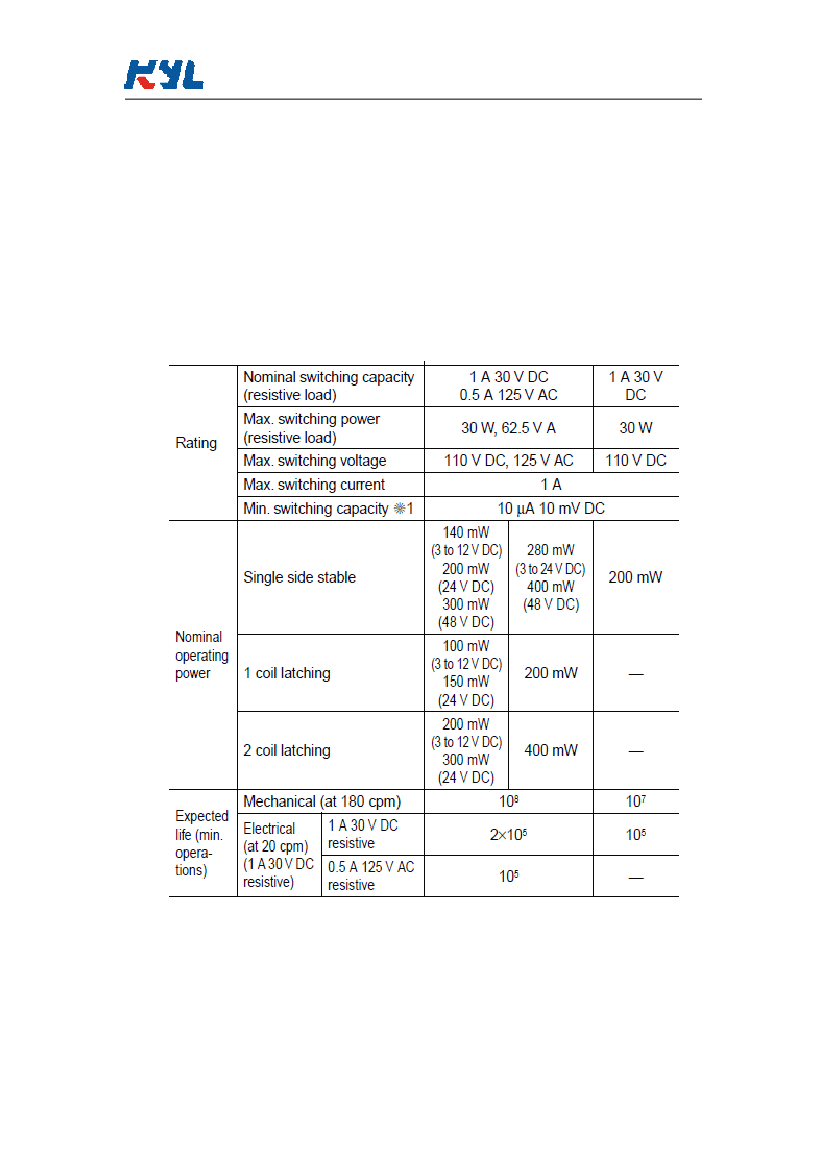

Feature of the output contact as below follows: (the parameters
of the relay inside):
Fax: +86-0755-83408785
kyl03losia@gmail.com
www.rf-data.com
Shenzhen KYL Communication Equipment Co., Ltd
Shenz
Co.
III.

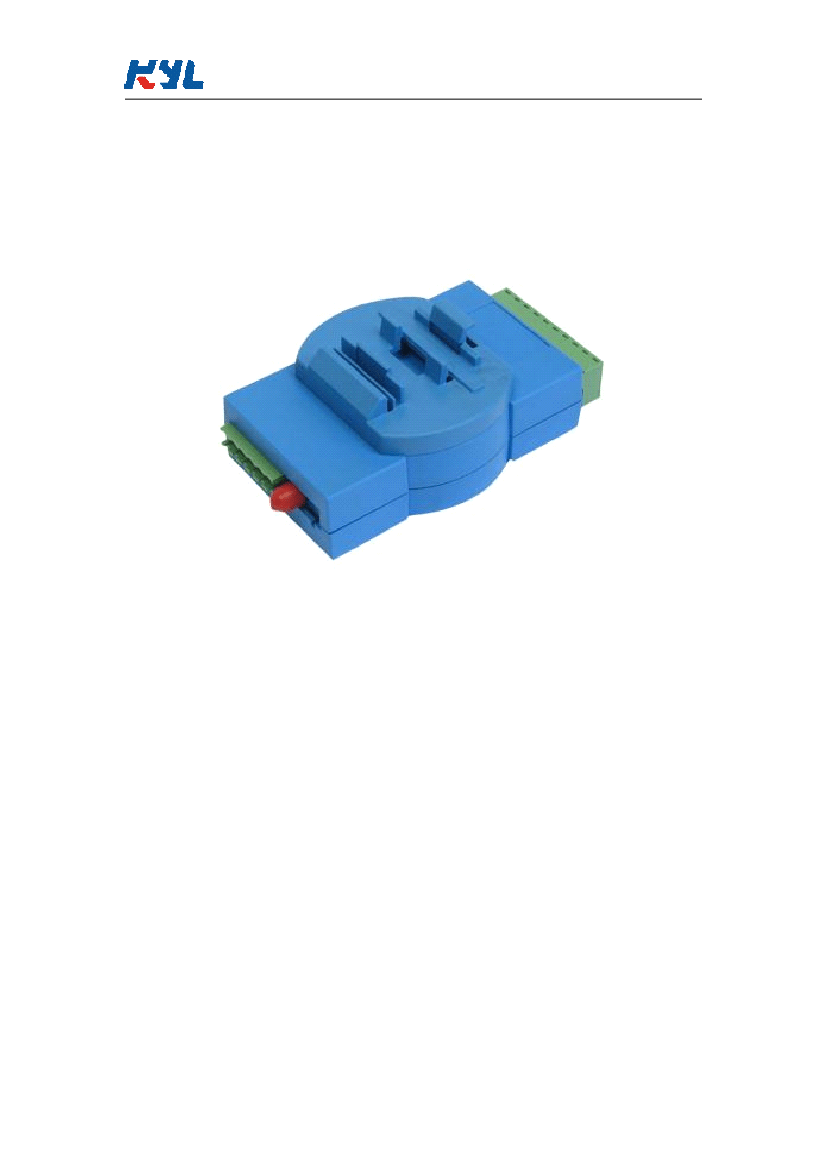

Exterior sketch map
III.
VI. Connection Definition
Connection name
CN1
1
2
3
４
５
6
7
8
9
10
CN2
1
2
3
RXD
TXD
GND
Receiving data
Transmitting data
Ground of the signal
kyl03losia@gmail.com
www.rf-data.com
Pin No.
VCC
GND
GND
INT1
GND
INT2
OUT1A
OUT1B
OUT2A
OUT2B
Definition
DC 12V (9-15V)
Power supply
Remarks
Ａand
First channel relay output
When the relay shutting，
Ｂconnected
A contact
First channel relay output
B contact
Ａand
Second channel relay
When the relay shutting，
Ｂconnected
output A contact
Second channel relay
output B contact
Enter the setting mode for the
module, and the function of the
interface will be effective
Fax: +86-0755-83408785
Shenzhen KYL Communication Equipment Co., Ltd
Shenz
Co.
4
5
GND
PRO SET
Ground of the signal
Programme controlling
Programme controlling
，
low
level.Connect
the
signal
ground, then will enter the
programme controlling mode
6
ANT
NC
ANT
Antenna port
Fax: +86-0755-83408785
kyl03losia@gmail.com
www.rf-data.com
