P6KE6.8(C)A THRU P6KE440(C)A
Stand - Off Voltage - 6.8 to 440 Volts
TRANSIENT VOLTAGE SUPPRESSOR
Peak Pulse Power - 600 Watt
FEATURES
●
●
●
●
●
Glass Passivated Die Construction
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
DO-15
High Temperat Soldering Guaranteed : 265 C/10 sec/.375."
(9.5mm) Lead Length, 51bs., (2.3kg) Tension
1.0 (25.4)
MIN.
0.140(3.6)
0.104(2.6)
DIA.
MECHANICAL DATA
●
●
●
●
●
Case:
JEDEC DO-15 molded Plastic
Terminals:
Axial Leads, Solderable
per MIL-STD-750, Method 2026
Polarity: Cathode Band Except Bi-Directional
Marking:
Any
Weight:
0.4grams(approx), 0.015ounce
0.300(7.6)
0.230(5.8)
1.0 (25.4)
MIN.
0.034(0.9)
0.028(0.7)
DIA.
Dimensions in inches and (millimeters)
“C” Suffix Designates Bi-directional Devices
“A” Suffix Designates 5% Tolerance Devices
No Suffix Designates 10% Tolerance Devices
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Pulse Power Dissipation 10/1000µS Waveform (Note 1, 2) Figure 3
Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 4
Peak Forward Surge Current 8.3ms Single Half Sine-Wave
Superimposed on Rated Load (JEDEC Method) (Note 2, 3)
Operating and Storage Temperature Range
@T
A
=25°C unless otherwise specified
Symbol
P
PPM
I
PPM
I
FSM
T
j
, T
STG
Value
600 Minimum
See Table 1
100
-55 to +175
Unit
W
A
A
°C
Note: 1. Non-repetitive current pulse per Figure 4 and derated above T
A
= 25°C per Figure 1.
2. Mounted on 5.0mm
2
(0.013mm thick) land area.
3. Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minutes maximum.
P6KE6.8(C)A THRU P6KE440(C)A
Stand - Off Voltage - 6.8 to 440 Volts
TRANSIENT VOLTAGE SUPPRESSOR
Peak Pulse Power - 600 Watt
Electrical Characteristics
PART NUMBER
UNI-POLAR
P6KE6.8A
P6KE7.5A
P6KE8.2A
P6KE9.1A
P6KE10A
P6KE11A
P6KE12A
P6KE13A
P6KE15A
P6KE16A
P6KE18A
P6KE20A
P6KE22A
P6KE24A
P6KE27A
P6KE30A
P6KE33A
P6KE36A
P6KE39A
P6KE43A
P6KE47A
P6KE51A
P6KE56A
P6KE62A
P6KE68A
P6KE75A
P6KE82A
P6KE91A
P6KE100A
P6KE110A
P6KE120A
P6KE130A
P6KE150A
P6KE160A
P6KE170A
P6KE180A
P6KE200A
P6KE220A
P6KE250A
P6KE300A
P6KE350A
P6KE400A
P6KE440A
BI-POLAR
P6KE6.8CA
P6KE7.5CA
P6KE8.2CA
P6KE9.1CA
P6KE10CA
P6KE11CA
P6KE12CA
P6KE13CA
P6KE15CA
P6KE16CA
P6KE18CA
P6KE20CA
P6KE22CA
P6KE24CA
P6KE27CA
P6KE30CA
P6KE33CA
P6KE36CA
P6KE39CA
P6KE43CA
P6KE47CA
P6KE51CA
P6KE56CA
P6KE62CA
P6KE68CA
P6KE75CA
P6KE82CA
P6KE91CA
P6KE100CA
P6KE110CA
P6KE120CA
P6KE130CA
P6KE150CA
P6KE160CA
P6KE170CA
P6KE180CA
P6KE200CA
P6KE220CA
P6KE250CA
P6KE300CA
P6KE350CA
P6KE400CA
P6KE440CA
P6KE
REVERSE
BREAKDOWNBREAKDOWN
PEAK
MAXIMUM
TEST
STAND- OFF
VOLTAGE
VOLTAGE
PULSE
CLAMPING
CURRENT
V
BR
(V)
V
BR
(V)
VOLTAGE
VOLTAGE CURRENT
I
T
(mA)
V
RWM
(V)
Ipp(A)
@Ipp Vc(V)
MIN.@I
T
MAX.@I
T
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47.80
53.00
58.10
64.10
70.10
77.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
342.00
376.00
6.45
7.13
7.79
8.65
9.50
10.50
11.40
12.40
14.30
15.20
17.10
19.00
20.90
22.80
25.70
28.50
31.40
34.20
37.10
40.90
44.70
48.50
53.20
58.90
64.60
71.30
77.90
86.50
95.00
105.00
114.00
124.00
143.00
152.00
162.00
171.00
190.00
209.00
237.00
285.00
332.00
380.00
418.00
7.14
7.88
8.61
9.55
10.50
11.60
12.60
13.70
15.80
16.80
18.90
21.00
23.10
25.20
28.40
31.50
34.70
37.80
41.00
45.20
49.40
53.60
58.80
65.10
71.40
78.80
86.10
95.50
105.00
116.00
126.00
137.00
158.00
168.00
179.00
189.00
210.00
231.00
263.00
315.00
368.00
420.00
462.00
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77.0
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
602.0
58.1
54.0
50.4
45.5
42.1
39.1
36.5
33.5
28.8
27.1
24.2
22.0
19.9
18.4
16.3
14.7
13.3
12.2
11.3
10.3
9.4
8.7
7.9
7.2
6.6
5.9
5.4
4.9
4.5
4.0
3.7
3.4
2.9
2.8
2.6
2.5
2.2
1.9
1.8
1.5
1.3
1.1
1.0
REVERSE
LEAKAGE
@V
RWM
I
R
(µA)
1000
500
200
50
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5

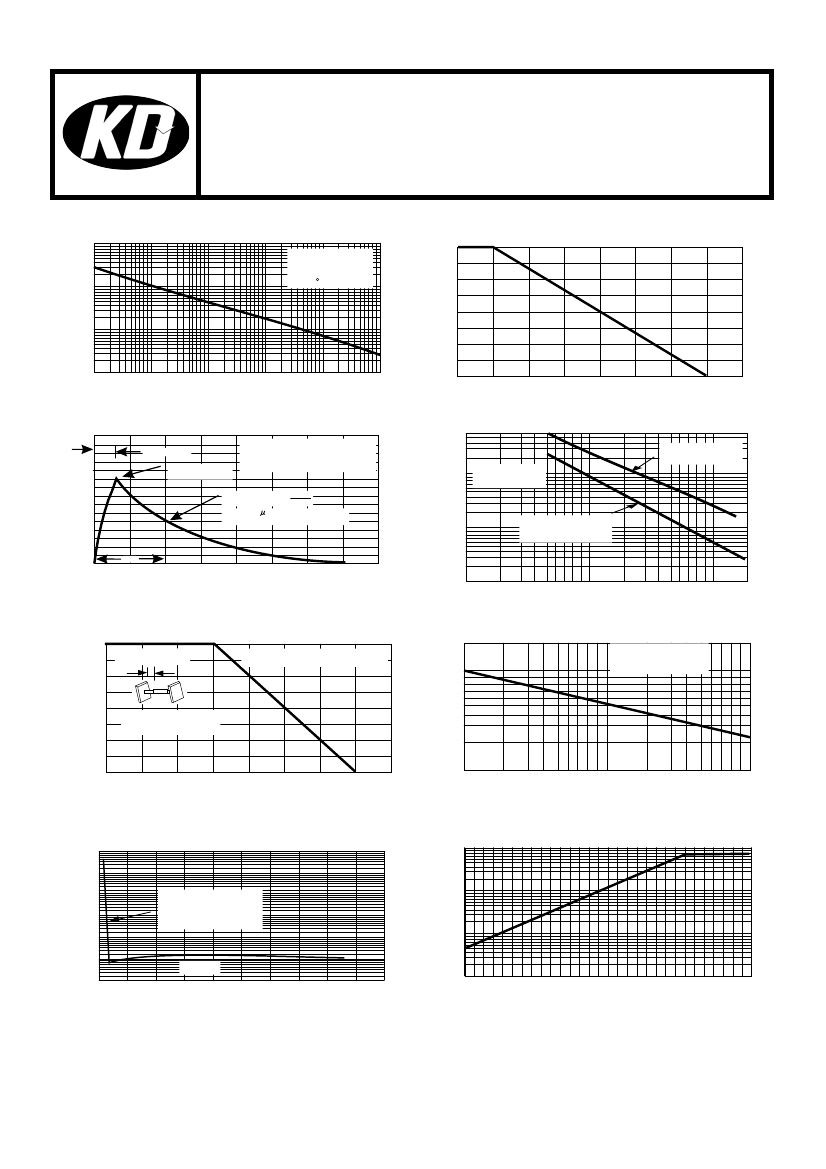

P6KE6.8(C)A THRU P6KE440(C)A
RATINGS AND CHARACTERISTIC CURVES
P
PPM
, PEAK PULSE POWER, (KW)
100
NON-REPETITIVE
PULSE WAVEFORM
SHOWN in FIG.3
T
A
=25 C
PEAK PULSE POWER (Ppp) or CURRENT (
IPPM
)
DERATING IN PERCENTAGE, %
FIG.1- PEAK PULSE POWER RATING CURVE
FIG.2- PULSE DERATING CURVE
100
10
75
50
1.0
25
0.1
0.1 s
s
s
s
1.0ms
10ms
0
t
d
,
PULSE WIDTH, (sec).
0
25
50
75
100
125
o
150
175
200
T
A,
AMBIENT TEMPERATURE, ( C)
FIG.3- PULSE WAVEFORM
PEAK PULSE CURRENT - %
tr=10
u
sec.
PULSE WIDTH (td) is DEFINED
as the POINT WHERE the PEAK
CURRENT DECAYS
to 50% of l
PPM
C
J
, JUNCTION CAPACITANCE.(pF)
150
6,000
FIG.4- TYPICAL JUNCTION CAPACITANCE
UNIDIRECTIONAL
MEASURED at
ZERO BIAS
100
PEAK VALUE
l
PPM
50
HALF VALUE- l
PPM
2
10/1000 sec. WAVEFORM
as DEFINED by R.E.A.
1,000
Tj=25 C
f=1.0MHz
Vsig=50mVp-p
o
o
o
MEASURED at
STAND-OFF
VOLTAGE, V
WM
0
td
0
1.0
2.0
t, TIME, ms
3.0
4.0
100
1.0
10
V
(BR)
, BREAKDOWN VOLTAGE. (VOLTS)
100
200
PM
(AV)
, STEADY STATE POWER DISSIPATION,
(W ATTS)
5.0
L=0.375"(9.5mm)
LEAD LENGTHS
60Hz
RESISTIVE OR INDUCTIVE LOAD
l
FSM
, PEAK FORWARD SURGE CURRENT,
(AMPERES)
FIG.5- STEADY STATE POWER DERATING CURVE
200
100
FIG.6- MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT UNIDIRECTIONAL ONLY
Tj=Tj max
8.3ms Single Half Sine Wave
(JEDEC Method)
3.75
2.5
1.6 X 1.6 X .040"
(40 X 40 X 1mm.)
COPPER HEAT SINKS
1.25
0
0
25
50
75
100
125
o
150
175
200
10
1
10
NUMBER OF CYCLES AT 60Hz
100
TL, LEAD TEMPERATURE, ( C)
l
D
, INSTANTANEOUS REVERSE LEAKAGE
CURRENT, (MICROAMPERES)
FIG.7- TYPICAL REVERSE LEAKAGE CHARACTERASTICS
TRANSIENT THERMAL IMPEDANCE
( C/W)
100
FIG.8 - TYP. TRANSIENT THERMAL IMPEDANCE
1,000
100
10
1
0.1
0.01
0
100
MEASURED AT DEVICES
STAND-OFF
VOLTAGE, V
WM
o
T
A
=25 C
10
o
1
TA=25 C
200
300
400
500
o
0.001
0.1
0
0.2
0.4
0.6
0.8
1
1.2
V
(BR)
, BREAKDOWN VOLTAGE. (VOLTS)
tp
-PULSE DURATION(SEC)
