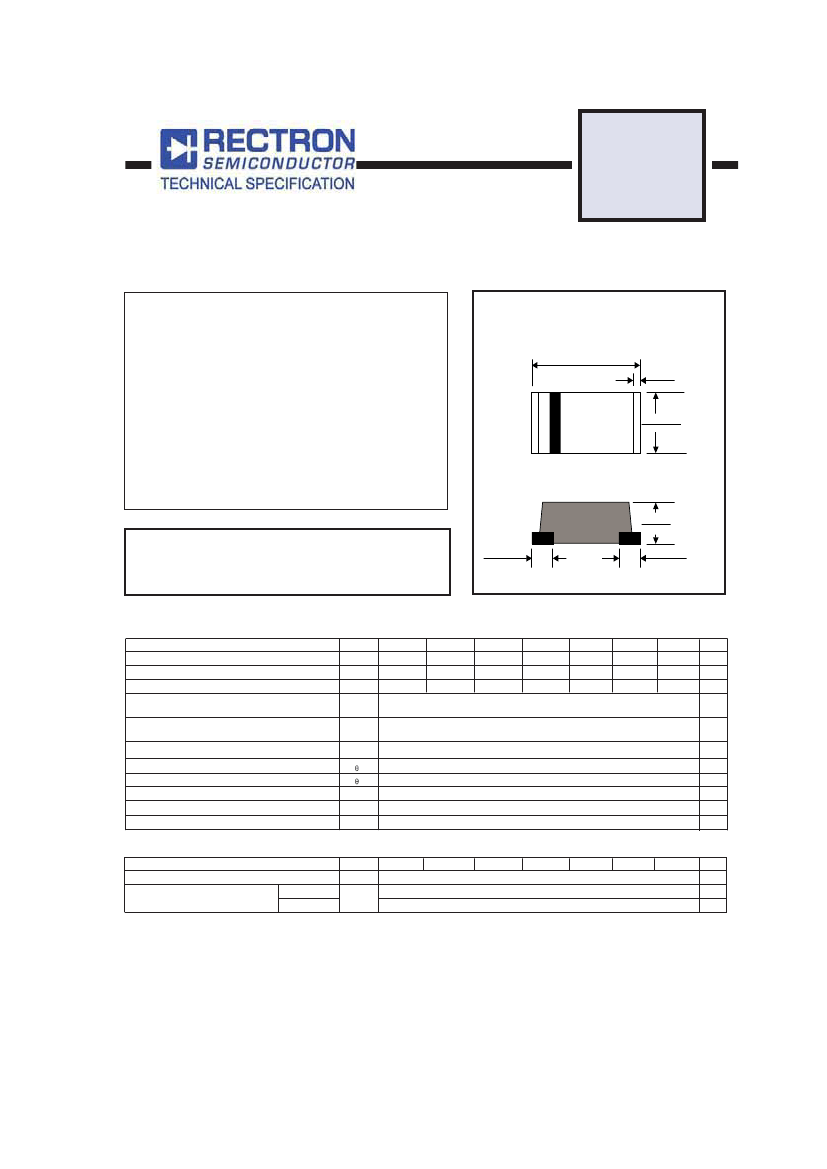

VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere
SURFACE MOUNT
GLASS PASSIVATED SILICON RECTIFIER
FM4001WS
THRU
FM4007WS
FEATURES
*
*
*
*
*
*
*
Glass passivated device
Ideal for surface mounted applications
Low leakage current
Metallurgically bonded construction
Mounting position: Any
P/N suffix V means AEC-Q101 qualified, e.g:FM4007WV
P/N suffix V means Halogen-free
SOD-323F
0.106 (2.7)
0.091 (2.3)
0.012(0.3) Typ.
0.057 (1.45)
0.041 (1.05)
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
0.047 (1.2)
0.031 (0.8)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
resistive or inductive load.
0.016(0.4) Typ.
0.016(0.4) Typ.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at Ambient Temperature
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Current Squarad Time
Typical Thermal Resistance (Note 1)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Temperature Range
Storage Temperature Range
SYMBOL
FM4001WS
V
RRM
V
RMS
V
DC
I
O
I
FSM
I
2
t
R
JA
R
JC
C
J
T
J
T
STG
50
35
50
FM4002WS
FM4003WS
FM4004WS
FM4005WS FM4006WS FM4007WS
UNITS
100
70
100
200
140
200
400
280
400
1.0
15
0.93
80
50
10
-55 to + 150
-65 to + 175
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amps
Amps
A
2
Sec
0
0
C/W
C/W
pF
0
0
C
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 1.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25
o
C
@T
A
= 150
o
C
SYMBOL
FM4001WS
V
F
I
R
FM4002WS
FM4003WS
FM4004WS
FM4005WS FM4006WS FM4007WS
UNITS
1.1
5.0
1.0
Volts
uA
mA
2019-04/66
REV:C
NOTES : 1. Thermal Resistance :Mounted on PCB.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.

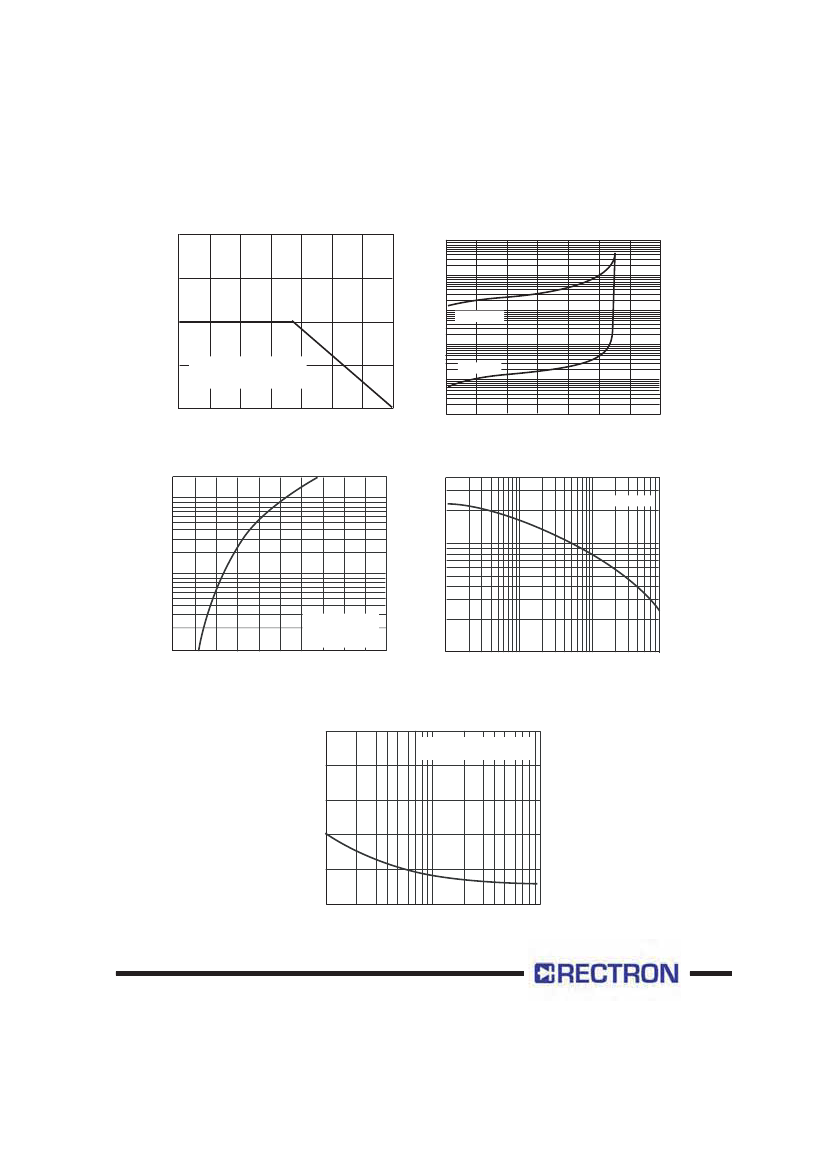

RATING AND CHARACTERISTICS CURVES ( FM4001WS THRU FM4007WS )
INSTANTANEOUS FORWARD CURRENT, (
μ
A)
2.0
AVERAGE FORWARD CURRENT, (A)
10000
1.5
1000
100
1.0
T
A
= 150
O
C
10
T
A
= 25
O
C
0.5
Single Phase Half Wave 60Hz
Resistive or Inductive Load
0.375" (9.5mm) Lead Length
1.0
0
0
25
50
75
100
O
125
150
175
0.1
0
20
40
60
80
100
120
140
Lead Temperature ( C)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
20
INSTANTANEOUS REVERSE CURRENT, (A)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
FIG.2 MAXIMUM REVERSE
CHARACTERISTICS
C
J
, JUNCTION CAPACITANCE, (pF)
40
20
10
8
6
4
2
1
T
J
= 25
O
C
10
1.0
T
J
= 25
O
C
Pulse width=300μS
1% Duty Cycle
0.1
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0.1
0.4
1.0
4
10
40 80
INSTANTANEOUS FORWARD VOLTAGE, (V)
REVERSE VOLTAGE, (V)
FIG.3 MAXIMUM INSTANTANEOUS FORWARD
CHARACTERISTICS
PEAK FORWARD SURGE CURRENT, (A)
FIG.4 TYPICAL JUNCTION CAPACITANCE
30
8.3mS Single Half Sine-Wave
JEDEC Method
25
20
15
10
0
1
2
4
6
8 10
20
40
80 100
NUMBER OF CYCLES AT 60Hz
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
