SOLID STATE RELAY
MAXIMUM LOAD CURRENT 1.5 A / 2A
SE SERIES
n
FEATURES
l
RoHS compliant
Conforms to UL, CSA standards
l

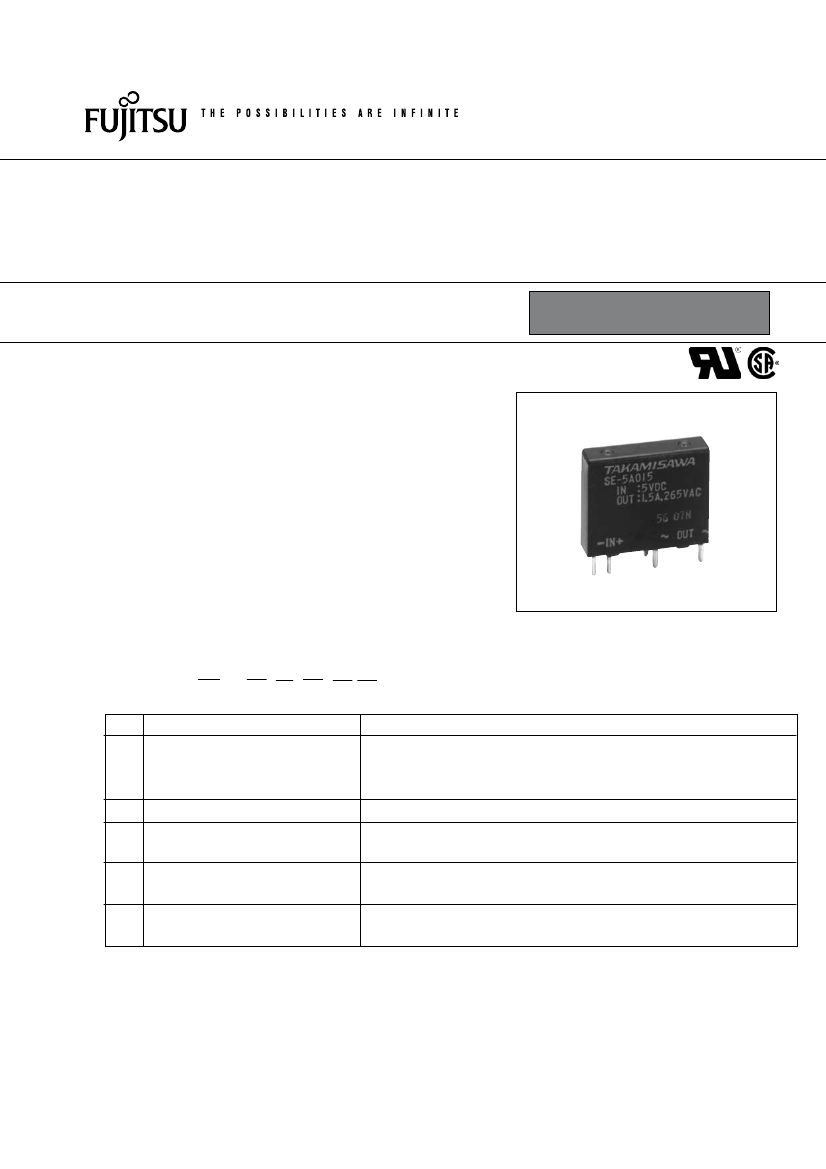

Ultra slim and light weight, SIL terminals type
Size: 5.0 (W) × 20.0 (L) × 17.0 (H)mm
—
Weight: approximately 4.0 g
—
l
High reliability, long life and maintenance free
l
High isolation (between input and output)
Dielectric strength: 2,500 Vrms
—
l
Internal zero cross circuit type available
RoHS compliant since date code: 6522 (May 22nd, 2006)
Please see page 5 for more information
l
n
ORDERING INFORMATION
[Example]
(a)
(b)
(c)
(d)
(e)
(f)
SE – 12 A 02 V F
(a) (b) (c) (d) (e) (f)
SE : SE Series
3: 3 VDC
5: 5 VDC
12: 12 VDC
24: 24 VDC
A
: AC type
015 : 1.5 A
02 : 2.0 A
Nil: No varistor
V
: Varistor type (2.0A type only)
F: No zero cross type
C: ero cross type
Z
Series Name
Nominal Voltage (Input side)
Load Voltage
Load Current
Output Protection
Zero Cross Circuit
1
SE SERIES
n
SPECIFICATIONS
INPUT
side
Item
Nominal Voltage (DC)
Operate Range
Must Operate Voltage
AC 1.5 A
no zero
zero cross
cross
3 V, 5 V, 12 V, 24 V
±
20% of nominal voltage
80% of nominal voltage
130Ω 180Ω
±10%
±10%
±10%
±10%
no zero
cross
AC 2.0 A
zero cross
Remarks
Must Release Voltage
Minimum 1 VDC
3 VDC Type
130Ω 180Ω
OUTPUT
side
5 VDC Type
330Ω 470Ω 330Ω 470Ω
Input Impedance
12 VDC Type
1.0 kΩ 1.5 kΩ 1.0 kΩ 1.5 kΩ
24 VDC Type
Load Voltage Range
Maximum Load Current
Minimum Load Current
1 Cycle Surge Current
2.2 kΩ 3.0 kΩ 2.2 kΩ 3.0 kΩ
AC 24 to 265V rns
1.5 Arms
10 mArms
50 A (60 Hz 1 cycle)
0.5 mA rms
1.0 mA rms
1.0 mA rms
2.0 mA rms
1/2 cycle +
max.1 ms
2.0 Arms
see CHARACTERISTIC DATA
Max. Off-State Leakage Current
(at 100 V rms 60 Hz)
(at 200 V rms 60 Hz)
Max. On-State Voltage Drop
1.2 V rms
1 ms
1.3 V rms at maximum load current
Maximum Operate Time
Maximum Release Time
Operating Temperature Range
Storage Temperature Range
Case Color
Weight
1/2 cycle +
1 ms
max.1 ms
1/2 cycle +1ms max.
–30°C to + 85°C
–40°C to +100°C
Black
Approximately 3.5 g 5.1 g
n
INSULATION
Item
Resistance (initial)
Surge Voltage
AC 1.5A type
2,500V rms 1min.
AC 2.0A type
Note
Input - Output
Minimum 1,000 MΩ (500VDC)
2
SE SERIES
n
BLOCK DIAGRAM
LOAD
INSULATIONCIRCUITS
Input/Output waveform
(resistive load)
Source voltage
of load
ON
Input signal
OFF
Load current
AC
Photo-triac
coupler
*: only 2A type had varistor
n

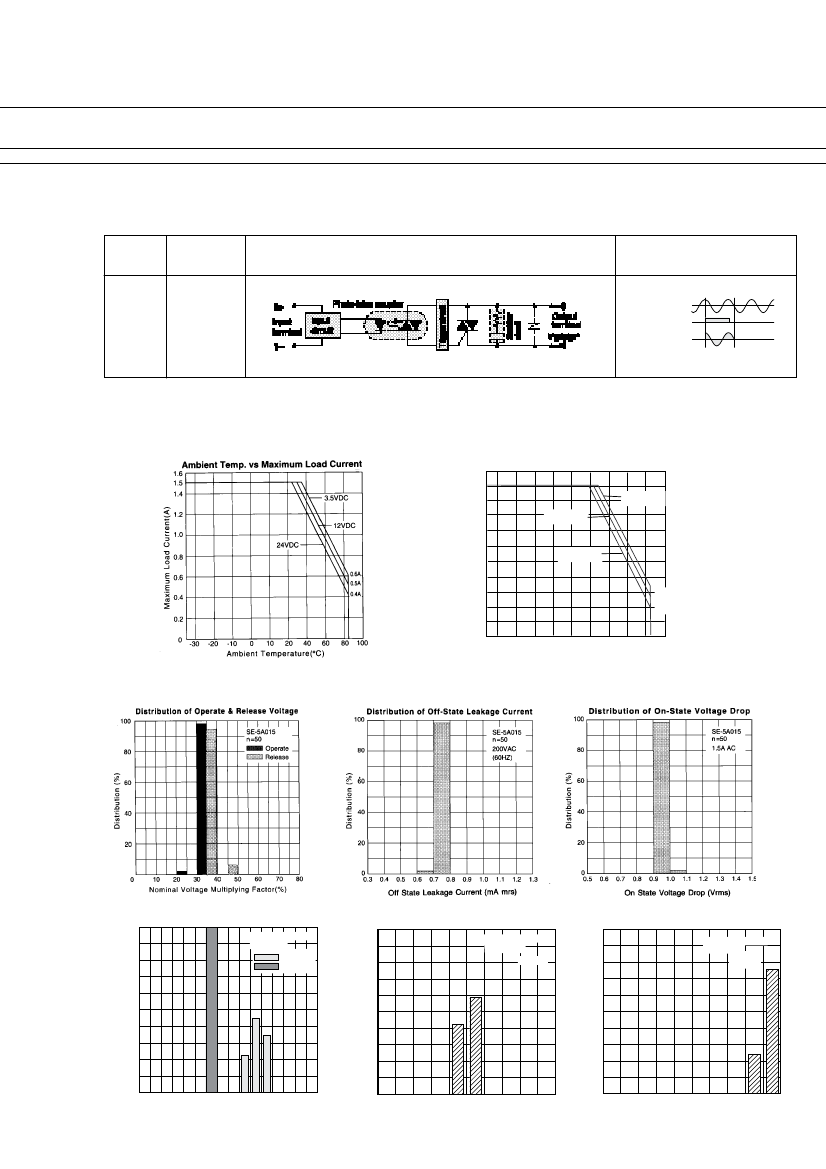

CHARACTERISTIC DATA
SE-( )A015 type (1.5 A type)
SE-( )A02 type (2.0A type)
Ambient Temperature vs. Maximum Load Current
Maximum Load Current (A)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
-30 -20 -10
0
10
20
40 60
3.5 VDC
12 VDC
24 VDC
0.6A
0.5A
0.4A
80 100
Ambient Temperature (ºC)
n
REFERENCE DATA
Distribution of Operate and Release Voltage
100
SE-5A02VF
n=50
80
100
Distribution of ON-State Voltage Drop
SE-5A02VF
n=50
AC 2.0 A
Distribution of OFF-State Leakage Current
100
SE-5A02VF
n=50
AC 200 V
(60 Hz)
Operate
Release
80
80
60
Distribution (%)
Distribution (%)
Distribution(%)
60
60
40
40
40
20
20
20
0
0
10
20
30
40
50
60
70
80
0
0.5 0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
0
0.3 0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
Nominal Voltage Multiplying Factor (%)
ON State Voltage Drop (Vrms)
OFF State Leakage Current (mA mrs)
3
SE SERIES
n

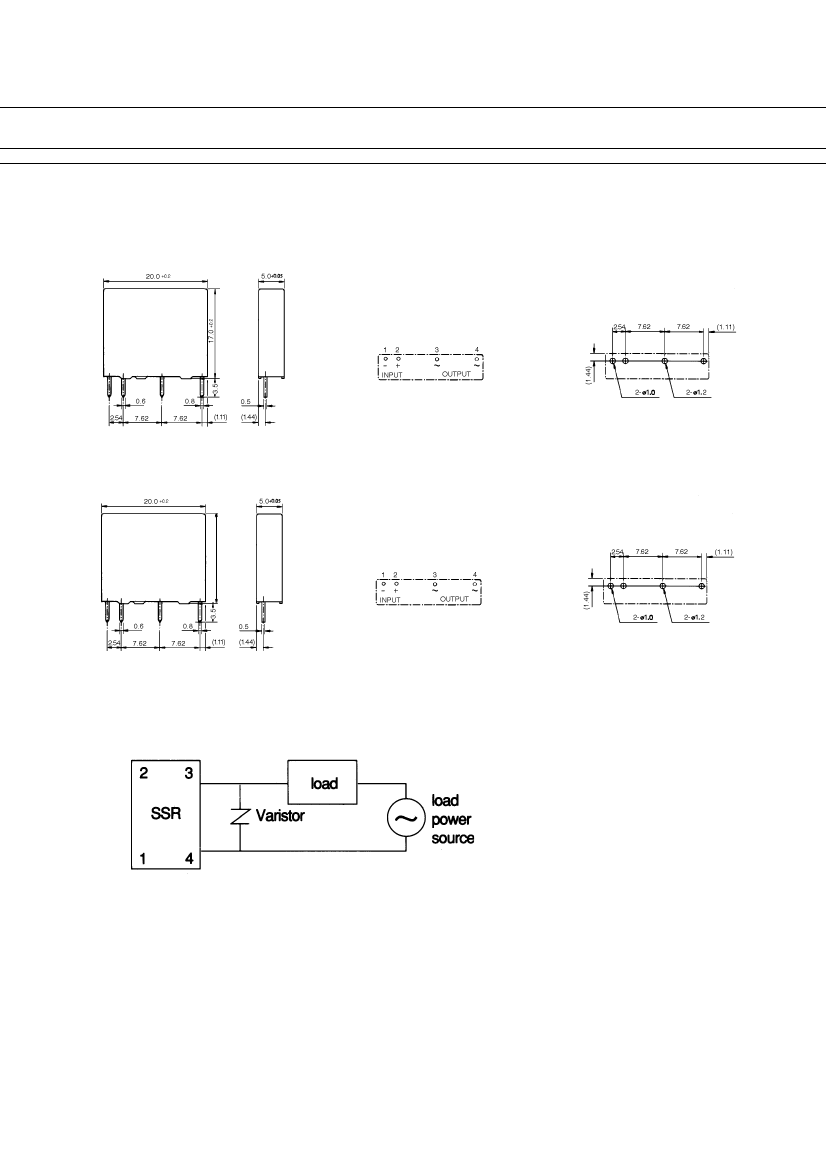

DIMENSIONS
l
Dimensions
SE- ( ) A015 type
l
Schematics
(BOTTOM VIEW)
l
PC board mounting hole
layout
(BOTTOM VIEW)
SE- ( ) A02 type
Unit: mm
n
NOTES
When large noise and surge are impressed on the load side, there is the possibility of the occurence of malfunc-
tion or damage.In such a case, a varistor should be inserted in the circuit.
20.0+0.2
4
SE SERIES
RoHS Compliance and Lead Free Relay Information
1. General Information
Relays produced after the specific date code that is indicated on each data sheet are lead-free
now. Most of our signal and power relays are lead-free. Please refer to Lead-Free Status Info.
(http://www.fujitsu.com/us/downloads/MICRO/fcai/relays/lead-free-letter.pdf)
l
Lead free solder paste currently used in relays is Sn-3.0Ag-0.5Cu.
l
All signal and most power relays also comply with RoHS. Please refer to individual data
sheets. Relays that are RoHS compliant do not contain the 5 hazardous materials that
are restricted by RoHS directive (lead, mercury, chromium IV, PBB, PBDE).
l
It has been verified that using lead-free relays in leaded assembly process will not cause any
problems (compatible).
l
“LF” is marked on each outer and inner carton. (No marking on individual relays).
l
To avoid leaded relays (for lead-free sample, etc.) please consult with area sales office.
l
We will ship leaded relays as long as the leaded relay inventory exists.
Note: Cadmium was exempted from RoHS on October 21, 2005. (Amendment to Directive 2002/95/EC)
l
2.
Recommended Lead Free Solder Profile
l
Recommended solder paste Sn-3.0Ag-0.5Cu.
Reflow Solder condition
Flow Solder condition:
Pre-heating:
Soldering:
maximum 120˚C
dip within 5 sec. at
260˚C soler bath
Solder by Soldering Iron:
Soldering Iron
Temperature: maximum 360˚C
Duration:
maximum 3 sec.
We highly recommend that you confirm your actual solder conditions
3. Moisture Sensitivity
l
Moisture Sensitivity Level standard is not applicable to electromechanical realys.
Dipped SnAgCu solder is known as low risk tin whisker. No considerable length whisker was found by our in
house test.
4. Tin Whisker
