HD74HC283T datasheet, PDF - EEWORLD Datasheet

HD74HC283T: DescriptionHC/UH SERIES, 4-BIT ADDER/SUBTRACTOR, PDSO16, TSSOP-16; Categorylogic logic; File Size82KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

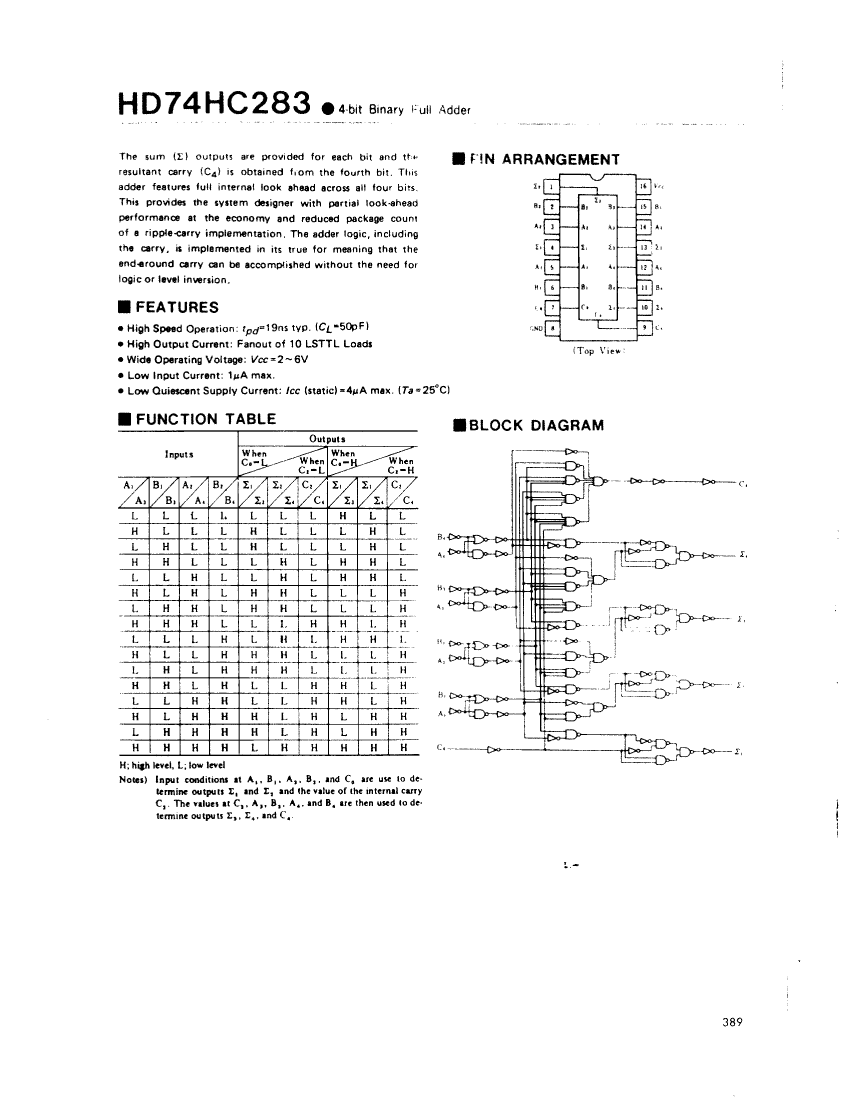

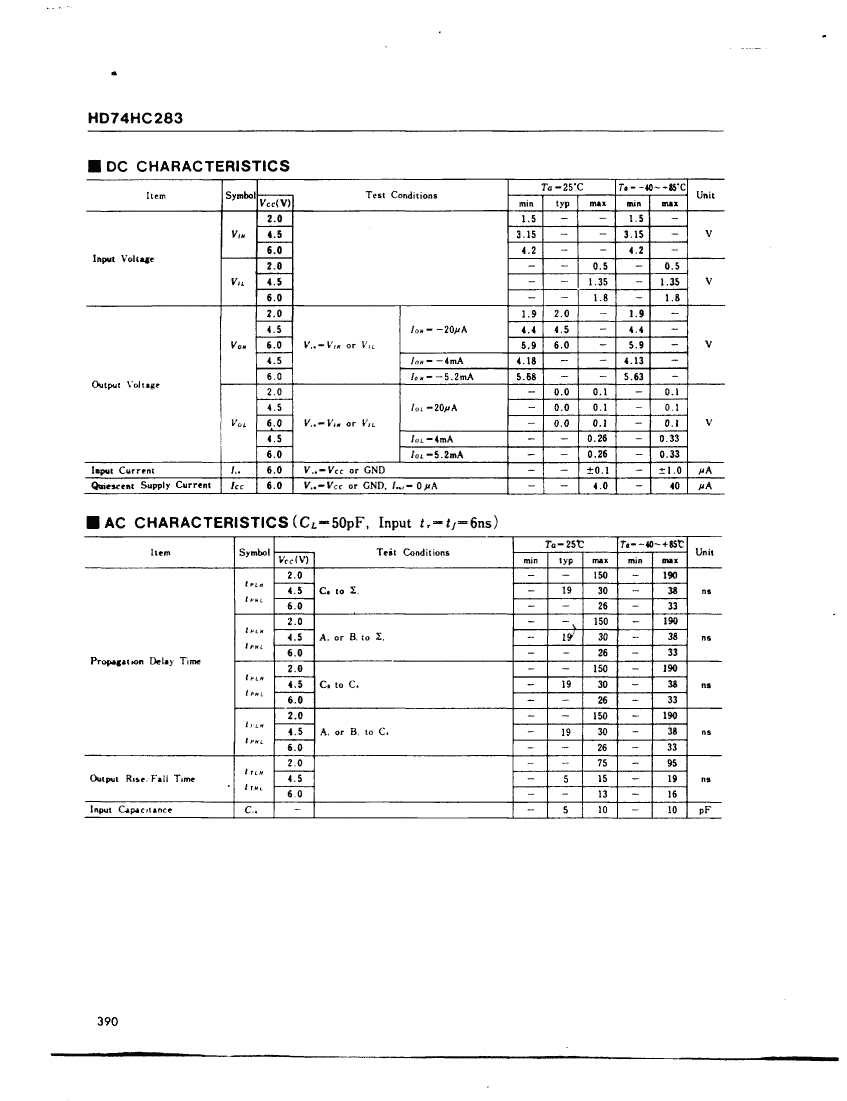

HD74HC283T Overview

HC/UH SERIES, 4-BIT ADDER/SUBTRACTOR, PDSO16, TSSOP-16

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	16
Reach Compliance Code	compliant
Other features	WITH INTERNAL CARRY LOOKAHEAD
series	HC/UH
JESD-30 code	R-PDSO-G16
length	5.2 mm
Logic integrated circuit type	ADDER/SUBTRACTOR
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	190 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

	HD74HC283T
Description	HC/UH SERIES, 4-BIT ADDER/SUBTRACTOR, PDSO16, TSSOP-16
Maker	Renesas Electronics Corporation
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	16
Reach Compliance Code	compliant
Other features	WITH INTERNAL CARRY LOOKAHEAD
series	HC/UH
JESD-30 code	R-PDSO-G16
length	5.2 mm
Logic integrated circuit type	ADDER/SUBTRACTOR
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	190 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
