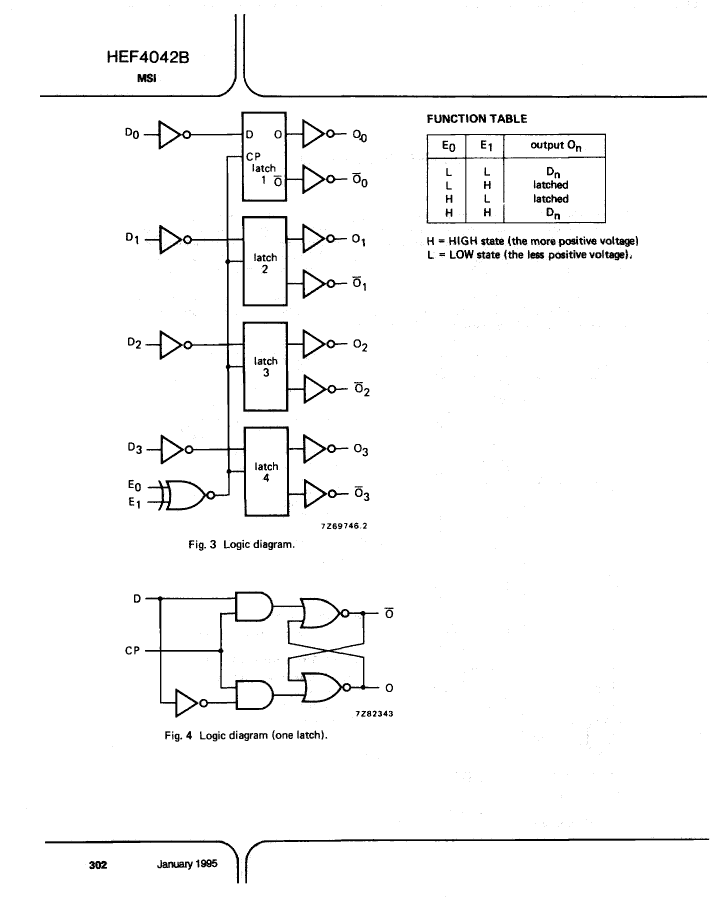

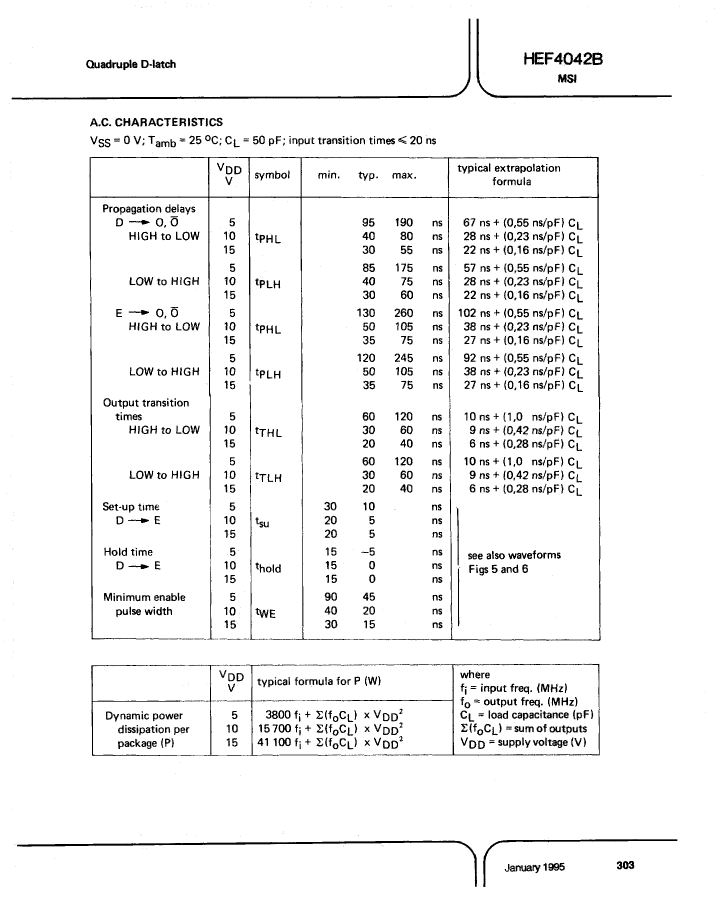

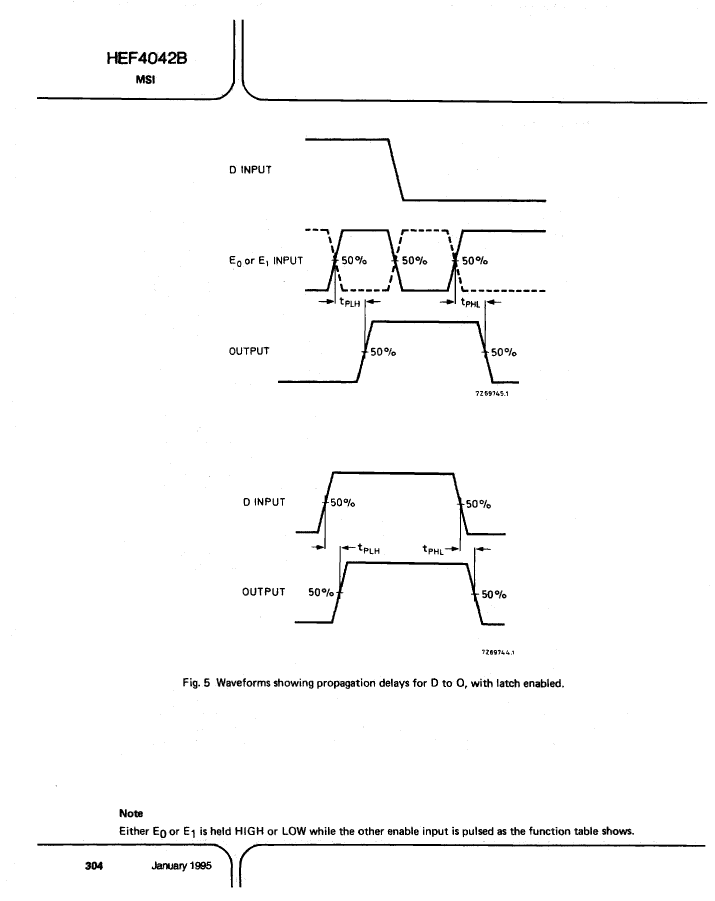

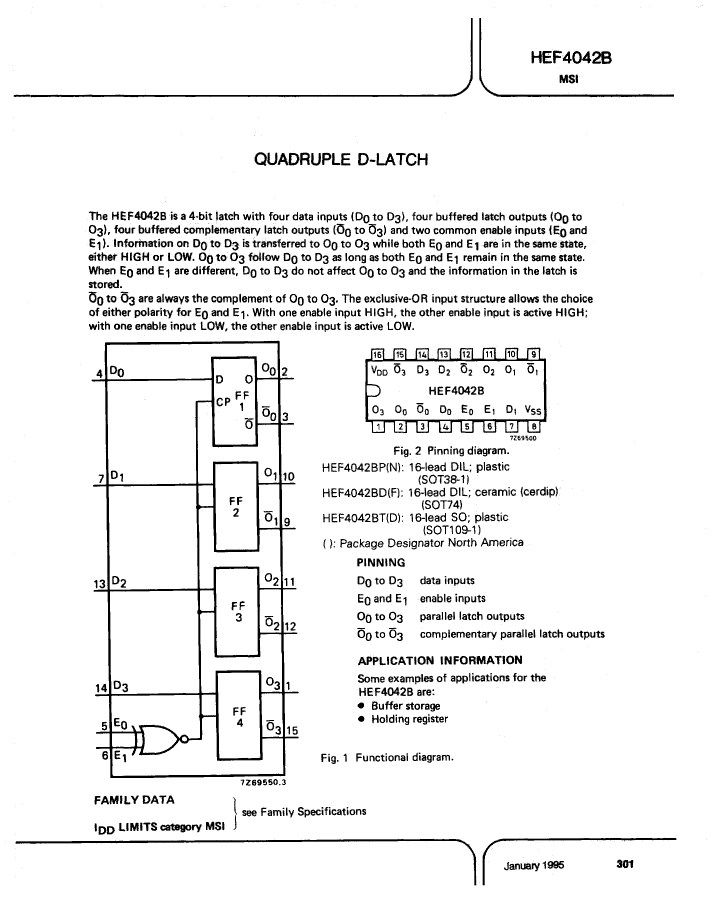

Preview

HEF4042BTD-T: DescriptionIC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SO-16, FF/Latch; Categorylogic logic; File Size105KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

HEF4042BTD-T Overview

IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SO-16, FF/Latch

HEF4042BTD-T Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Other features	PROGRAMMABLE TRIGGER TYPE
series	4000/14000/40000
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	260 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	HIGH LEVEL
width	3.9 mm

Preview

Download Datasheet

View All

HEF4042BTD-T Related Products

	HEF4042BTD-T	HEF4042BTD	HEF4042BPN	HEF4042BDF	HEF4042BP	HEF4042BT	HEF4042BD
Description	IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SO-16, FF/Latch	IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SO-16, FF/Latch	IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDIP16, PLASTIC, DIP-16, FF/Latch	IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, CDIP16, CERDIP-16, FF/Latch	IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDIP16, PLASTIC, DIP-16, FF/Latch	IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, PDSO16, PLASTIC, SO-16, FF/Latch	IC 4000/14000/40000 SERIES, HIGH LEVEL TRIGGERED D LATCH, COMPLEMENTARY OUTPUT, CDIP16, CERDIP-16, FF/Latch
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Parts packaging code	SOIC	SOIC	DIP	DIP	DIP	SOIC	DIP
package instruction	SOP,	SOP,	DIP,	DIP,	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	PROGRAMMABLE TRIGGER TYPE	PROGRAMMABLE TRIGGER TYPE	PROGRAMMABLE TRIGGER TYPE	PROGRAMMABLE TRIGGER TYPE	PROGRAMMABLE TRIGGER TYPE	PROGRAMMABLE TRIGGER TYPE	PROGRAMMABLE TRIGGER TYPE
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-GDIP-T16	R-PDIP-T16	R-PDSO-G16	R-GDIP-T16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	SOP	SOP	DIP	DIP	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	260 ns	260 ns	260 ns	260 ns	260 ns	260 ns	260 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	4.7 mm	5.08 mm	4.7 mm	1.75 mm	5.08 mm
Maximum supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL	HIGH LEVEL
width	3.9 mm	3.9 mm	7.62 mm	7.62 mm	7.62 mm	3.9 mm	7.62 mm
length	9.9 mm	9.9 mm	21.6 mm	-	21.6 mm	9.9 mm	-
