SN74S151N

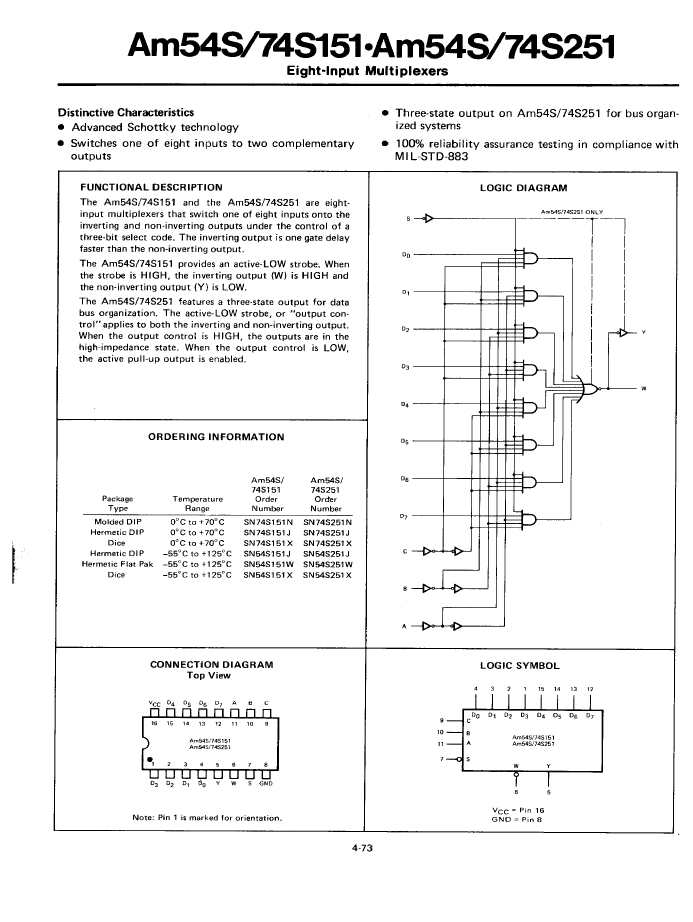

Description
Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, PDIP16, DIP-16
Categorylogic    logic
File Size132KB,4 Pages
ManufacturerAMD
Websitehttp://www.amd.com
Download Datasheet Parametric View All

SN74S151N Online Shopping

Suppliers Part Number Price MOQ In stock
SN74S151N - - View Buy Now

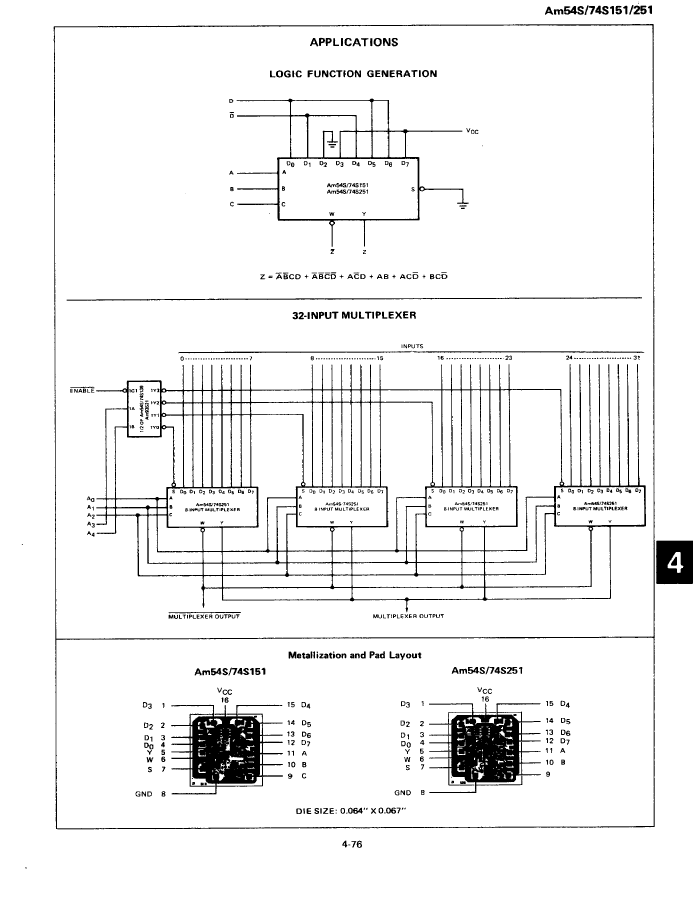

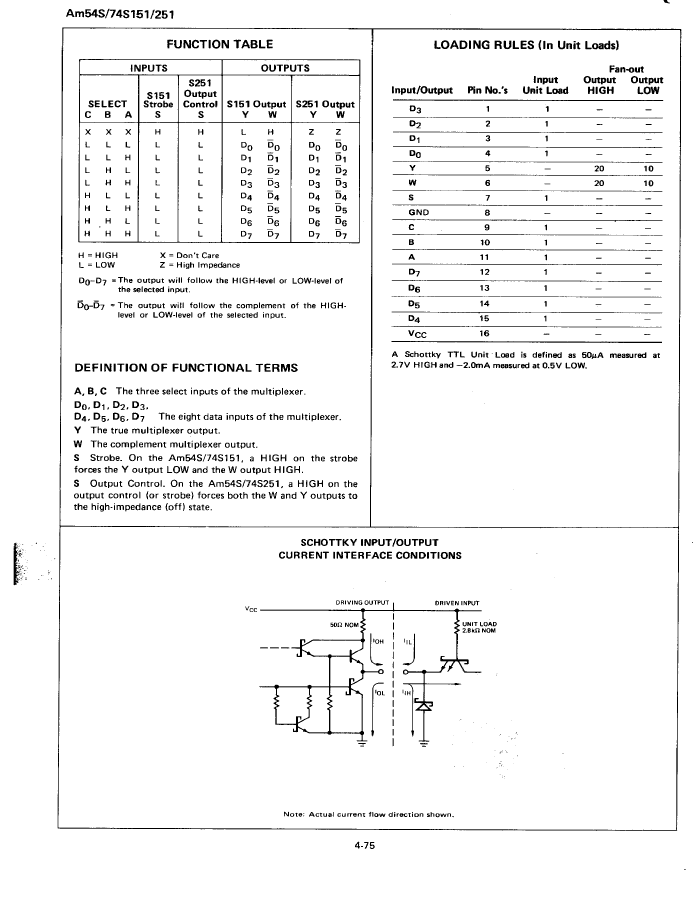

SN74S151N Overview

Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, PDIP16, DIP-16

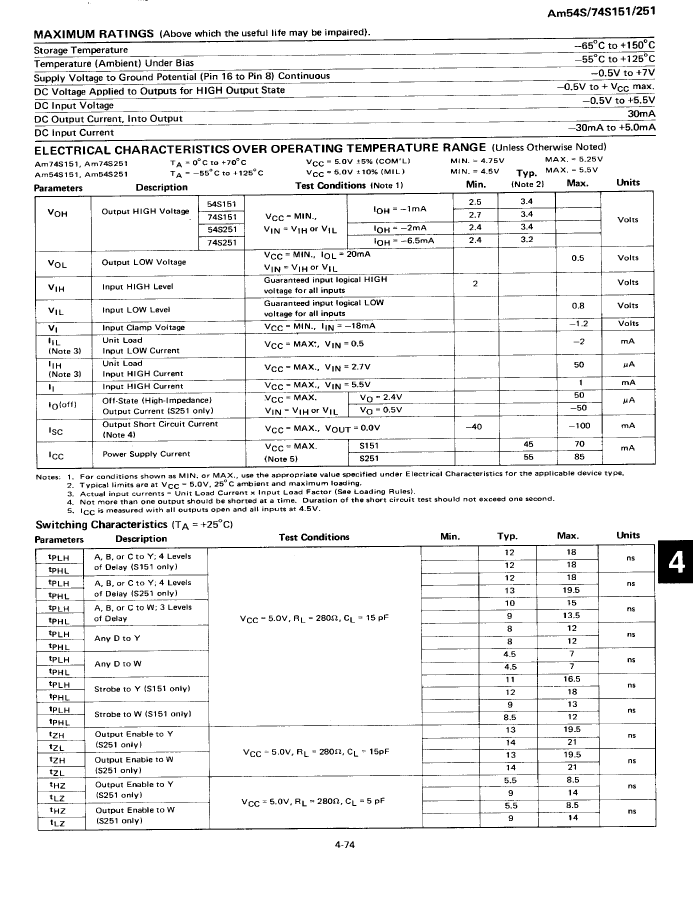

SN74S151N Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAMD
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codeunknown
seriesS
JESD-30 codeR-PDIP-T16
JESD-609 codee0
Logic integrated circuit typeMULTIPLEXER
Number of functions1
Number of entries8
Output times1
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Output polarityCOMPLEMENTARY
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
propagation delay (tpd)12 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
This Material Copyrighted By Its Respective Manufacturer
