POWER RELAY
1 POLE—15 A
(HEAVY POWER CONTROL)
VR SERIES
s
FEATURES
q
q
q
q
q
q
UL, CSA, VDE recognized TV-5 rated
1 Form A (SPST-NO) contact
Heavy duty 15 A miniature power relay with tab-terminals
(#187)
UL class B (130°C) insulation
High isolation and high surge strength
—Insulation distance: 8 mm
—Dielectric strength: 5,000 VAC (between coil and
contacts)
—Surge strength: 10,000 V
VRB type—good for high density mounting
NO
B
–
(b) (*)
12
(c)
s
ORDERING INFORMATION
[Example]
(a)
VR
(a)
Series Name
(b)
Terminal
(c)
Nominal Voltage
TF
OR
DE
NE
SI
GN
W
S
VR: VR Series
Nil: Top ......... Tab-terminal (contacts)
Bottom .... PCB terminal (coil)
B: Top ......... Tab-terminal (contacts)
Bottom .... PCB terminal (coil and movable contact)
Refer to the COIL DATA CHART
Nominal voltage
TV-5
1HP
15 A
Contact rating
120 VAC
250 VAC
277 VAC/30 VDC resistive
Pilot duty B 150
3 to 60 VDC
Actual marking omits the hyphen (–) of (*)
s
SAFETY STANDARD AND FILE NUMBERS
UL508 (File No. E56140, E108658)
C22.2, No. 1, No. 14 (File No. LR35579)
VDE0435, 0631, 0700
Type
VR
VRB
1
VR SERIES
s
SPECIFICATIONS
Item
Contact
Arrangement
Material
Style
Resistance (initial)
(at 1 A 6 VDC)
Rating (resistive)
Maximum Carrying Current
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
Minimum Switching Load *
1
Coil
Nominal Power (at 20°C)
Operate Power (at 20°C)
Operating Temperature
1 form A (SPST-NO)
Silver-cadmium oxide
Single
Maximum 100 mΩ
15 A 30 VDC/277 VAC
15 A
4,155 VA, 450 W
277 VAC, 30 VDC
15 A
100 mA 5 VDC
VR, VRB
NO
Time Value Operate (at nominal voltage)
Release (at nominal voltage)
Insulation
Resistance (at 500 VDC)
between open contacts
Dielectric
Strength between coil and contacts
Surge Strength
Life
Mechanical
Electrical
Other
Vibration
Resistance
Shock
Resistance
Weight
TF
OR
DE
NE
SI
GN
W
S
0.8 W
0.36 W
Maximum 15 ms
Maximum 10 ms
Minimum 1,000 MΩ
1,000 VAC 1 minute
5,000 VAC 1 minute
10,000 V (at 1.2
×
50
µs)
5
×
10
6
operations minimum
1
×
10
5
operations minimum (contact rating)
10 to 55 Hz (double amplitude of 1.65 mm)
Misoperation
Endurance
10 to 55 Hz (double amplitude of 2.0 mm)
1,000 m/s
2
(6
±
1
ms)
Misoperation
200 m/s
2
(11
±
1
ms)
Endurance
Approximately 24 g
–40°C to +85°C (no frost) (refer to the CHARACTERISTIC DATA)
*
1
Minimum switching loads mentioned above are reference values. Please perform the confirmation test with the actual load
before production since reference values may vary according to switching frequencies, environmental conditions and
expected reliability levels.
2
VR SERIES
s
COIL DATA CHART
MODEL
VR (B)- 3
VR (B)- 5
VR (B)- 6
VR (B)- 9
VR (B)-12
VR (B)-14
VR (B)-18
VR (B)-24
VR (B)-48
VR (B)-60
Nominal
voltage
3 VDC
5 VDC
6 VDC
9 VDC
12 VDC
14 VDC
Coil resistance
(
±
10%)
11.2
Ω
31
Ω
45
Ω
101
Ω
180
Ω
245
Ω
405
Ω
720
Ω
2,880
Ω
4,500
Ω
Must operate
voltage
2.0 VDC
3.3 VDC
4.0 VDC
6.0 VDC
8.1 VDC
9.4 VDC
12.1 VDC
16.2 VDC
32.4 VDC
40.5 VDC
Must release
voltage
0.3 VDC
0.5 VDC
0.6 VDC
0.9 VDC
1.2 VDC
1.4 VDC
1.8 VDC
2.4 VDC
4.8 VDC
6.0 VDC
Nominal
power
0.8 W
0.8 W
0.8 W
0.8 W
0.8 W
0.8 W
0.8 W
0.8 W
0.8 W
0.8 W
Note: All values in the table are measured at 20°C
NO
T
18 VDC
24 VDC
48 VDC
60 VDC
s

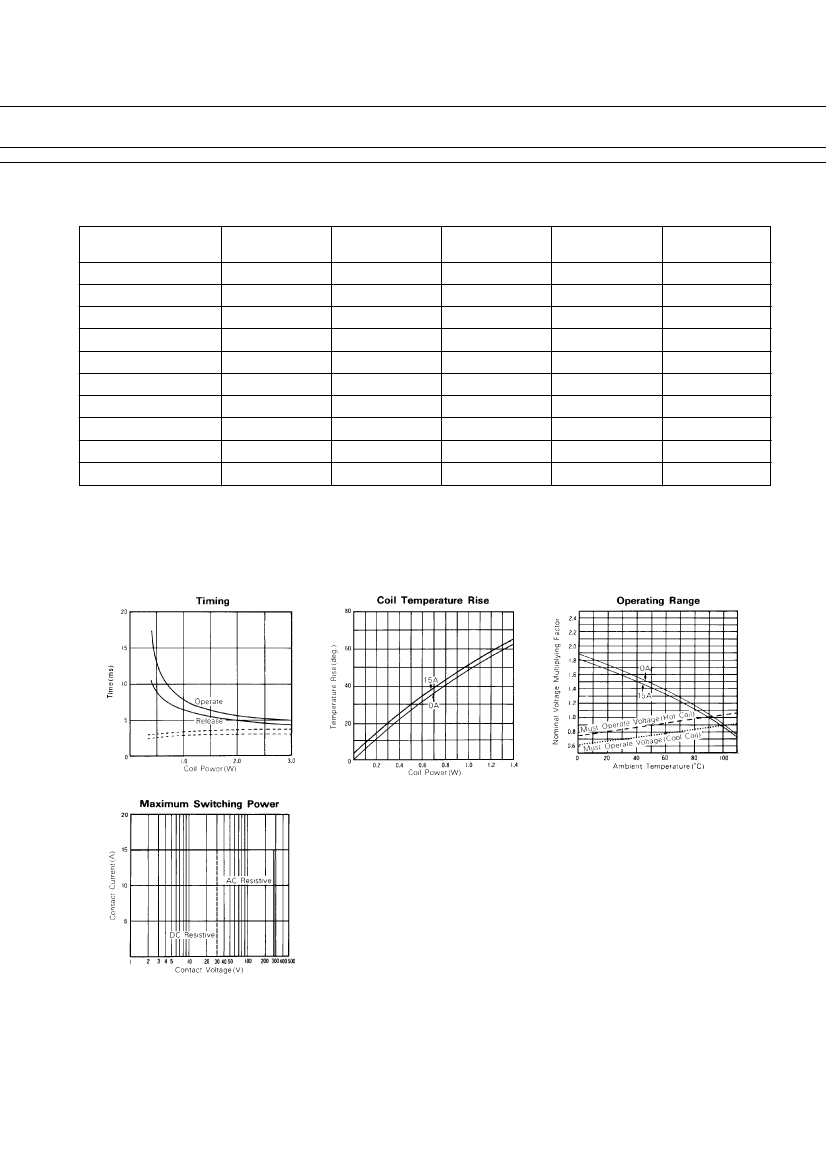

CHARACTERISTIC DATA
FO
DE
R
NE
SI
GN
W
S
3
VR SERIES
s

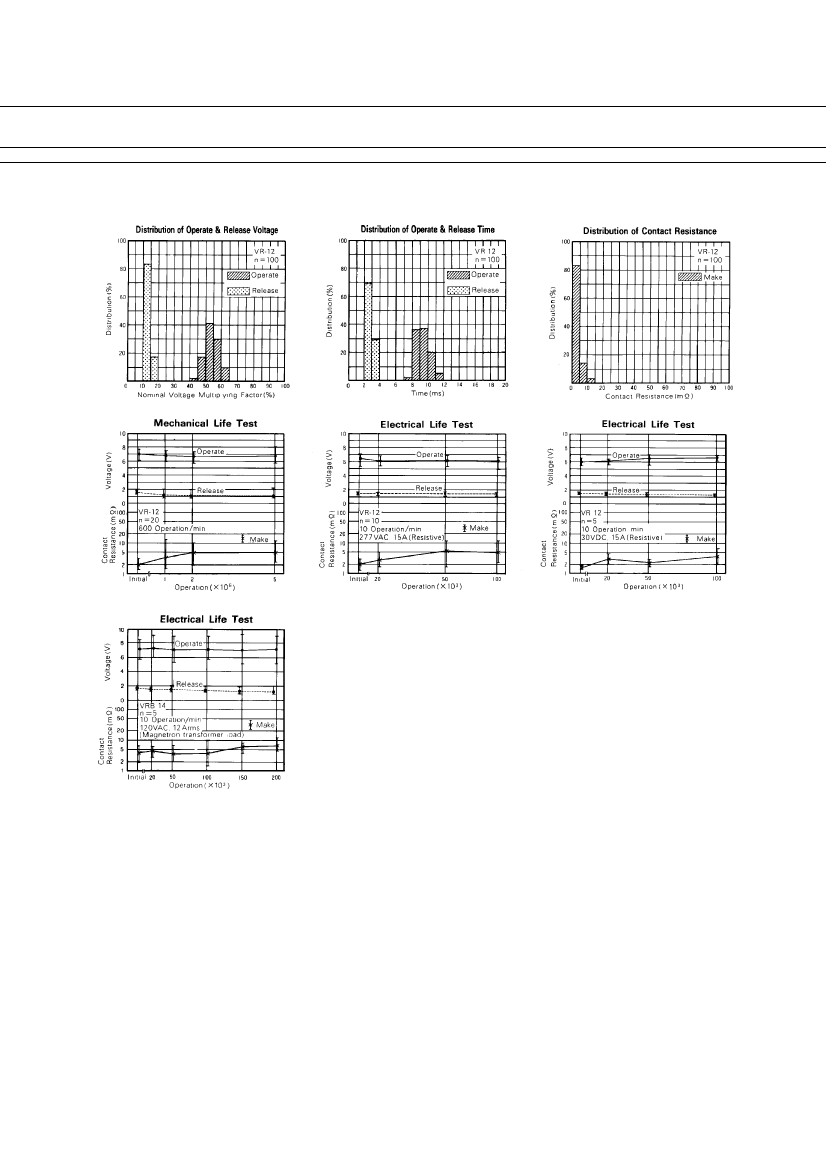

REFERENCE DATA
NO
TF
OR
DE
NE
SI
GN
W
S
4
VR SERIES
s

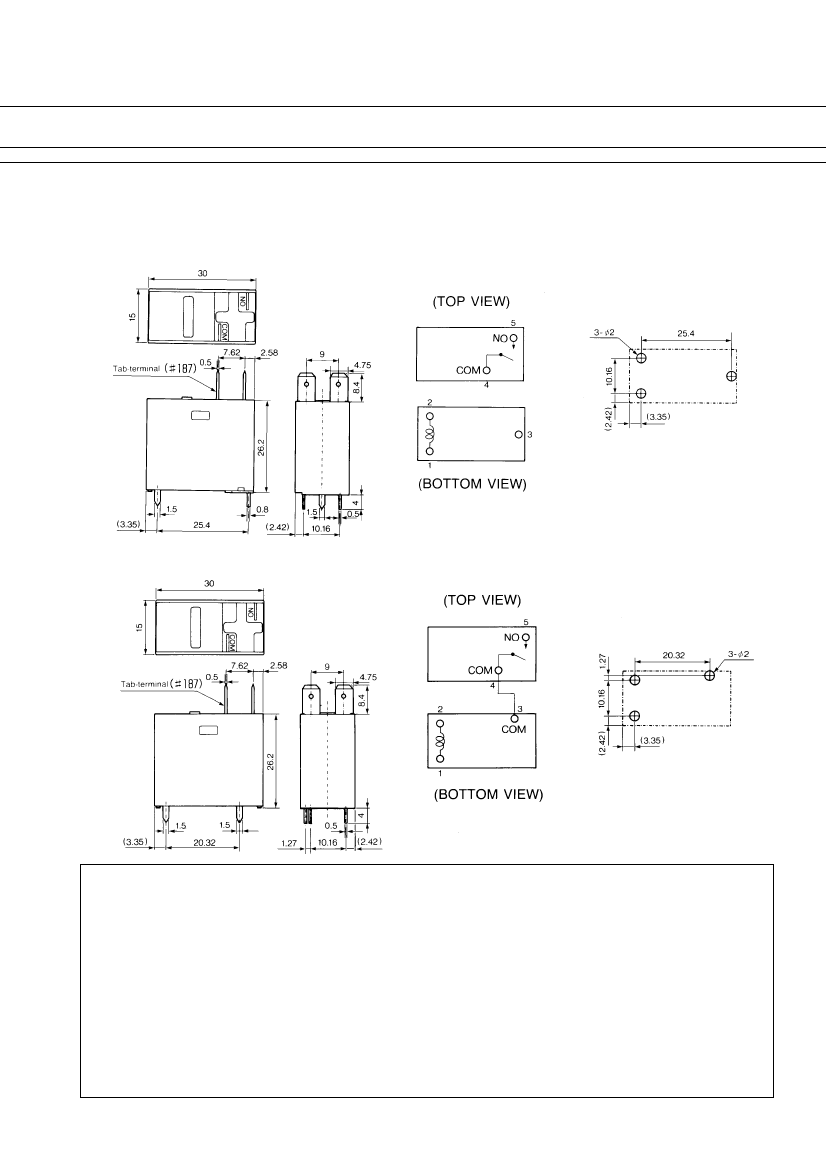

DIMENSIONS
q
Dimensions
VR type
q
Schematics
q
PC board mounting
hole layout
NO
T
VRB type
(BOTTOM VIEW)
FO
DE
R
NE
SI
GN
W
S
(BOTTOM VIEW)
Unit: mm
Japan
Fujitsu Component Limited
Gotanda-Chuo Building
3-5, Higashigotanda 2-chome, Shinagawa-ku
Tokyo 141, Japan
Tel: (81-3) 5449-7010
Fax: (81-3) 5449-2626
Email: promothq@ft.ed.fujitsu.com
Web: www.fcl.fujitsu.com
North and South America
Fujitsu Components America, Inc.
250 E. Caribbean Drive
Sunnyvale, CA 94089 U.S.A.
Tel: (1-408) 745-4900
Fax: (1-408) 745-4970
Email: marcom@fcai.fujitsu.com
Web: www.fcai.fujitsu.com
Europe
Fujitsu Components Europe B.V.
Diamantlaan 25
2132 WV Hoofddorp
Netherlands
Tel: (31-23) 5560910
Fax: (31-23) 5560950
Email: info@fceu.fujitsu.com
Web: www.fceu.fujitsu.com
Asia Pacific
Fujitsu Components Asia Ltd.
102E Pasir Panjang Road
#04-01 Citilink Warehouse Complex
Singapore 118529
Tel: (65) 375-8560
Fax: (65) 273-3021
Email: fcal@fcal.fujitsu.com
www.fcal.fujitsu.com
