E1250403CTER datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> E1250403CTER

E1250403CTER: DescriptionPower/Signal Relay, SPDT, Momentary, 0.088A (Coil), 28VDC (Coil), 2464mW (Coil), 25A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size149KB，4 Pages; ManufacturerFirst Switchtech

Download Datasheet Parametric View All

E1250403CTER Overview

Power/Signal Relay, SPDT, Momentary, 0.088A (Coil), 28VDC (Coil), 2464mW (Coil), 25A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,

E1250403CTER Parametric

Parameter Name	Attribute value
Maker	First Switchtech
Reach Compliance Code	unknown
Other features	PANEL MOUNTABLE
body width	13.34 mm
body height	25.65 mm
Body length or diameter	26.04 mm
Maximum coil current (DC)	0.088 A
Coil operating voltage (DC)	18.7 V
Coil power	2464 mW
Coil release voltage (DC)	1.5 V
Coil resistance	320 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	25A@115VAC
Maximum contact current (AC)	25 A
Maximum contact current (DC)	25 A
Contact (DC) maximum rated R load	25A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	50000 Cycle(s)
JESD-609 code	e3
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	11 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	26.04mm x 13.34mm x 25.65mm
Guideline	MIL-PRF-6106
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	11 ms
seal	HERMETICALLY SEALED
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER

Preview

Download Datasheet

View All

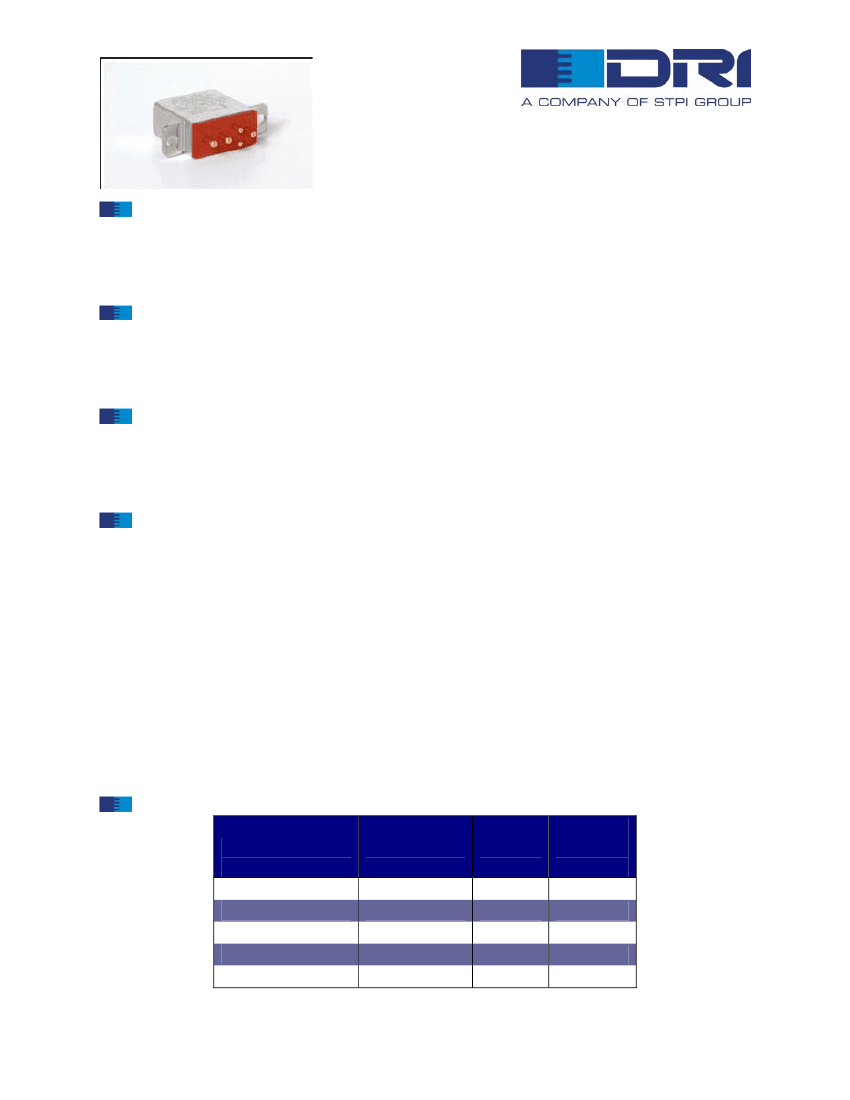

E125 & ES125

Military Specified

Meets MIL-PRF-6106

General Characteristics

Number of Poles:

Dimensions:

Weight:

1 Form C (1PDT)

1.025” x 0.525” x 1.010”

(26.0mm x 13.3mm x 25.7mm)

0.09 lb. (41 grams)

Switching Characteristics

Operate Time @ 25 C:

Release Time @ 25 C:

Bounce Time:

Mechanical Life:

10 ms Max.

1 ms Max.

400,000 Cycles

-70 C to +125 C

30g 10-3,000 Hz

200g, 6 ms

-8

Hermetic (1x10 atm cm /s)

Environmental Characteristics

Temperature Range:

Vibration (Sinusoidal):

Shock (any axis):

Seal:

Electrical Characteristics

Contact Voltage Drop (at rated resistive load)

-Initial:

-After Guaranteed Life:

Dielectric Strength

Coil to Case @ Sea Level

-Initial @ 60 Hz:

-After Life Test @ 60 Hz:

All Other Points @ Sea Level

-Initial @ 60 Hz:

-After Life Test @ 60 Hz:

Insulation Resistance

-Initial:

-After Life Tests:

Back EMF (Transient Voltage):

150 mV Max.

175 mV Max.

1,000 Vrms

1,250 Vrms

1,000 Vrms

100 MΩ Min, @ 500 Vdc

50 MΩ Min, @ 500 Vdc

42 Vdc Max. (ES125 Only)

Contact Rating (Amps)

Type of Load

(High Level)

Resistive

Inductive

Motor

Lamp

55 Engineers Road

Hauppauge, NY 11788

Cycles x 10

www.drirelays.net

(631) 342-1700

28 Vdc

N/A

115 Vac

400 Hz

1 Phase

N/A

Mil Spec E125

Page 1/4
