BYC8B-600,118

Description
BYC8B-600
CategoryDiscrete semiconductor    diode
File Size130KB,8 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Environmental Compliance
Download Datasheet Parametric View All

BYC8B-600,118 Overview

BYC8B-600

BYC8B-600,118 Parametric

Parameter NameAttribute value
Brand NameNXP Semiconductor
Is it Rohs certified?conform to
MakerNXP
Parts packaging codeD2PAK
package instructionPLASTIC, SMD, D2PAK-3
Contacts3
Manufacturer packaging codeSOT404
Reach Compliance Codenot_compliant
Other featuresFREE WHEELING DIODE
applicationULTRA FAST RECOVERY
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)2.3 V
JESD-30 codeR-PSSO-G2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current60 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current8 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum repetitive peak reverse voltage600 V
Maximum reverse recovery time0.052 µs
surface mountYES
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperature40

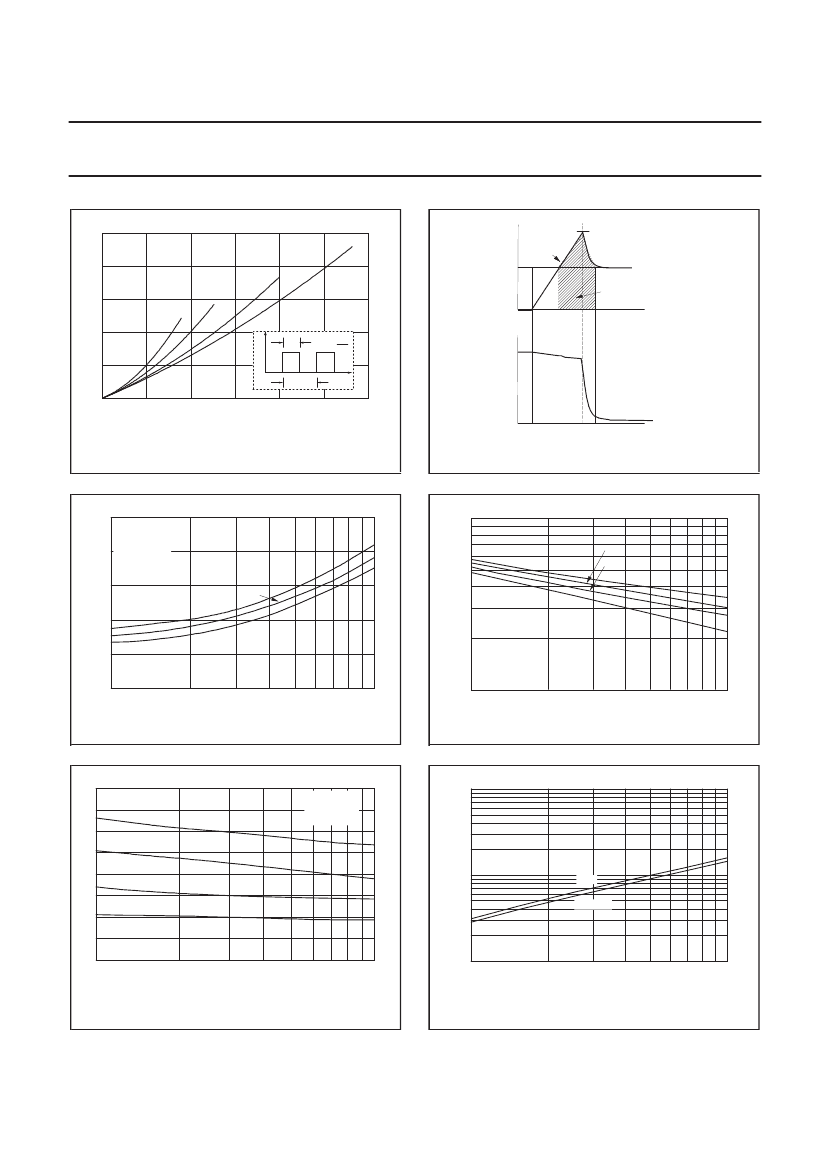

DISCRETE SEMICONDUCTORS
DATA SHEET
BYC8B-600
Rectifier diode
ultrafast, low switching loss
Product
specification
March 2001
