BYV42EB-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYV42EB-200

BYV42EB-200: DescriptionDIODE 15 A, 200 V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-3, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size280KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BYV42EB-200 Overview

DIODE 15 A, 200 V, SILICON, RECTIFIER DIODE, PLASTIC PACKAGE-3, Rectifier Diode

BYV42EB-200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NXP
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	not_compliant
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	160 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.028 µs
surface mount	YES
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

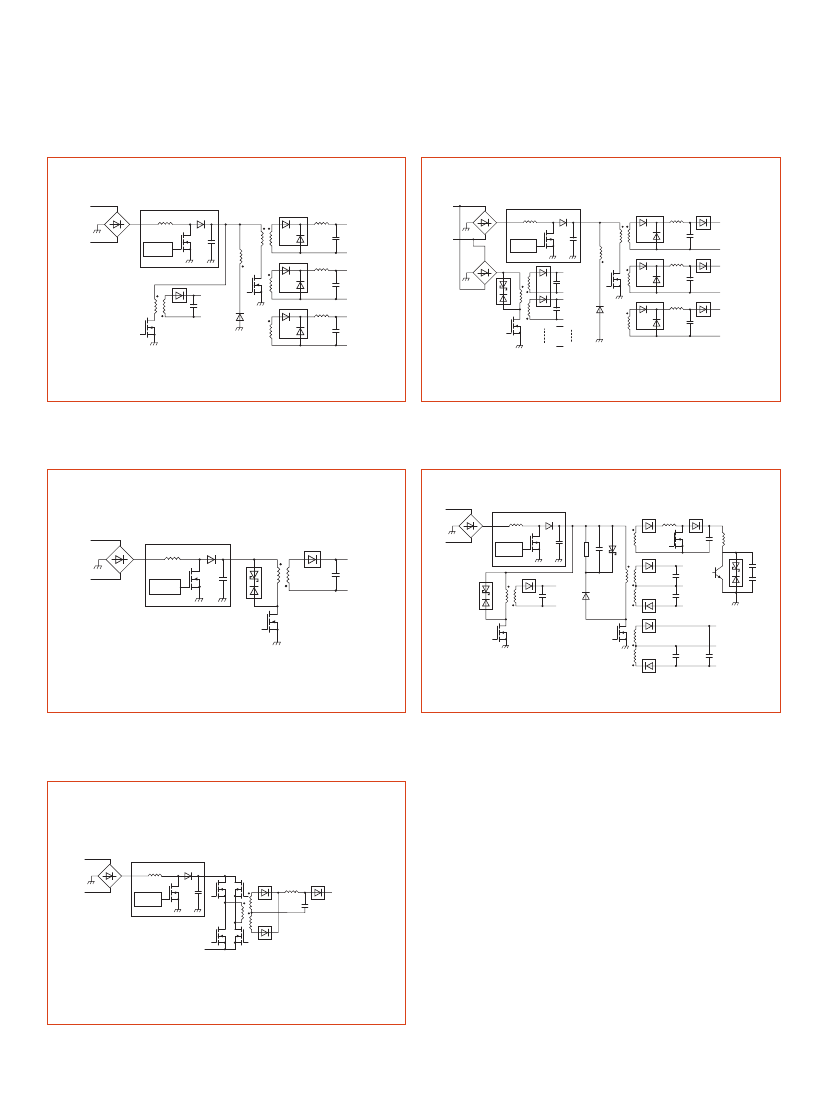

Bipolar power diodes

for Switch Mode

Power Supplies

Understanding PFC - SMPS applications

What is Power Factor Correction (PFC)

It can be deﬁned as the reduction of the harmonic content,

and/or the aligning of the phase angle of incoming current

PFC is required to reduce disturbance on the AC distribution

net and maximize the real power drawn by the power supply

from the AC line.

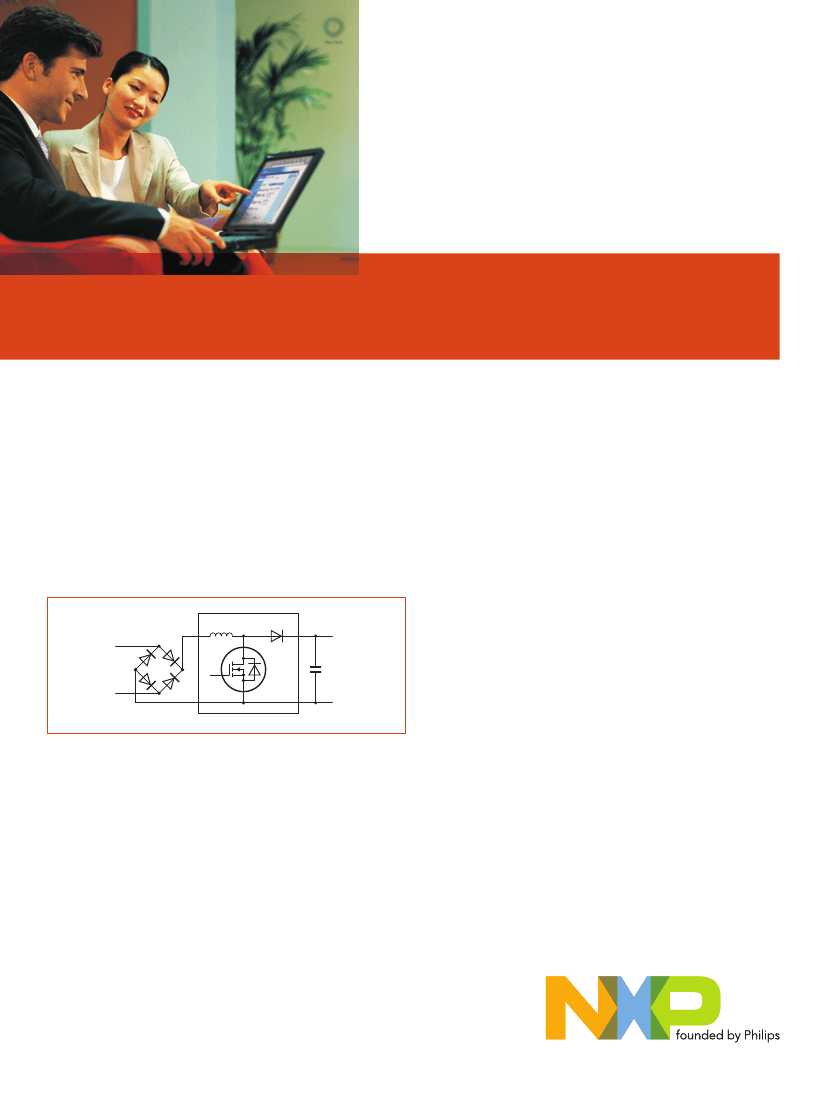

Boost PFC circuit

OUT

bra785

PFC beneﬁts

Fully compliant with regional regulations imposing

restrictions on power factor and total harmonic distortion

(THD) in high-power applications (>75W), including:

- CCC or ‘3’C in China

- IEC1000-3-2/EN61000-3-2 in Europe

- ‘80plus policy’ in America

- JICC61000-3-2 in Japan

Meets energy saving and ‘green energy’ trends

to reduce electricity costs

Optimizes and improves circuit performance

- reduces mains harmonic content

- decreases peak current at mains frequency

- minimizes the electrolytic bulk capacitor used

at PFC stage output

- shrinks mains transformer size and weight

- improves output regulation of downstream

DC/DC converters
