54145-2405: DescriptionBoard Connector, 240 Contact(s), 4 Row(s), Female, Right Angle, 0.031 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle,; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

54145-2405 Overview

Board Connector, 240 Contact(s), 4 Row(s), Female, Right Angle, 0.031 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle,

54145-2405 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	SPLIT BOARD LOCK
body width	0.295 inch
subject depth	0.551 inch
body length	2.024 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	110 mΩ
Contact style	LEAF
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	5000 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	54145
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	8
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.3462 mm
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal pitch	1.6 mm
Termination type	SOLDER
Total number of contacts	240
UL Flammability Code	94V-0
Evacuation force-minimum value	.0834 N

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 160 and 240 circuits

s

Unique "elevator" base plate protects pins and rises up into

position during PCB insertion

s

Metal fork boardlocks for PCB hold-down and plastic pegs

for placement guidance

s

Staggered contact length arrangement for low insertion

force

s

Leaf-style contacts prevent stubbing

s

Optional guide bushings allow blind mating

s

Surface Mount Compatible

Reference Information

Product speciﬁcation: Contact Molex

Packaging: Tray

Mates With:

53941

and

53944

Designed In: Millimeters

Electrical

Voltage: 100V

Current: 0.4A

Contact Resistance: 110m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 500 M

Ω

min.

Physical

Housing: White glass-ﬁlled heat resistant plastic, UL 94V-0

Contact: Phosphor Bronze

Plating: Contact Area—Gold over Nickel

Solder Tail Area—Tin/Lead over Nickel

Guide Plate: White glass-ﬁlled heat resistant plastic, UL 94V-0

Shield Cover: Steel, Nickel plating

Metal Peg: Steel, Tin/Lead plating

Operating Temperature: -55 to +85

˚

C

0.80mm (.031") Pitch

Docking Station

Board-to-Board

Shielded Receptacle

54145

Right Angle

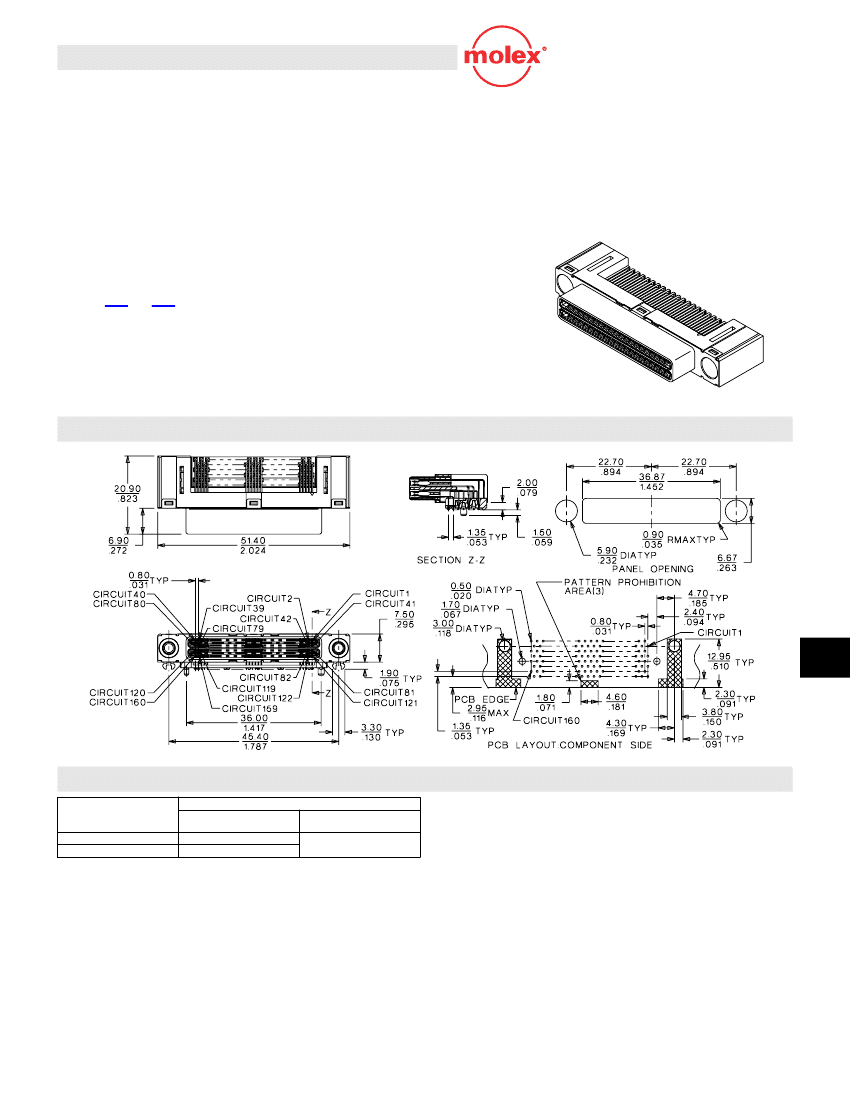

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION

Circuits

160

240

Order No.

Without Loose-Piece Guide

Loose-Piece Guide Bushing

Bushing

54145-1605

58245-0000

54145-2405

MX01

N-129
