L-286: DescriptionHDSL Common Mode Choke; CategoryAnalog mixed-signal IC filter; File Size38KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric Compare View All

L-286 Overview

HDSL Common Mode Choke

L-286 Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Reach Compliance Code	unknow
Maximum DC resistance	1.5 Ω
filter type	TELECOM FILTER
high	13.33 mm
inductance	10000 µH
length	13.97 mm
Manufacturer's serial number	L-286
Installation type	THROUGH HOLE MOUNT
Number of functions	2
physical size	L13.97XB13.61XH13.33 (mm)/L0.55XB0.536XH0.525 (inch)
width	13.61 mm

Preview

Download Datasheet

View All

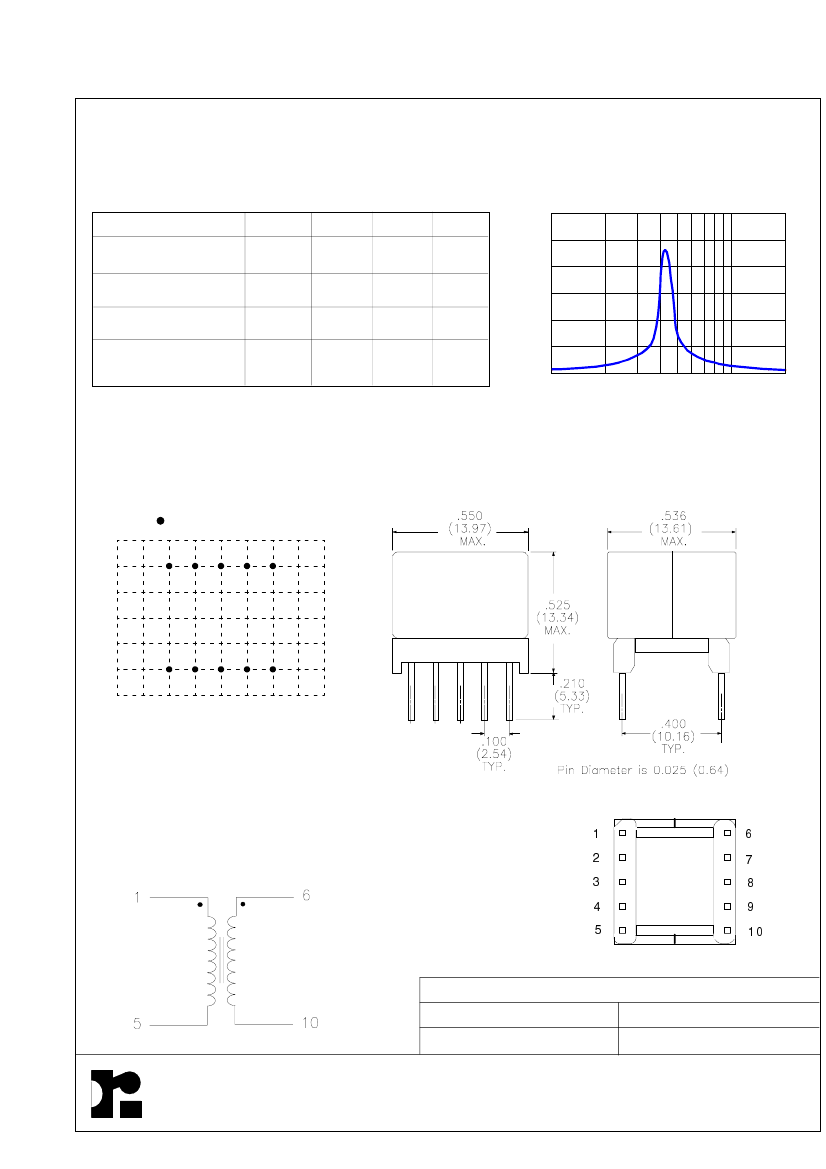

HDSL Common Mode Choke

Electrical Specifications at 25

O

C

Typical Impedance Curve

Min.

Typ.

Max.

Units

250

200

150

100

50

0

100

200

500

1000

2000

Parameter

Inductance

Leakage Inductance

DCR

Isolation

7.5

12.5

20

1.5

mH

µH

Ω

V

RMS

600

Test Conditions:

Inductance & Leakage Inductance tested at 20mVRMS and 20 kHz

Im pe da nce ( k

Ω

)

Frequency ( kHz )

Physical Dimensions

inches (mm)

Pin Position Grid 0.100"

Bobbin Terminations

Schematic

Diagram

$

%

PRI

SEC

!

"

#

&

'

RHOMBUS P/N: L-286

CUST P/N:

DATE:

7/1/96

NAME:

SHEET:

1 OF 1

Rhombus

Industries Inc.

Transformers & Magnetic Products

15801 Chemical Lane, Huntington Beach, CA 92649

Phone: (714) 898-0960

FAX: (714) 896-0971

www.rhombus-ind.com
