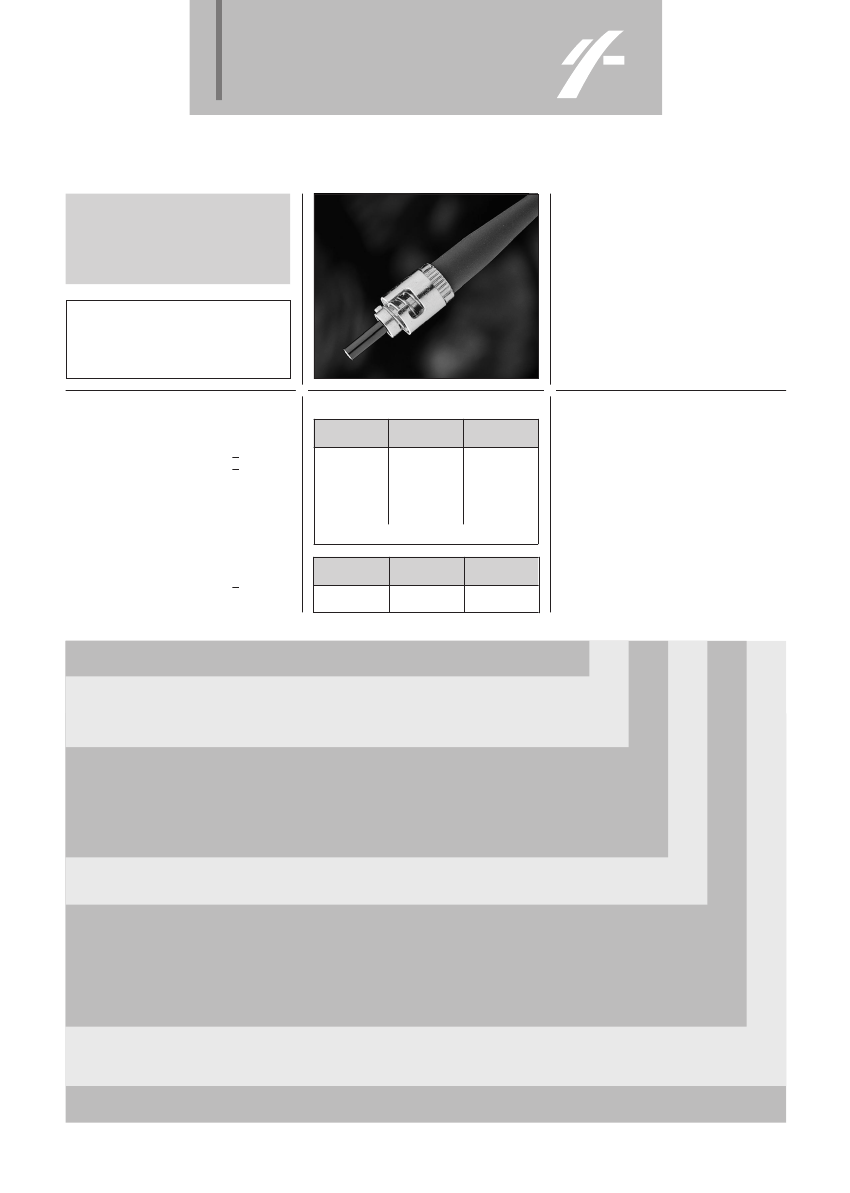

SOURIAU
8011 Series
Applications
LAN
datacom network computer link
computer industrial link
Description
• Connector fully compatible
with all the existing ST* connectors
• Low insertion loss
• Bayonet coupling
• Repeatable performances (plug indexing)
• Different types of fibres and cables available
• Jumpers and active device housings can
be supplied regarding customer require-
ment
Standards
ST* Compatible
IEC 86 B
Characteristics
Performances :
• Insertion loss : mean value
< 0,3 db
• Standard deviation
< 0,15 db
(at : 850 nm with a 62,5/125 fiber)
• Temperature range
- 20° C to + 70° C
(ceramic and composite ferule)
- 40° C to + 85° C (metallic ferule)
• Loss repeat
< 0,1 db for 500 reconnections
• cabling time per connector : 15 mn/1
5 mn/12
• Retention force cable/plug
>100 N
Materials :
Plug series
8011-12
8011-13
Ferule
Ceramic
Composite
polymer
Ni plated
zamack
Nut and
body
8011-15
Metallic
• boot : Tefabloc
Coupler
8011-22
Alignement
Sleeve
Bronze
Body
Ni Plated
Zamack
Ordering information
basic series
Plugs
Coupler
Device housing
Fibre type
12 -
ceramic probe (zirconia)
13 -
high precision composite polymer probe
15 -
rust proof material probe (arcap)
22 -
thru bulkhead
62
G -
50/125 - 62,5/125 µ
H -
100/140/500 µ
R -
200/230/500 µ - HCS
J -
1000 µ Plastic fibre
available in series 12/13
8011 15
R
1
63
}
available in series 15
Z -
For thru bulkhead coupler or device housing
Other fibres
Plugs
Coupler and device housing
Cable type plug
consult us
0 -
crimping cleaving technic (R type fibre only), or crimping polishing technic ( J type fibre only)
1 -
gluing/polishing technic (G, H, and R fibre types)
-
leave blank
maximum admissible cable diameter
61 -
cable
Ø 1,5 mm
62 -
cable
Ø 2,2 mm
63 -
cable
Ø 2,4 mm
80 -
multi cable
Ø 1,1 mm
hole adaptors
Ø 1,6 mm
Ø 3 mm
For other cables diameters or adaptorsor spare, consult us
Coupler and device housing
01
(plastic fiber Ø 1000 µ )
to Ø 3 mm
}
Packaging size
-
unit (for plug 8011 15 R 063 only)
D -
per 10 pieces (for plugs and couplers)
C -
per 100 pieces (for couplers and caps)
8011- 0076 C
Caps for plug
444
souriau
8011 Series
Fibre termination
Technology
• gluing/polishing for fibre types G, H, R
• crimping/polishing for fibre type J
• crimping/cleaving for fibre type R (Field cabling)
Consumable
The consumable kit contains all necessary materials to terminate
about so plugs such as :
•
•
•
•
•
•
polishing disks
glue
syringes and needles
ethanol
dry air canned
miscellaneous
Tool kit
P/N : 80-MG0011
The tool kit contains all necessary tools to terminate ST* plugs in
gluing/polishing technic (stripping tools for cable and fibre, crimping
tool, ...)
Tool kit
P/N : 80-MF0002
For industrial and aeronautical
Applications (-40 to +85°C)
For datacom applications
(-20 to + 70°C)
Cleaning Kit
P/N : 80-KG0009
P/N : 80-KG0012
The tool kit contains all necessary tools required to terminate ST*
plugs in crimping/cleaving technic, particularly used in case of field
cabling
NB : available for HCS 200/230/500 fiber into ø 2,6 mm cable only
Tool kit
P/N : 80-MS0003
P/N : 80-KN0002
The tool kit contains all necessary tools to terminate ST* plugs for plastic
fibre, such as :
• stripping plier
• crimping tool
• polishing tool
The cleaning Kit contains all necessary items to clean either plugs,
couplers or device housings, such as :
• ecological cleaning spray
• dry air canned
• ethanol
• paper sticks
• cleaning paper
Options can be ordered separately for tool kits
80-MG0011 and 80-MS0003 :
• microscope/high magnification
• ST* adaptor for microscope
(x 200)
(x 400)
P/N : 80-WL0007
P/N : 80-WL0001
P/N : 80-WL0002
Table of available P/N :
• plugs :
8011 12
8011 12
8011 13
8011 13
8011 15
8011 15
8011 15
8011 15
8011 15
G
G
G
G
H
H
R
R
J
163D
180D
163D
180D
161D
163D
063
163D
062D
* ST is an AT & T registered Trade Mark
• couplers :
8011 22 Z
8011 22 Z
01D
01C
