B-15-155-TPM3-S-SC3-60 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> B-15-155-TPM3-S-SC3-60

B-15-155-TPM3-S-SC3-60: DescriptionTransceiver, 1260nm Min, 1580nm Max, 155Mbps(Tx), 155Mbps(Rx), SC Connector, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size1MB，6 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

B-15-155-TPM3-S-SC3-60 Overview

Transceiver, 1260nm Min, 1580nm Max, 155Mbps(Tx), 155Mbps(Rx), SC Connector, Through Hole Mount

B-15-155-TPM3-S-SC3-60 Parametric

Parameter Name	Attribute value
Maker	Source Photonics
Reach Compliance Code	unknown
Other features	1 X 9 ARRAY
body width	25.4 mm
body height	3.2 mm
Body length or diameter	39.1 mm
Communication standards	GR-468, OC-3, SDH, STM-1
Connection Type	SC CONNECTOR
Data rate (receive)	155 Mbps
Data rate (send)	155 Mbps
Emitter/Detector Type	LASER DIODE
Fiber optic equipment types	TRANSCEIVER
Fiber type	SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1580 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1530 nm
Nominal optical power output	0.079 mW
minimum return loss	14 dB
Sensitivity	-33 dBm
Maximum supply voltage	3.5 V
Minimum supply voltage	3.1 V
Nominal supply voltage	3.3 V
surface mount	NO

Preview

Download Datasheet

View All

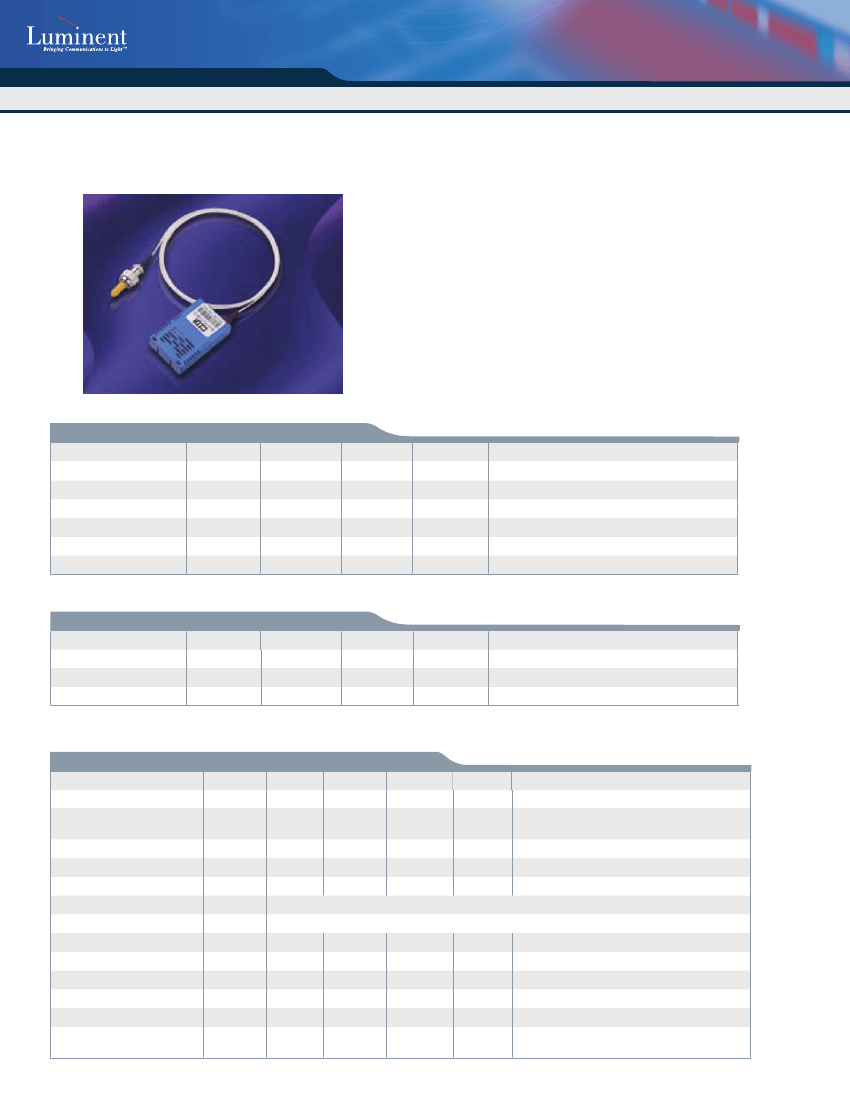

155 Mbps Bi-directional Single Fiber Transceiver

B-15/13-155-TPM3-Sxx3-60

Features

• Coaxial single mode single fiber package with optional

SC/FC/ST/MU connector

• Wavelength Tx 1530nm/ Rx 1310nm

• SONET OC-3 SDH STM-1 Compliant

• Single +3.3V Power Supply

• LVPECL Differential Inputs and Outputs

• Wave Solderable and Aqueous washable

• LED Multisourced 1x9 Transceiver Interchangeable

• Class 1 Laser Int. Safety Standad IEC 825 Compliant

• Uncooled laser diode with MQW structure

• Complies with Telcordia (Bellcore) GR-468-CORE

• Temperature Range: 0 to 70ºC

• Optical Isolation >30 dB

• Cross Talk < -33 dB

• Optical Return Loss > 14dB

Absolute Maximum Rating

Parameter

Power Supply Voltage

Input Voltage

Output Current

Soldering Temperature

Operating Temperature

Storage Temperature

Symbol

Min.

GND

-40

Max.

3.6

260

Unit

ºC

Note

out

10 seconds on leads only

opr

stg

Recommended Operating Condition

Parameter

Power Supply Voltage

Operating Temperature

Data Rate

Symbol

opr

Min.

3.1

Typ.

3.3

155

Max.

3.5

Unit

ºC

Mbps

Transmitter Specifications, (0ºC<T

opr

<70ºC, 3.1V<V

<3.5V)

Parameter

Optical

Optical Transmit Power

Output center Wavelength

Output Spectrum Width

Extinction Ratio

Output Pulse Mask

Output Eye

Optical Rise Time

Optical Fall Time

Optical Isolation

Optical Return Loss

Relative Intensity Noise

Total Jitter

Symbol

Min

Typical

Max

Unit

Notes

Output power is coupled into a 9/125 µm single

mode fiber

RMS (σ)

Δλ

-14

1480

8.2

1530

-8

1580

dBm

Compliant with FDDI SMF-PMD1

Compliant with Bellcore TR-NWT-000253 and ITU recommendation G.957

-116

1.2

dB/Hz

Measured with 2

-1 PRBS with 72 ones and 72

zeros.

10% to 90% Values

Tx:1530 nm/ Rx:1310 nm

RIN
