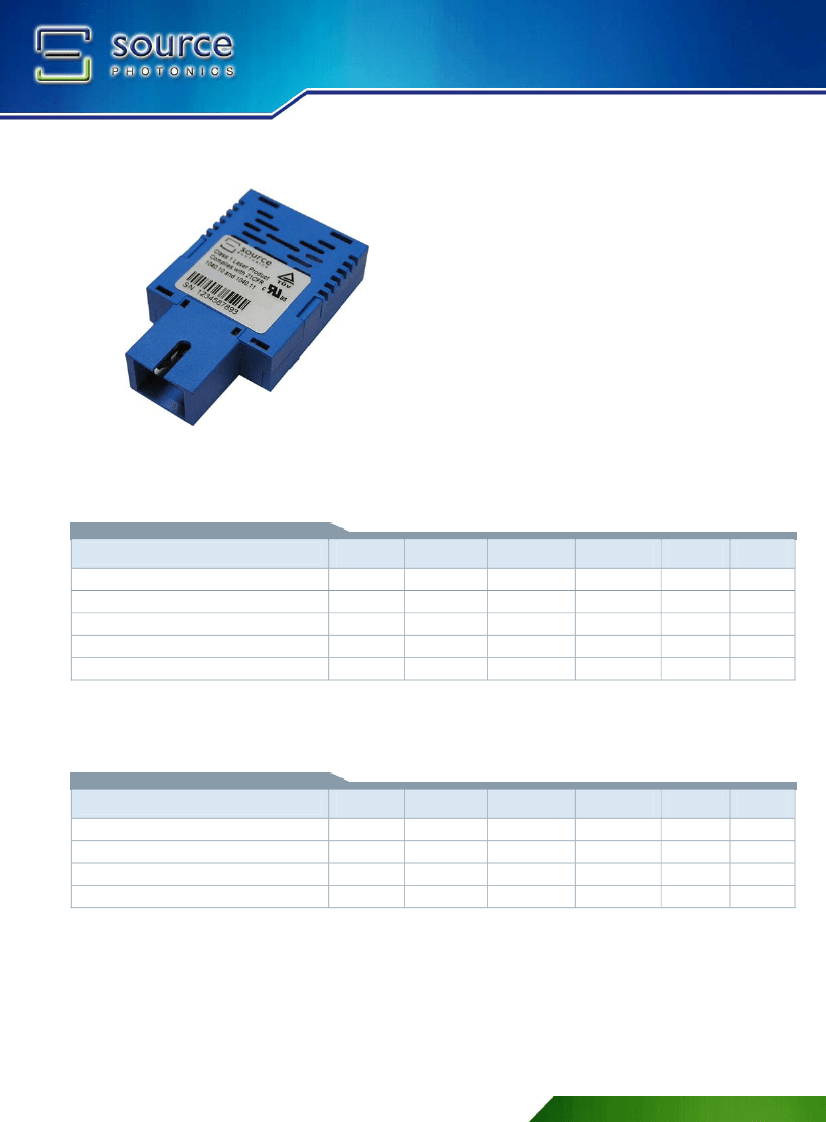

P/N: B-15/13-155(C)-TDFB(3)-SSC5(7)(-G5)
155 Mbps Bi-directional Receptacle Single Fiber Transceiver
Features
Diplexer Single Mode Single Fiber 1x9 SC
Receptacle Connector
Wavelength Tx 1550 nm/Rx 1310 nm
SONET OC-3 SDH STM-1 Compliant
Single +5V/+3.3V power Supply
PECL/LVPECL Differential Inputs and Outputs
[B-15/13-155-TDFB(3)-SSC5(7)]
TTL/LVTTL Differential Inputs and Outputs
[B-15/13-155C-TDFB(3)-SSC5(7)]
Wave Solderable and Aqueous Washable
LED Multisourced 1x9 Transceiver Interchangeable
Class 1 Laser Int. Safety Standard IEC 825 Compliant
Uncooled Laser diode with MQW structure DFB
Laser
Complies with Telcordia (Bellcore) GR-468-CORE
RoHS compliance available
Table 1 – Absolute Maximum Rating
Parameter
Power Supply Voltage
Power Supply Voltage
Output Current
Soldering Temperature
Storage Temperature
Symbol
Vcc
Vcc
I
out
-
Tstg
Min.
0
0
-
-
-40
Typical
-
-
-
-
-
Max.
6
3.6
30
260
85
Unit
V
V
mA
ºC
ºC
1
Notes
Note 1: 10 senconds on leads only
Table 2 – Recommended Operating Condition
Parameter
Power Supply Voltage
Power Supply Voltage
Operating Temperature (Case)
Data Rate
Symbol
Vcc
Vcc
Topr
DR
Min.
4.75
3.1
0
-
Typical
5
3.3
-
155
Max.
5.25
3.5
70
-
Unit
V
V
ºC
Mbps
Notes
-1-
DS-5366
Rev 0.1 2010-11-02
P/N: B-15/13-155(C)-TDFB(3)-SSC5(7)(-G5)
155 Mbps Bi-directional Receptacle Single Fiber Transceiver
Table 3 – Transmitter Specifications (Optical)
Parameter
Optical Transmit Power
Optical Transmit Power
Output Center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Optical Rise/Fall Time
Extinction Ratio
Output Eye
Optical Isolation
Relative Intensity Noise
Total Jitter
Symbol
P
o
P
o
λ
c
Δλ
Sr
t
r
/t
f
ER
-
RIN
T
J
Min.
-5
-3
1480
-
30
-
10
30
-
-
Typical
-
-
1550
-
35
-
-
-
-
-
Max.
0
+2
1580
1
-
2
-
-
-116
1.2
Unit
dBm
dBm
nm
nm
dB
ns
dB
dB
dB/Hz
ns
8
7
4
5
6
Notes
2
3
Compliant with ITU-T recommendation G.957/STM-1
Note 2: Output power is coupled into a 9/125
µm single mode fiber,B-15/13-155(C)-TDFB(3)-SSC5(-G5)
Note 3: Output power is coupled into a 9/125
µm single mode fiber,B-15/13-155(C)-TDFB(3)-SSC7(-G5)
Note 4: -20dB width
Note 5: CW
Note 6: 10% to 90% Values
Note 7: Isolation potential between 1480-1580nm at least 30dB
Note 8: Measured with 2
23
-1 PRBS with 72 ones and 72 zeros.
Table 4 – Transmitter Specifications (Electrical)
Parameter
Power Supply Current
Data Input Current-Low
Data Input Current-High
Differential Input Voltage
Data Input Voltage-Low
Data Input Voltage-High
Symbol
I
CC
I
IL
I
IH
V
IH
-V
IL
V
IL
-V
CC
V
IH
-V
CC
Min.
-
-350
-
300
-2.0
-1.1
Typical
-
-
-
-
-
-
Max.
200
-
350
-
-1.58
-0.74
Unit
mA
μA
μA
mV
mV
mV
10
Notes
9
Note 9: Maximum current is specified at Vcc=Maximum @ maximum temperature
Note 10: These inputs are compatible with 10K, 10KH and 100K ECL and PECL inputs
-2-
DS-5366
Rev 0.1 2010-11-02
P/N: B-15/13-155(C)-TDFB(3)-SSC5(7)(-G5)
155 Mbps Bi-directional Receptacle Single Fiber Transceiver
Table 5 – Receiver Specifications (Optical)
Parameter
Sensitivity
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Wavelength of Operation
Symbol
-
-
P
in
Pa
Pa
Pd
-
Min.
-
-
0
-
-
-45
1.0
1260
Typical
-
-
-
-
-
-
-
-
Max.
-33
-35
-
-33
-35
-
4.0
1360
Unit
dBm
dBm
dBm
dBm
dBm
dBm
dB
nm
13
14
15
Notes
11
12
Note 11: Measured with 2
23
-1 PRBS with 72 ones and 72 zeros, B-15/13-155(C)-TDFB(3)-SSC5(-G5).
Note 12: Measured with 2
23
-1 PRBS with 72 ones and 72 zeros, B-15/13-155(C)-TDFB(3)-SSC7(-G5).
Note 13: Regardless of whether the Tx is on or not, SD should be asserted at less than -33 dBm of input power
leve. Measured on transition: low to high, B-15/13-155(C)-TDFB(3)-SSC5(-G5).
Note 14: Regardless of whether the Tx is on or not, SD should be asserted at less than -35 dBm of input power
leve. Measured on transition: low to high, B-15/13-155(C)-TDFB(3)-SSC7(-G5).
Note 15: Measured on transition: high to low.
Table 6 – Receiver Specifications (Electrical)
Parameter
Power Supply Current
Data Output Voltage-Low
Data Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Symbol
I
CC
V
OL
-V
CC
V
OH
-V
CC
V
SDL
-V
CC
V
SDH
-V
CC
V
SDL
V
SDH
Min.
-
-2.0
-1.1
-2.0
-1.1
-
2.0
Typical
-
-
-
-
-
-
-
Max.
100
-1.58
-0.74
-1.58
-0.74
0.5
-
Unit
mA
V
V
V
V
V
V
Notes
16
17
18
19
Note 16: The current excludes the output load current
Note 17: These outputs are compatible with 10K, 10KH and 100KECL and LVPECL outputs.
Note 18: B-15/13-155-TDFB(3)-SSC5(7)(-G5)
Note 19: B-15/13-155C-TDFB(3)-SSC5(7)(-G5)
-3-
DS-5366
Rev 0.1 2010-11-02
P/N: B-15/13-155(C)-TDFB(3)-SSC5(7)(-G5)
155 Mbps Bi-directional Receptacle Single Fiber Transceiver

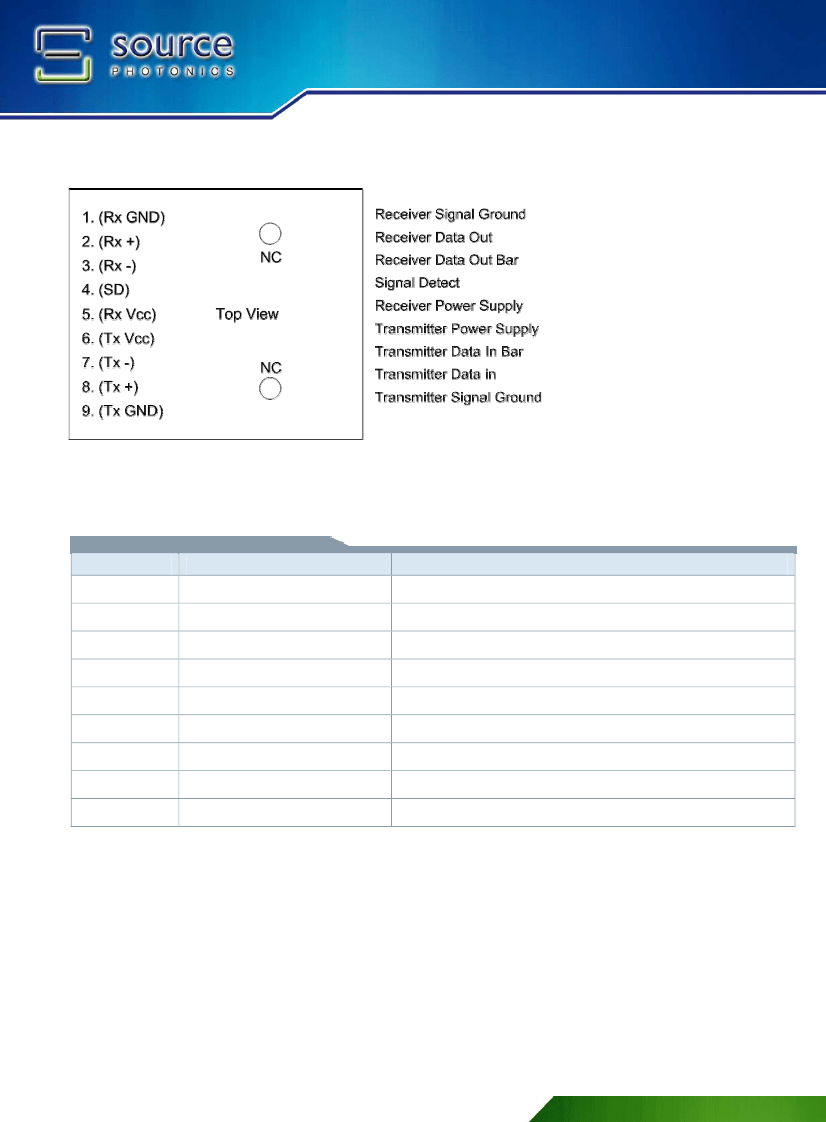

Connection Diagram
Table 7 – Pin Definitions
Pin
1
2
3
4
5
6
7
8
9
Unit
RxGND
RD+
RD-
SD
RxVcc
TxVcc
TD-
TD+
TxGND
Notes
Directly connect this pin to the receiver ground plane
See recommended circuit schematic
See recommended circuit schematic
Active high on this indicates a received optical signal
DC power for the receiver section
DC power for the transmitter section
See recommended circuit schematic
See recommended circuit schematic
Directly connect this pin to the transmitter ground plane
-4-
DS-5366
Rev 0.1 2010-11-02
P/N: B-15/13-155(C)-TDFB(3)-SSC5(7)(-G5)
155 Mbps Bi-directional Receptacle Single Fiber Transceiver

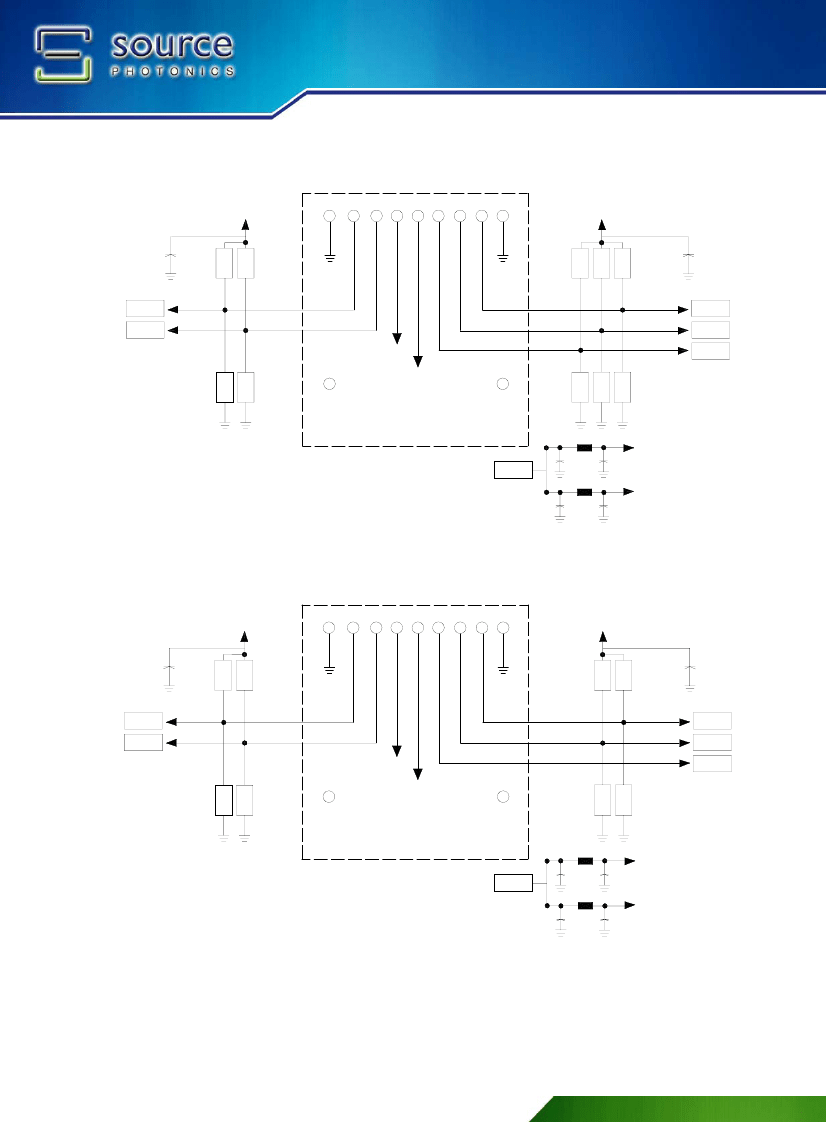

Recommended Circuit Schematic
B-15/13-155-TDFB(3)-SSC5(7)
Tx Vcc
Rx Vcc
C5
9 8
R1
R3
7 6 5
4 3 2
1
R9
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
R10
R6
R8
SD
No internal
connection
Transceiver
Top view
No internal
connection
L1
Vcc
C3
L2
C4
C2
C1
Rx Vcc
Notes +3.3V:
R1=R3=R5=R7=R9=130
Ω
R2=R4=R6=R8=R10=82
Ω
C1=C2=C3=C5=C6=0.1
μ
F
C4=10
μ
F
L1=L2=1
μ
H
Notes +5V:
R1=R3=R5=R7=R9=82
Ω
R2=R4=R6=R8=R10=130
Ω
C1=C2=C3=C5=C6=0.1
μ
F
C4=10
μ
F
L1=L2=1
μ
H
Tx Vcc
B-15/13-155C-TDFB(3)-SSC5(7)
Tx Vcc
Rx Vcc
C5
9 8
R1
R3
7 6 5
4 3 2
1
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
R6
R8
SD
No internal
connection
Transceiver
Top view
No internal
connection
L1
Vcc
C3
L2
C4
C2
C1
Notes +3.3V:
R1=R3=R5=R7=130
Ω
R2=R4=R6=R8=82
Ω
C1=C2=C3=C5=C6=0.1
μ
F
C4=10
μ
F
L1=L2=1
μ
H
Notes +5V:
R1=R3=R5=R7=82
Ω
R2=R4=R6=R8=130
Ω
C1=C2=C3=C5=C6=0.1
μ
F
C4=10
μ
F
L1=L2=1
μ
H
Rx Vcc
Tx Vcc
-5-
