B-13/15-155-T-SSC5-40-G5: DescriptionTransceiver, 1260nm Min, 1360nm Max, 155Mbps(Tx), 155Mbps(Rx), SC Connector, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size573KB，7 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

B-13/15-155-T-SSC5-40-G5 Overview

Transceiver, 1260nm Min, 1360nm Max, 155Mbps(Tx), 155Mbps(Rx), SC Connector, Through Hole Mount

B-13/15-155-T-SSC5-40-G5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Source Photonics
Reach Compliance Code	unknown
body width	25.4 mm
body height	9.8 mm
Body length or diameter	30.5 mm
Communication standards	GR-468, ITU-T, OC-3, SDH, SONET, STM-1
Connection Type	SC CONNECTOR
Data rate (receive)	155 Mbps
Data rate (send)	155 Mbps
Emitter/Detector Type	LASER
Fiber optic equipment types	TRANSCEIVER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1310 nm
Nominal optical power output	0.5623 mW
Sensitivity	-33 dBm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

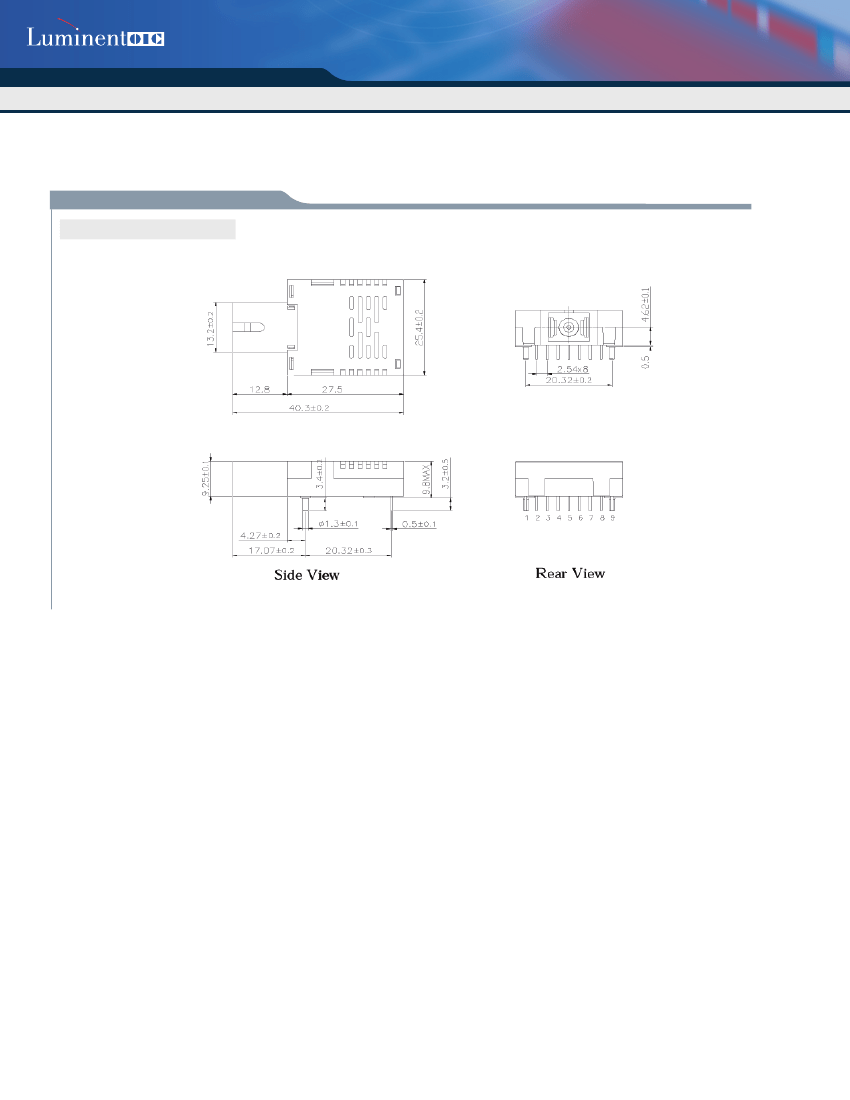

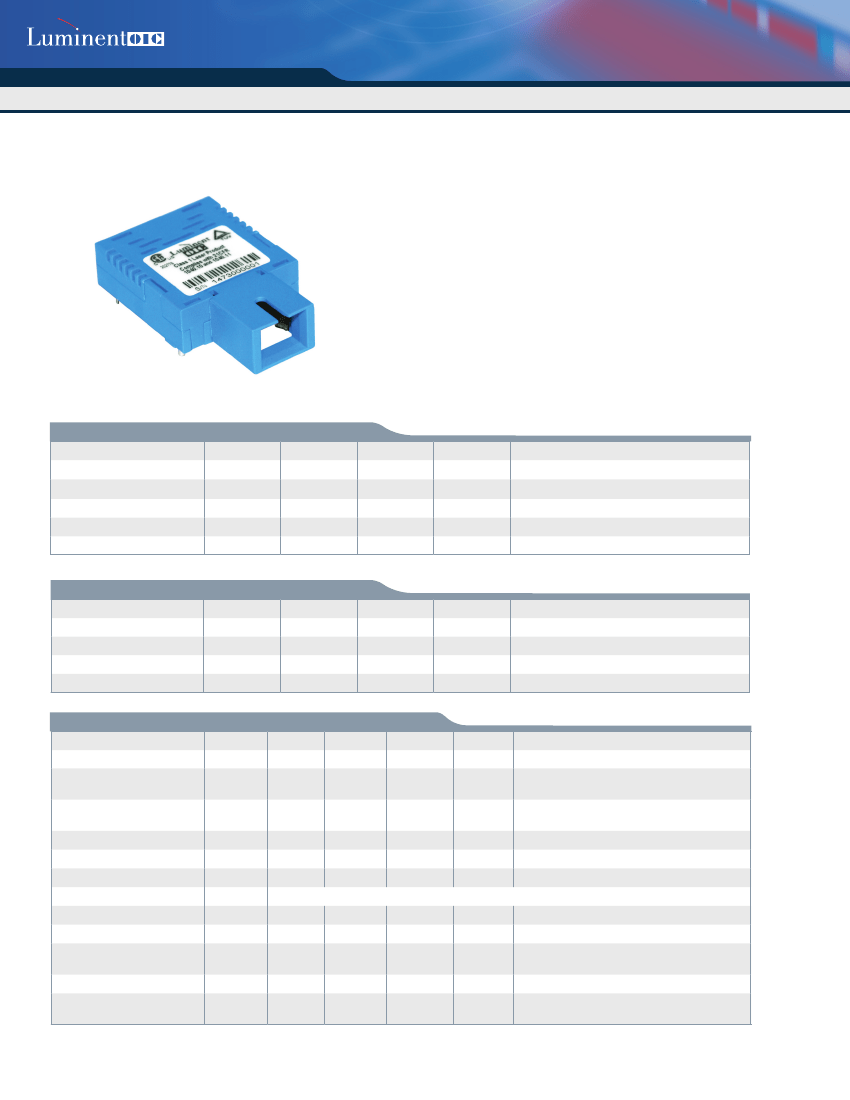

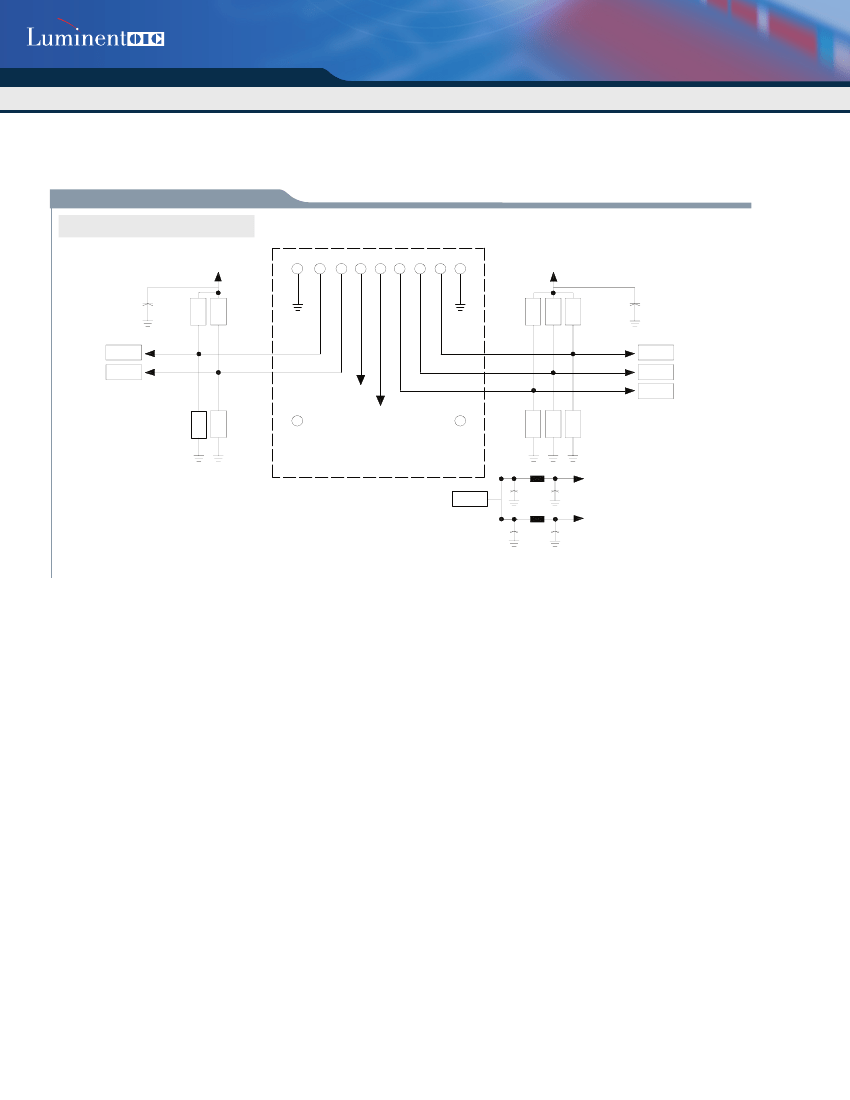

155 Mbps Bi-directional Receptacle

Single Fiber Transceiver

B-13/15-155-T(3)-SSCx-40

Features

• Diplexer Single Mode Single Fiber 1x9 SC Receptacle

Connector

• Wavelength Tx 1310nm/Rx 1530 nm

• SONET OC-3 SDH STM-1 Compliant

• Single +5V Power Supply [B-13/15-155-T-SSCx-40]

• Single +3.3V Power Supply [B-13/15-155-T3-SSCx-40]

• PECL/LVPECL Differential Inputs and Outputs

[B-13/15-155-T(3)-SSCx-40]

• Wave Solderable and Aqueous Washable

• LED Multisourced 1x9 transceiver interchangeable

• Class 1 Laser Int. Safety Standard IEC 825 Compliant

• Uncooled Laser diode with MQW structure

• Complies with Telcordia(Bellcore) GR-468-CORE

• RoHS compliance available

Absolute Maximum Rating

Parameter

Power Supply Voltage

Output Current

Soldering Temperature

Storage Temperature

Symbol

out

Min.

-40

Max.

3.6

260

Unit

ºC

Note

B-13/15-155-T-SSCx-40

B-13/15-155-T3-SSCx-40

10 seconds on leads only

stg

Recommended Operating Condition

Parameter

Power Supply Voltage

Operating Temperature (Case)

Data Rate

Transmitter Speciﬁcations

Parameter

Optical

Optical Transmit Power

Output center Wavelength

Output Spectrumt Width

Extinction Ratio

Output Eye

Optical Rise Time

Optical Fall Time

Optical Isolation

Relative Intensity Noise

Total Jitter

Symbol

opr

Min.

4.75

3.1

Typ.

3.3

155

Max.

5.25

3.5

Unit

ºC

Mbps

Symbol

Min

Typical

Max

Unit

Notes

Output power is coupled into a 9/125 µm single

mode ﬁber, B-13/15-155-T(3)-SSC5-40

Output power is coupled into a 9/125 µm single

mode ﬁber, B-13/15-155-T(3)-SSC7-40

RMS (σ)

∆λ

-5

-3

1260

1310

1360

-116

1.2

dBm

dB/Hz

Compliant with ITU-T recommendation G.957/STM-1

10% to 90% Values

Isolation potential between 1480-1580nm at

least 30dB

Measured with 2

-1 PRBS with 72 ones and 72

zeros.

LUMNDS1886-Jun0308

Rev A.1

RIN

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
