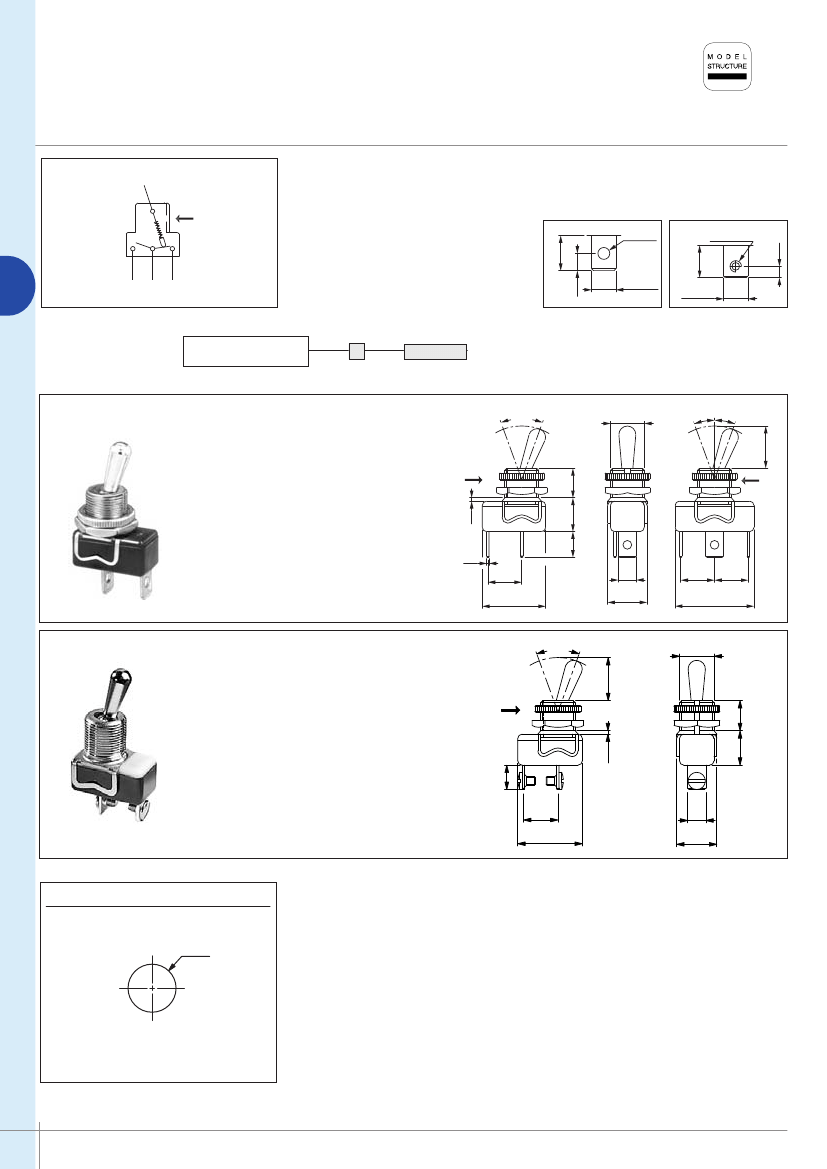

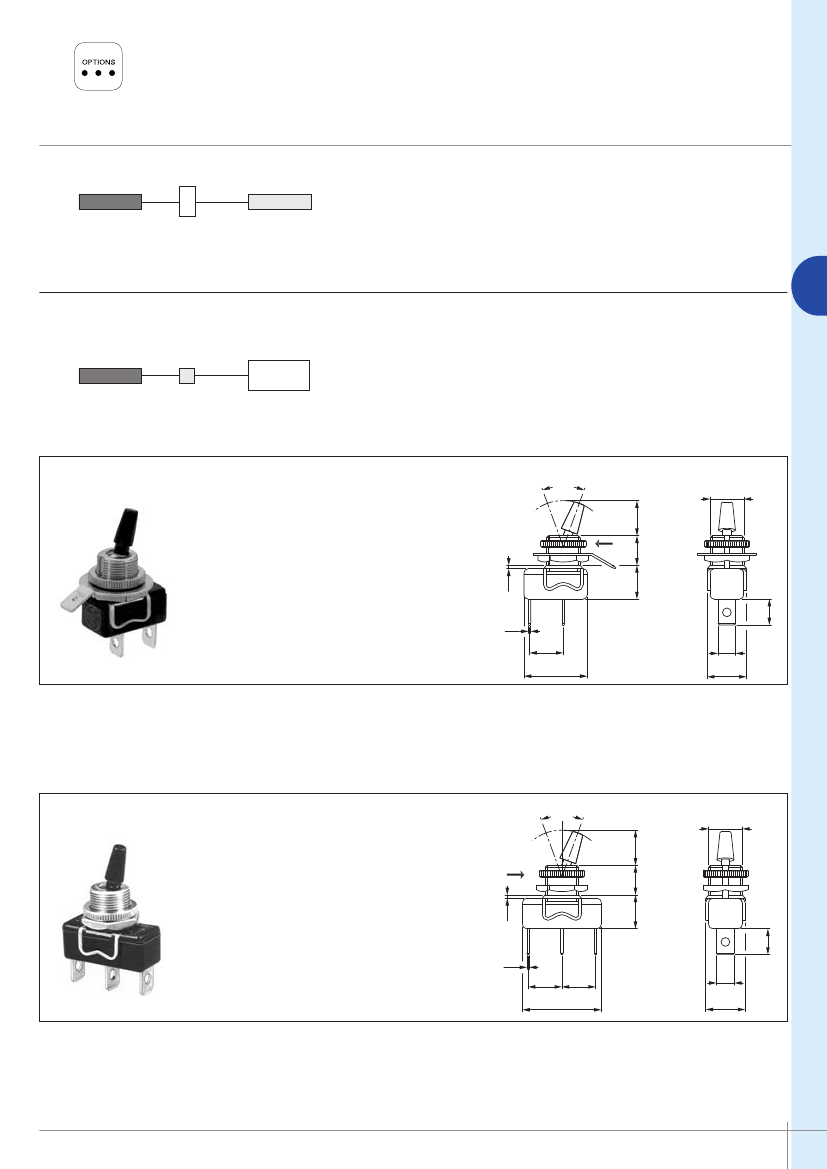

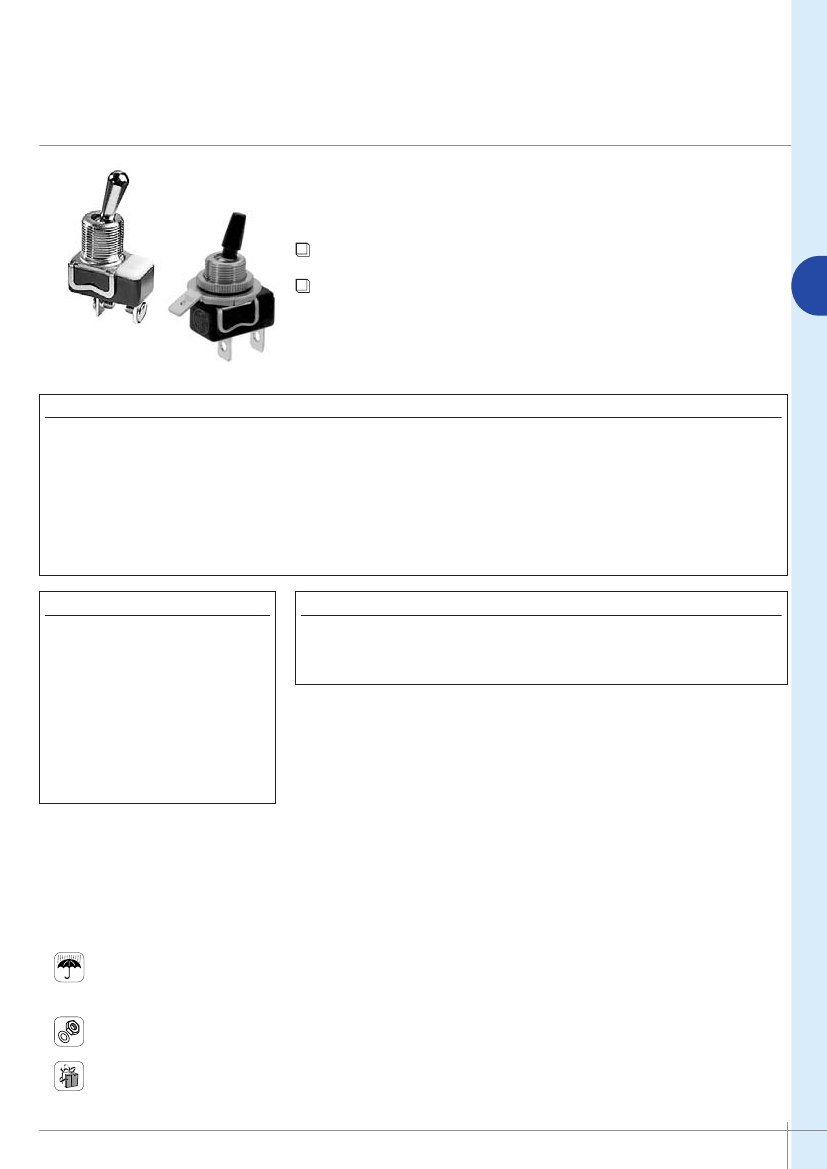

1000 series
Toggle switches - metal lever - economy range
Distinctive features and specifications
❑
Butt action contacts
❑
Optional insulated levers (X213 and X490)
A
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contacts (A) : 6A 30VDC
- silver plated copper contacts (C) : 1A 30VDC
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
2.000 Vrms 50 Hz min. between terminals
2.500 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10.000 cycles at full load
MATERIALS
GENERAL SPECIFICATIONS
• Case :
- function 1 : phenolic resin
- funct. 6 & 9 : polyamide
• Actuator :
- brass, nickel plated (1010
and 1020 models)
- polyamide (1030 models)
• Bushing : brass, nickel plated
• Contacts :
A
: silver
C
: copper, silver plated
• Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness : 5 mm (.196) max.
• Operating temperature : -20°C to +55°C
ABOUT THIS SERIES
Dimensions
: first dimensions are in mm while inches are shown as bracketed numbers.
Sealing boots
are available to protect the switches against dust and water. They are presented in section H.
Mounting accessories
: standard hardware supplied :
- silver contact models : 1 hex nut U166 + 1 knurled nut U411
- copper contact models : 1 hex nut U42 + 1 knurled nut U411
Packaging unit
: 25 or 40 pieces depending on model.
APEM
www.apem.com
A-79
1000 series
Toggle switches - metal lever - economy range
Solder lug and quick-connect terminals - screw terminals
➞
Keyway
•
2 and 3 positions
• Single pole configurations
Ø3.10
(.122DIA)
9.20
(.362)
8.50
(.334)
Ø3.00x0.5 SI
(.118DIAx0.5 IS)
3.00
(.118)
II18˚
I
12.00
(.472)
28.00
(1.102)
12.00
(.472)
10.50
(.413)
8.50
(.334)
4.50
(.177)
A
MODEL
STRUCTURE
6.35x0.80
(.25x.031)
6.35x0.80
(.25x.031)
Solder lug and quick-connect terminals
I
1011
1016
1019
ON
ON
ON
II
-
-
OFF
III
OFF
ON
ON
➞
Keyway
III
36˚
I
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
III
18˚
1.00
(.039)
0.8
(.031)
12.00
(.472)
22.50
(.886)
9.20
(.362)
12.00
(.472)
10.50
(.413)
6.35
(.25)
14.00
(.551)
12.00
(.472)
Screw terminals
I
1021
1026
1029
ON
ON
ON
II
-
-
OFF
III
OFF
ON
ON
➞
Keyway
III
36°
I
Ø12.00x0.75
SI
(.472DIAx0.75 IS)
12.00
(.472)
22.50
(.886)
1.00
(.039)
15.00
(.039)
6.35
(.25)
14.00
(.551)
PANEL CUT
-
OUT
Ø12.20
(.48DIA)
A-80
www.apem.com
APEM
15.00
(.925)
1000 series
Toggle switches - metal lever - economy range
Solder lug and quick-connect terminals - screw terminals
CONTACT MATERIALS
A
C
Silver
Copper, silver plated
A
SPECIAL OPTIONS WITH INSULATED LEVER
X213
Silver plated copper contacts (C)
➞
Keyway
I
36˚
II
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
12.50
(.492)
1.00
(.039)
12.00
(.472)
10.50
(.413)
I
1031CX213
OFF
-
II
ON
0.80
(.031)
12.00
(.472)
22.50
(.886)
6.35
(.25)
14.00
(.551)
Ground connector
U187
compulsory if the panel is not metallic or not connected to ground.
Order separately, see section I.
X490
Available with silver contacts (A) or silver plated copper contacts (C)
➞
Keyway
I
1036 X490
1039 X490
ON
ON
II
-
OFF
III
ON
ON
I
II
36˚
III
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
12.50
(.492)
1.00
(.039)
12.00
(.472)
10.50
(.413)
0.80
(.031)
12.00
(.472)
12.00
(.472)
6.35
(.25)
14.00
(.551)
28.00
(1.102)
APEM
www.apem.com
A-81
9.20
(.362)
9.20
(.362)
