KJ3R24N41SD16 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> KJ3R24N41SD16

KJ3R24N41SD16: DescriptionMIL Series Connector, 61 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

KJ3R24N41SD16 Overview

MIL Series Connector, 61 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle

KJ3R24N41SD16 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, LOW PROFILE, POLARIZATION AVAILABLE
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	KJ3
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	24
Termination type	CRIMP
Total number of contacts	61

Preview

Download Datasheet

View All

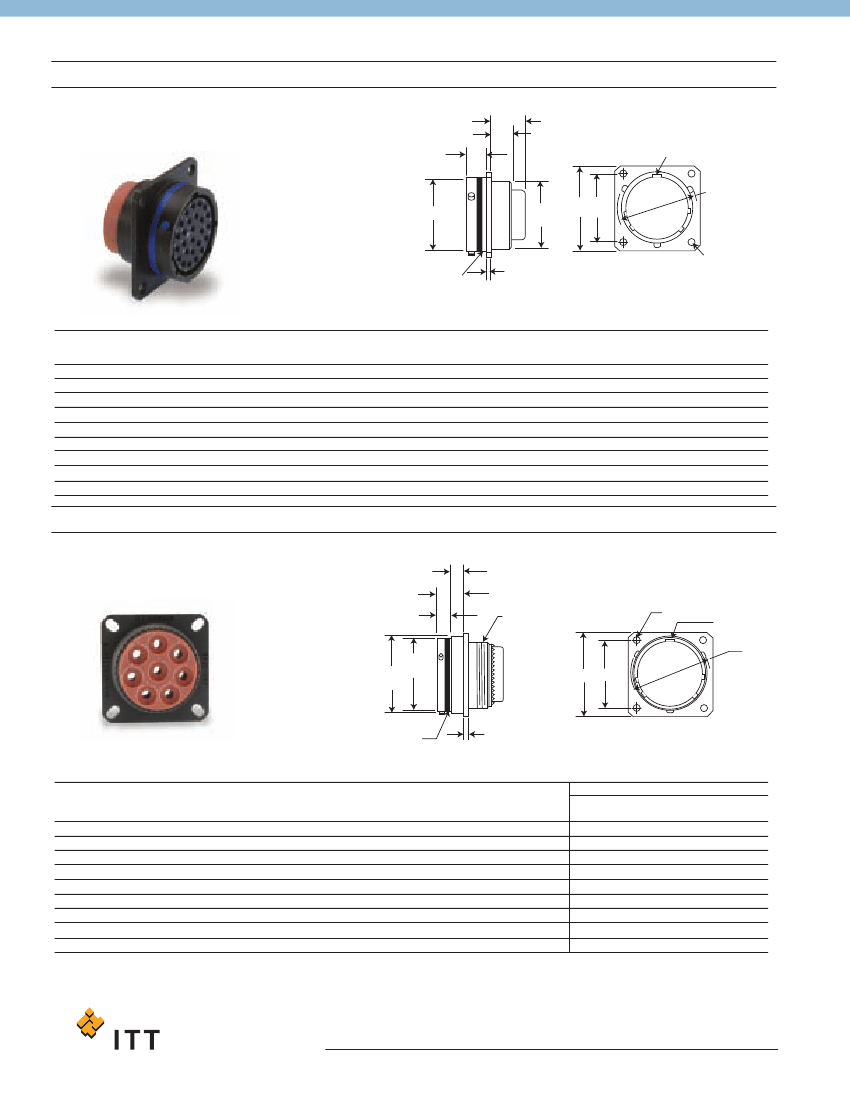

MIL-DTL-38999 Series II Connectors

Box Mounting Receptacle

MS27513E

(MS service class E)

KJ2R

.463

(11.76)

MAX.

Cannon KJ

.322 (8.17)

MAX.

POLARIZING

KEYWAY

J MAX.

A DIA.

DIA.

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

.069

(1.74) MAX.

P DIA.

NOTE: This connector does not accommodate backshells

Shell

Size

Dia. Max.

.474 (12.04)

.591 (15.01)

.751 (19.08)

.876 (22.25)

1.001 (25.43)

1.126 (28.60)

1.251 (31.78)

1.376 (33.95)

1.501 (38.13)

Dia. Max.

.421 (10.69)

.542 (13.77)

.667 (16.94)

.791 (20.09)

.916 (23.27)

1.034 (26.26)

1.158 (29.41)

1.283 (32.59)

1.408 (35.76)

Dia. Max.

.563 (14.30)

.680 (17.27)

.859 (21.82)

.984 (24.99)

1.108 (28.14)

1.233 (31.32)

1.358 (34.49)

1.483 (27.67)

1.610 (40.89)

Max.

.312 (7.92)

Max.

.828 (21.03)

.954 (24.23)

1.047 (26.59)

1.141 (28.98)

1.234 (31.34)

1.328 (33.73)

1.453 (36.81)

1.578 (40.08)

1.703 (43.26)

T.P.

.594 (15.09)

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (27.36)

1.250 (31.75)

1.375 (34.93)

+.005 (0.13)

-.010 (0.25)

.125 (3.18)

.152 (3.85)

Wall Mounting Receptacle

MS27497

(MS service class E, P, T)

KJ3

.142 (3.01)

MAX. PANEL

THICKNESS (including mounting hardware)

.477 (11.35) MAX.

.322 (8.17) MAX.

T THREAD

P DIA.

POLARIZING

KEYWAY

J DIA.

DIA.

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

.069 (1.74) MAX.

NOTE: For backshell dimensions and configurations, see page 26 and 27

Shell

Size

+.005 (0.13)

Thread

-.010 (0.25)

.125 (3.18)

7/16-28UNEF-2A

.125 (3.18)

9/16-24UNEF-2A

.125 (3.18) 11/16-24UNEF-2A

.125 (3.18) 13/16-20UNEF-2A

.125 (3.18) 15/16-20UNEF-2A

.125 (3.18) 1-1/16-18UNEF-2A

.125 (3.18) 1-3/16-18UNEF-2A

.125 (3.18) 1-5/16-18UNEF-2A

.152 (3.86) 1-7/16-18UNEF-2A

Overall Length With Backshells

Straight

.855 (21.72)

Cable Clamp

1.570 (39.88)

1.780 (45.21)

1.960 (49.78)

Potting Max.

1.020 (25.91)

1.080 (27.43)

Dia. Max.

.474 (12.04)

.591 (15.01)

.751 (19.08)

.876 (22.25)

1.001 (25.43)

1.126 (28.60)

1.251 (31.78)

1.376 (34.95)

1.501 (38.13)

Dia. Max.

.522 (13.26)

.639 (16.23)

.808 (20.52)

.935 (23.75)

1.058 (26.87)

1.183 (30.05)

1.308 (33.22)

1.433 (36.40)

1.568 (39.83)

Dia. Max.

.563 (14.30)

.680 (17.27)

.859 (21.82)

.984 (24.99)

1.108 (28.14)

1.233 (31.32)

1.358 (34.49)

1.483 (37.67)

1.610 (40.89)

Max.

.828 (21.03)

.954 (24.23)

1.047 (26.59)

1.141 (28.98)

1.234 (31.34)

1.328 (33.73)

1.453 (36.91)

1.578 (40.08)

1.703 (43.26)

T.P

.594 (15.09)

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.93)

Performance Specifications-Pages 3-4

Contacts, Sealing Plugs, Assembly Tools - Pages 22, 27-28

Contact Arrangements - Pages 20-21

Dimensions shown in mm

Specifications and dimensions subject to change

www.ittcannon.com
