NJU6318AE(T2) datasheet, PDF - EEWORLD Datasheet

NJU6318AE(T2): DescriptionClock Generator, 50MHz, CMOS, PDSO8, MINI, PLASTIC, EMP-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size77KB，4 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric View All

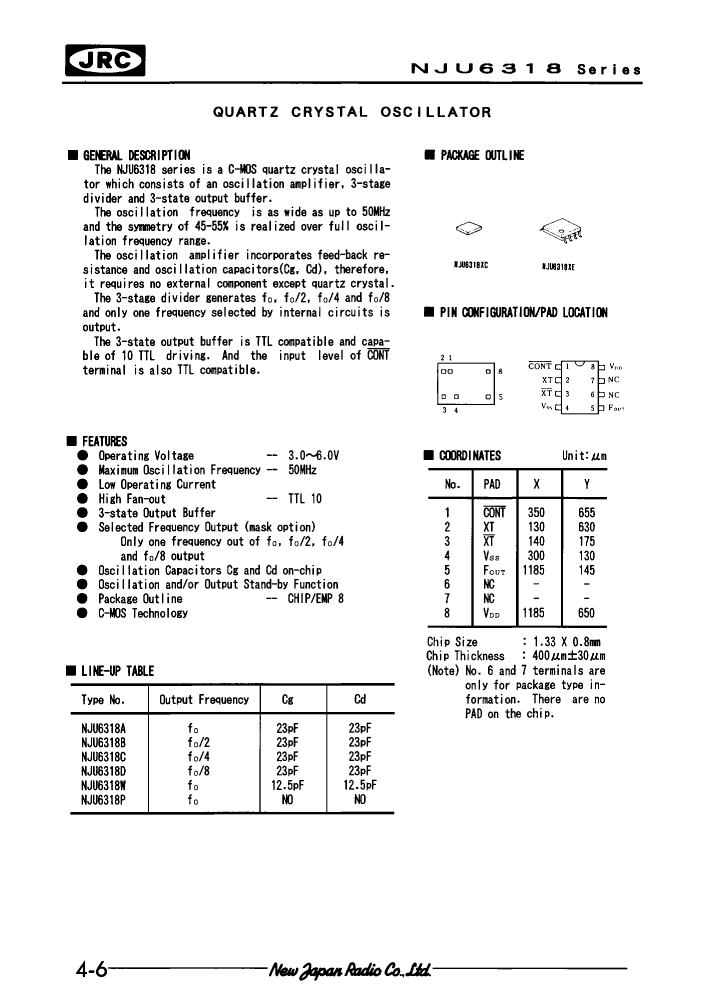

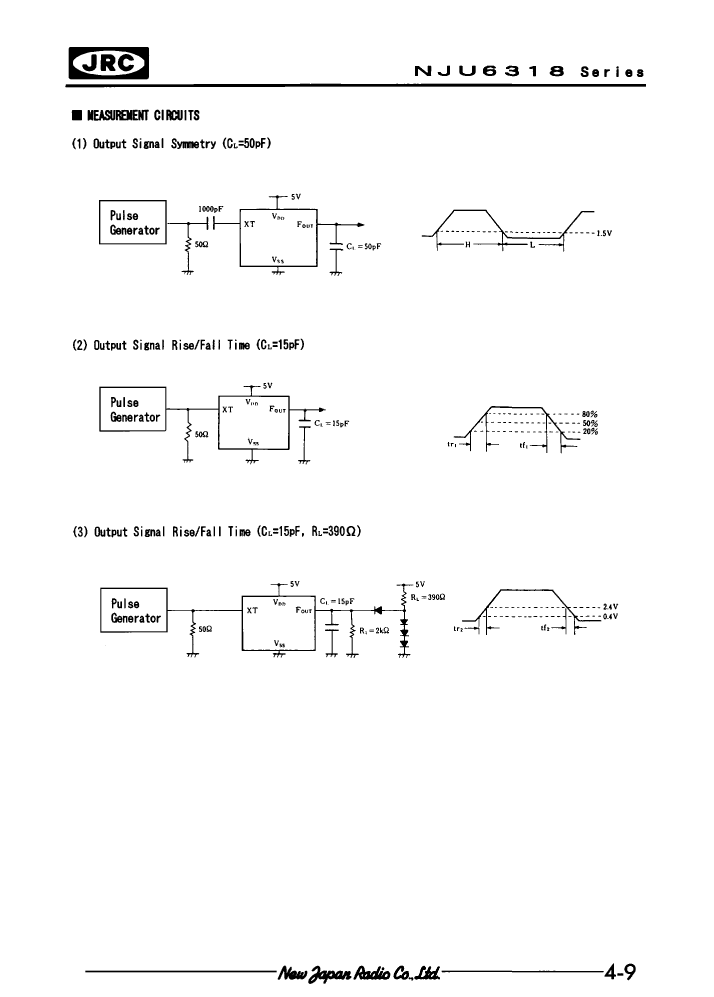

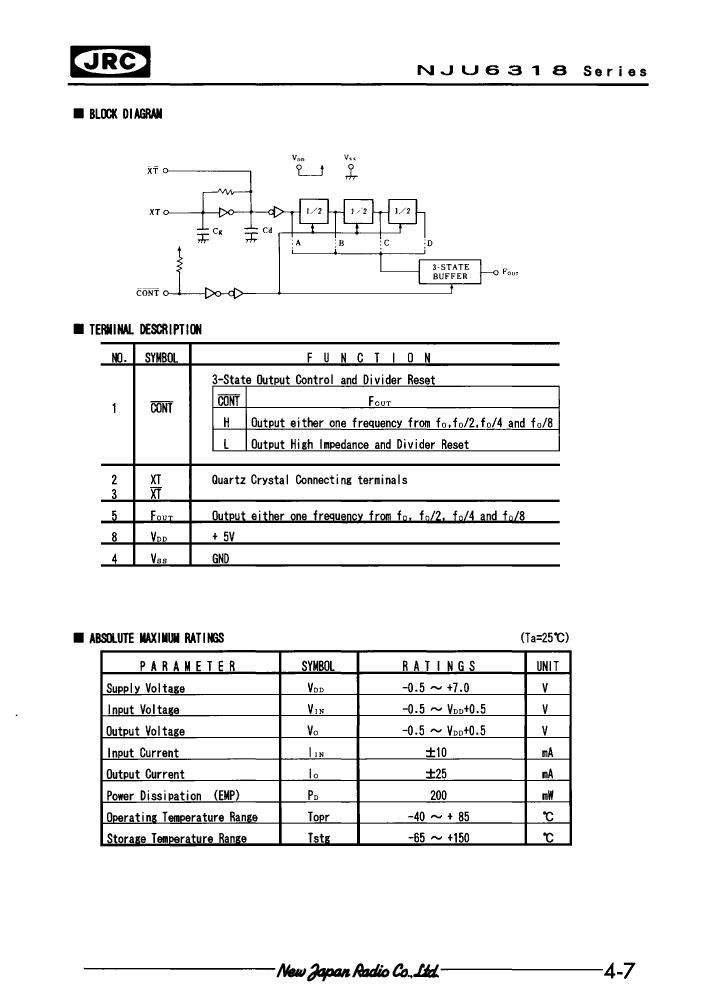

NJU6318AE(T2) Overview

Clock Generator, 50MHz, CMOS, PDSO8, MINI, PLASTIC, EMP-8

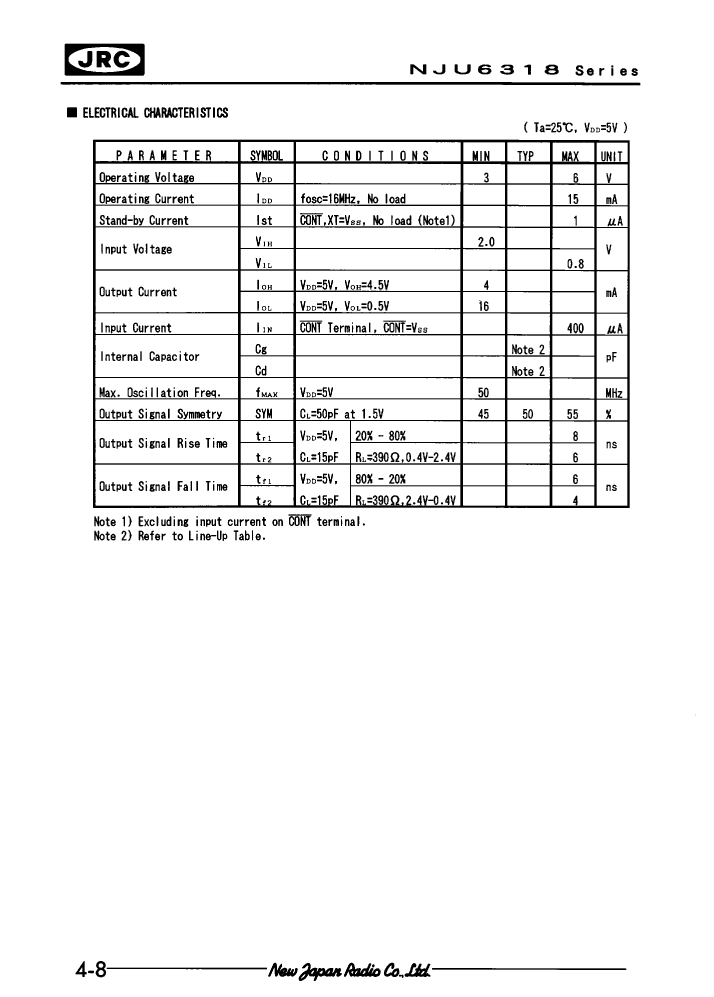

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-30 code	R-PDSO-G8
JESD-609 code	e6
length	5 mm
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	50 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Master clock/crystal nominal frequency	50 MHz
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER
