NJU3505L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> NJU3505L

NJU3505L: DescriptionMicrocontroller, 4-Bit, MROM, 4MHz, CMOS, PDIP42, SDIP-42; CategoryThe embedded processor and controller Microcontrollers and processors; File Size399KB，64 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric View All

NJU3505L Overview

Microcontroller, 4-Bit, MROM, 4MHz, CMOS, PDIP42, SDIP-42

NJU3505L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	New Japan Radio Co., Ltd..
Parts packaging code	DIP
package instruction	SDIP, SDIP42,.6
Contacts	42
Reach Compliance Code	unknown
bit size	4
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	37.3 mm
Humidity sensitivity level	2
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	8192
ROM programmability	MROM
Maximum seat height	4.8 mm
speed	4 MHz
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

NJU3505

PRELIMINARY

4-BIT SINGLE CHIP MICRO CONTROLLER

GENERAL DESCRIPTION

The

NJU3505

is the C-MOS 4-bit Single Chip Micro

Controller consisting of the 4-bit CPU Core, Input / Output

Selectable I/O ports, Program ROM, Data RAM, Dual

Timer/Counter, 8-bit Serial Interface, 8-bit A/D Converter,

and Oscillator Circuit (CR or Ceramic or X'tal). It realizes

the control for home appliances or toys by only few

external components.

The

NJU3505

is suitable for battery operated appliances

because of low operating current, wide operating voltage

range, and STANDBY function (HALT mode).

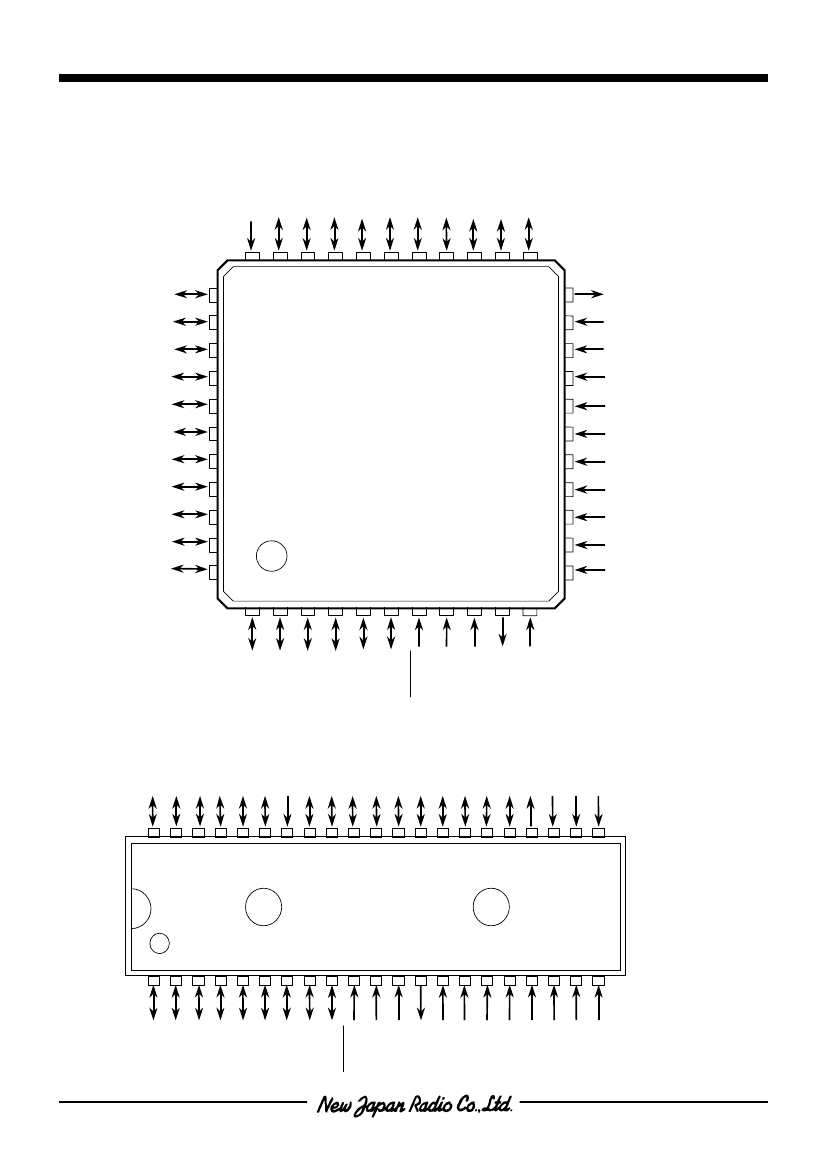

PACKAGE OUTLINE

NJU3505FA1

NJU3505L

FEATURES

Internal Program ROM

Internal Data RAM

Input / Output Port

8,192 X 8 bits

256 X 4 bits

35 lines(MAX) / NJU3505FA1

33 lines(MAX) / NJU3505L

17 lines⋅⋅⋅⋅⋅⋅Input / Output direction of each bit is selected by the mask option.

4 lines⋅⋅⋅⋅⋅⋅⋅⋅Input / Output direction of the 4-bit lines’ group can be changed by the program.

Additional functions by the mask option.

External Interrupt Terminal

: EXTI/PK0

External Clock Input Terminal for Timer2 : CNTI/PK1

Serial Interface Terminals

: SDO/PL0, SDI(O)/PL1

A/D Converter Interface Terminals

: AIN0−3/PI0−3,V

REF

/PJ0,ADCK/PJ1

High Output-Current terminal (10 lines)

N-Channel FET Open Drain Type (I

) 15mA at V

=5V (PA0−PA3, PB0−PB3, PC0, PC1)

Instruction Set

59 instructions

Subroutine Nesting

8 levels

Pulse Edge Detector

The rising or falling edge of a pulse is selected by the mask option.

Instruction Executing Time

6/f

OSC

sec (1.5µsec at 4MHz)

Operating Frequency Range

30kHz

−

4MHz

Internal Oscillator

CR, or Ceramic, or X'tal oscillation and External clock input

STANDBY function (HALT mode)

Wide operating voltage range

2.4V

−

5.5V

8-bit Serial Input / Output port

Timer/Counter

(Timer1 : 8-bit re-load type timer, Timer2 : 12-bit re-load type timer event counter )

(Count clock : Timer1’s clock is an internal one. Timer2’s clock is an internal or external one.)

8-bit A/D converter (Multiplexed 8-channel input )

Interrupt factor

4 (external, timer1, timer2, serial Input / Output)

C-MOS technology

Package outline

QFP44-A1 / SDIP42

11/May/2001

-1-
