Features
Unregulated
Converters
●
●
●
●
●
●
●
Pot-Core Transformer - separated windings
High 5.2kVDC Isolation in compact size
Optional Continuous Short Circuit Protected
Pin Compatible with RH and RK Series
Approved for Medical and IGBT Applications
UL and EN Certified
Efficiency to 82 %
ECONOLINE
DC/DC-Converter
with 3 year Warranty
Description

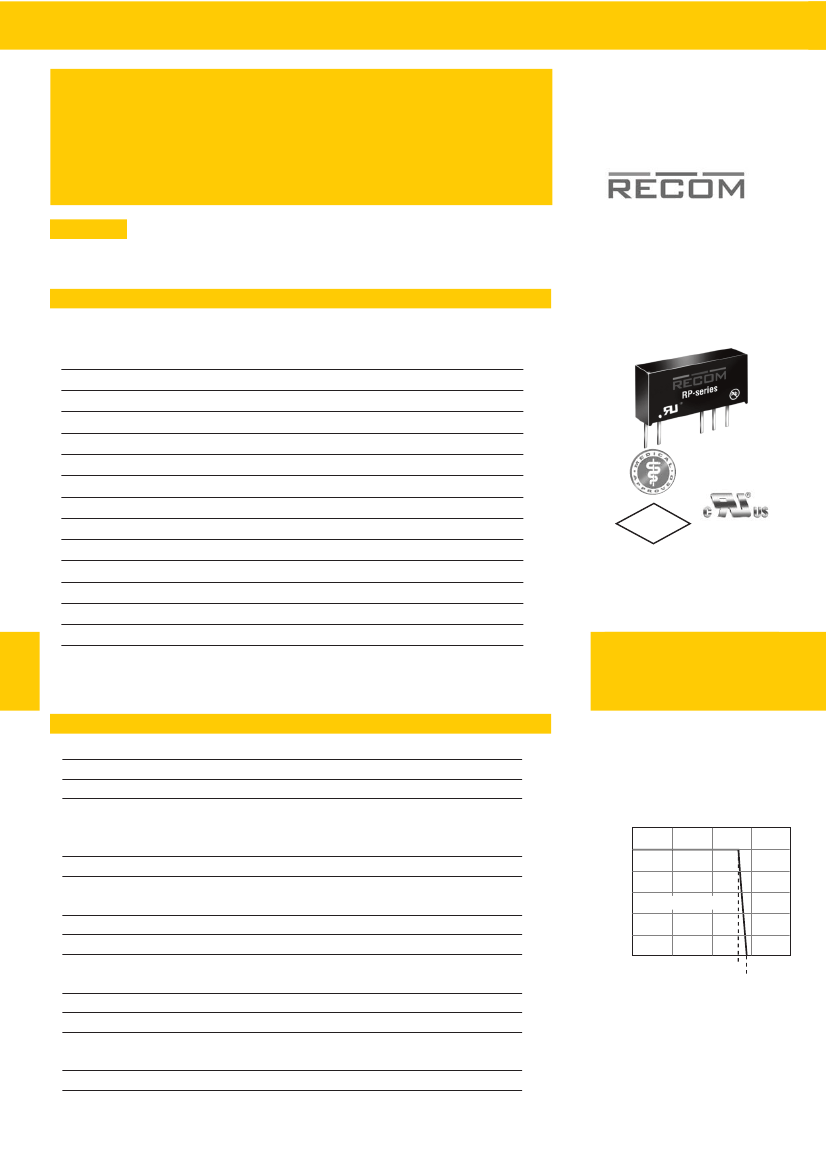

The RP series has very high isolation of 5.2 kVDC in a compact size. The converters are
EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications.
The /X2 version has rearraged pins to permit an input output seperation of more than 9mm.
Selection Guide
Part
Number
SIP 7
RP-xx3.3S*
RP-xx05S*
RP-xx09S*
RP-xx12S*
RP-xx15S*
RP-xx24S*
RP-xx3.3D*
RP-xx05D*
RP-xx09D*
RP-xx12D*
RP-xx15D*
RP-xx24D*
RP-xx1509D
Input
Voltage
(VDC)
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 12, 24
Output
Voltage
(VDC)
3.3
5
9
12
15
24
±3.3
±5
±9
±12
±15
±24
+15/-9
Output
Current
(mA)
303
200
111
84
66
42
±152
±100
±56
±42
±33
±21
±42
Efficiency
(%)
70
70-72
75
75-78
80
80
70
74-76
75
79-82
80-82
80
70-85
Max
Capacitive
Load
(1)
2200µF
1000µF
1000µF
470µF
470µF
220µF
±1000µF
±470µF
±470µF
±220µF
±220µF
±100µF
±220µF
1 Watt
SIP 7 Single
&
Dual Output
2011/65/EU
6/6
RoHS
E-358085
EN-60950-1 Certified
IEC/EN-60601-1 Certified*
CSA/UL-60950-1 Certified*
* +15/-9 Version excluded
xx = Input Voltage. Other input and output voltage combinations available on request
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
RP-0505S/P, RP-0505D/P
* add Suffix “/X2” for single output with alternative pinning e.g.
RP-0505S/X2, RP-0505S/P/X2
RP
Derating-Graph
(Ambient Temperature)
100
80
RP
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Operating Frequency
RP-xx1509D
Efficiency at Full Load
Minimum Load = 0%
Isolation Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
Operating Temperature Range (free air convection, without derating)
(tested for 1 second)
(rated for 1 minute**)
3.3V output types
5V output type
9V, 12V, 15V, 24V output types, RP-xx1509D
±10%
±5%
1.2%/1% of Vin typ.
20% max.
15% max.
10% max.
100mVp-p max.
Output Power (%)
50kHz min. / 100kHz typ. / 120kHz max.
50kHz min / 94kHz typ.
70% min. / 80% typ.
Specifications valid for 10% minimum load only.
5200VDC
2600VAC / 60Hz
4pF min. / 10pF max.
20 GΩ min.
1 Second
Continuous
-40°C to +90°C (see Graph)
continued on next page
60
40
20
0
Safe Operating Area
90 100
95
Operating Temperature °C
-40
0
50
150
**Any data referred to in this datasheet are of indivative nature and
based on our practical experience only. For further details, please
refer to our Application Notes.
Refer to Application Notes
www.recom-power.com
E-66
REV: 0/2014
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Storage Temperature Range
Relative Humidity
Package Weight
Packing Quantity
MTBF (+25°C)
(+85°C)
Certifications
CSA General Safety
UL General Safety
EN General Safety
EN Medical safety
Report: E358085
Report: E358085
Report: SPCLVD1109103
Report: SPCMDD1205098-4
RP
Series
-55°C to +125°C
95% RH
2.4g
25 pcs per Tube
}
Detailed Information see
Application Notes chapter "MTBF"
using MIL-HDBK 217F
using MIL-HDBK 217F
928 x 10
3
hours
150 x 10
3
hours
CSA C22.2 No. 60950-1-03
UL 60950-1 2nd Ed.
EN60950-1:2006 + A12:2011
IEC/EN60601-1:2006, 3rd Edition
Notes
Note 1
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.

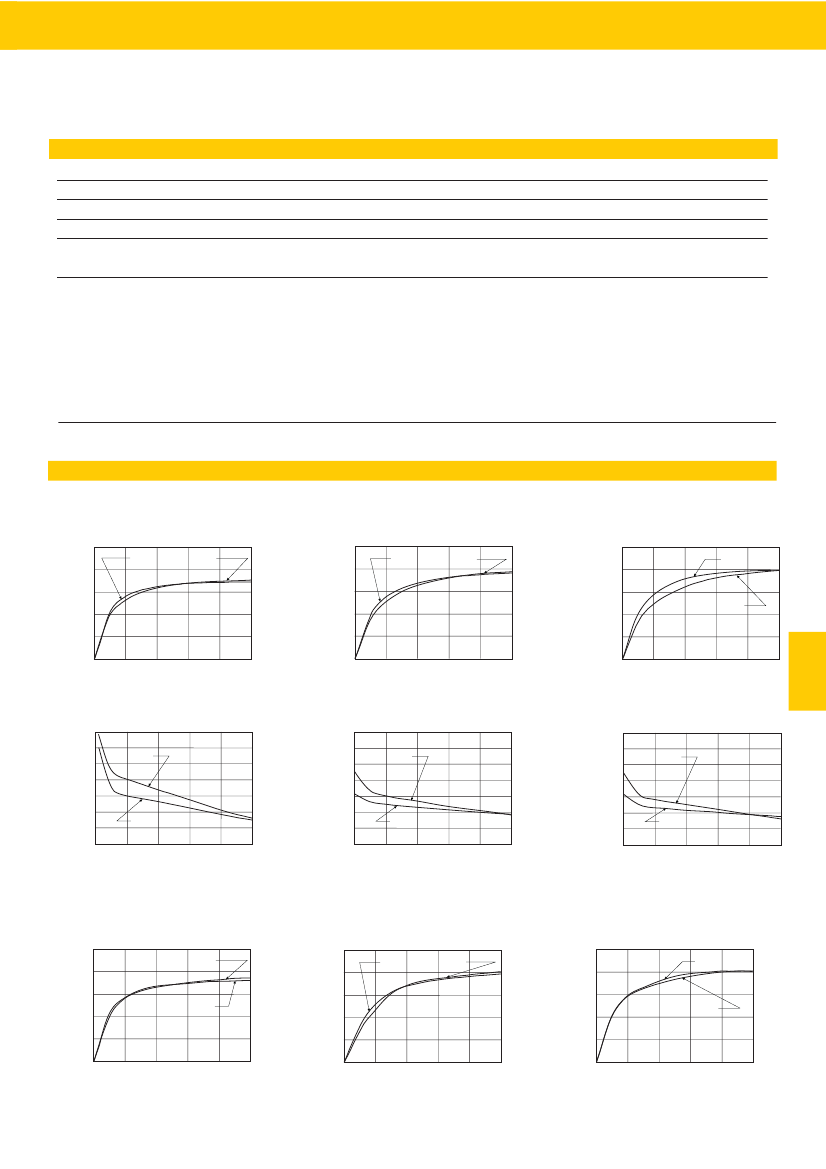

Typical Characteristics
RP-xx05S
Efficiency / Load
100
80
60
40
RP-xx12S
Efficiency / Load
100
80
60
40
RP-xx15S
Efficiency / Load
100
80
60
40
0505
1205
0512
1212
0515
1215
Efficiency %
Efficiency %
20
0
20
0
Efficiency %
20
0
RP
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Total Output current (%)
Deviation / Load
25.000
20.000
25.000
20.000
Deviation / Load
25.000
20.000
Deviation / Load
Deviation from Nominal (%)
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
0505
0512
15.000
10.000
5.000
0.000
-5.000
-10.000
0515
1205
1212
1215
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
RP-xx05D
Efficiency / Load
100
80
60
40
RP-xx12D
Efficiency / Load
100
80
60
100
RP-xx15D
Efficiency / Load
80
60
40
1205
0512
1212
0515
0505
Efficiency %
40
1215
Efficiency %
20
0
Efficiency %
20
0
20
0
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Total Output current (%)
continued on next page
www.recom-international.com
REV: 0/2014
E-67
ECONOLINE
DC/DC-Converter
Typical Characteristics
RP
Series
RP-xx12D
Deviation / Load
25.000
25.000
20.000
20.000
RP-xx05D
Deviation / Load
25.000
20.000
RP-xx15D
Deviation / Load
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
0505
15.000
10.000
5.000
0.000
-5.000
-10.000
0512
0515
1205
1212
1215
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
Application
IGBT Application
Circuit
Control Signal
IGBT
Driver
Rg
IGBT
+Vout
1
7
C2 +
-Vin
C1 +
Isolated
DC/DC
Converter
2
6
C3 +
5
-Vout
RP
Package Style and Pinning (mm)
7 PIN SIP Package
RECOM
RP-xxxxD
****
7.05
0.51 typ.
Single Output
RECOM
RP-xxxxS
****
Dual Output
RECOM
RP-xxxxD
****
10.20
4.10
1.27
2.0
0.51 typ.
19.65
Bottom View
pin clearance
Recommended Footprint Details
1 2
5
7
1 2
5 6 7
0.25
2.54
Pin Connections
Pin #
Single
+Vin
–Vin
–Vout
No Pin
+Vout
Dual
+Vin
–Vin
–Vout
Com
+Vout
/X2
+Vin
-Vin
No Pin
-Vout
+Vout
Single Output/X2
RECOM
RP-xxxxS/X2
****
7.11
2.54
2.54
Top View Standard Version
1
2
5
6
7
19.65
1.27
2.0
Bottom View /X2
1.00 ø+0.15/0
0.25
1 2
Dual Output
RECOM
RP-xx1509D
****
6 7
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
9.65
pin clearance
2.54
Top View /X2 Version
1 2
5 6 7
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The Buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or damage property.
E-68
REV: 0/2014
www.recom-electronic.com
