RA2C-24HST: DescriptionElectromechanical Relay, DPDT, Latched, 31.2VDC (Coil), 540mW (Coil), 5A (Contact), 24VDC (Contact), Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size372KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com

Download Datasheet Parametric View All

RA2C-24HST Overview

Electromechanical Relay, DPDT, Latched, 31.2VDC (Coil), 540mW (Coil), 5A (Contact), 24VDC (Contact), Random, AC/DC Output

RA2C-24HST Parametric

Parameter Name	Attribute value
Maker	World Produts Inc.
Reach Compliance Code	unknown
body width	12.8 mm
body height	20.4 mm
Body length or diameter	29.2 mm
Coil operating voltage (DC)	19.2 V
Coil power	540 mW
Coil release voltage (DC)	1.2 V
Coil resistance	820 Ω
Maximum coil voltage (DC)	31.2 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@24VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	24 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	5000 Vrms
Electrical life	10000000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	8
PCB hole count	8
physical size	29.2mm x 12.8mm x 20.4mm
Guideline	UL
Relay action	LATCHED
Relay style	2 FORM C
Relay function	DPDT
release time	8 ms
Terminal length	0.004 inch
Termination type	SOLDER
weight	15 g

Preview

Download Datasheet

View All

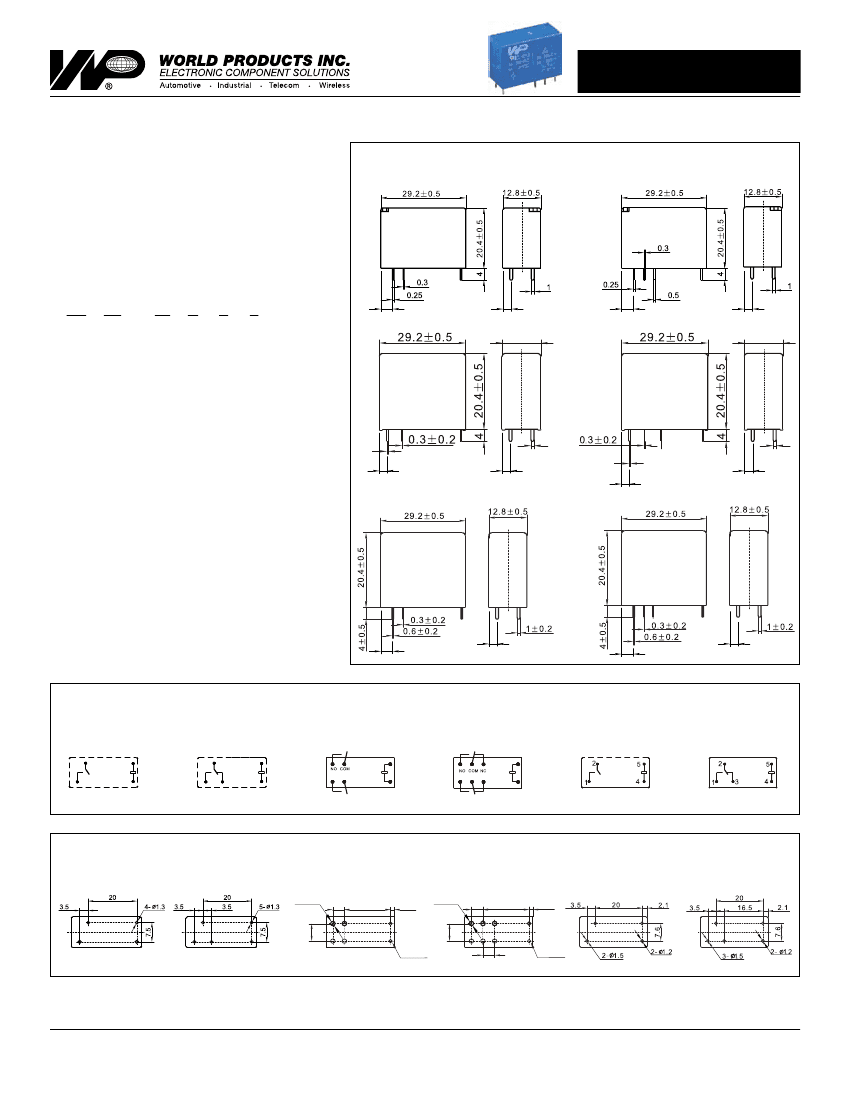

RA SERIES

INDUSTRIAL RELAYS

UL & CUL File #E223388

DIMENSIONS

Unit: mm

FEATURES

1.

2.

1A

1C

Miniature package with universal terminal

footprint.

High dielectric withstanding for transient

protection. 10,000 V surge between coil

and contact.

ORDERING INFORMATION

RA

(1)

(2)

1A -

(2)

12

(3)

H

(4)

S

(5)

T

(6)

3.6 ± 0.5

2A

2.65 ± 0.5

3.6 ± 0.5

2C

2.65 ± 0.5

12.8±0.5

Basic Designation

RA

= RA Series

Coil Arrangement

1A

= 1 Form A

1C

= 1 Form C

2A

= 2 Form A

2C

= 2 Form C

Coil Voltage

3~48V

Coil Sensitivity

Nil

= 720mW

H

=540mW

Enclosure

Nil

= Unsealed type

S

= Sealed type

Capacity

Nil

= Standard

T

= high Current

Note: 1FA, 1FC only

(5)

0.6±0.2

2.3 ± 0.5

1±0.2

2.6 ± 0.5

(6)

(3)

0.6±0.2

2.3 ± 0.5

1±0.2

2.6 ± 0.5

1A T-Type

1C T-Type

3.6 ± 0.5

2.6 ± 0.5

3.6 ± 0.5

2.6 ± 0.5

SCHEMATICS

Bottom view

1A

1C

2A

2C

1A T-Type

1C T-Type

PCB LAYOUT

Bottom view

Unit: mm

1A

1C

4-Ø1.5

5

2A

20.3

2.1

6-Ø1.5

2C

20.3

2.1

1A T-Type

1C T-Type

7.6

2-Ø1.0

5

2-Ø1.0

8

|

Industrial Relay Catalog

Rev. 17.5 (01.21.08)

Phone (707) 996-5201 | Fax (707) 996-3380 |

www.worldproducts.com
