PR1007G-A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> PR1007G-A

Preview

PR1007G-A: DescriptionRectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size70KB，3 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PR1007G-A Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

PR1007G-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Diodes
Parts packaging code	DO-41
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

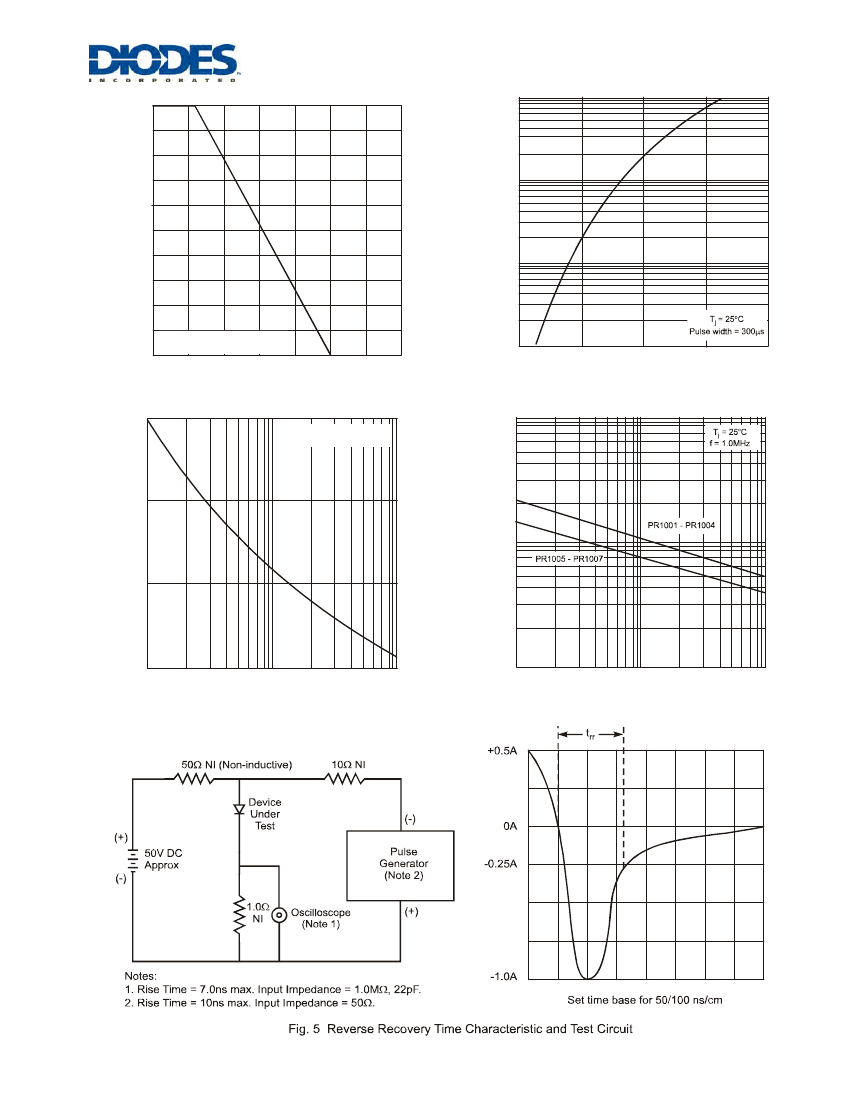

PR1001G - PR1007G

1.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER

Please click here to visit our online spice models database.

Features

•

Glass Passivated Die Construction

Fast Switching for High Efficiency

Surge Overload Rating to 30A Peak

Low Reverse Leakage Current

Lead Free Finish, RoHS Compliant (Note 4)

Mechanical Data

•

Case: DO-41 Plastic

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Finish - Tin. Plated Leads Solderable per MIL-STD-202,

Method 208

Polarity: Cathode Band

Marking: Type Number

Ordering Information: See Page 3

Weight: 0.35 grams (approximate)

Dim

DO-41 Plastic

Min

Max

A

25.40

⎯

B

4.06

5.21

C

0.71

0.864

D

2.00

2.72

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage (Note 5)

RMS Reverse Voltage

Average Rectified Output Current (Note 1) @ T

A

= 55°C

Non-Repetitive Peak Forward Surge Current 8.3ms

Single Half Sine-Wave Superimposed on Rated Load

Forward Voltage Drop @ I

F

= 1.0A

Peak Reverse Current @ T

A

= 25°C

at Rated DC Blocking Voltage (Note 5) @ T

A

= 100°C

Reverse Recovery Time (Note 3)

Typical Total Capacitance (Note 2)

Typical Thermal Resistance Junction to Ambient

Operating and Storage Temperature Range

Notes:

1.

2.

3.

4.

5.

@T

A

= 25°C unless otherwise specified

Symbol

V

RRM

V

RWM

V

R

V

R(RMS)

I

O

I

FSM

V

FM

I

RM

t

rr

C

T

R

θ

JA

T

J,

T

STG

PR1001 PR1002 PR1003 PR1004 PR1005 PR1006 PR1007

Unit

G

50

35

100

70

200

140

400

280

1.0

30

1.3

5.0

50

150

15

95

-65 to +150

250

8

500

600

420

800

560

1000

700

V

A

V

μA

ns

pF

°C/W

°C

Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.

Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

Measured with I

F

= 0.5A, I

R

= 1.0A, I

rr

= 0.25A. See figure 5.

EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.

Short duration pulse test used to minimize self-heating effect.

DS27001 Rev. 9 - 2

1 of 3

www.diodes.com

PR1001G - PR1007G

PR1007G-A Related Products

	PR1007G-A	PR1006G-A	PR1006G-B
Description	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	incompatible
Maker	Diodes	Diodes	Diodes
Parts packaging code	DO-41	DO-41	DO-41
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-41	DO-41	DO-41
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e3	e3	e0
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	260	260	235
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	800 V	800 V
Maximum reverse recovery time	0.5 µs	0.5 µs	0.5 µs
surface mount	NO	NO	NO
Terminal surface	MATTE TIN	MATTE TIN	TIN LEAD
Terminal form	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	40	40	10
Humidity sensitivity level	1	1	-
