PE-96188NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PE-96188NL

PE-96188NL: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size312KB，3 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PE-96188NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-96188NL	-	-	View	Buy Now

PE-96188NL Overview

General Purpose Inductor,

PE-96188NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Inductor type	GENERAL PURPOSE INDUCTOR

Preview

Download Datasheet

View All

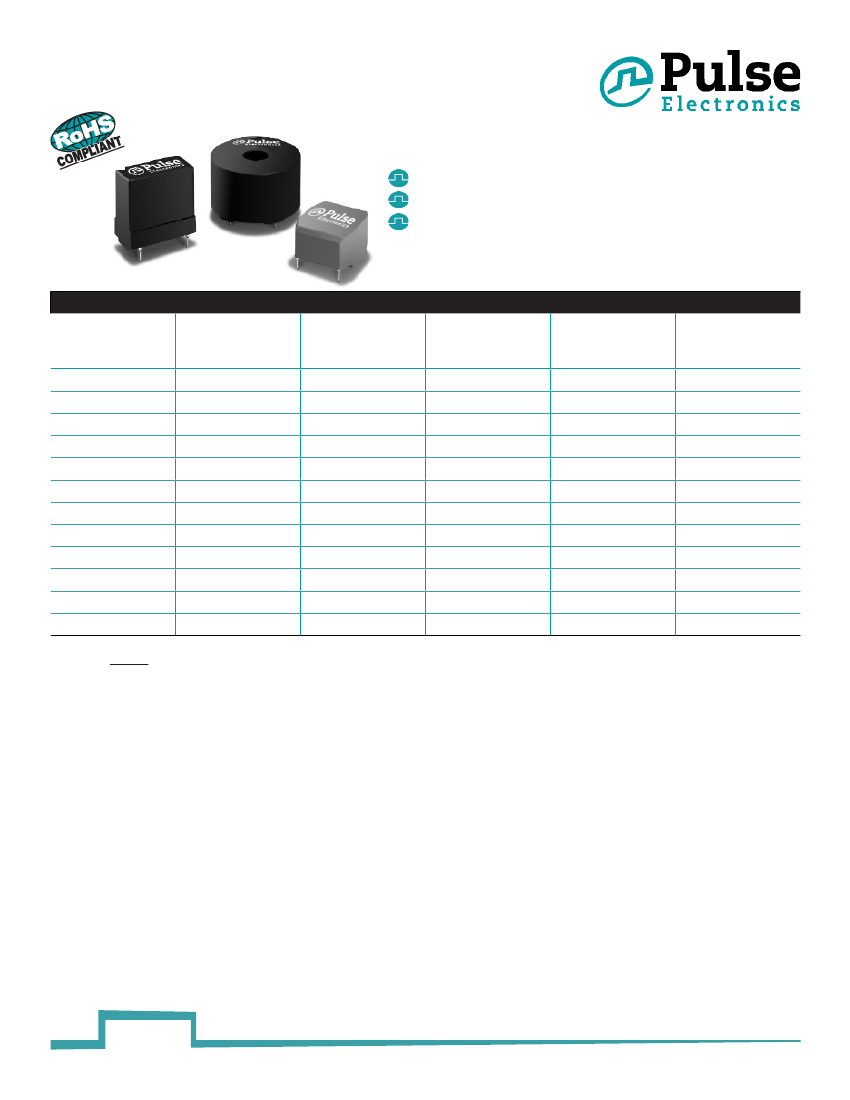

500 kHz Common Mode

EMI Inductors

Common mode EMI Inductors

Designed for higher frequency power conversion

For use in SMPS input filtering circuit

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part

Number

PE-96161NL

PE-96166NL

PE-96173NL

PE-96175NL

PE-96177NL

PE-96178NL

PE-96179NL

PE-96181NL

PE-96186NL

PE-96187NL

PE-96188NL

PE-96190NL

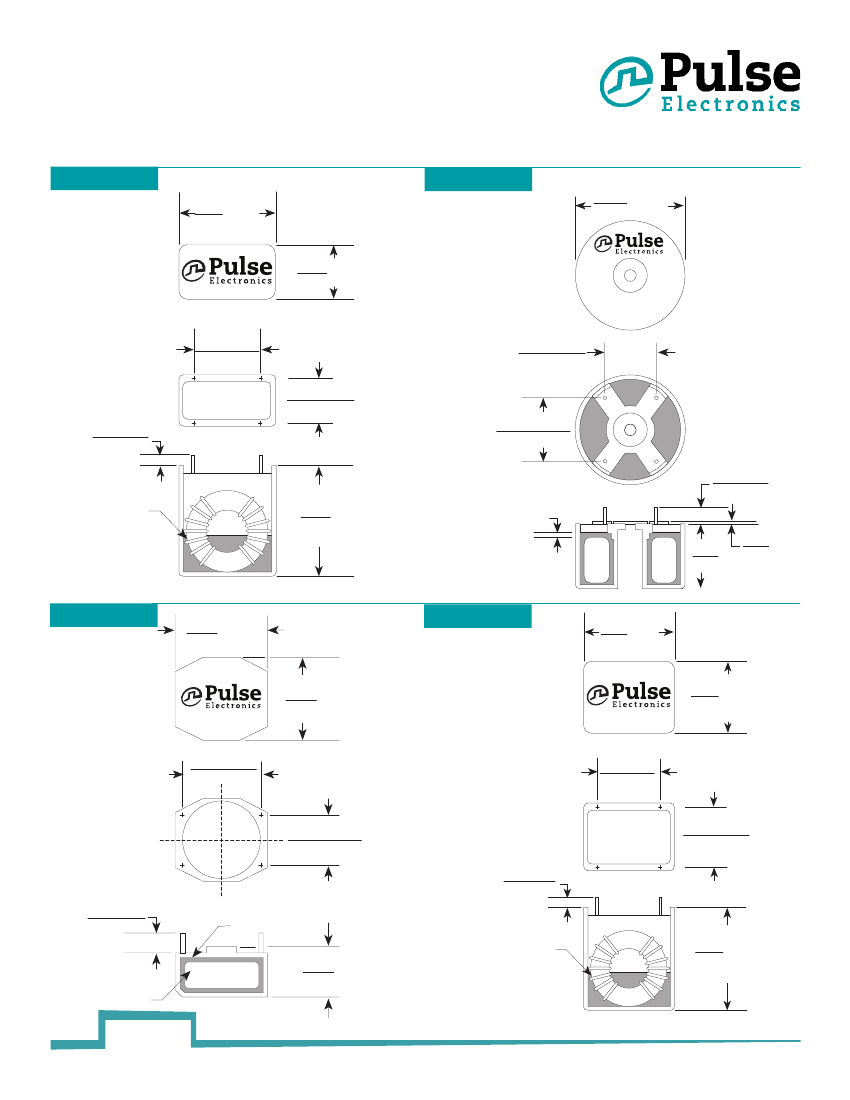

Notes:

.031/.039

1. Leads have

diameter.

.700/.900

2. Self-leaded:

96187

has .036 nom. diameter leads.

96188

96189

have .045 nom. diameter leads.

96190

has .051 nom. diameter leads.

Rated RMS

Current

(A. Normal)

0.5

1.0

3.15

5.0

6.3

8.0

10.0

15.0

Inductance

(±30%)

5.6

3.3

2.2

1.2

3.9

2.7

3.3

1.8

1.0

DCR

(Ω MAX)

1.40

0.30

0.10

0.07

0.06

0.04

0.06

0.04

0.033

0.02

0.01

Case

Style

Leakage

Inductance

(MIN/MAX

µH)

160/320

30/60

40/80

15/35

10/20

6/15

5/14

25/60

20/45

10/25

7/15

USA 858 674 8100

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

P593.D (12/15)

pulseelectronics.com

PE-96188NL Related Products

	PE-96188NL	PE-96178NL	PE-96161NL	PE-96175NL	PE-96177NL	PE-96173NL	PE-96179NL	PE-96186NL	PE-96187NL	PE-96181NL
Description	General Purpose Inductor,	Data Line Filter, 2 Function(s), 3.15A, ROHS COMPLIANT PACKAGE-4	Data Line Filter	Data Line Filter,	Data Line Filter,	Data Line Filter,	Data Line Filter,	Data Line Filter, 2 Function(s), 6.3A,	Data Line Filter,	Data Line Filter,
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	10 weeks	10 weeks	-	10 weeks	8 weeks	8 weeks	14 weeks	10 weeks	6 weeks	8 weeks
Maximum DC resistance	-	0.04 Ω	1.4 Ω	0.07 Ω	0.06 Ω	0.1 Ω	0.04 Ω	0.04 Ω	0.033 Ω	0.06 Ω
filter type	-	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	-	16.51 mm	16.51 mm	16.51 mm	16.51 mm	34.04 mm	27.9 mm	34.04 mm	27.15 mm	34.04 mm
inductance	-	1200 µH	33000 µH	3300 µH	2200 µH	5600 µH	1200 µH	2700 µH	3300 µH	3900 µH
length	-	28 mm	28 mm	28 mm	28 mm	33 mm	23.1 mm	33 mm	-	33 mm
Installation type	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	-	2	2	2	2	2	2	2	2	2
Maximum operating temperature	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	-	L28.0XB27.18XH16.51 (mm)/L1.102XB1.07XH0.65 (inch)	L28.0XB27.18XH16.51 (mm)/L1.102XB1.07XH0.65 (inch)	L28.0XB27.18XH16.51 (mm)/L1.102XB1.07XH0.65 (inch)	L28.0XB27.18XH16.51 (mm)/L1.102XB1.07XH0.65 (inch)	L33.0XB18.29XH34.04 (mm)/L1.299XB0.72XH1.34 (inch)	L23.1XB15.6XH27.9 (mm)/L0.909XB0.614XH1.098 (inch)	L33.0XB18.29XH34.04 (mm)/L1.299XB0.72XH1.34 (inch)	D43.18XH27.15 (mm)/D1.7XH1.069 (inch)	L33.0XB18.29XH34.04 (mm)/L1.299XB0.72XH1.34 (inch)
width	-	27.18 mm	27.18 mm	27.18 mm	27.18 mm	18.29 mm	15.6 mm	18.29 mm	-	18.29 mm
