P0421T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> P0421T

P0421T: DescriptionData Line Filter, 2 Function(s), 3.3A, SURFACE MOUNT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size127KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

P0421T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P0421T	-	-	View	Buy Now

P0421T Overview

Data Line Filter, 2 Function(s), 3.3A, SURFACE MOUNT PACKAGE-4

P0421T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.06 Ω
filter type	DATA LINE FILTER
high	9.91 mm
inductance	220 µH
length	19.56 mm
Manufacturer's serial number	P0421
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
physical size	L19.56XB17.02XH9.91 (mm)/L0.77XB0.67XH0.39 (inch)
Rated current	3.3 A
width	17.02 mm

Preview

Download Datasheet

View All

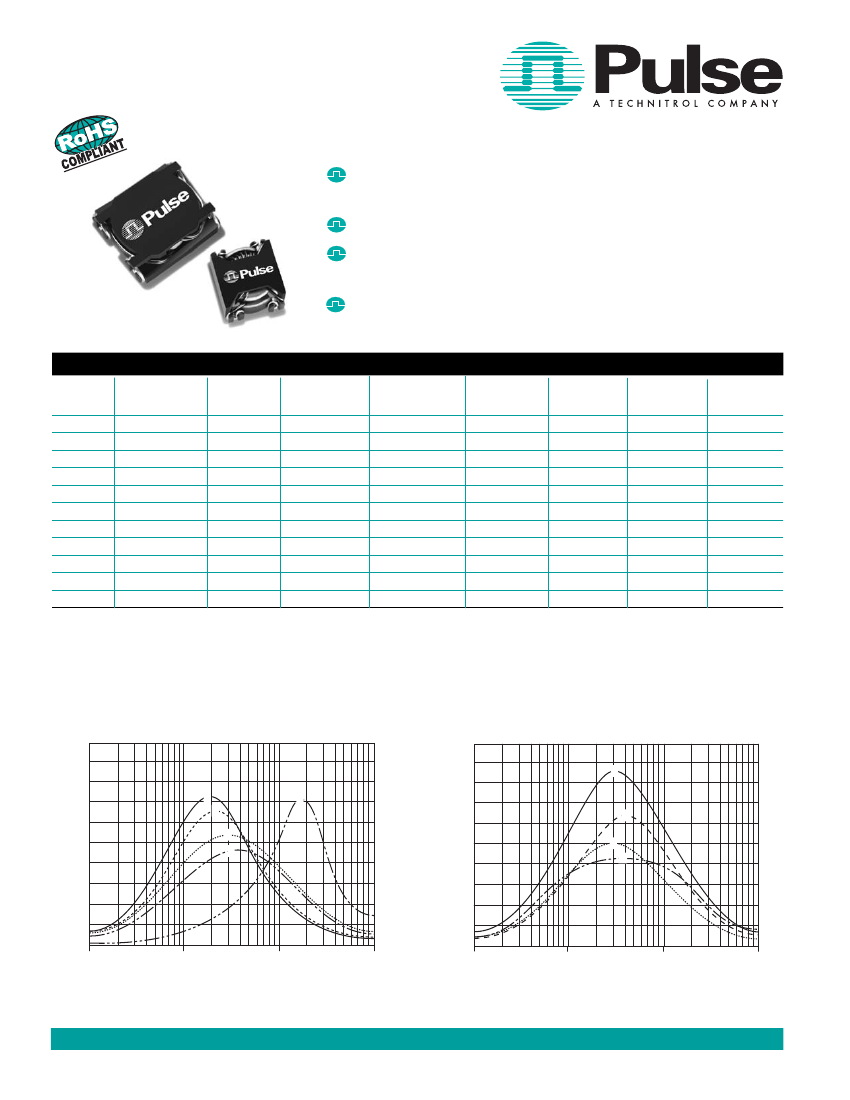

SMT COMMON MODE CHOKES

1.22A to 14.0A

Solutions based on impedance, size and

current

Designed for DC/DC converters

Wide variety of inductor sizes and current

ratings available

Dielectric strength: 1000V

RMS

Electrical Specifications @ 25°C — Operating Temperature -40°C to +120°C

Part

1,2

Number

Inductance

(mH ±35%)

Irated

(A)

DCR (MAX)

(mΩ)

Curve

(see # below)

Package

Weight

(Grams)

Quantity

In Tube

Quantity

In Reel

P0502

P0469

P0429

P0527

P0353

P0422

P0421

P0420

P0351

P0473

P0354

0.47

0.63

0.81

0.53

0.59

0.77

0.22

1.32

1.47

0.88

1.17

14.0

11.6

9.70

7.20

5.60

4.70

3.30

2.80

1.63

1.22

110

200

Big Foot

HCCI-68

LCCI-50

Polecat

14.8

14.3

13.5

7.7

5.2

4.9

4.7

4.6

4.3

1.5

1.4

100

200

500

NOTE:

1. Optional Tape & Reel packaging can be ordered by adding a "T"

suffix to the part number (i.e. P0502 becomes P0502T). Pulse

complies to industry standard tape and reel specification EIA481.

2. To order RoHS compliant part, add the suffix “NL” to the part number

(i.e. P0502 becomes P0502NL and P0502T becomes P0502NLT).

3. The temperature of the component (ambient plus temperature rise)

must be within the stated operating temperature range.

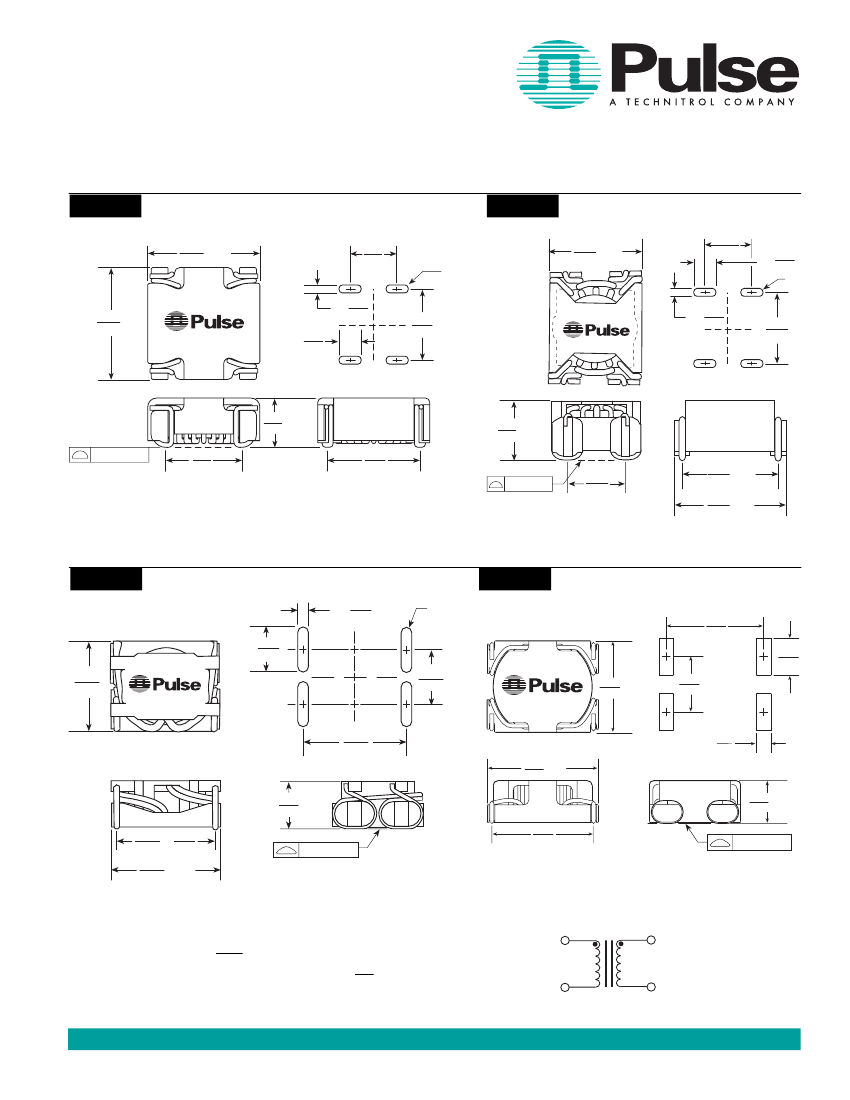

Impedance Curves

15K

7.5K

12K

6.0K

Impedance

(Ω)

Impedance

(Ω)

4.5K

3.0K

1.5K

100 KHz

1 MHz

10 MHz

100 MHz

100 KHz

1 MHz

10 MHz

100 MHz

Frequency

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com

116

SPM2007 (7/07)

P0421T Related Products

	P0421T	P0422T	P0473T	P0502T	P0420T	P0527	P0473	P0353
Description	Data Line Filter, 2 Function(s), 3.3A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 4.7A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 1.63A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 14A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 3.3A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 7.2A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 1.63A, SURFACE MOUNT PACKAGE-4	Data Line Filter, 2 Function(s), 5.6A, SURFACE MOUNT PACKAGE-4
Reach Compliance Code	unknown	compliant	compliant	unknown	compliant	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.06 Ω	0.04 Ω	0.11 Ω	0.008 Ω	0.06 Ω	0.015 Ω	0.11 Ω	0.021 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	9.91 mm	9.91 mm	5.46 mm	12.7 mm	9.91 mm	10.03 mm	5.46 mm	9.91 mm
inductance	220 µH	770 µH	880 µH	470 µH	1320 µH	530 µH	880 µH	590 µH
length	19.56 mm	19.56 mm	12.7 mm	30.99 mm	19.56 mm	28.19 mm	12.7 mm	19.56 mm
Manufacturer's serial number	P0421	P0422	P0473	P0502	P0420	P0527	P0473	P0353
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2	2	2	2	2	2
Maximum operating temperature	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C	120 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	L19.56XB17.02XH9.91 (mm)/L0.77XB0.67XH0.39 (inch)	L19.56XB17.02XH9.91 (mm)/L0.77XB0.67XH0.39 (inch)	L12.7XB12.7XH5.46 (mm)/L0.5XB0.5XH0.215 (inch)	L30.99XB25.4XH12.7 (mm)/L1.22XB1.0XH0.5 (inch)	L19.56XB17.02XH9.91 (mm)/L0.77XB0.67XH0.39 (inch)	L28.19XB25.4XH10.03 (mm)/L1.11XB1.0XH0.395 (inch)	L12.7XB12.7XH5.46 (mm)/L0.5XB0.5XH0.215 (inch)	L19.56XB17.02XH9.91 (mm)/L0.77XB0.67XH0.39 (inch)
Rated current	3.3 A	4.7 A	1.63 A	14 A	3.3 A	7.2 A	1.63 A	5.6 A
width	17.02 mm	17.02 mm	12.7 mm	25.4 mm	17.02 mm	25.4 mm	12.7 mm	17.02 mm
Maker	Pulse Electronics	-	-	-	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
package instruction	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	SURFACE MOUNT PACKAGE-4	-
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	-	-	-
Is it Rohs certified?	-	incompatible	-	-	incompatible	incompatible	incompatible	incompatible
