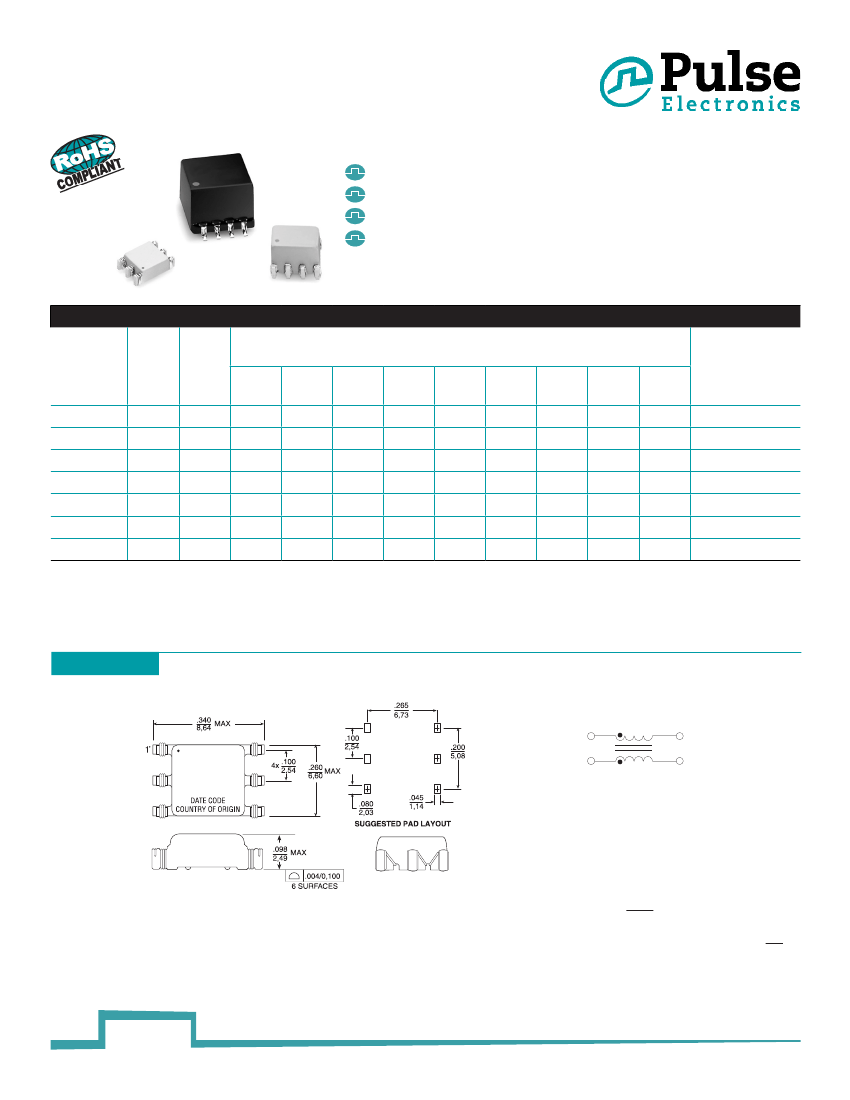

1. For Tape & Reel packaging, add suffix “T” to the end of the part number e.g. T8008NLT
2. MSL = Moisture Sensitivity Level a=1 b=2 c=3 d=4
Mechanical

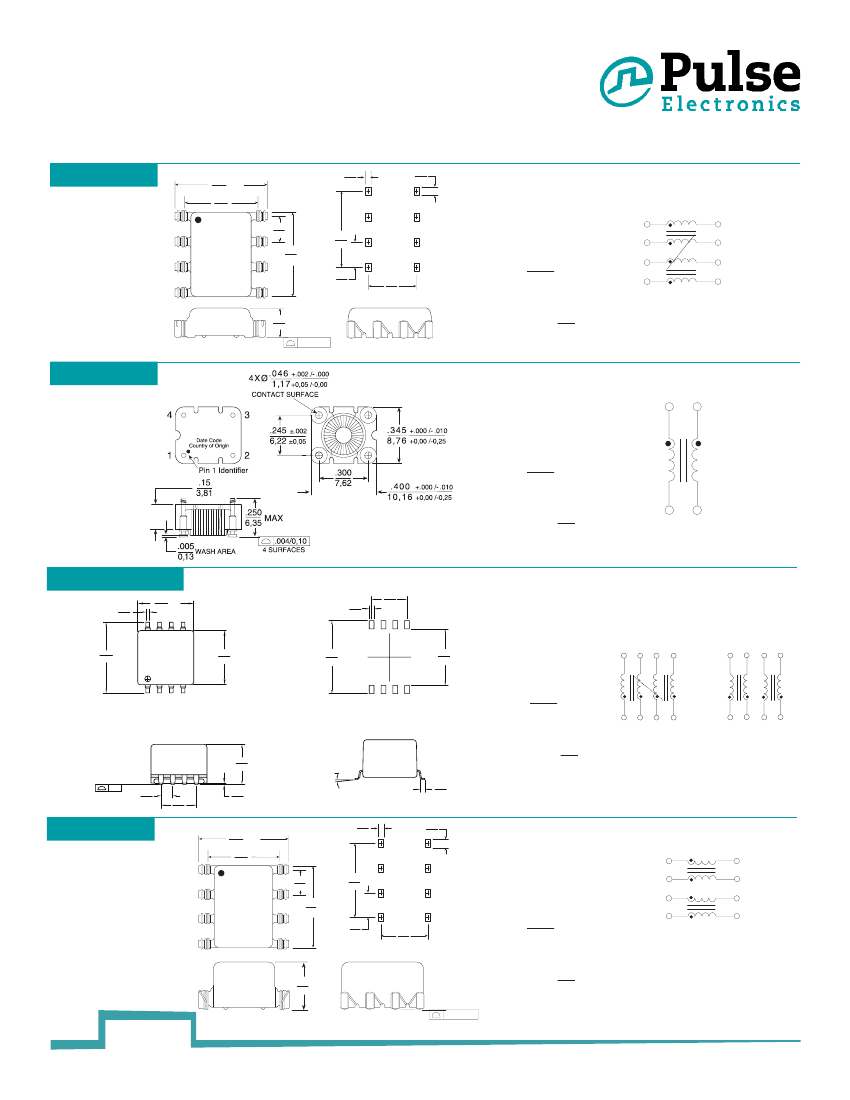

PE-68624NL
Schematic
1
3
PE-68624NL
6
4
Weight
....................0.17 grams
Tape & Reel
...............1500/reel
Tube
..............................85/tray
Inches
Dimensions:
mm
Unless otherwise specified, all tolerances are
±
.010
0,25
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
G002.P (12/12)
pulseelectronics.com
Surface Mount
Common Mode Chokes
Suited for LAN and Telecom Applications
Mechanicals
PE-65854NL
1
.340
MAX
8,64
.285
7,24
.050
1,27
.070
1,78
Schematics
Weight
.....................0.3 grams
Tape & Reel
...............1500/reel
Tube
..............................60/tray
Dimensions:
.270
6,86
8
.100
2,54
.360
MAX
9,14
4
3
2
1
5
6
7
8
PE-65854NL
4
DATE CODE
COUNTRY OF
ORIGIN
.300
7,62
5
.100
2,54
Inches
mm
SUGGESTED PAD LAYOUT
.098
MAX
2,50
.004/0,100
8 Surfaces
Unless otherwise specified,
all tolerances are
±
.010
0,25
PE-65855NL
PE-65855NL
Weight
....................0.69 grams
Tape & Reel
.................800/reel
Tube
..............................40/tray
Dimensions:
Inches
mm
1
4
Unless otherwise specified,
all tolerances are
±
.010
0,25
2
3
PE-65857NL, PE-67540NL
.030
0,76
.475
MAX
12,10
.040
1,02
.300
7,62
8
.600
MAX
15,24
5
.460
11,68
.620
15,75
.480
12,19
PE-XXXXXNL
Data Code
COUNTRY OF ORIGIN
Weight
....................2.0 grams
Tape & Reel
...............250/reel
Tube
............................40/tray
Dimensions:
Inches
mm
PE-65857NL
8 7 6 5
PE-67540NL
8 7 6 5
1
4
SUGGESTED LAND PATTERN
.340 MAX
8,64
0°~8°
.004
8 SURFACES
.035
0,89
Unless otherwise specified,
all tolerances are
±
.010
0,25
1 2 3 4
1 2 3 4
.100
2,54
.300
7,62
.002
0,05
MIN
PE-68627NL
1
.345
MAX
8,76
.285
7,24
.050
1,27
.070
1.78
8
.100
2,54
.355 MAX
9,02
.300
7,62
Weight
....................0.3 grams
Tape & Reel
..............1500/reel
Tube
.............................55/tray
Dimensions:
Inches
mm
1
2
3
4
8
7
6
5
PE-68627NL
4
DATE CODE
COUNTRY OF
ORIGIN
5
.100
2,54
.270
6,86
SUGGESTED PAD LAYOUT
.207 MAX
5,26
Unless otherwise specified,
all tolerances are
±
.010
0,25
.004/0,100
8 Surfaces
2
pulseelectronics.com
G002.P (12/12)
Surface Mount
Common Mode Chokes
Suited for LAN and Telecom Applications
Mechanical

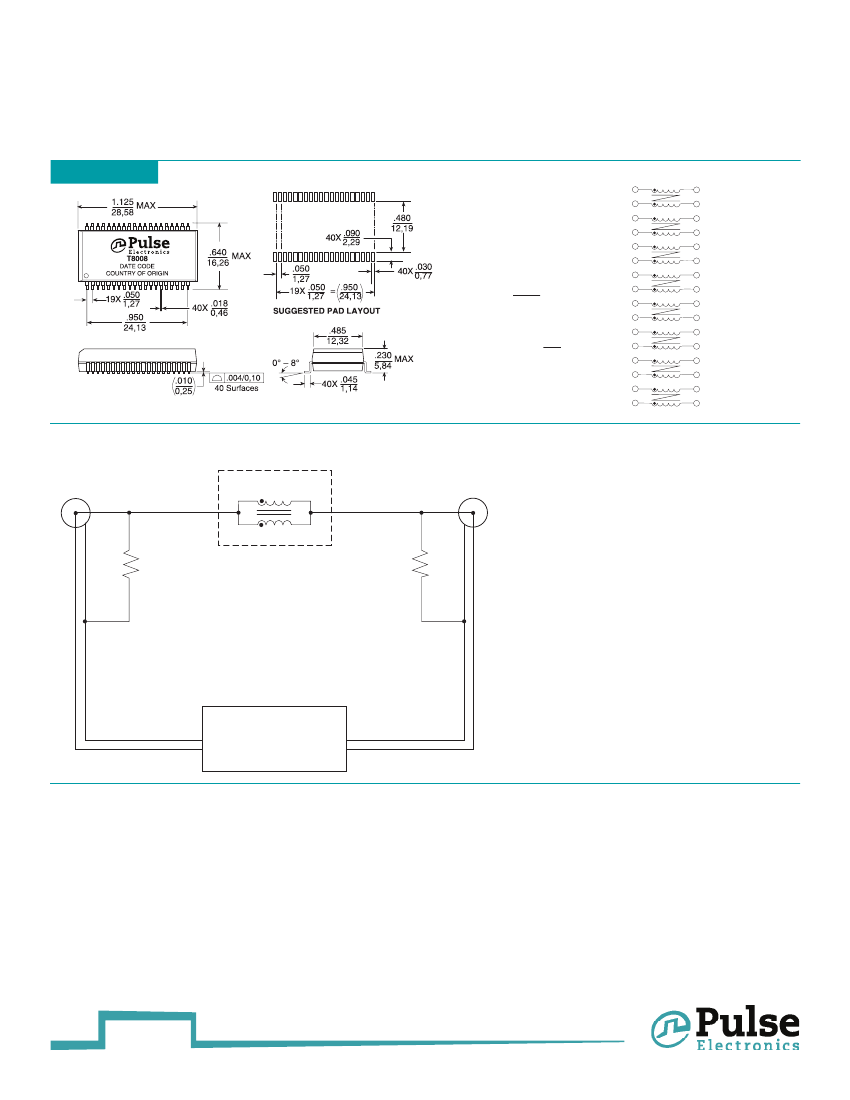

T8008NL
1
2
Schematic
T8008NL
40
39
38
36
35
34
33
31
30
29
28
26
25
24
23
21
NL
Weight
....................4.0 grams
Tape & Reel
...............250/reel
Tube
.............................15/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
3
5
6
7
8
10
11
12
13
15
16
17
18
20
Common Mode Test Circuit for Surface Mount and Through Hole
50
Ω
D.U.T.
50
Ω
Test Notes:
1. Network analyzer calibrated to compensate
for 50
Ω
resistors.
2. All windings on a core are connected in
parallel for the test.
3. For multi-core chokes, test data is for one
core only. The windings on the other core(s)
are left unconnected (i.e. open).
HP 3577A
Network Analyzer
For More Information
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technol-
Super Ocean Finance
#03-02
Zhongyuan Road
ogy Bldg.
Ctr.
PM Industrial Bldg.
Zhongli City
10th Kejinan Road
2067 Yan An Road
Singapore 368363
Taoyuan County 320
High-Tech Zone
West
Taiwan R. O. C.
Nanshan District
Shanghai 200336
Tel: 886 3 4356768
Shenzen, PR China
China
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Tel: 858 674 8100
Tel: 49 7032 78060
518057
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
Fax: 858 674 8262
Fax: 49 7032 7806 135
Tel: 86 755 33966678
Tel: 86 21 62787060
Fax: 86 755 33966700
Fax: 86 2162786973
