DPS128M8AG-45I datasheet, PDF - EEWORLD Datasheet

DPS128M8AG-45I: DescriptionStandard SRAM, 128KX8, 45ns, CMOS, CQCC32, CERAMIC, LCC-32; Categorystorage storage; File Size265KB，8 Pages; ManufacturerTwilight Technology Inc.

Download Datasheet Parametric View All

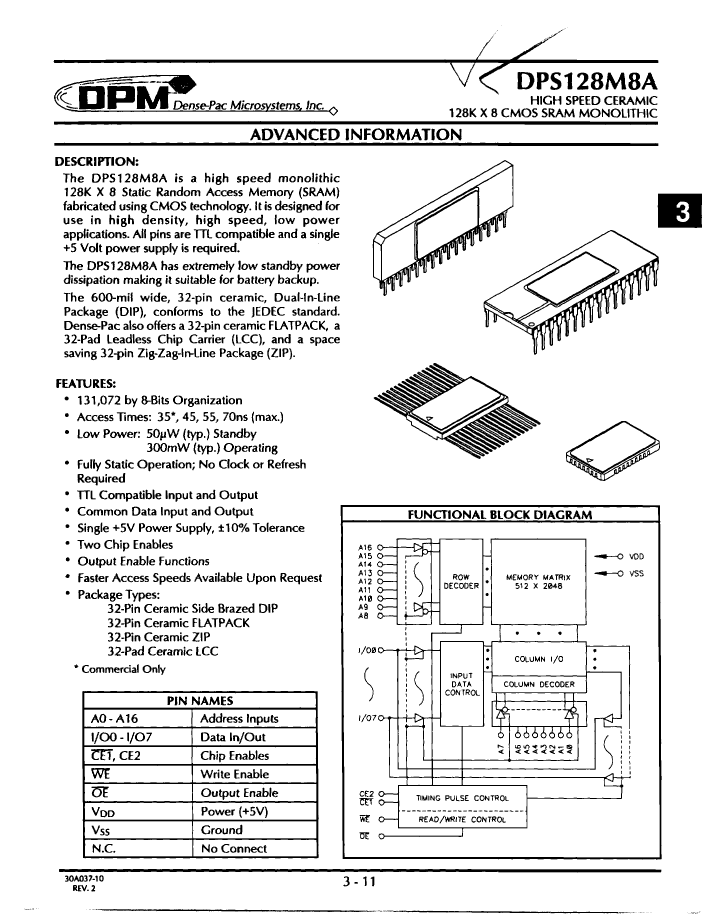

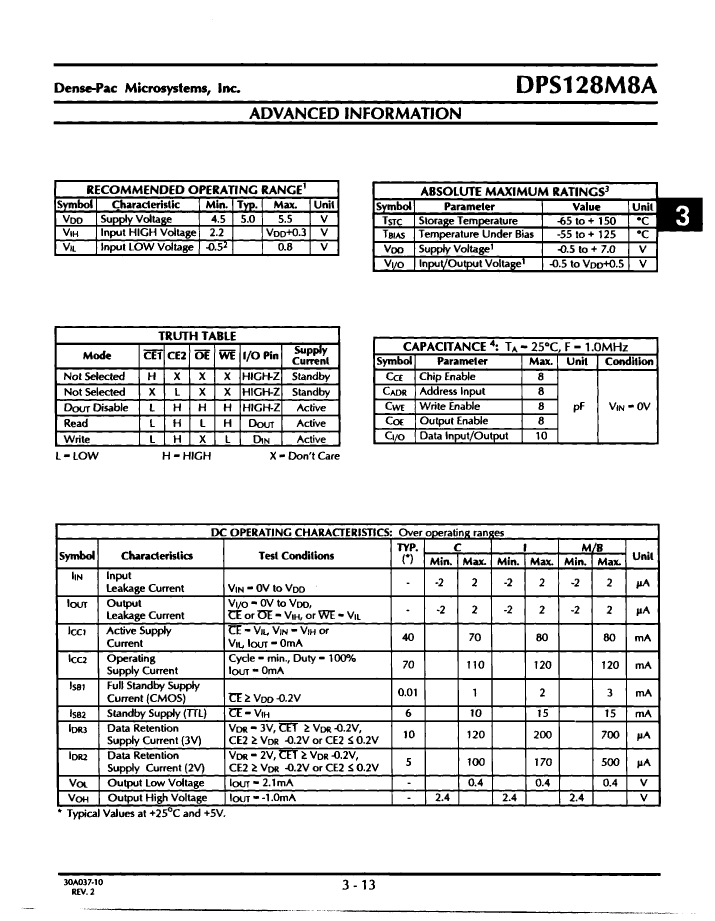

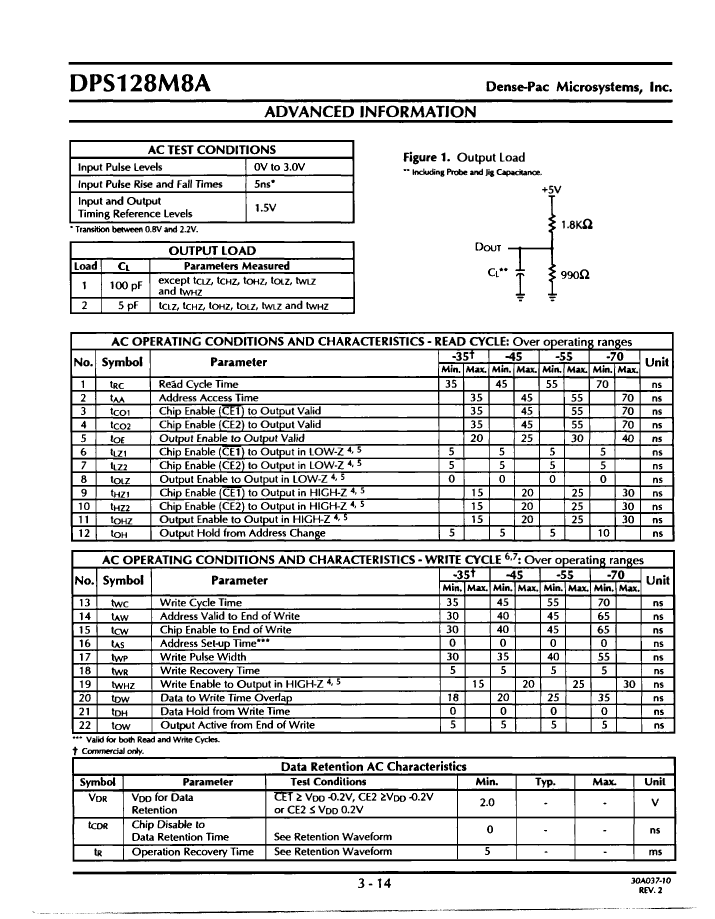

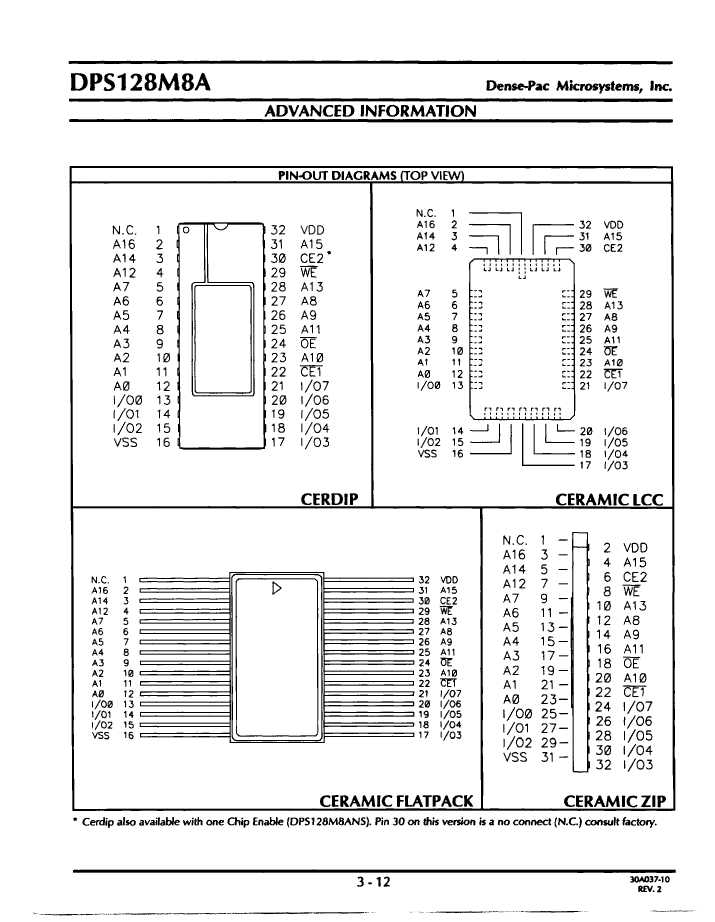

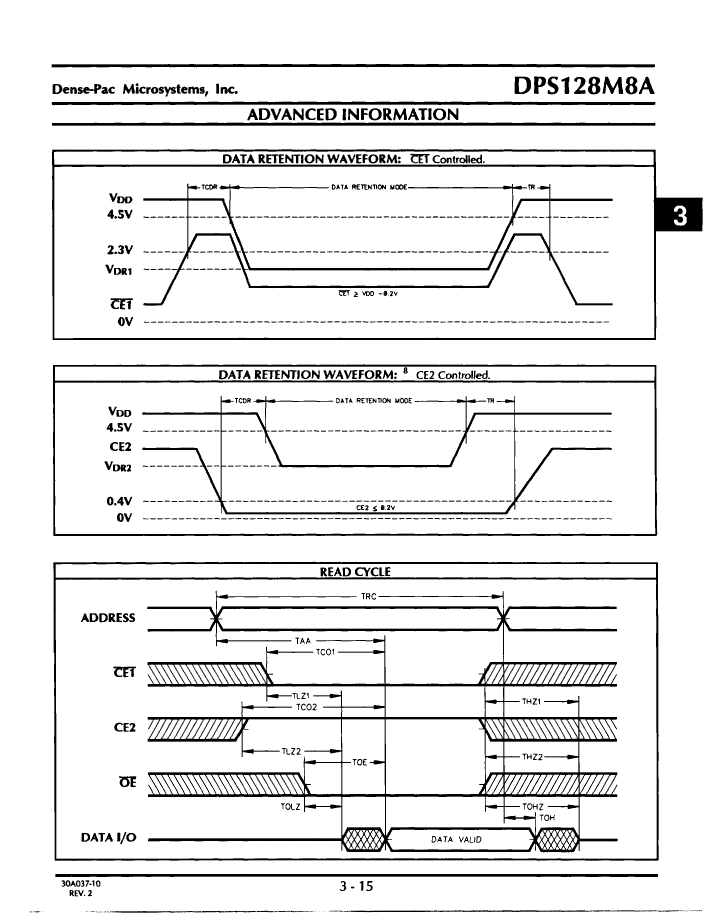

DPS128M8AG-45I Overview

Standard SRAM, 128KX8, 45ns, CMOS, CQCC32, CERAMIC, LCC-32

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Twilight Technology Inc.
Parts packaging code	QFJ
package instruction	QCCN, LCC32,.45X.7
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	45 ns
I/O type	COMMON
JESD-30 code	R-CQCC-N32
length	17.78 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC32,.45X.7
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.159 mm
Maximum standby current	0.00017 A
Minimum standby current	2 V
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.43 mm
