Ferrite Bead Filters(LEAD)
For Signal Line
ZBF Series
FEATURES
• With an impedance greater than 30Ω across the 30 to 1000MHz
frequency range, these ferrite beads absorb noise by resistance
at high frequencies.
• Good high frequency characteristics due to low distributed
capacitance.
• These are radial lead-type ferrite beads, so can be mounted on
PCBs using automatic equipment insertion.
Conformity to RoHS Directive
APPLICATIONS
Home electronics (TVs, video equipment, PCs, digital equipment
equipped with microcomputers, etc.), office automation equipment
(computers, terminals, stand-alone word processors, fax
machines, etc.), factory automation equipment (industrial measur-
ing equipment, meters, switching power sources, etc.), radio
equipment (car phones, business mobile radios, transceivers,
amateur radios, etc.). Used to control undesirable electromagnetic
radiation, suppress abnormal oscillations, and avoid abnormal
operation. For items used in the USA, particularly effective in
meeting the requirements for FCC Part 15, subpart J approval for
digital equipment. Particularly effective in countering EMI so as to
comply with VCCI (Japan) and FTZ (German) regulations.
ZBF253D-00(TA)-01
w

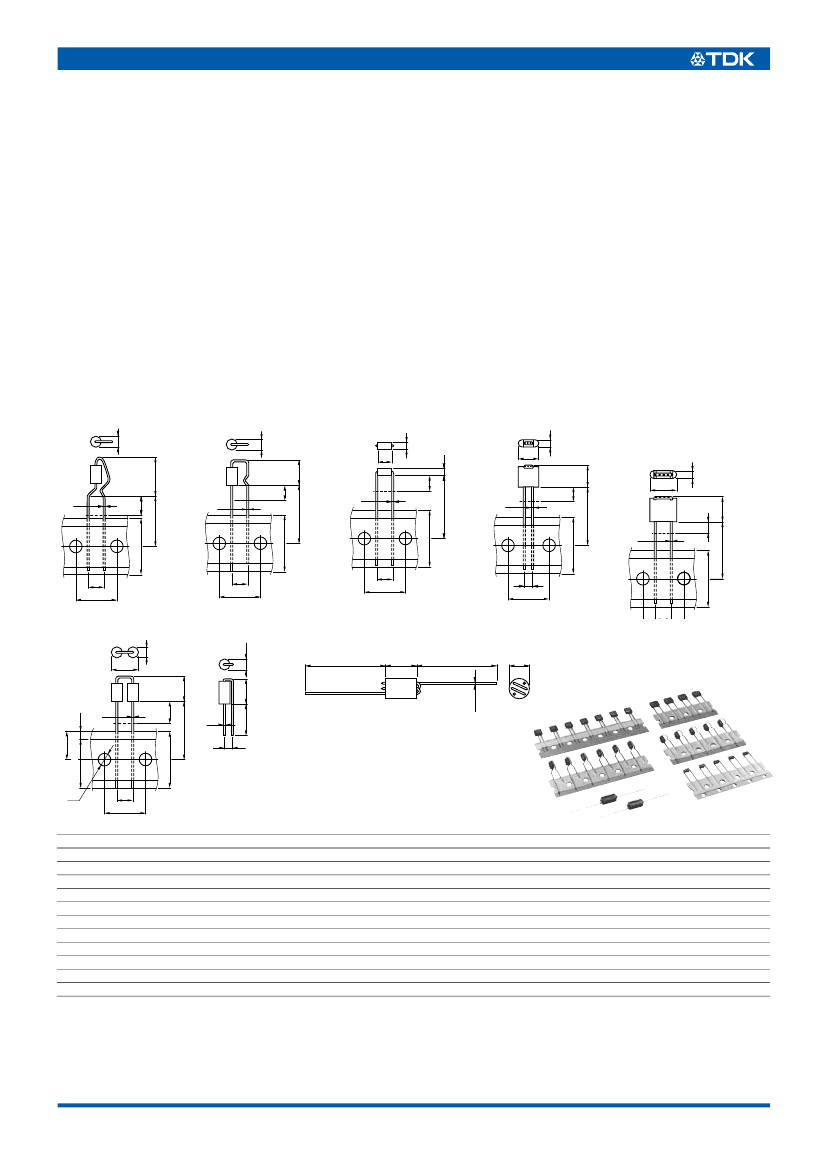

SHAPES AND DIMENSIONS
ZBF503S-01(TA)-01
ZBF503S-03(TA)-K-01
øD
øD
ZBF503AR-00(TA)-01
øD
w
h
h
ZBF503D-00(TA)-01
ZBF504D-00(TA)-01
ZBF506D-00(TA)-01
w
D
h
l
H
0
ød
H
0
H
0
H
0
W
W
ød
W
W
l
F
P
0
Weight: 0.3g
F
P
0
Weight: 0.3g
F
P
0
Weight: 0.1g
F
P
0
Weight: 0.4g
F
ZBF503M-00(TA)-K-01
øD
w
h
ZBF253S-01-01
øD
ZBF113T-01-01
ZBF116T-01A-01
l
w
l
øD
h
W
2
ød
l
ød
H
0
Weight: 1.4g (113T )
1.3g (116T )
Weight: 0.3g
W
1
W
0
D
0
F
P
0
Weight: 0.6g
W
l
F
ø0.55
Dimensions in mm
Part No.
D
w
h
l
d
F
H
0
D
0
ZBF253S-01-01
3.5
—
8max.
10
0.6
2.5 —
—
ZBF503S-01(TA
∗1
)-01
∗2
3.5
—
12.5max. 6
0.6
5
16
4±0.2
ZBF503S-03(TA)-K-01
3.5
—
8max.
10
0.6
5
18.5 4±0.2
ZBF503AR-00(TA)-01
2.3
4.5
2.3
5
0.6
5
20
4±0.2
ZBF253D-00(TA)-01
2.3
6.5max. 7max.
4.5
0.6
2.5 18.5 4±0.2
ZBF503D-00(TA)-01
2.5max. 8.5max. 8max.
4.5
0.6
5
18.5 4±0.2
ZBF504D-00(TA)-01
2.5max. 8.5max. 8max.
4.5
0.6
5
18.5 4±0.2
ZBF506D-00(TA)-01
2.5max. 8.5max. 8max.
4.5
0.6
5
18.5 4±0.2
ZBF503M-00(TA)-K-01
3.5
8.6
8max.
7
0.6
5
18.5 4±0.2
ZBF113T-01-01
6
10
—
25.4 0.55 —
—
—
ZBF116T-01A-01
6
10
—
20
0.55 —
—
—
∗1
Available for taping specifications. In this case please add “TA” at the end of part number.
∗2
The "-01" designation at the end of the product code indicates Lead-free compatible product.
W
—
18+1, –0.5
18+1, –0.5
18+1, –0.5
18+1, –0.5
18+1, –0.5
18+1, –0.5
18+1, –0.5
18+1, –0.5
—
—
W
0
—
12±0.3
12±0.3
12±0.3
12±0.3
12±0.3
12±0.3
12±0.3
12±0.3
—
—
W
1
—
9±0.5
9±0.5
9±0.5
9±0.5
9±0.5
9±0.5
9±0.5
9±0.5
—
—
W
2
—
(4)
(4)
(4)
(4)
(4)
(4)
(4)
(4)
—
—
P
0
—
12.7±0.3
12.7±0.3
12.7±0.3
12.7±0.3
12.7±0.3
12.7±0.3
12.7±0.3
12.7±0.3
—
—
W
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• Please contact our Sales office when your application are considered the following:
The device’s failure or malfunction may directly endanger human life (e.g. application for automobile/aircraft/medical/nuclear power devices, etc.)
• All specifications are subject to change without notice.
002-01 / 20060607 / e9532_zbf.fm
H
0
h
ød
ød
l
l
ød
l
h
D
P
1
—
6.35±0.4
6.35±0.4
6.35±0.4
6.35±0.4
6.35±0.4
6.35±0.4
6.35±0.4
6.35±0.4
—
—
(2/2)
ELECTRICAL CHARACTERISTICS
Part No.
ZBF253S-01-01
ZBF503S-01(TA)-01
ZBF503S-03(TA)-K-01
ZBF503AR-00(TA)-01
ZBF253D-00(TA)-01
ZBF503D-00(TA)-01
ZBF504D-00(TA)-01
ZBF506D-00(TA)-01
ZBF503M-00(TA)-K-01
ZBF113T-01-01
ZBF116T-01A-01
Rated voltage
Edc (V)
50
50
50
50
50
50
50
50
50
50
50
Rated current
(A)
3
3
3
3
3
3
3
3
3
3
3
Impedance vs. frequency(MHz)
30Ω min.
50Ω min.
10 to 300
10 to 300
30 to 300
100 to 1000
5 to 300
15 to 300
5 to 300
15 to 300
7 to 300
30 to 300
30 to 1000
70 to 1000
10 to 300
100Ω min.
600Ω min.
DC resistance
(Ω)max.
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.04
0.04
3 to 300
10 to 300
30 to 70
50 to 100
• Operating temperature range: –25 to +85°C
TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
1000
1000
1000
113T-01-01
Impedance (
Ω
)
Impedance(
Ω
)
100
100
Impedance(
Ω
)
503M-00-K-01
253D-00-01
503D-00-01
100
116T-01-01
10
253S-01-01, 503S-01-01
503S-03-K-01
503AR-00-01
10
504D-00-01
506D-00-01
10
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
1
1
10
100
Frequency (MHz)
1000
TYPICAL EMC SUPPRESSION EFFECTS
Oscilloscope
74ASO4
100kΩ
2pF
ZBF503D-00-01
Oscilloscope
100kΩ
MEASURING CIRCUIT
Vector
impedance
meter
Output voltage (500mV/DIV.)
Output voltage (500mV/DIV.)
2pF
Vector impedance meter
(YHP 4191A equivalent )
Time (20ns/DIV.)
Time (20ns/DIV.)
PACKAGING STYLE AND QUANTITIES(AMMO-PACKAGING)
42
(45)
25(23)
334
(327)
Opening
35˚
(35
˚)
210
( 236)
EMI/RFI FILTERS
TAPING TYPE
Part No.
ZBF503S-01TA-01
ZBF503S-03TA-01
ZBF503AR-00TA-01
ZBF253D-00TA-01
ZBF503D-00TA-01
ZBF504D-00TA-01
ZBF506D-00TA-01
ZBF503M-00TA-K-01
Quantity
2500 pieces/box
2500 pieces/box
2500 pieces/box
2000 pieces/box
2000 pieces/box
2000 pieces/box
2000 pieces/box
1500 pieces/box
40(43)
Dimensions in mm
The dimension indicated within parentheses is used
during packing of the ZBFS503S-01TA.
• All specifications are subject to change without notice.
002-01 / 20060607 / e9532_zbf.fm
