BU4066BCFV-E1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> BU4066BCFV-E1

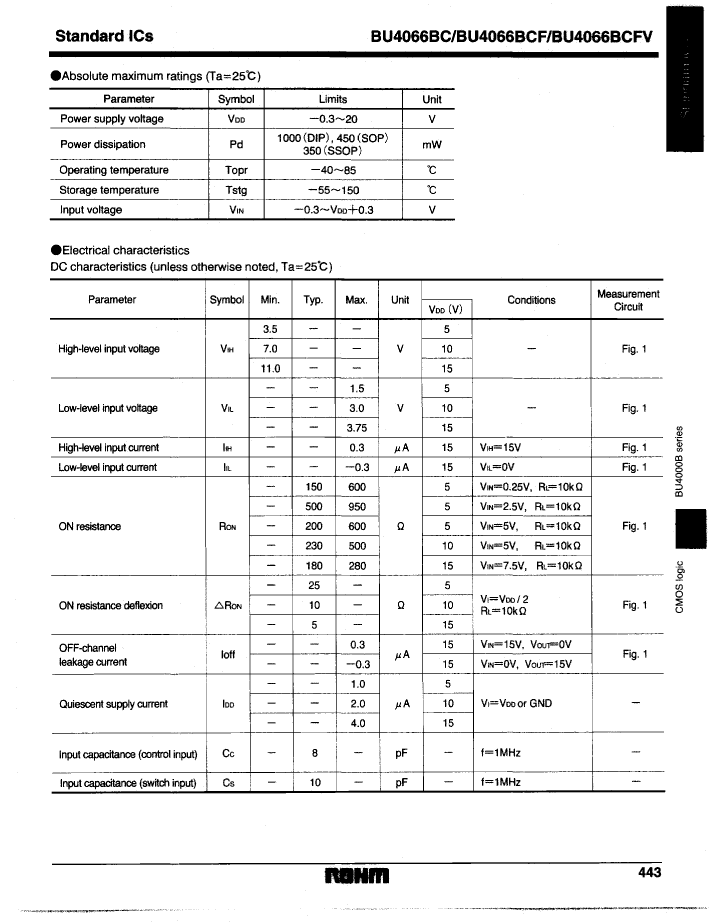

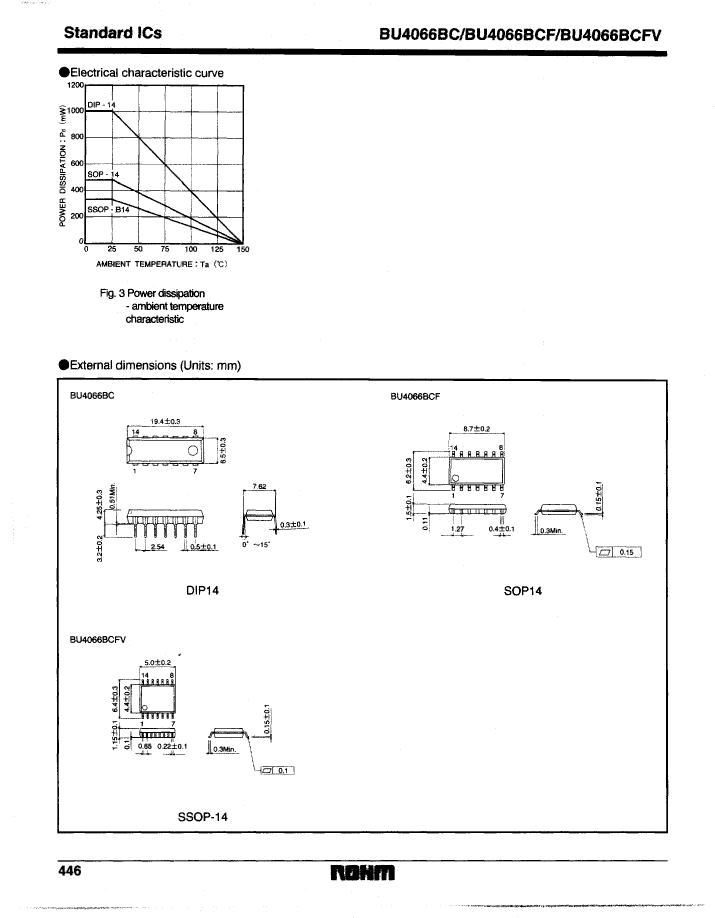

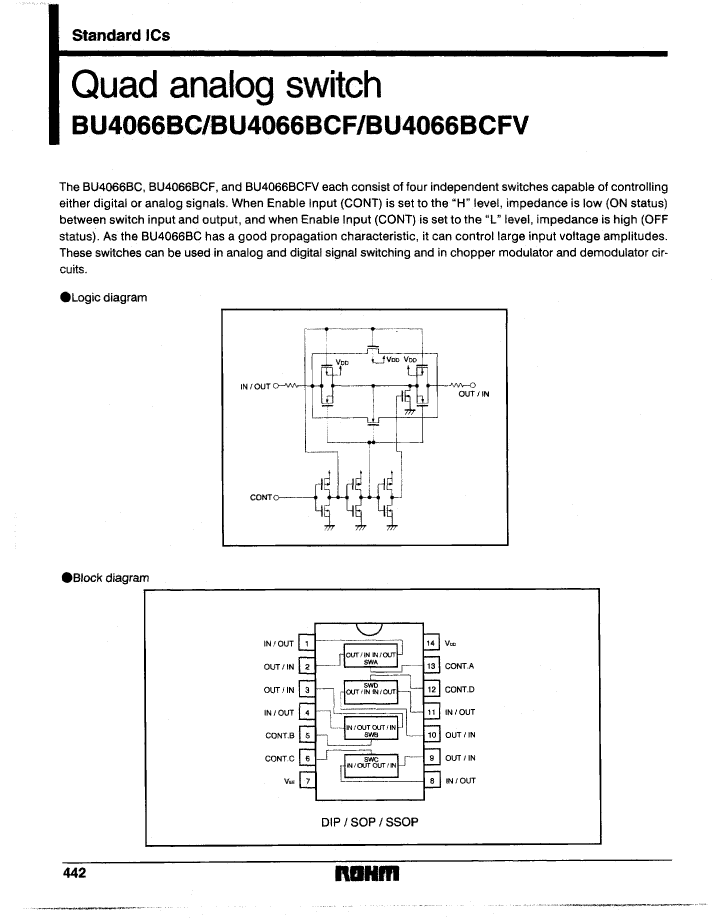

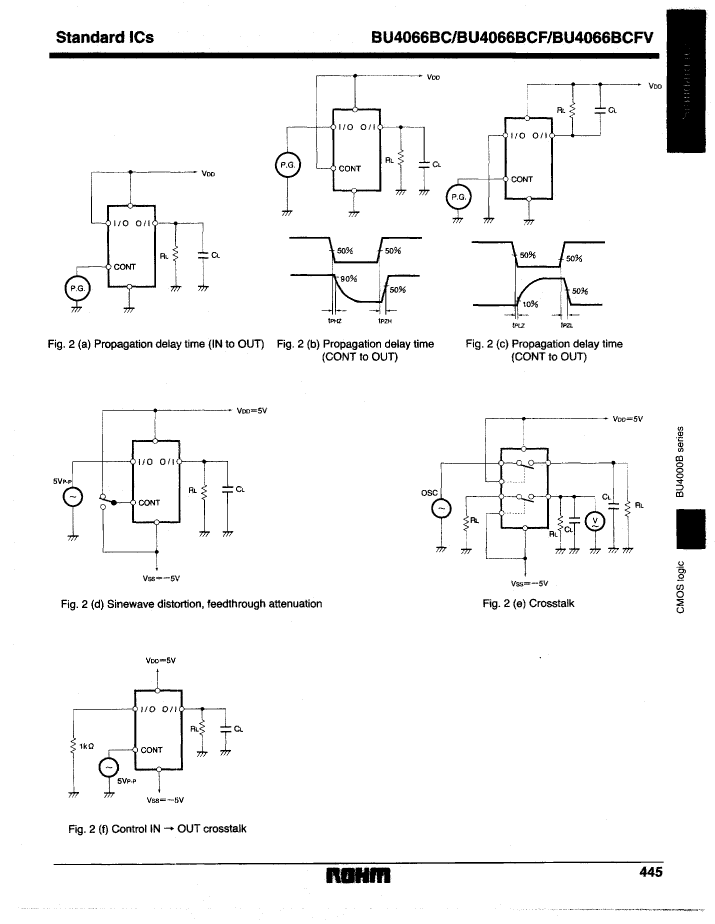

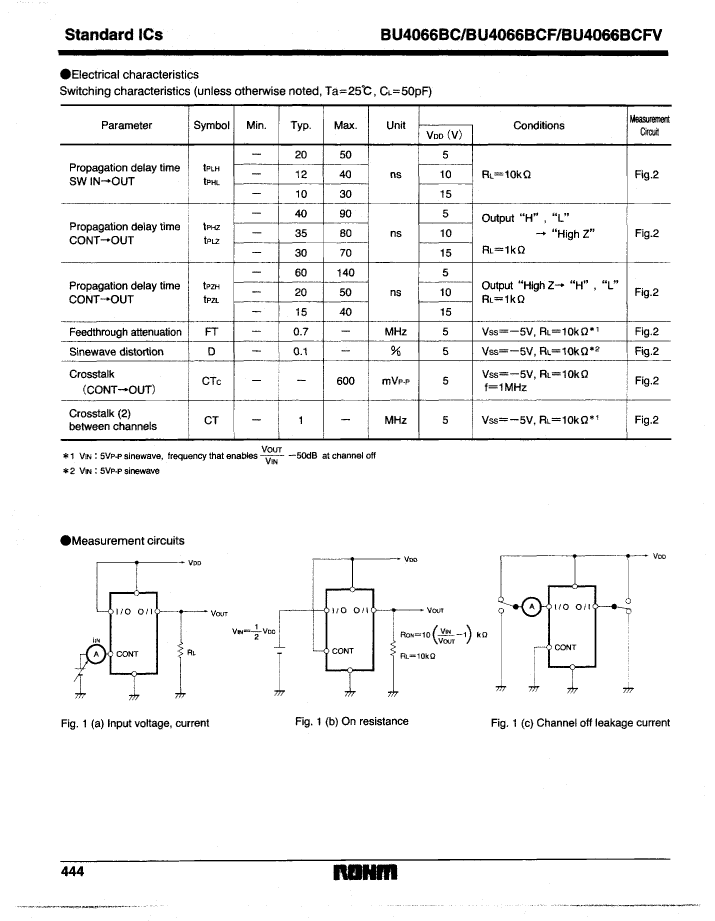

Preview

BU4066BCFV-E1: DescriptionSPST, 4 Func, 1 Channel, PDSO14, SSOP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size148KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BU4066BCFV-E1 Overview

SPST, 4 Func, 1 Channel, PDSO14, SSOP-14

BU4066BCFV-E1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP-14
Contacts	14
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G14
JESD-609 code	e2
length	5 mm
Number of channels	1
Number of functions	4
Number of terminals	14
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	950 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.35 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	5 V
surface mount	YES
Maximum disconnect time	90 ns
Maximum connection time	140 ns
Temperature level	INDUSTRIAL
Terminal surface	TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm

Preview

Download Datasheet

View All

BU4066BCFV-E1 Related Products

	BU4066BCFV-E1	BU4066BCF-E1	BU4066BCF-T2	BU4066BCF-T1
Description	SPST, 4 Func, 1 Channel, PDSO14, SSOP-14	SPST, 4 Func, 1 Channel, CMOS, PDSO14, SOP-14	SPST, 4 Func, 1 Channel, PDSO14, SOP-14	SPST, 4 Func, 1 Channel, PDSO14, SOP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SSOP	SOIC	SOIC	SOIC
package instruction	SSOP-14	SOP-14	SOP-14	LSOP,
Contacts	14	14	14	14
Reach Compliance Code	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e2	e2	e2	e2
length	5 mm	8.7 mm	8.7 mm	8.7 mm
Number of channels	1	1	1	1
Number of functions	4	4	4	4
Number of terminals	14	14	14	14
On-state resistance matching specifications	5 Ω	5 Ω	5 Ω	5 Ω
Maximum on-state resistance (Ron)	950 Ω	950 Ω	950 Ω	950 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.35 mm	1.7 mm	1.7 mm	1.7 mm
Maximum supply voltage (Vsup)	15 V	15 V	15 V	15 V
Minimum supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
Maximum disconnect time	90 ns	90 ns	90 ns	90 ns
Maximum connection time	140 ns	90 ns	140 ns	90 ns
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN COPPER	Tin/Copper (Sn/Cu)	TIN COPPER	TIN COPPER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm
