IEC Inlet Filters
Higher performance modules

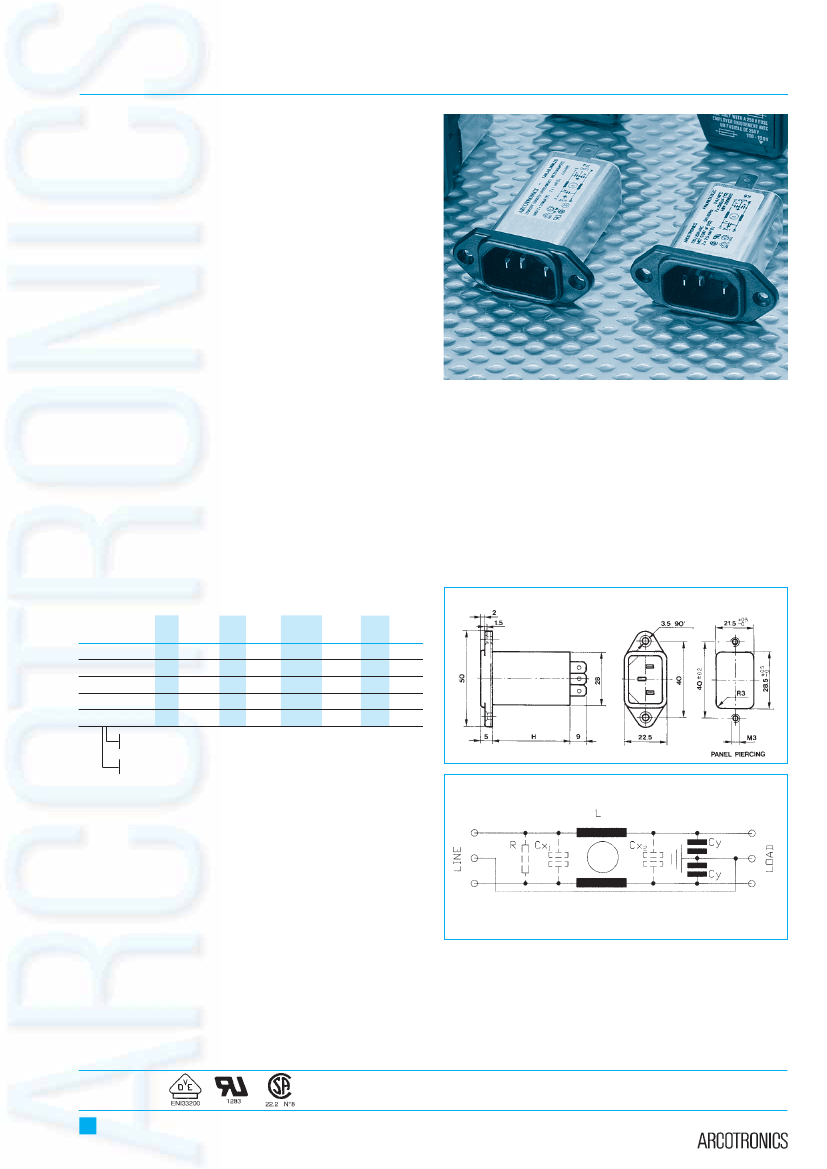

A range of chassis mount IEC 60320 inlet power entry modules
providing a high level of suppression with a low leakage current.
Typical applications include business, consumer and medical
equipment, VDU’s, computers and many general purpose
applications.
F.AN
series
•
Current ratings from 1A to 3A
•
High performance to size ratio
•
Medical versions available
•
Earth line choke options available
Mechanical Specifications
Manufacture:
metal case with built-in power line connector
according to IEC 60320 & EN 60320. Internal
components sealed with self-extinguishing resin.
Connections:
IEC 60320 - Standard plug (INPUT);
faston 2.8 x 0.5mm or 6.3 x 0.8mm (OUTPUT);
ground terminal connected to case.
Climatic category:
Electrical Specifications
Rated voltage (V
R
):
max 250V, 50/60Hz
Rated current (I
R
):
Voltage test (2
S
.):
referred to room temperature = 40°C
line to ground 3000Vdc or 1800Vac
line to line 1700Vdc
HPF (25/085/21):
Temperature range: -25°C to +85°C
Leakage current (I
L
):
at 220V, 50Hz, max value

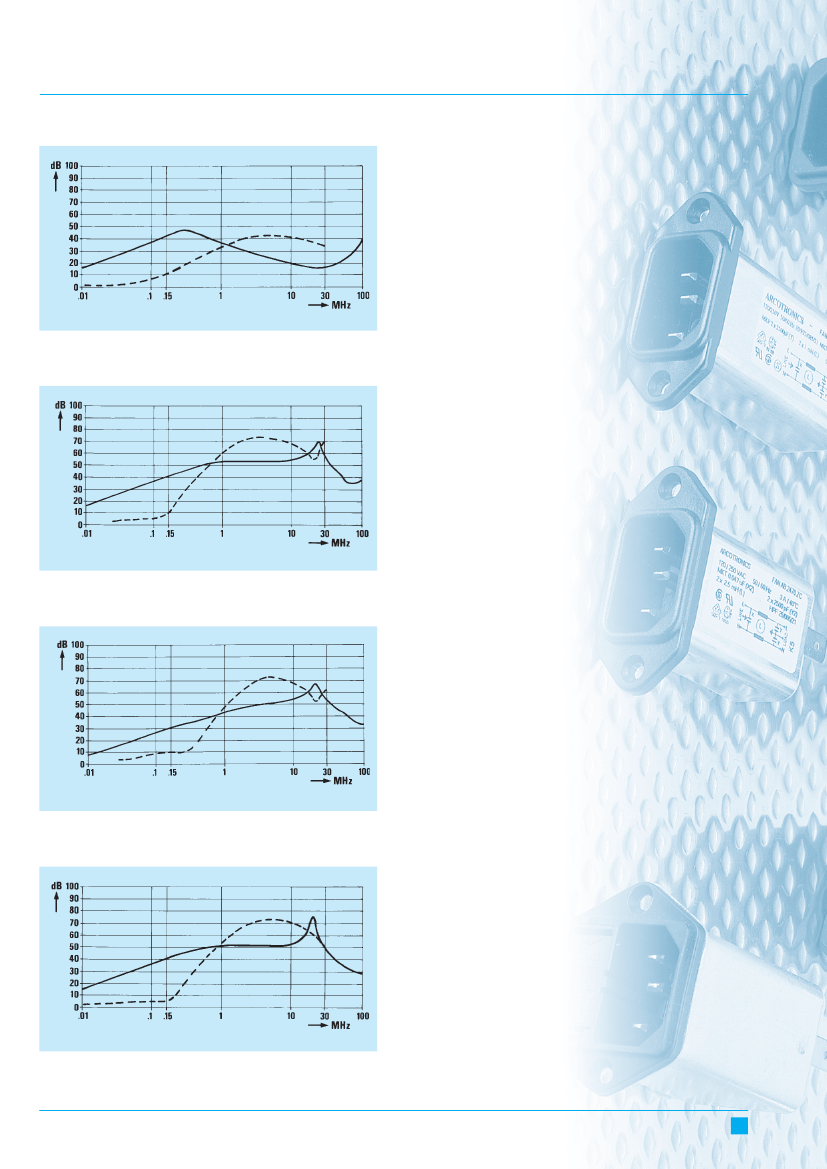

Filter Range
Code
F.AN.- - .3100.ZD
▲
F.AN.-
▲
F.AN.-
Dimensions (mm) and connections
l
R
(A)
3
1
3
2.5
1
L
(mH)
2x6min
2x10
2x2.5
2x6
2x10
0.068
0.068
0.068
0.068
CX
1
(µF)
Cx
2
(µF)
0.1
0.068
0.068
0.068
0.068
Cy
(pF)
2x 150
2x2500
2x2500
2x3200
2x2500
I
L
(mA)
2x0.23
2x0.23
2x0.29
2x0.23
2.2
1
R
H
(MΩ) (mm)
50
50
50
50
50
2x0.014 2.2
- .3136.ZA
- .3136.ZB
F.AN.- - .3136.ZC
F.AN.- - .3136.ZD
A = Faston 2.8 x 0.5 mm
B = Faston 6.3 x 0.8 mm
A = Standard Version
M = Medical Version
▲
AvaiIabIe
with earth line chokes (without approvals)
Circuit diagram
