24IMS7-15-15-9Z datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> 24IMS7-15-15-9Z

24IMS7-15-15-9Z: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 7.2W, Hybrid,; CategoryPower/power management The power supply circuit; File Size175KB，14 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric View All

24IMS7-15-15-9Z Overview

DC-DC Regulated Power Supply Module, 2 Output, 7.2W, Hybrid,

24IMS7-15-15-9Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	ADDITIONAL 15V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	CSA, UL
Efficiency (main output)	84%
high	8.25 mm
Maximum input voltage	36 V
Minimum input voltage	14 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-P9
JESD-609 code	e0
length	48 mm
Maximum grid adjustment rate	1%
Maximum load regulation	3%
Number of functions	1
Output times	2
Number of terminals	9
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output current	0.24 A
Maximum output voltage	15.75 V
Minimum output voltage	11.25 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	7.2 W
Fine-tuning/adjustable output	YES
Warm up time	0.5 s
width	23 mm
Base Number Matches	1

Preview

Download Datasheet

View All

7 Watt DC-DC Converters

Wide input voltage ranges up to 75 V DC

1 or 2 outputs up to 48 V DC

1500 V DC I/O electric strength test voltage

•

Electrical isolation, single and double output units

•

High efficiency (typ. 84%)

•

Emissions below EN 55 022 level B

•

Immunity to IEC/EN 61000-4-2, -3, -4, -5 and -6

•

Inhibit input, output voltage adjustable

• Flex power: Flexible load distribution

•

No load and short-circuit proof

•

Operating ambient temperature range –40...71°C

•

High reliability and no derating

•

1" case with 10.5 mm profile

• Supplementary insulation

Safety according to IEC/EN 60950, UL 1950

LGA

IMS 7 Series

25.4

1.0"

10.5

0.42"

50.8

2.0"

Summary

The IMS 7 series of board mountable 7 Watt DC-DC con-

verters has been designed according to the latest industry

requirements and standards. The converters are particu-

larly suitable for use in industry or telecommunications

where variable input voltages or high transient voltages are

prevalent.

Providing two wide input voltage ranges, 14...36 V DC and

36...75 V DC, the units are available with single and electri-

cally isolated double outputs allowing the configuration of

output voltages from 3.3 up to 48 V DC externally adjust-

able, with flexible load distribution on double output units.

An inhibit input allows remote converter on/off.

Features include efficient input and output filtering with un-

surpassed transient and surge protection, low output ripple

and noise, consistently high efficiency over the entire input

voltage range, high reliability as well as excellent dynamic

response to load and line changes.

The converters provide supplementary insulation with

SELV outputs as e.g. required in battery supported sys-

tems where the bus voltage may exceed the SELV limit of

60 V DC. They are designed and built according to the in-

ternational safety standards IEC/EN 60950, UL 1950, CAN/

CSA C22.2 No. 950-95 and are LGA and UL marked.

A special feature is their small case size, 2"

1" with

10.5 mm profile.

The circuit comprises of integrated planar magnetics and

all components are automatically assembled and solidly

soldered onto a single PCB without any wire connections.

Magnetic feedback ensures maximum reliability and

repeatability in the control loop over all operating condi-

tions. Careful considerations of possible thermal stresses

ensure the absence of hot spots providing long life in envi-

ronments where temperature cycles are a reality. The ther-

mal design allows operation at full load up to an ambient

temperature of 71°C in free air without using any potting

material. For extremely high vibration environments the

case has holes for screw mounting.

Optionally the IMS 7 series is available with the industrial

C pinout or open frame.

Table of Contents

Page

Electromagnetic Compatibility (EMC) ............................ 10

Immunity to Environmental Conditions ........................... 11

Mechanical Data ............................................................ 12

Safety and Installation Instructions ................................ 13

Description of Options .................................................... 14

Accessories .................................................................... 14

Summary .......................................................................... 1

Type Survey and Key Data .............................................. 2

Type Key .......................................................................... 2

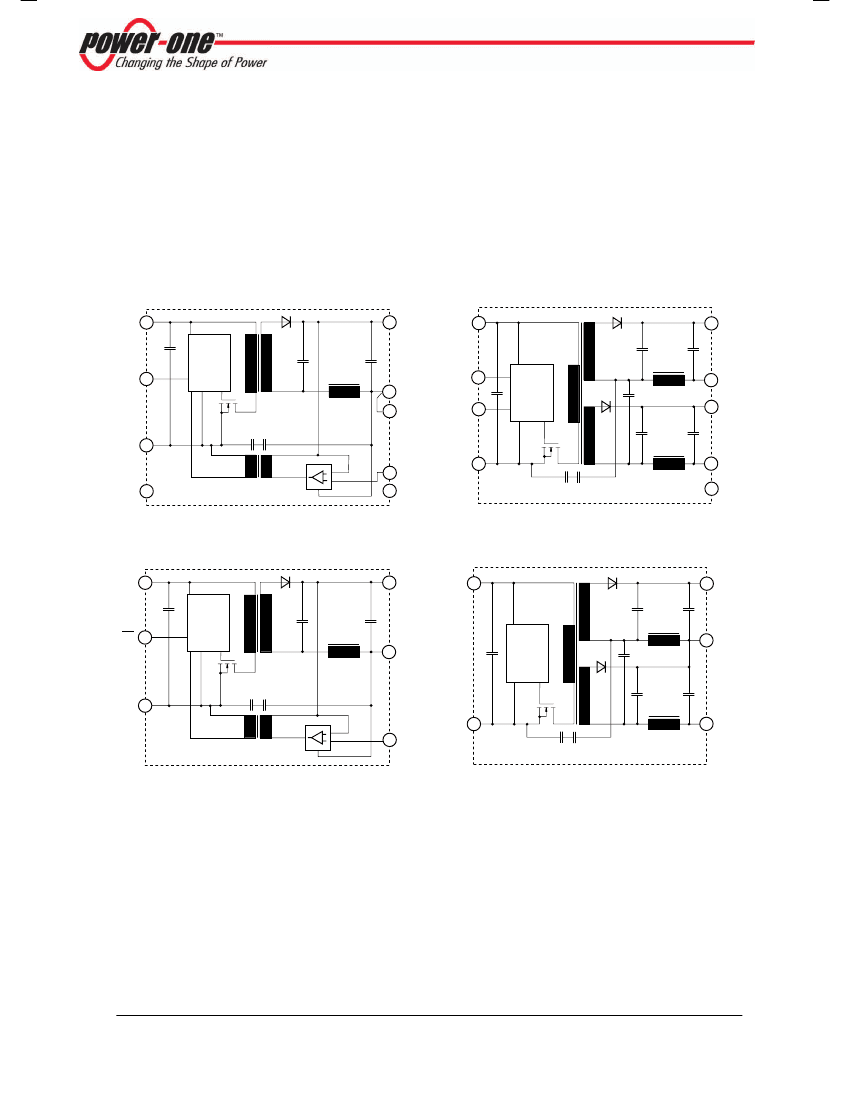

Functional Description ...................................................... 3

Electrical Input Data ......................................................... 4

Electrical Output Data ...................................................... 6

Auxiliary Functions ........................................................... 8

REV. JUN 14, 2004

1/14
