563C05W5103GB: DescriptionD Subminiature Connector, 5 Contact(s), Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size22KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

563C05W5103GB Overview

D Subminiature Connector, 5 Contact(s), Male, Solder Terminal, Plug

563C05W5103GB Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

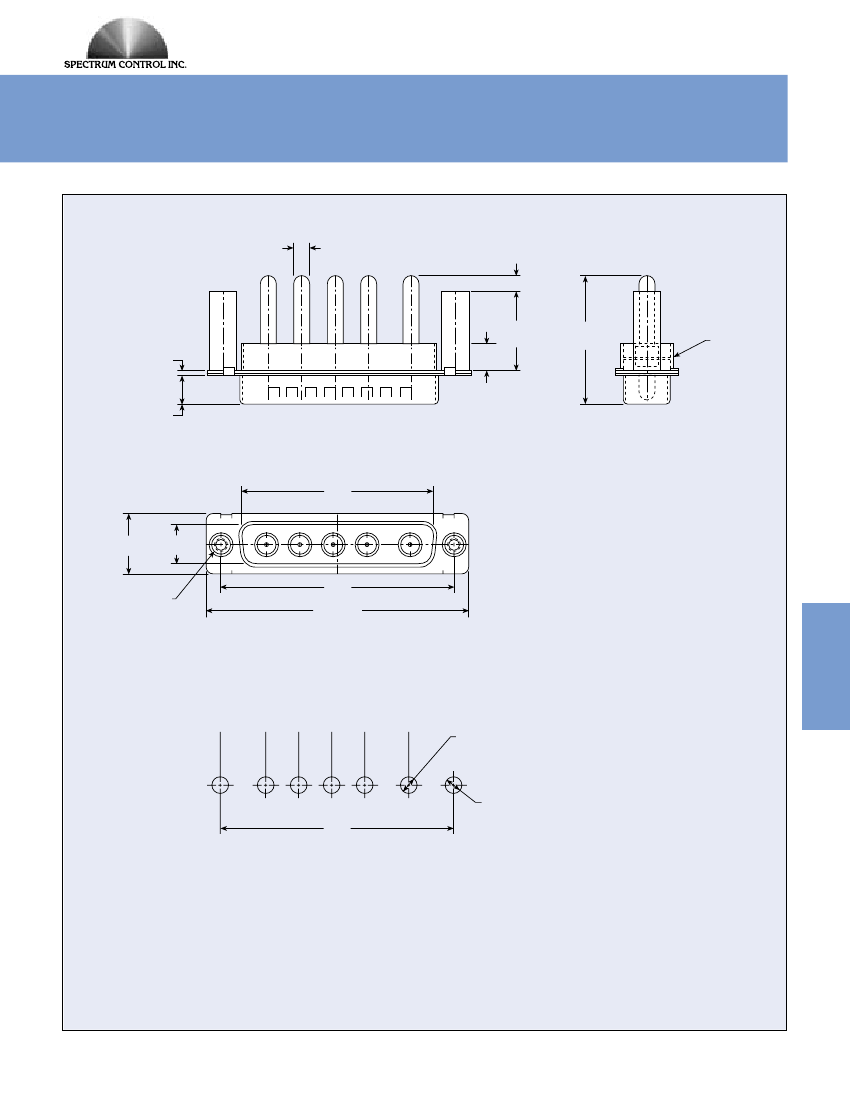

Filtered Combo D-Subminiature Connectors

5W5

Plug - Vertical

ø .128

(3.25)

Contact

5 Plc.

.125±.025

(3.175±0.64)

.645

(16.38)

2 Plc.

.042±.010

(1.07±0.25)

1

93931-1

1.040

(26.42)

5 Plc.

.217

(5.51)

Rear

Shell

.228±.004

(5.79±0.10)

1.535

(38.99)

.500±.015

(12.70±0.38)

.330

(8.38)

4-40 UNC

Standoff

2 Plc.

1.852

(47.04)

2.090±.015

(53.09±0.38)

.00

(.000)

.356

(9.04)

.624

(15.85)

.892

(22.66)

1.160

(29.46)

1.496

(38.00)

ø .125

(3.56)

2 Holes

ø .010

(0.25)

1.852

(47.04)

Recommended PCB Layout

Only represents a few of our available configurations. Consult factory for more information.

Dimensions in inches

(mm)
