SA170A: DescriptionTrans Voltage Suppressor Diode, 500W, 170V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size428KB，6 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric View All

SA170A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SA170A	-	-	View	Buy Now

SA170A Overview

Trans Voltage Suppressor Diode, 500W, 170V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2

SA170A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	209 V
Minimum breakdown voltage	189 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	3 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	170 V
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

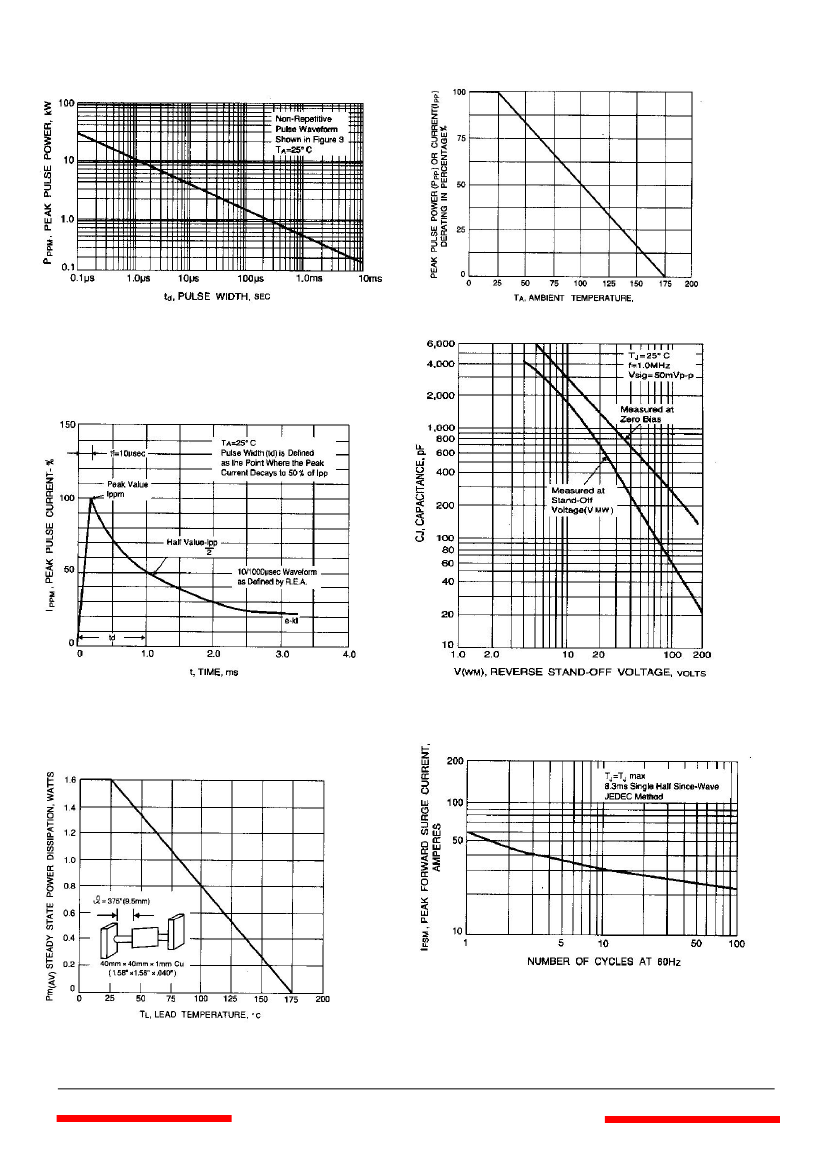

Preview

Download Datasheet

View All

MCC

Features

omponents

21201 Itasca Street Chatsworth

!"#

$ % !"#

SA5.0(C)(A)

THRU

SA170(C)(A)

500WATTS TRANSIENT

VOLTAGE SUPPRESSOR

5.0 TO 170 VOLTS

Glass passivated chip

Low leakage

Uni and Bidirectional unit

Excellent clamping capability

the plastic material has U/L recognition 94V-O

Fast response time

MECHANICAL DATA

Case:

Molded Plastic

Marking:

Unidirectional-type number and cathode band

Bidirectional-type number only

DO-15

Weight:

0.4 grams

Maximum Ratings

Operating Temperature: -65 C to +175 C

Storage Temperature: -65 C to +175 C

For capacitive load, derate current by 20%

Cathode

Mark

Electrical Characteristics @ 25

C Unless Otherwise Specified

Peak Power

Dissipation

Peak Forward Surge

Current

Steady State Power

Dissipation

FSM

M(AV)

500W

70A

1.0W

=25

8.3ms, half sine

=75 C

DIMENSIONS

INCHES

DIM

MIN

0.230

0.104

0.026

1.000

MAX

0.300

0.140

0.034

-----

MIN

5.80

2.60

0.71

25.40

MAX

7.60

3.60

0.86

-----

NOTE

www.mccsemi.com
