SE5561FE-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> SE5561FE-B

SE5561FE-B: DescriptionSwitching Regulator/Controller, Voltage-mode, 0.02A, 100kHz Switching Freq-Max, BIPolar, CDIP8; CategoryPower/power management The power supply circuit; File Size230KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

SE5561FE-B Overview

Switching Regulator/Controller, Voltage-mode, 0.02A, 100kHz Switching Freq-Max, BIPolar, CDIP8

SE5561FE-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown

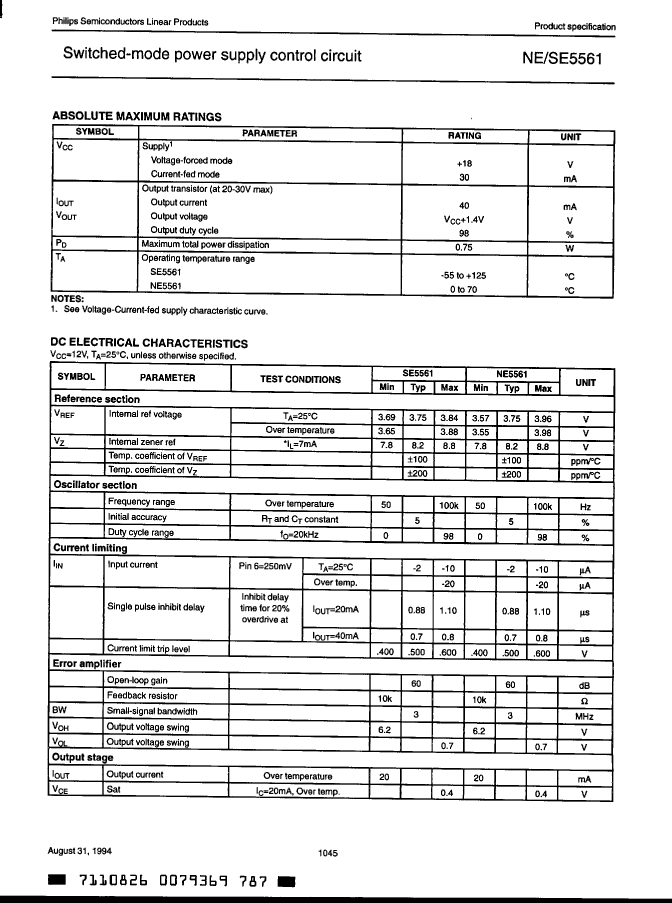

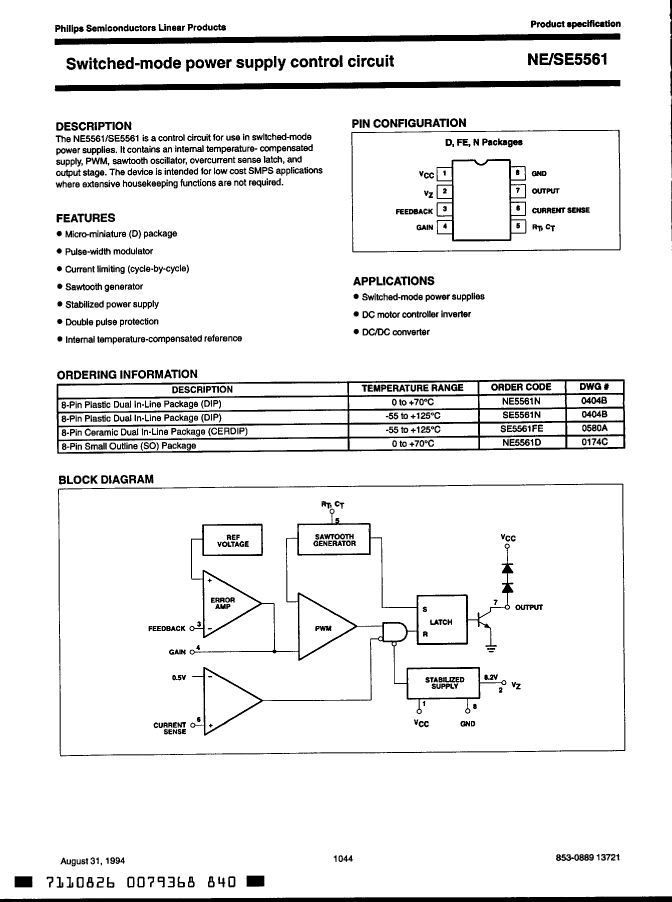

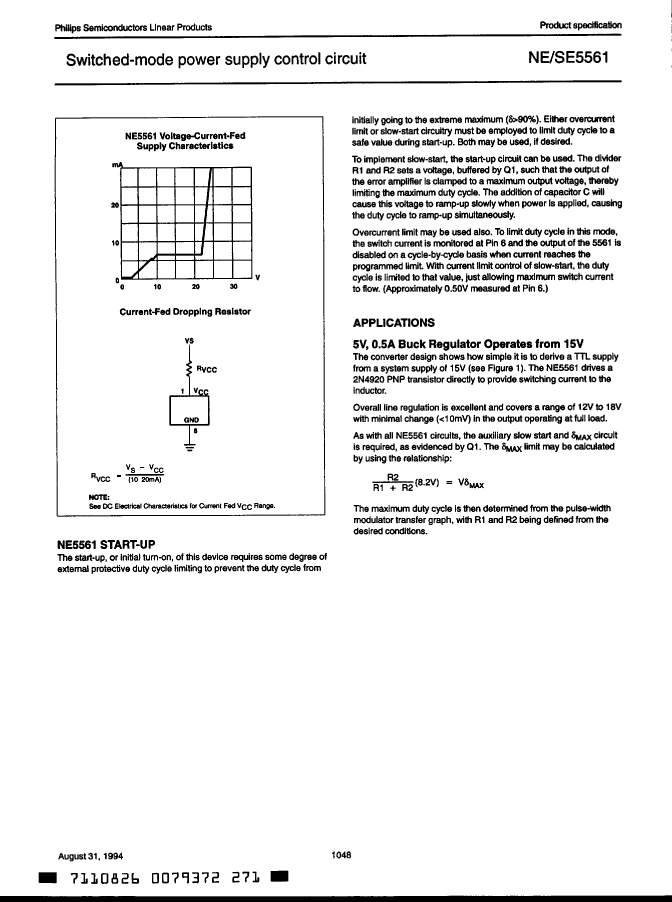

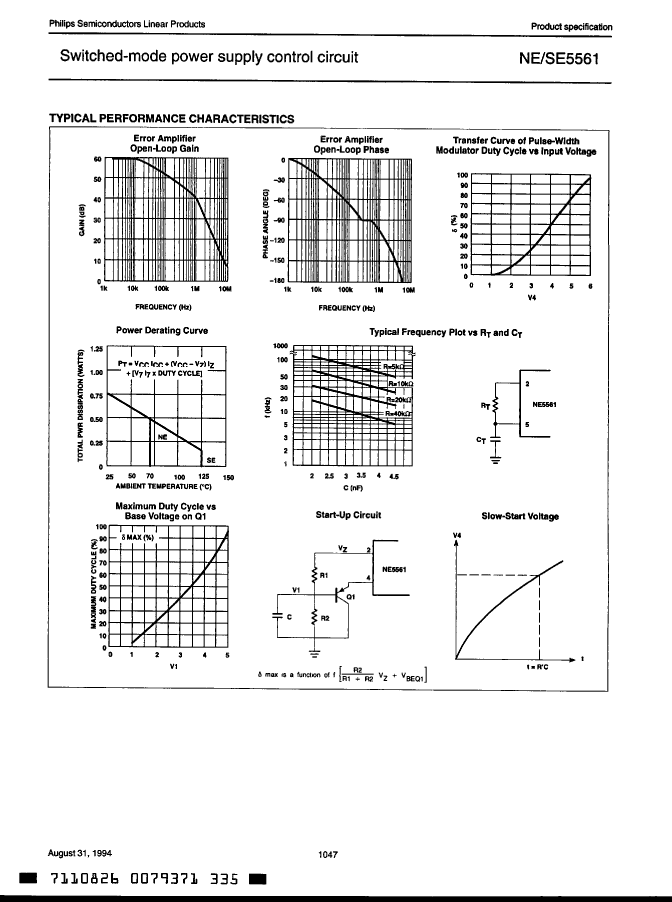

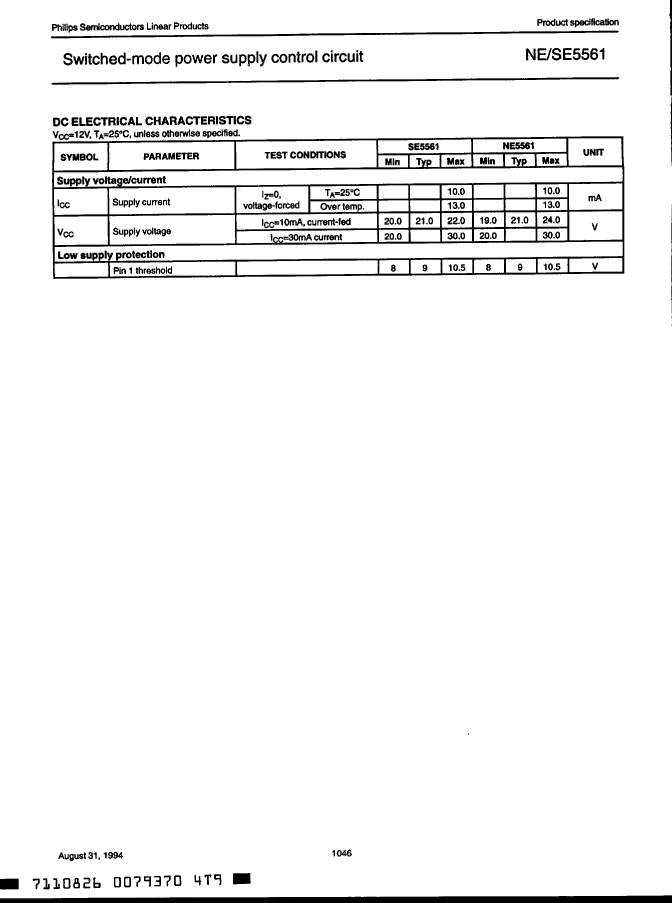

Preview

Download Datasheet

View All

SE5561FE-B Related Products

	SE5561FE-B	CAR2024FPB-1A	CAR2024FPBY0-1A	CAR2024FP	NE556-1F-B	NE5561FE-B	NE5561N(SMPS)	SE556-1F-B	SE556-1CF	SE556-1CN
Description	Switching Regulator/Controller, Voltage-mode, 0.02A, 100kHz Switching Freq-Max, BIPolar, CDIP8	2000 Watt 24V Front End Power Supply	2000 Watt 24V Front End Power Supply	2000 Watt 24V Front End Power Supply	Analog Waveform Generation Function, BIPolar, CDIP14	Switching Regulator/Controller, Voltage-mode, 0.02A, 100kHz Switching Freq-Max, BIPolar, CDIP8	Switching Regulator/Controller, Voltage-mode, 0.02A, 100kHz Switching Freq-Max, BIPolar, PDIP8	Analog Waveform Generation Function, BIPolar, CDIP14	Analog Waveform Generation Function, BIPolar, CDIP14,	Analog Waveform Generation Function, BIPolar, PDIP14,
Is it Rohs certified?	incompatible	-	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	-	-	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	-	-	-	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	-	-	-	-	R-XDIP-T14	R-XDIP-T8	R-PDIP-T8	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14
JESD-609 code	-	-	-	-	e0	e0	e0	e0	e0	e0
Number of terminals	-	-	-	-	14	8	8	14	14	14
Maximum operating temperature	-	-	-	-	70 °C	70 °C	70 °C	125 °C	125 °C	125 °C
Package body material	-	-	-	-	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	-	-	-	-	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	-	-	-	-	DIP14,.3	DIP8,.3	DIP8,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	-	-	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	-	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	-	-	-	-	NO	NO	NO	NO	NO	NO
technology	-	-	-	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	-	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal surface	-	-	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	-	-	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	-	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	-	-	-	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
