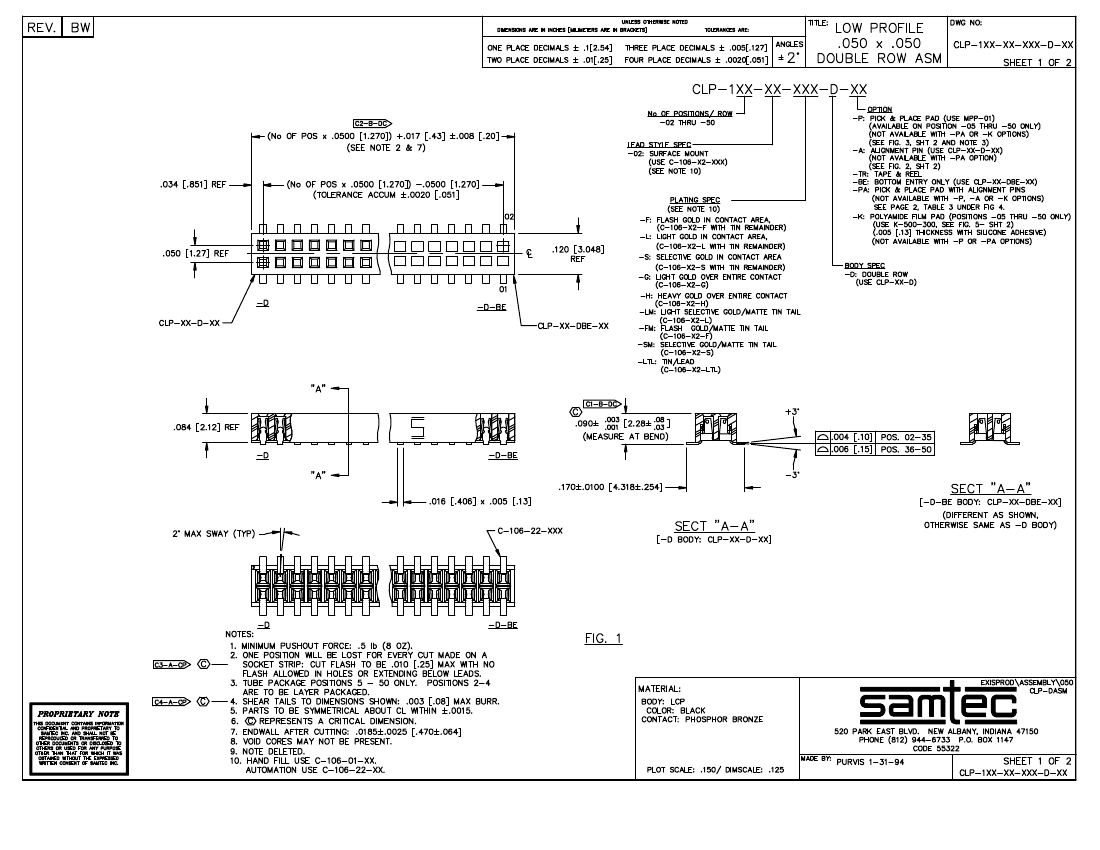

Board Connector, 42 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator,
| Parameter Name | Attribute value |
| Maker | SAMTEC |
| Reach Compliance Code | compliant |
| Samacsys Description | 42 Position Connector Header, Center Strip Contacts Surface Mount |
| Other features | LOW PROFILE |
| body width | 0.12 inch |
| subject depth | 0.09 inch |
| body length | 0.617 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN LEAD |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Durability | 100 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.0564 N |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.05 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.2258 mm |
| Plating thickness | 10u inch |
| Rated current (signal) | 3.3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.27 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 42 |
| Evacuation force-minimum value | .556 N |
