TX40/24/16-3C90 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > TX40/24/16-3C90

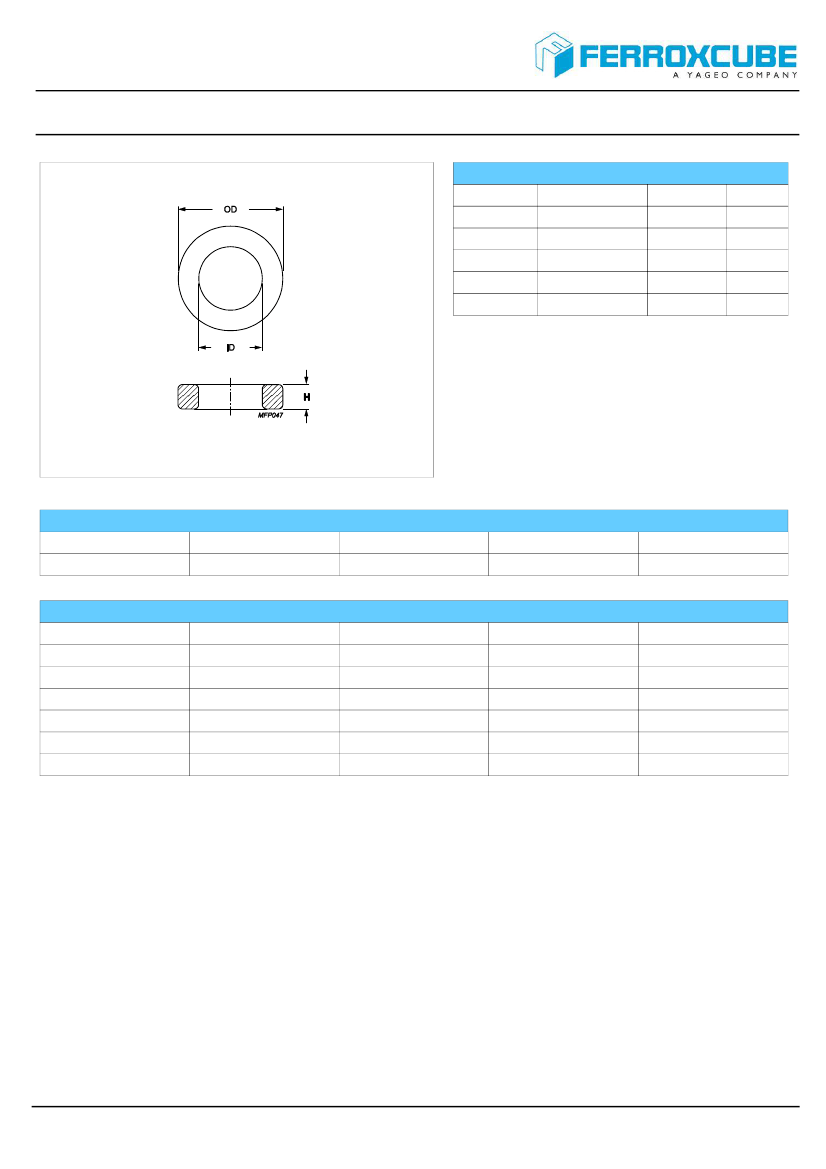

Preview

TX40/24/16-3C90: DescriptionFerrite toroids; File Size55KB，1 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/

Download Datasheet View All

TX40/24/16-3C90 Overview

Ferrite toroids

Preview

Download Datasheet

View All

Product specifications

Core

Toroid 40/24/16

Effective parameters

Symbol

∑(I/A)

Ve

Le

Ae

m

Parameter

core factor (C1)

effective volume

effective length

effective area

mass of core

Value

0.769

12100

96.3

125

≈ 62

Unit

mm⁻¹

mm³

mm

mm²

g/pcs

Epoxy coating DC isolation voltage 2000.

Maximum operating temperature of the coating is 200ºC.

Dimensions (mm)

Cores

TX40/24/16

OD

41.65 max

ID

22.85 min

H

17.1 max

Epoxy Coated

Core data

Cores

TX40/24/16

Material

3C94

3E10

3E12

3E27

3E6 (3E10-M)

3E65

Al (nH/turns²)

3750

16300

19600

8970

16300

8480

Al tolerance

± 25%

± 20%

± 30%

± 25%

± 30%

± 25%

µe

≈ 2300

≈ 10000

≈ 12000

≈ 5500

≈ 10000

≈ 5200

2016
