Network cable - VS-M12MSS-OE-94F/15,0/10G - 1440575
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

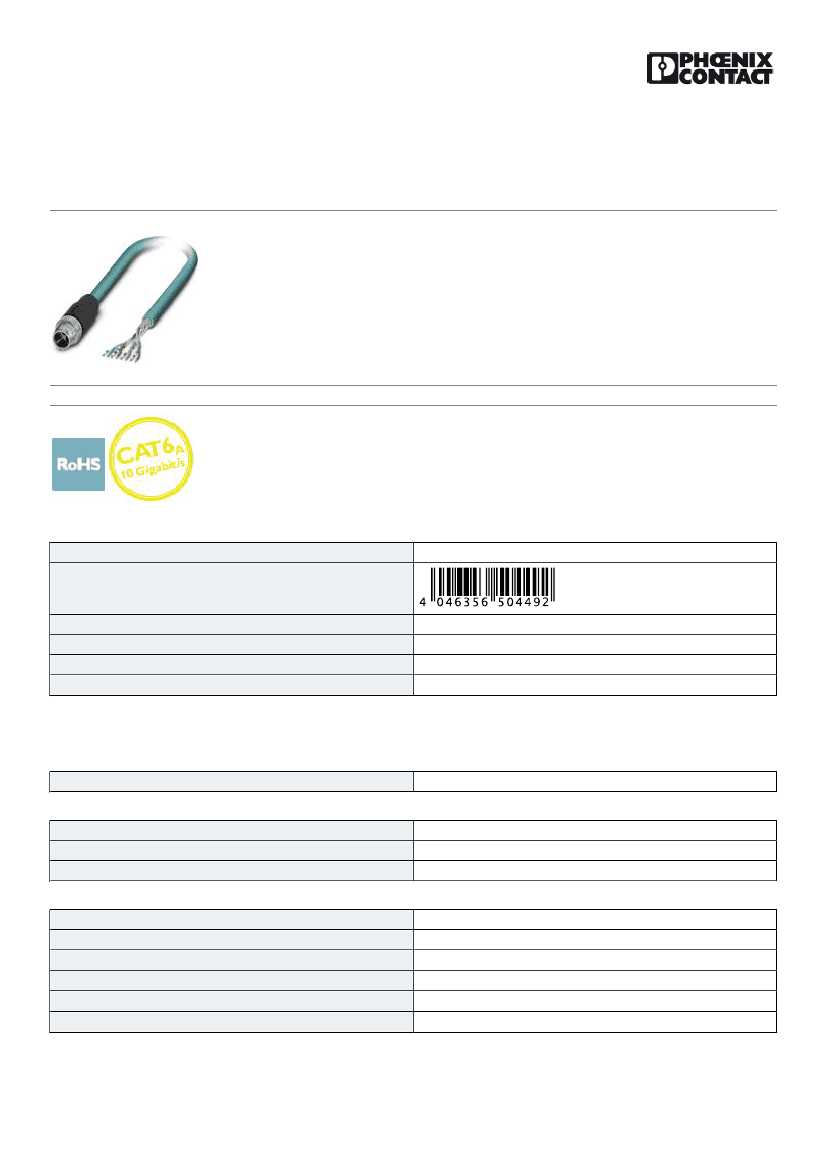

Network cable, Ethernet CAT6
A
(10 Gbps), 8-position, PUR, water blue RAL 5021, Plug straight M12
SPEEDCON / IP65, coding: X, on free cable end, cable length: 15 m
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356504492
648.700 g
85444290
Poland
1 pc
Technical data
Dimensions
Length of cable
15 m
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP65
IP67
-25 °C ... 90 °C (Plug / socket)
General data
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Overvoltage category
0.5 A
48 V AC
60 V DC
8
Ethernet CAT6
A
, 10 Gbps
II
12/23/2018 Page 1 / 6
https://www.phoenixcontact.com/in/products/1440575
Network cable - VS-M12MSS-OE-94F/15,0/10G - 1440575
Technical data
General data
Degree of pollution
Alternative short product description
3
Ethernet cable
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Coding
Color
Shielded
Plug straight M12 SPEEDCON / IP65
8 (8)
X (Data)
black
yes
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Color
Shielded
free cable end
8
black
yes
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
UL
HB
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Tensile strength GRP
Ethernet 10 Gbit
94F
20963 (80°C/30 V)
Ethernet CAT6
A
, 10 Gbps
4x2xAWG26/7; S/FTP
4x 2x 0.14 mm²
26
7x 0.16 mm
1.04 mm
white/blue-blue, white/orange-orange, white/green-green, white/brown-
brown
2 cores to the pair
Aluminum-lined foil
4 pairs for core
Tinned copper braided shield
70 %
water blue RAL 5021
0.65 mm
6.4 mm ±0.2 mm
4xD
8xD
≤ 100 N
12/23/2018 Page 2 / 6
https://www.phoenixcontact.com/in/products/1440575
Network cable - VS-M12MSS-OE-94F/15,0/10G - 1440575
Technical data
Cable
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Loop resistance
Cable capacity
Wave impedance
Near end crosstalk attenuation (NEXT)
42 kg/km
PUR
Foamed PE
Bare Cu litz wires
≥ 500 MΩ*km
≤ 290.00 Ω/km
47 nF/km
100 Ω ±5 Ω (at 100 MHz)
75.3 dB (with 1 MHz)
66.3 dB (at 4 МHz)
61.8 dB (at 8 МHz)
60.3 dB (at 10 MHz)
57.2 dB (at 16 MHz)
55.8 dB (at 20 МHz)
54.3 dB (at 25 MHz)
52.8 dB (at 31.25 МHz)
48.4 dB (at 62.5 МHz)
45.3 dB (at 100 MHz)
40.8 dB (at 200 MHz)
39.3 dB (at 250 MHz)
38.1 dB (at 300 MHz)
36.3 dB (at 400 MHz)
34.8 dB (at 500 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)
72.3 dB (with 1 MHz)
63.3 dB (at 4 МHz)
58.8 dB (at 8 МHz)
57.3 dB (at 10 MHz)
54.2 dB (at 16 MHz)
52.8 dB (at 20 МHz)
51.3 dB (at 25 MHz)
49.9 dB (at 31.25 МHz)
45.4 dB (at 62.5 МHz)
42.3 dB (at 100 MHz)
37.8 dB (at 200 MHz)
36.3 dB (at 250 MHz)
35.1 dB (at 300 MHz)
33.3 dB (at 400 MHz)
31.8 dB (at 500 MHz)
Attenuation
3.1 dB (with 1 MHz)
5.7 dB (at 4 МHz)
12/23/2018 Page 3 / 6
https://www.phoenixcontact.com/in/products/1440575
Network cable - VS-M12MSS-OE-94F/15,0/10G - 1440575
Technical data
Cable
8 dB (at 8 МHz)
8.9 dB (at 10 MHz)
11.2 dB (at 16 MHz)
12.6 dB (at 20 МHz)
14.1 dB (at 25 MHz)
15.8 dB (at 31.25 МHz)
22.5 dB (at 62.5 МHz)
28.7 dB (at 100 MHz)
41.4 dB (at 200 MHz)
46.6 dB (at 250 MHz)
51.4 dB (at 300 MHz)
60.1 dB (at 400 MHz)
67.9 dB (at 500 MHz)
Return loss (RL)
20 dB (with 1 MHz)
23 dB (at 4 МHz)
24.5 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
24.2 dB (at 25 MHz)
23.3 dB (at 31.25 МHz)
20.7 dB (at 62.5 МHz)
19 dB (at 100 MHz)
16.4 dB (at 200 MHz)
15.6 dB (at 250 MHz)
15.6 dB (at 300 MHz)
15.6 dB (at 400 MHz)
15.6 dB (at 500 MHz)
Signal runtime
Shield attenuation
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Halogen-free
Resistance to oil
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
5.13 ns/m
≥ 80 dB (at 30 ... 100 MHz)
≤ 100 V
700 V (50 Hz, 1 min.)
700 V (50 Hz, 1 min.)
according to IEC 60332-1-2
according to IEC 60754-1
in accordance with DIN EN 60811-2-1
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
-20 °C ... 80 °C
-20 °C ... 80 °C
12/23/2018 Page 4 / 6
https://www.phoenixcontact.com/in/products/1440575
Network cable - VS-M12MSS-OE-94F/15,0/10G - 1440575
Technical data
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

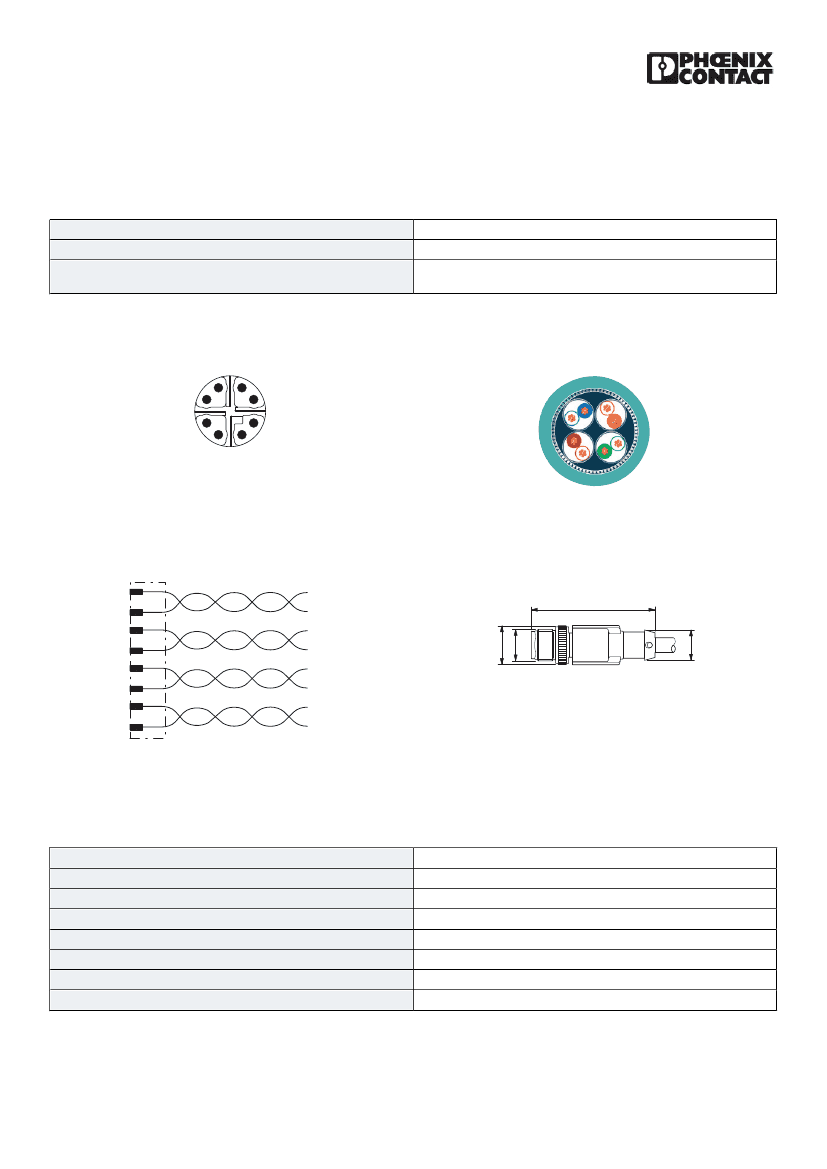

Drawings
Schematic diagram
5
6
4
3
Cable cross section
7
8
1
2
Pin assignment M12 plug, 8-pos., view plug side
Ethernet 10 Gbit [94F]
Circuit diagram
M12
1
2
3
4
5
6
7
8
WH/OG
OG
Dimensional drawing
47,3
Ø14,8
WH/GN
GN
WH/BN
BN
WH/BU
BU
M12
Dimens. drawing: M12 connectors
Contact assignment of the M12 plugs
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27060306
27060306
27061801
19030300
27061800
27061801
27061801
27060308
12/23/2018 Page 5 / 6
