REVISION X
NOTES:
1. C REPRESENTS A CRITICAL DIMENSION.
2. ALL DIMENSION TO BE SYMMETRICAL ABOUT CENTERLINE
WITHIN ±.002[.05] UNLESS OTHERWISE STATED.
3. POSITONS -05 THRU -50 ARE TO BE PACKAGED IN TUBES.
4. MIN CONTACT RETENTION FORCE: 1LB.
5. TAILS TO ARE TO BE SHEARED. MAX BURR, ORIENTED AWAY
FROM CUSTOMER'S P.C.B. ONLY, TO BE .0045[.114].
6. MAX CUT FLASH: .015 IN NON-CRITICAL AREAS; NO CUT
FLASH TO BE PRESENT IN CRITICAL AREAS AS SHOWN
7. MOLD STEEL CAPABLE OF -02 & -03 POSITION (-A OPTION),
BUT NOT ENG'G APPROVED.
CLP-1XX-XX-X-DH-XX
No. OF POSITIONS PER ROW
-02 THRU -50
LEAD STYLE
-02: SURFACE MOUNT
PLATING
3µ" FLASH SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F:
OPTION
-TR: TAPE AND REEL PACKAGING
-A: ALIGNMENT PIN (USE CLP-XX-DH-A
BODIES MUST BE MODLED TO POSTION)
(AVAILABLE ON POSITIONS -04 THRU -05)
(SEE NOTE 7)
2 MAX SWAY
(EITHER DIRECTION)
Y
BODY SPECIFICATION
-DH: DOUBLE HORIZONTAL
DO NOT
SCALE FROM
THIS PRINT
CLP-XX-DH-X
"A"
.050 1.27
REF
04
02
(NO OF POS -1) EQ SPACES @.0500[1.270] REF
(NO OF POS x .05000[1.270]) + .017[0.43]±.008[0.20]
+1°
NON-CRITICAL AREA
(SEE NOTE 6)
.120 3.05 REF
.030 0.76 REF
.135 3.43 REF
.0420 1.07
C1
SEE TABLE 1
90°
- 3°
C-70-05-X
FLUSH TO
.003[0.08] BEYOND
BOTTOM OF BODY MAX
CRITICAL AREA
(SEE NOTE 6)
C-70-04-X
.025 0.64
.030 0.76 REF
"A"
.060 1.52 REF
(NO OF POS -2) x .050[1.27] REF
.050 1.27 REF
.180±.010 4.57±0.25
(SEE NOTE 5)
SECTION "A"-"A"
.472 12.00
REF
PACKAGING TUBE VIEW
(SCALE 3:1)
POSITION 1
.945 24.00
REF
"B"
"B"
-DH NO OPTION
PT-1-24-02-37
(TUBE USES (2) TP-12)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
USER DIRECTION OF UNREELING
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
-TR: TAPE & REEL VIEW
(SCALE 3:2)
WITH -A OPTION
PT-1-24-01-62
(TUBE USES (2) TP-12)
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
F:\DWG\MISC\MKTG\CLP-1XX-XX-X-DH-XX-MKT.SLDDRW

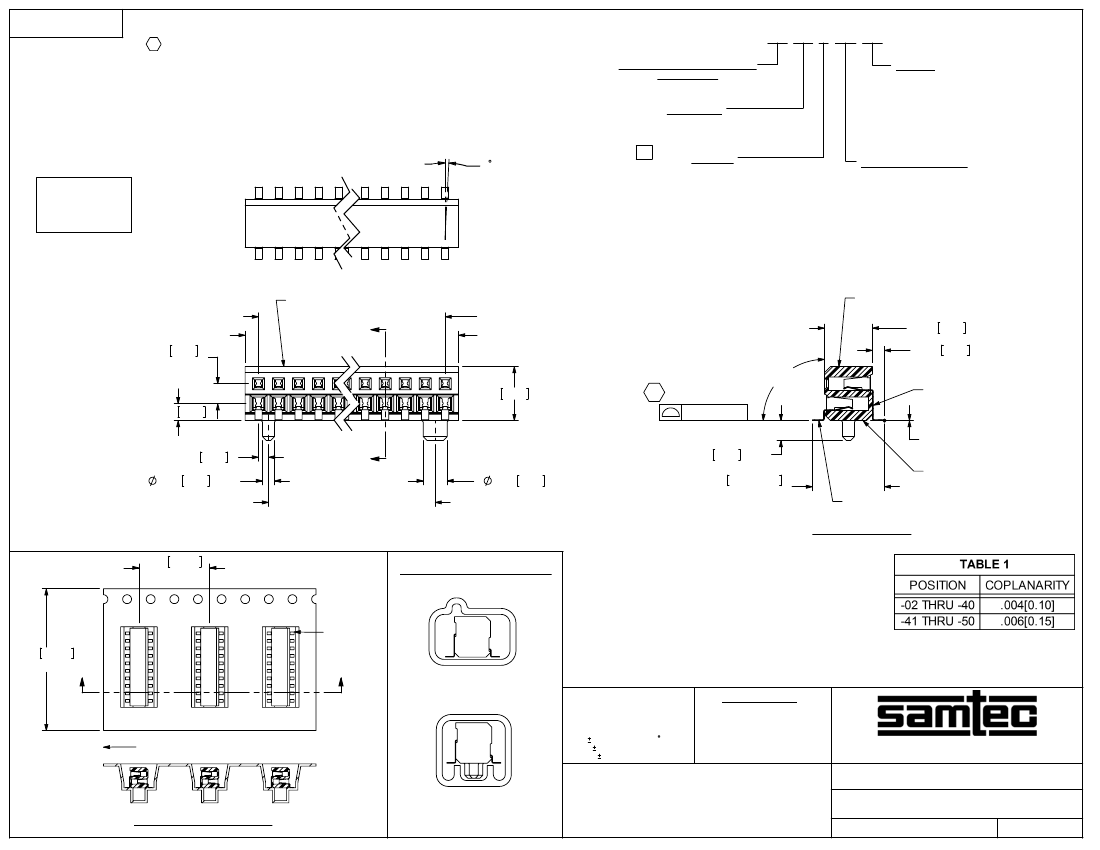

LOW PROFILE .050 X .050 DOUBLE ROW ASM
DWG. NO.
DESCRIPTION:
CLP-1XX-XX-X-DH-XX
11-29-1995
SHEET
1
OF
1
BY:
PURVIS
Robotics Development
