20IMX15-24-24-9I datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> 20IMX15-24-24-9I

20IMX15-24-24-9I: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 15.4W, Hybrid, 2 INCH X 1.600 INCH, 10.50 MM HEIGHT, PACKAGE-9; CategoryPower/power management The power supply circuit; File Size562KB，19 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric View All

20IMX15-24-24-9I Overview

DC-DC Regulated Power Supply Module, 2 Output, 15.4W, Hybrid, 2 INCH X 1.600 INCH, 10.50 MM HEIGHT, PACKAGE-9

20IMX15-24-24-9I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	ADDITIONAL 24V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	86%
high	10.5 mm
Maximum input voltage	36 V
Minimum input voltage	8.4 V
Nominal input voltage	20 V
JESD-30 code	R-XDMA-P9
JESD-609 code	e0
length	50.8 mm
Maximum grid adjustment rate	1%
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	9
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output current	0.32 A
Maximum output voltage	25.2 V
Minimum output voltage	18 V
Nominal output voltage	24 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
Maximum total power output	15.4 W
Fine-tuning/adjustable output	YES
Warm up time	0.5 s
width	40.65 mm
Base Number Matches	1

Preview

Download Datasheet

View All

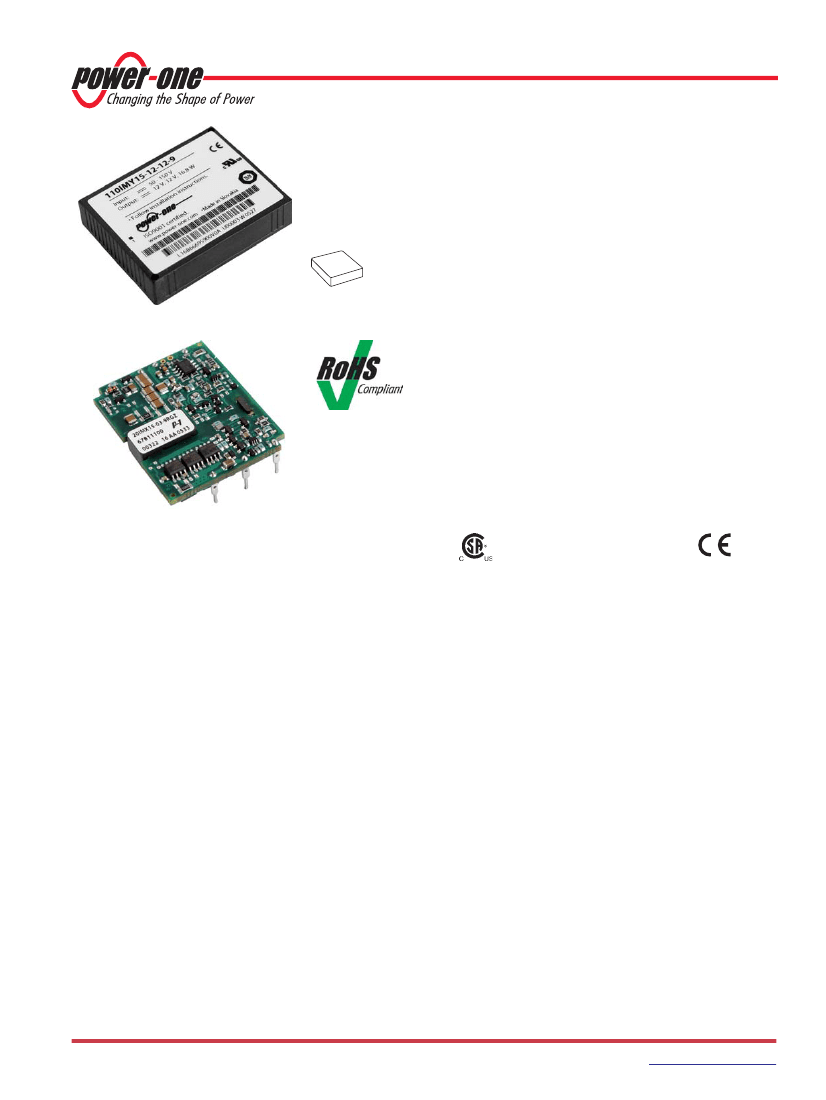

IMX15, IMS15, IMY15 Series Data Sheet

15 -Watt DC-DC Converters

Features

• RoHS lead-free-solder and lead-solder-exempted

products are available.

• Wide input voltage ranges up to 150 VDC

• 1 or 2 isolated outputs up to 48 V

• 1200 to 3000 VAC I/O electric strength test

• Emissions EN 55022 level A

40.6

1.6"

10.5

0.42"

2.0"

• Immunity to IEC/EN 61000-4-2,-3,-4,-5, and -6

• High efficiency (typ. 86%)

• Input undervoltage lockout

• Shutdown input, adjustable output voltages

• Flex power: Flexible load distribution on outputs

• Outputs no-load, overload, and short-circuit proof

• Operating ambient temperature –40 to 85 °C

• Thermal protection

• 2" x 1.6" case with 10.5 mm profile

• Supplementary insulation: 20/40IMX15 models

• Double or reinforced insulation: 110IMY15 models

Safety-approved to IEC 60950-1 and UL/CSA 60950 -1

Edition

Description

The IMX15, IMS15, and IMY15 Series of board mountable 15-

Watt DC-DC converters have been designed according to the

latest industry requirements and standards. The converters

are particularly suitable for use in mobile or stationary

applications in transport, railways, industry, or telecommu-

nications, where variable input voltages or high transient

voltages are prevalent.

Covering a total input voltage range from 8.4 up to 150 V with

different models, the converters are available with single and

electrically-isolated double outputs from 3.3 up to 48 V,

externally adjustable, with flexible load distribution on double-

output models. A shutdown input allows for remote on/off.

Features include efficient input and output filtering and

consistently high efficiency over the entire input voltage range,

high reliability, and excellent dynamic response to load and

line changes.

The converters have been approved by CSA. 20IMS/20IMX15

and 40IMS/40IMX15 models provide supplementary in-

sulation. Connected to a secondary circuit, these models

provide SELV outputs, even if the bus voltage at the converter

110IMY15

models

input exceeds the SELV-limit of 60 VDC. The 110IMY15

models provide double insulation and are CE marked. They

may be connected to a rectified 110 VAC source without any

further isolation barrier.

The circuitry is comprised of integrated planar magnetics. All

components are automatically assembled and solidly soldered

onto a single PCB without any wire connection. Magnetic

feedback ensures maximum reliability and repeatability in the

control loop over all operating conditions. Careful con-

sideration of possible thermal stress ensures the absence of

hot spots providing long life in environments, where

temperature cycles are frequent. The thermal design allows

operation at full load up to an ambient temperature of 71 °C in

free air without using any potting material. For extremely high

vibration environments the case has holes for screw mounting.

Table of Contents

Page

Electromagnetic Compatibility (EMC) ................................ 14

Immunity to Environmental Conditions .............................. 16

Mechanical Data ................................................................ 17

Safety and Installation Instructions .................................... 18

Description of Options ...................................................... 19

Description ........................................................................... 1

Model Selection ................................................................... 2

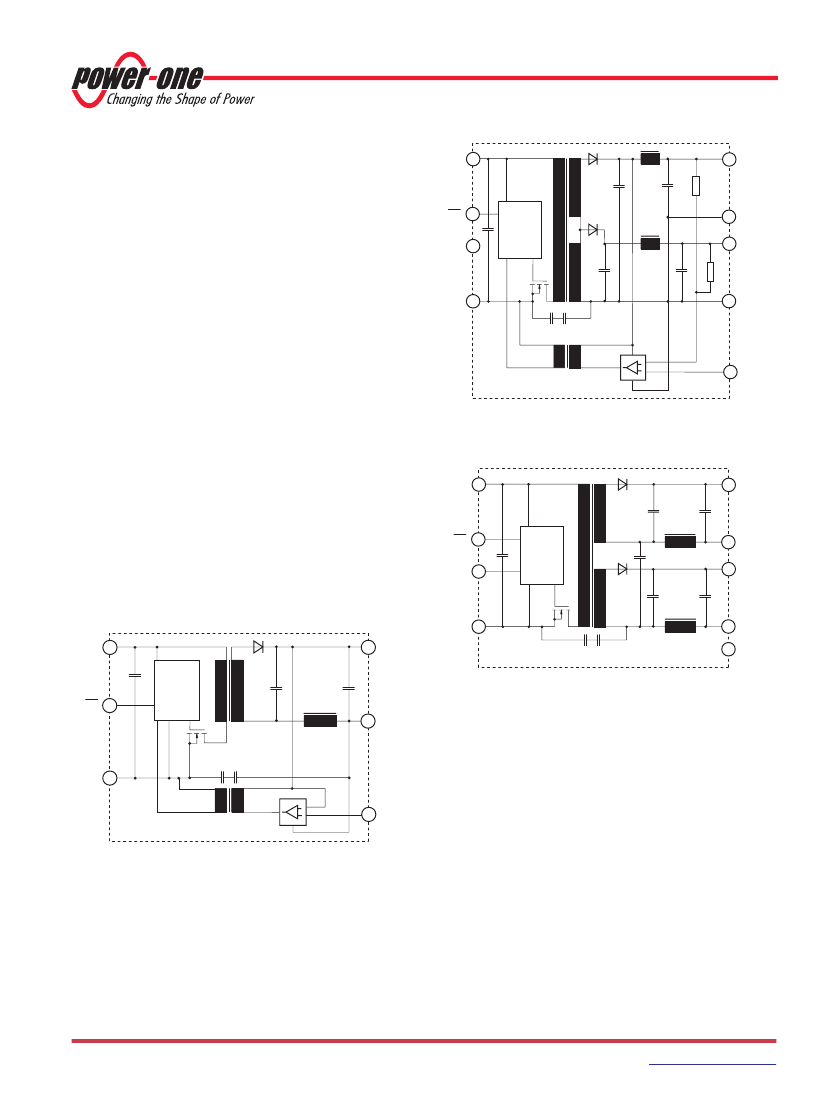

Functional Description ......................................................... 4

Electrical Input Data ............................................................. 5

Electrical Output Data .......................................................... 8

Auxiliary Functions ............................................................. 13

BCD20008-G Rev AC, 26-Nov-2012

Page 1 of 19

www.power-one.com

IMX15, IMS15, IMY15 Series Data Sheet

15 -Watt DC-DC Converters

RoHS- Compliant Models

The type designation of RoHS-compliant models (compliant for the restriction of all six substances) for the IMX/IMY15 Series

ends with "G".

However, in single-output models with 3.3 V or 5.1 V output an extra hyphen (-) is added after the existing "G", which already

signifies a synchronous rectifier. This is an exception to Power-One's normal nomenclature to identify this type of product, since

G is already used to designate products for higher output current fitted with a synchronous rectifier. As an example

– 20IMX15-05-8R-G means a standard version with RoHS compliance for all six substances.

– 20IMX15-05-8RG means a synchronous rectifier version which is not RoHS-compliant.

– 20IMX15-05-8RG-G means a synchronous rectifier version and with RoHS compliance for all six substances.

– 20IMX15-05-05-8RG means a double-output model with RoHS compliance for all six substances

– 110IMY15-24-24-8RG means a double-output model with RoHS compliance for all six substances.

Part Number Description

40 IMX15 - 05 - 05 - 8 R G i Z -G

xxix

Input voltage range

8.4 to 36 V ................................................ 20

14 to 36 V ................................................. 24

16.8 to 75 V .............................................. 40

36 to 75 V ................................................. 48

50 to 150 V ............................................. 110

Series .............................................. IMX15, IMS15, IMY15

Output voltage of output 1 ...................... 03, 05, 12, 15, 24

Hyphen designating double-output models with two

electrically isolated outputs .......................................... -

Output voltage of output 2 ...................... 03, 05, 12, 15, 24

Operating ambient temperature range

– 40

to 85 °C ............................................. -8

– 40

to 71 °C ............................................. -9

Options and features:

R input and magnetic feedback ................. R

Synchronous rectification ........................... G

Inhibit ............................................................ i

Open frame .................................................. Z

RoHS compliant for all 6 substances ........ -G

Not applicable to -0503 models.

IMS15 models are not recommended for new designs.

Standard for single-output and -0503- models, not for new designs of other models

Option i excludes shutdown.

Only –25 °C for -RG models

Note:

The sequence of options must follow the order above.

Examples: 20 IM X15-05-05-8: DC-DC converter, input voltage 9 to 36 V, 2 galvanically isolated outputs each providing

5 V, 1.3 A.

110 IMY15-0503-8R: DC-DC converter, input voltage 50 to 150 V, 2 outputs with common return providing +5.1 V,

1.5 A and +3.3 V, 1.5 A. Converter fitted with magnetic feedback for tight output voltage regulation.

Product Marking

The converters without option Z are marked with basic type designation, input and output voltages and currents, applicable safety

approval and recognition marks, Power-One patent nos., company logo, date code, and serial number.

BCD20008-G Rev AC, 26-Nov-2012

Page 3 of 19

www.power-one.com
