20IMX35-03D15-9Z datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> 20IMX35-03D15-9Z

20IMX35-03D15-9Z: DescriptionDC-DC Regulated Power Supply Module, 3 Output, 35W, Hybrid; CategoryPower/power management The power supply circuit; File Size388KB，18 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric View All

20IMX35-03D15-9Z Overview

DC-DC Regulated Power Supply Module, 3 Output, 35W, Hybrid

20IMX35-03D15-9Z Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ADDITIONAL +/-15V OUTPUTS AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	20 V
JESD-30 code	R-XDMA-T17
JESD-609 code	e0
Maximum load regulation	1%
Number of functions	1
Output times	3
Number of terminals	17
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.465 V
Minimum output voltage	2.64 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	35 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

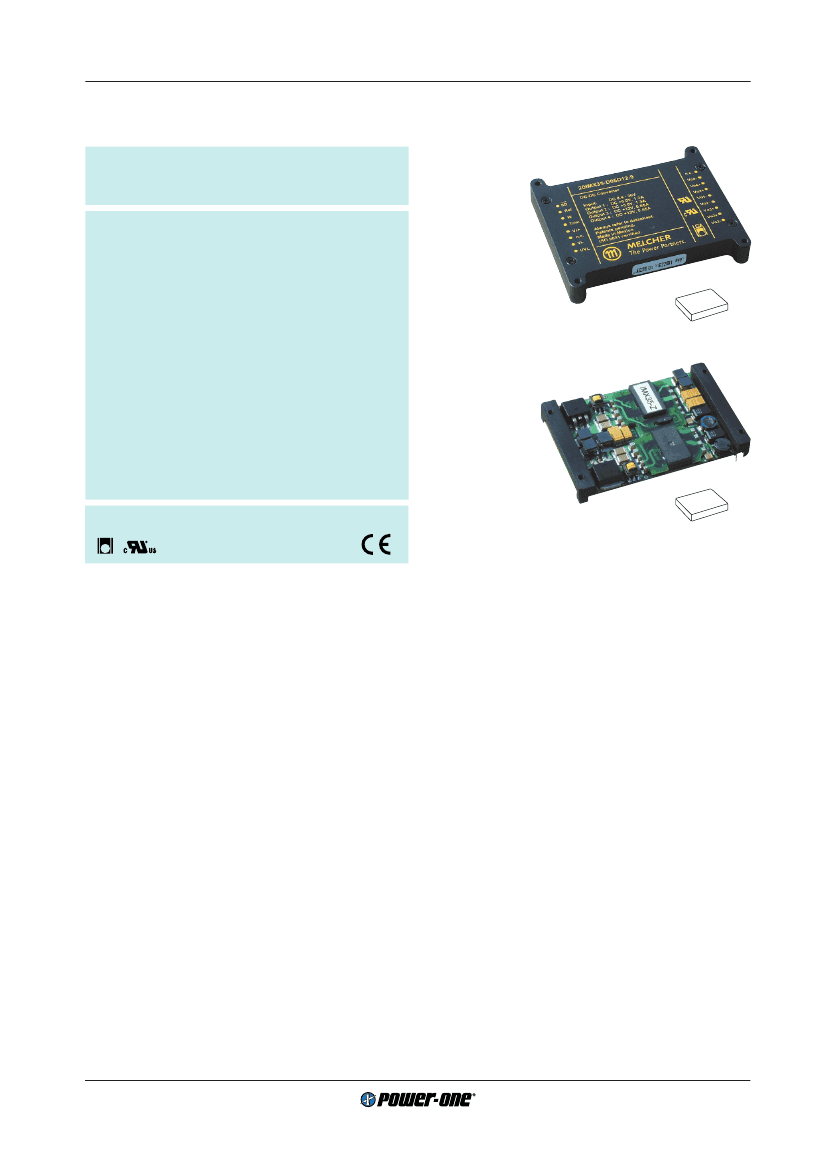

Board Mountable

DC-DC Converters

IMX 35 Series

35 Watt DC-DC Converters

Wide input voltage ranges up to 75 V DC

2...4 outputs up to 60 V DC

1500 V DC I/O electric strength test voltage

• Extremely wide input voltage ranges

• Electrical isolation, also between outputs

• Emissions below EN 55022, level B

• Immunity to IEC/EN 61000-4-2,-3,-4,-5 and -6

• Programmable input undervoltage lock-out

• Shut down input

• Output voltages adjustable with flexible load

distribution

• Frequency synchronisation

• Outputs no-load, overload and short-circuit proof

• Operating ambient temperature up to –40...85

• Thermal protection

• 3"

2,5" case with 10.5 mm profile or 8.9 mm open

frame

• Supplementary insulation

Safety according to IEC/EN 60950, UL 1950

LGA

IMX 35 Series

63.5

2.5"

10.5

0.41"

76.2

47.8

1.88"

8.9

0.35"

72.8

2.87"

Approvals pending

Summary

The IMX 35 series of board mountable 35 Watt DC-DC con-

verters has been designed according to the latest industry

requirements and standards. The converters are particu-

larly suitable for use in mobile or stationary applications in

transport, railways, industry, or telecommunication where

variable input voltages or high transient voltages are preva-

lent.

Covering a total input voltage range from 9 up to 75 V with

2 different types. The units are available with double, triple

and quadruple outputs, electrically isolated, from 3.3 V up

to 60 V externally adjustable and with flexible load distribu-

tion. A shut down input allows remote converter on/off. Fea-

tures include consistently high efficiency over the entire in-

put voltage range, high reliability and excellent dynamic re-

sponse to load and line changes.

The converters are designed and built according to the in-

ternational safety standards IEC/EN 60950, UL 1950, CAN/

CSA C22.2 No.950-95. LGA, UL and cUL approvals are in

progress. The IMX 35 types provide supplementary insula-

tion. Connected to a secondary circuit the 40 IMX 35 types

provide SELV outputs even if the voltage at the converter

input exceeds the SELV-limit of 60 V DC.

The circuit comprises of two planar magnetics devices and

all components are automatically assembled and solidly

soldered onto a single PCB without any wire connection.

Magnetic feedback ensures maximum reliability and

repeatability in the control loop over all operating condi-

tions. Careful considerations of possible thermal stresses

ensure the absence of hot spots providing long life in envi-

ronments where temperature cycles are a reality. The ther-

mal design without using any potting material allows opera-

tion at full load up to an ambient temperature of 71°C in free

air. For extremely high vibration environments the case has

holes for screw mounting. Various options as e.g. extended

temperature range –40...85°C or an alternative pinout pro-

vide a high level of application specific engineering and de-

sign-in flexibility.

Table of Contents

Page

Summary .......................................................................... 1

Type Survey and Key Data .............................................. 2

Type Key .......................................................................... 3

Functional Description ...................................................... 4

Electrical Input Data ......................................................... 6

Electrical Output Data ...................................................... 8

Page

Auxiliary Functions ......................................................... 11

Electromagnetic Compatibility (EMC) ............................ 13

Immunity to Environmental Conditions ........................... 14

Mechanical Data ............................................................ 15

Safety and Installation Instructions ................................ 16

Description of Option ...................................................... 18

1/18

Edition 3/4.2000
