5KP6.5CA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5KP6.5CA

5KP6.5CA: Description5000 W, BIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size918KB，6 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

5KP6.5CA Overview

5000 W, BIDIRECTIONAL, SILICON, TVS DIODE

5KP6.5CA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	7.98 V
Minimum breakdown voltage	7.22 V
Breakdown voltage nominal value	7.6 V
Shell connection	ISOLATED
Maximum clamping voltage	11.2 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	6.5 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

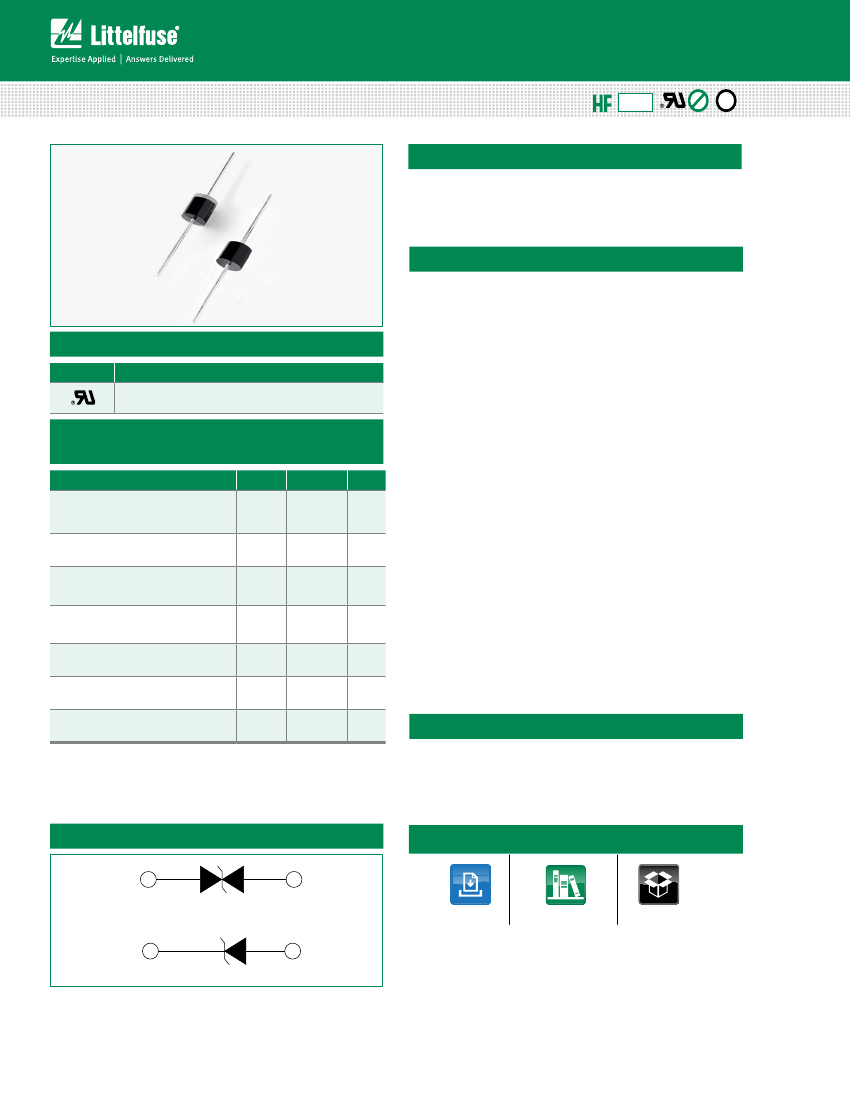

Transient Voltage Suppression Diodes

Axial Leaded – 5 kW > 5KP series

5KP Series

Description

Uni-directional

RoHS

The 5KP Series is designed specifically to protect sensitive

electronic equipment from voltage transients induced by

lightning and other transient voltage events.

Bi-directional

Features

• 5 kW peak pulse

capability at 10/1000μs

waveform, repetition rate

(duty cycles):0.01%

• Glass passivated chip

junction in P600 package

• Fast response time:

typically less than 1.0ps

from 0 Volts to BV min

• Excellent clamping

capability

• Typical failure mode is

short from over-specified

voltage or current

• Whisker test is conducted

based on JEDEC

JESD201A per its table 4a

and 4c

• IEC 61000-4-2 ESD

30kV(Air), 30kV (Contact)

• EFT protection of data

lines in accordance with

IEC 61000-4-4

• Low incremental surge

resistance

• Typical I

less than 2μA

when V

min>12V

• High temperature

to reflow soldering

guaranteed: 260°C/40sec

/ 0.375” (9.5mm) lead

length, 5 lbs., (2.3kg)

tension

• V

@ T

= V

@25°C

x (1+

T x (T

- 25))

(

T:Temperature

Coefficient, typical value

is 0.1%)

• UL Recognized compound

meeting flammability

rating V-0

• Matte tin lead–free plated

• Halogen free and RoHS

compliant

• Pb-free E3 indicates that

2nd level interconnect is

Pb-free and the terminal

finish material is tin(Sn)

(IPC/JEDEC J-STD-

609A.01)

Agency Approvals

AGENCY

AGENCY FILE NUMBER

E230531

Maximum Ratings and Thermal Characteristics

=25

C unless otherwise noted)

Parameter

Peak Pulse Power Dissipation by

10/1000μs Test Waveform (Fig.2)

(Note 1)

Steady State Power Dissipation on

Infinite Heat Sink at T

=75ºC

Peak Forward Surge Current, 8.3ms

Single Half Sine Wave Unidirectional

Only (Note 2)

Maximum Instantaneous Forward

Voltage at 100A for Unidirectional

Only (Note 3)

Operating Junction and Storage

Temperature Range

Typical Thermal Resistance

Junction to Lead

Typical Thermal Resistance

Junction to Ambient

Symbol

PPM

FSM

, T

STG

θJL

θJA

Value

8.0

400

3.5/5.0

-55 to 175

8.0

Unit

°C

°C/W

Applications

TVS componants are ideal for the protection of I/O

interfaces, V

bus and other vulnerable circuits used in

telecom, computer, industrial and consumer electronic

applications.

Additional Infomarion

Notes:

1. Non-repetitive current pulse , per Fig. 4 and derated above T

(initial) =25

C per Fig. 3.

2. Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4 per

minute maximum.

3. V

< 3.5V for single die parts and V

< 5.0V for stacked-die parts.

Functional Diagram

Bi-directional

Datasheet

Anode

Resources

Samples

Cathode

Uni-directional

Specifications are subject to change without notice.

Revised: 05/08/18
