KM432S2020BT-G12 datasheet, PDF

Datasheet> All Categories > storage> storage> KM432S2020BT-G12

KM432S2020BT-G12: DescriptionSynchronous DRAM, 2MX32, 8ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86; Categorystorage storage; File Size331KB，9 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM432S2020BT-G12 Overview

Synchronous DRAM, 2MX32, 8ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86

KM432S2020BT-G12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	TSOP2
package instruction	TSOP2, TSSOP86,.46,20
Contacts	86
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	8 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	83 MHz
I/O type	COMMON
interleaved burst length	1,2,4,8
JESD-30 code	R-PDSO-G86
JESD-609 code	e0
length	22.22 mm
memory density	67108864 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	86
word count	2097152 words
character code	2000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX32
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSSOP86,.46,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	1.2 mm
self refresh	YES
Continuous burst length	1,2,4,8,FP
Maximum standby current	0.001 A
Maximum slew rate	0.115 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

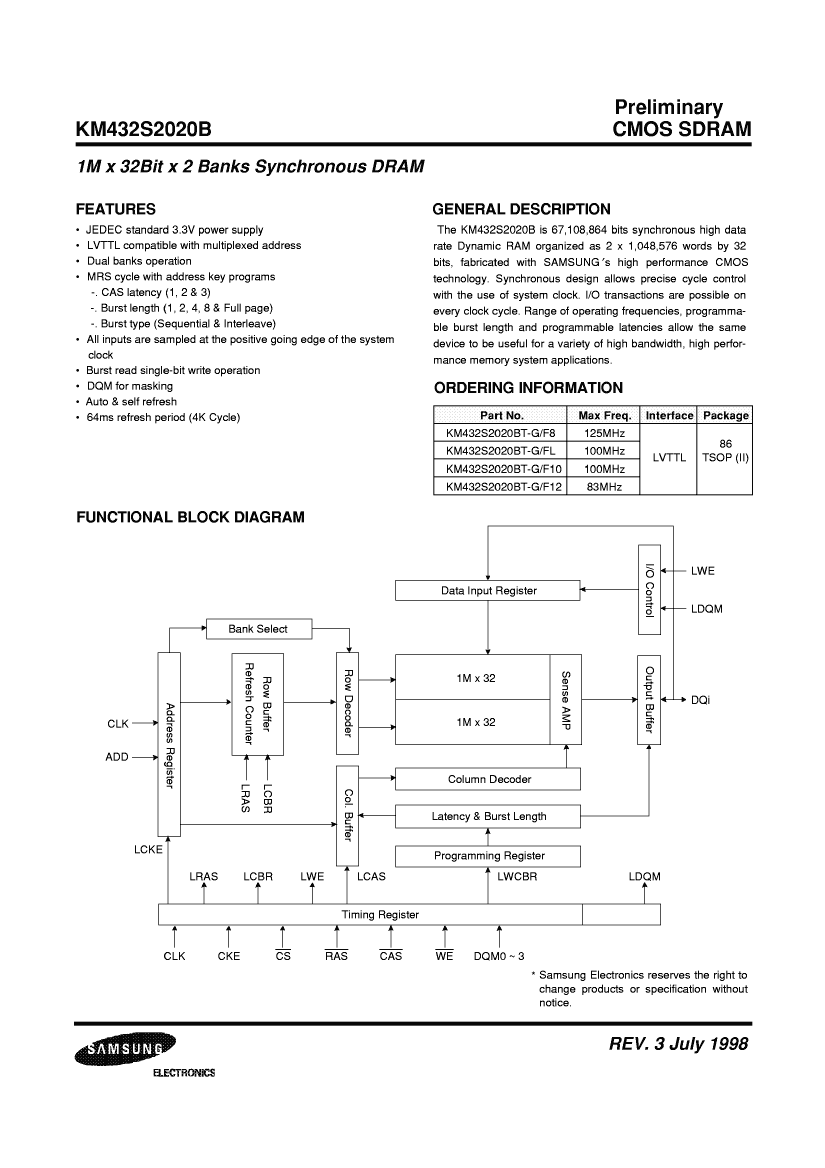

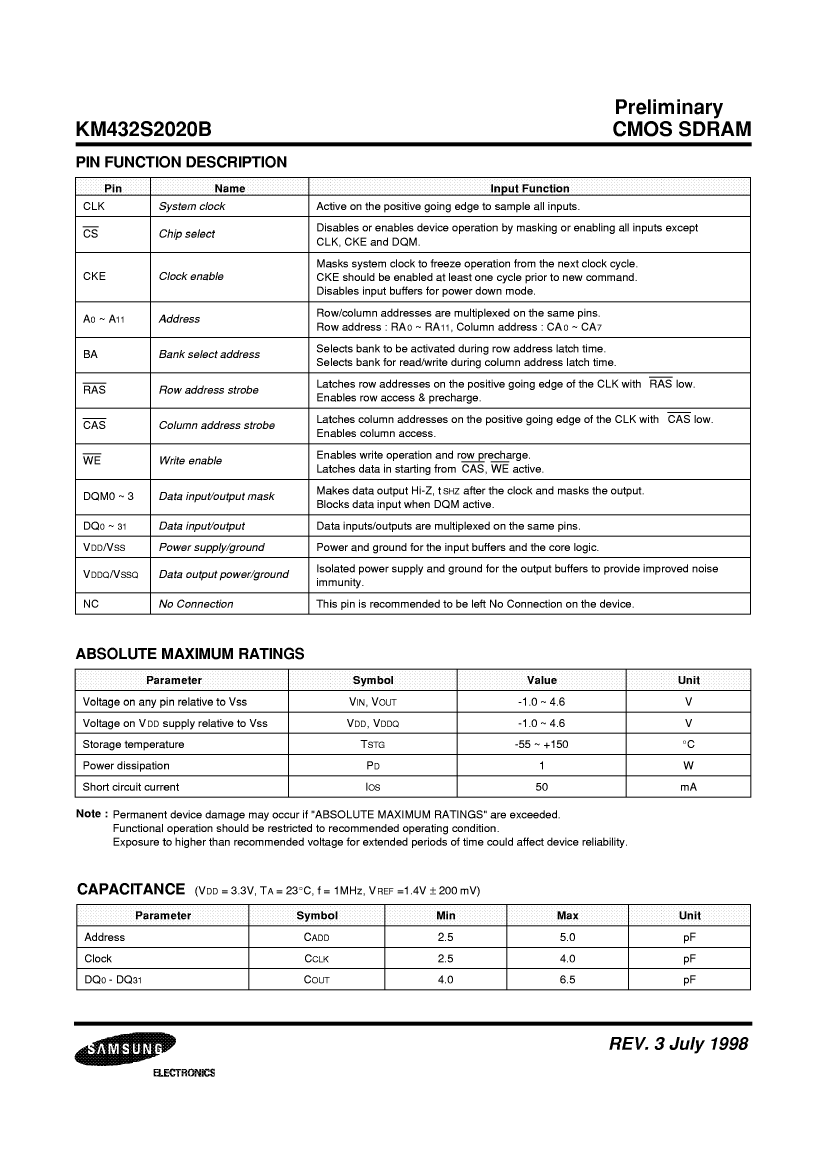

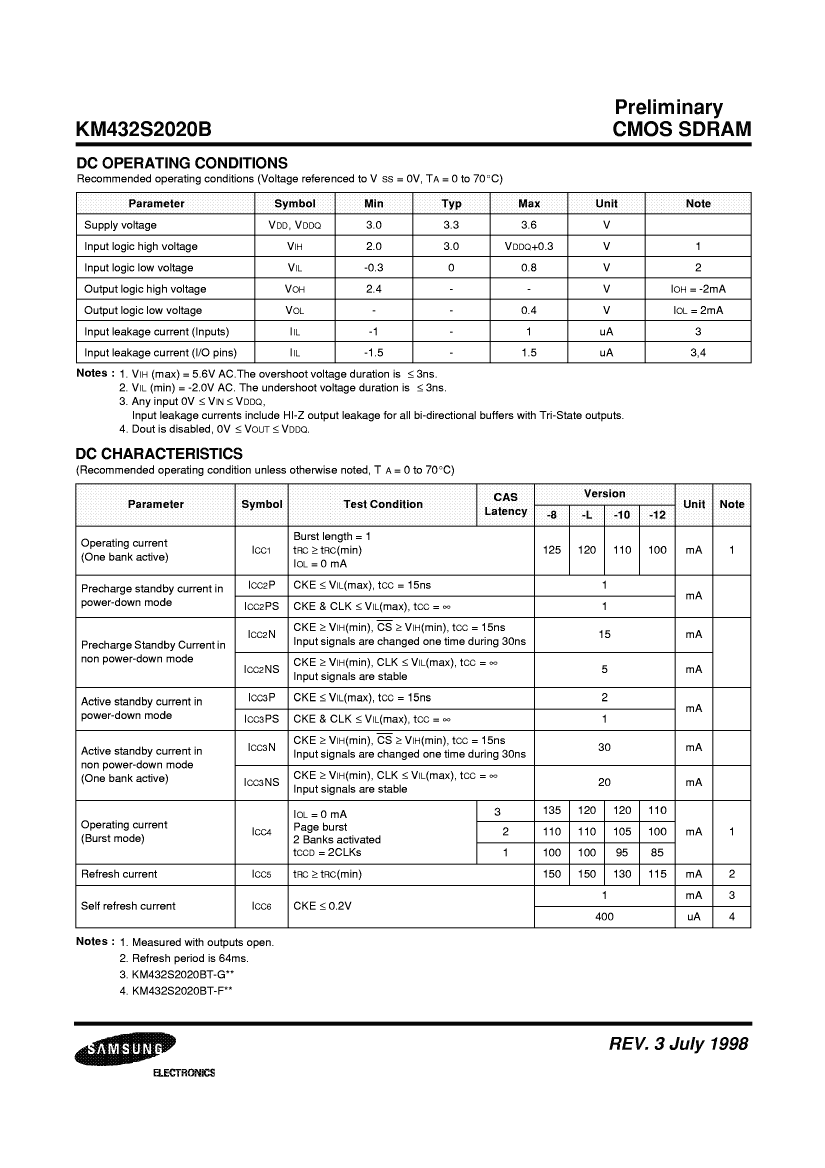

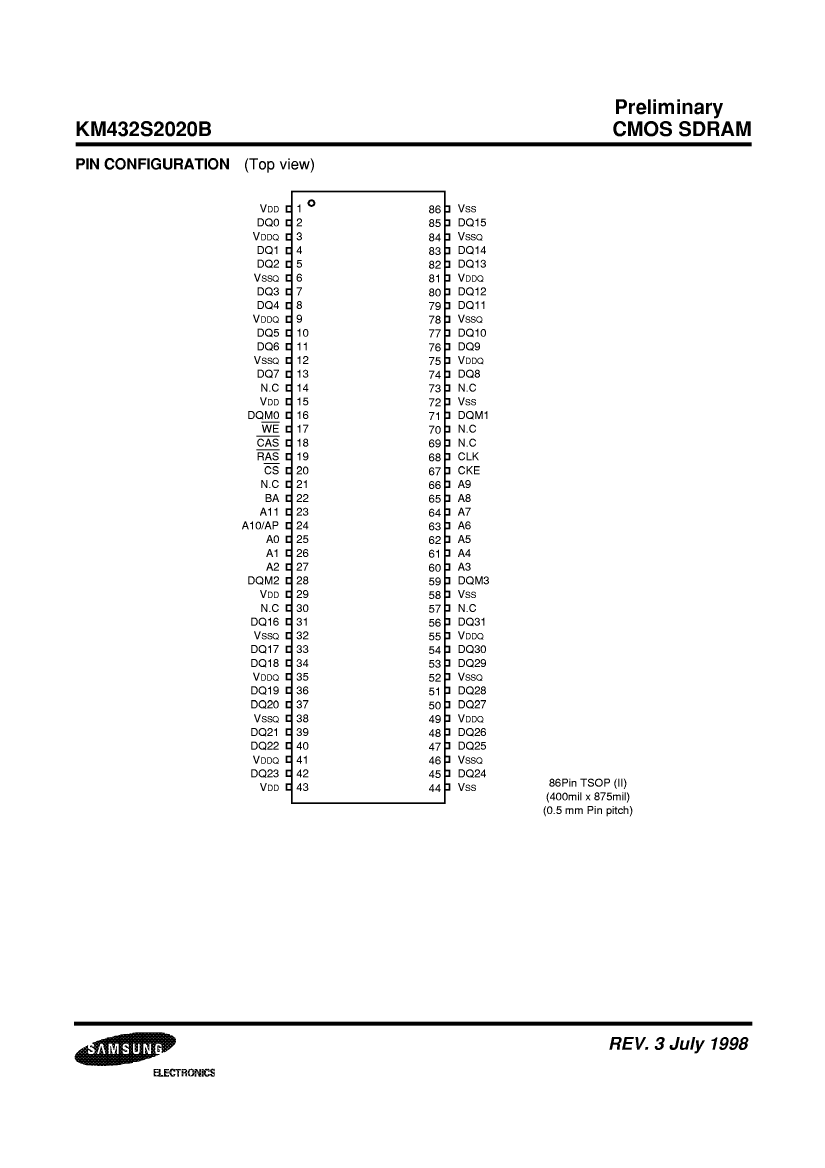

Preview

Download Datasheet

View All

KM432S2020BT-G12 Related Products

	KM432S2020BT-G12	KM432S2020BT-G8	KM432S2020BT-GL	KM432S2020BT-F8	KM432S2020BT-F12	KM432S2020BT-F10	KM432S2020BT-FL	KM432S2020BT-G10
Description	Synchronous DRAM, 2MX32, 8ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86	Synchronous DRAM, 2MX32, 6ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86	Synchronous DRAM, 2MX32, 6ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86	Synchronous DRAM, 2MX32, 6ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86	Synchronous DRAM, 2MX32, 8ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86	Synchronous DRAM, 2MX32, 7ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86	Synchronous DRAM, 2MX32, 6ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86	Synchronous DRAM, 2MX32, 7ns, CMOS, PDSO86, 0.400 X 0.875 INCH, 0.50 MM PITCH, TSOP2-86
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
package instruction	TSOP2, TSSOP86,.46,20	TSOP2, TSSOP86,.46,20	TSOP2, TSSOP86,.46,20	TSOP2, TSSOP86,.46,20	TSOP2, TSSOP86,.46,20	TSOP2, TSSOP86,.46,20	TSOP2, TSSOP86,.46,20	TSOP2, TSSOP86,.46,20
Contacts	86	86	86	86	86	86	86	86
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	8 ns	6 ns	6 ns	6 ns	8 ns	7 ns	6 ns	7 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	83 MHz	125 MHz	100 MHz	125 MHz	83 MHz	100 MHz	100 MHz	100 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
interleaved burst length	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8
JESD-30 code	R-PDSO-G86	R-PDSO-G86	R-PDSO-G86	R-PDSO-G86	R-PDSO-G86	R-PDSO-G86	R-PDSO-G86	R-PDSO-G86
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm
memory density	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	86	86	86	86	86	86	86	86
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2MX32	2MX32	2MX32	2MX32	2MX32	2MX32	2MX32	2MX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
Encapsulate equivalent code	TSSOP86,.46,20	TSSOP86,.46,20	TSSOP86,.46,20	TSSOP86,.46,20	TSSOP86,.46,20	TSSOP86,.46,20	TSSOP86,.46,20	TSSOP86,.46,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096	4096	4096
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
self refresh	YES	YES	YES	YES	YES	YES	YES	YES
Continuous burst length	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.115 mA	0.15 mA	0.15 mA	0.15 mA	0.115 mA	0.13 mA	0.15 mA	0.13 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
