BQ3287AMT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BQ3287AMT

BQ3287AMT: DescriptionReal Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDIP24,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size186KB，4 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

BQ3287AMT Overview

Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDIP24,

BQ3287AMT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Benchmarq Microelectronics Inc
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
Other features	RAM CLEAR I/P
External data bus width	8
Information access methods	PARALLEL, MUXED BUS
interrupt capability	Y
JESD-30 code	R-PDIP-P24
JESD-609 code	e0
Number of terminals	24
Number of timers	1
On-chip data RAM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	0.008192 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	114
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
shortest time	SECONDS
Maximum time at peak reflow temperature	NOT SPECIFIED
Volatile	NO
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK

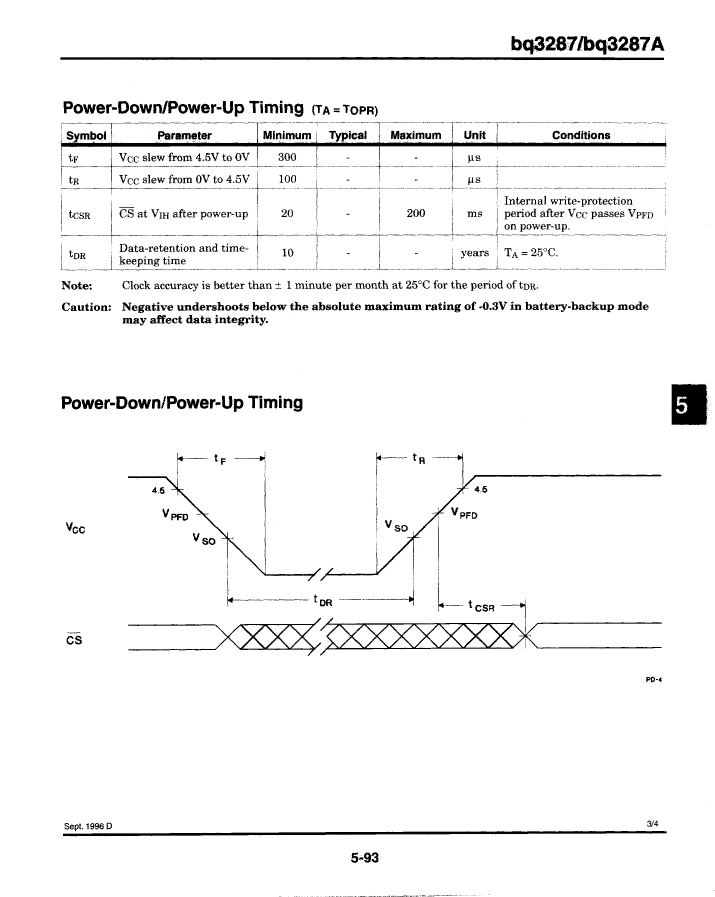

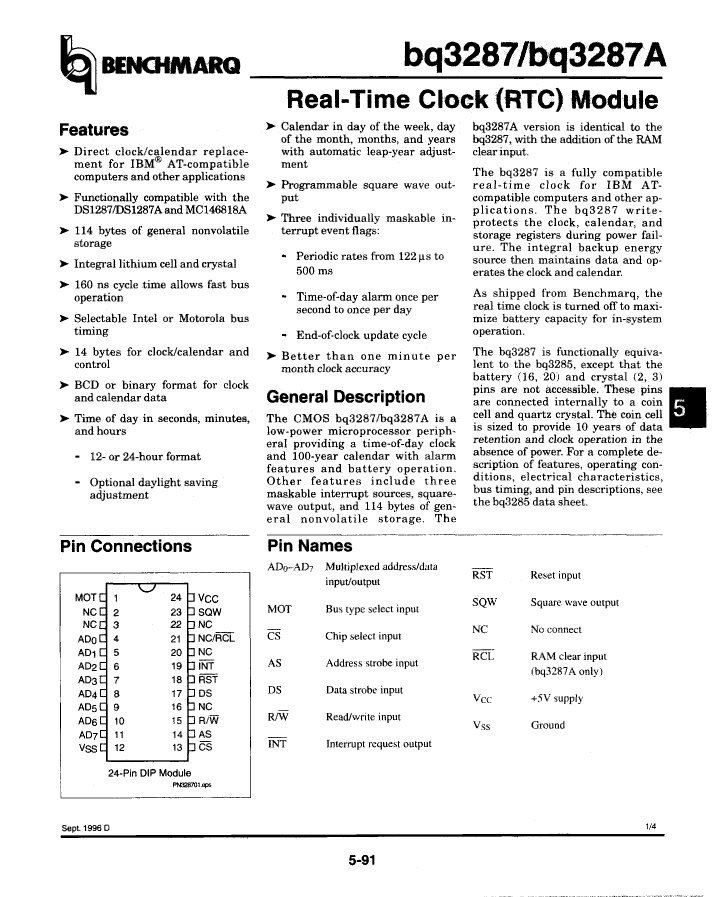

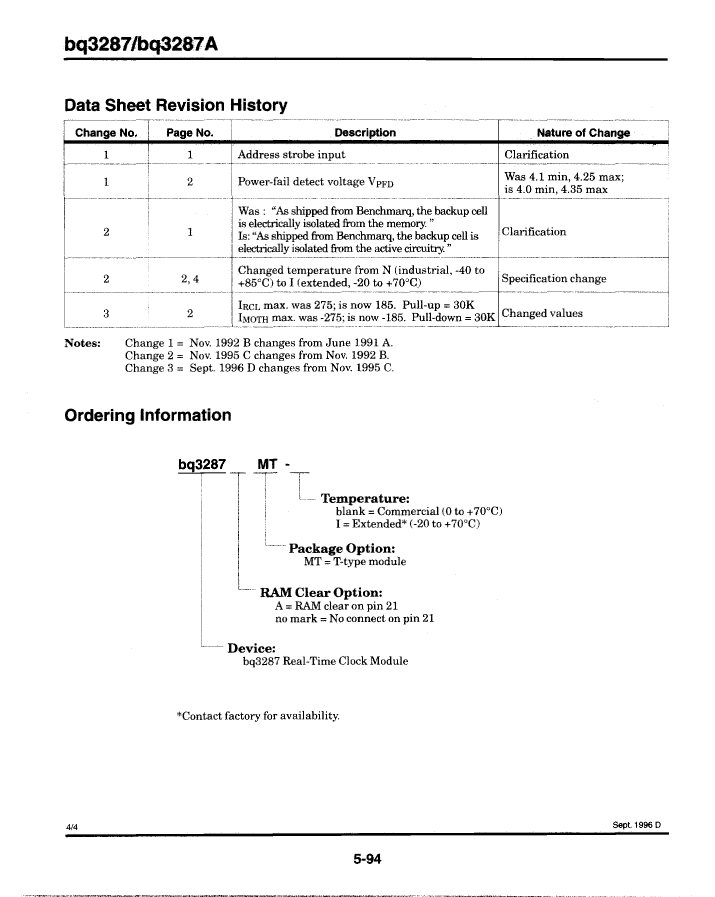

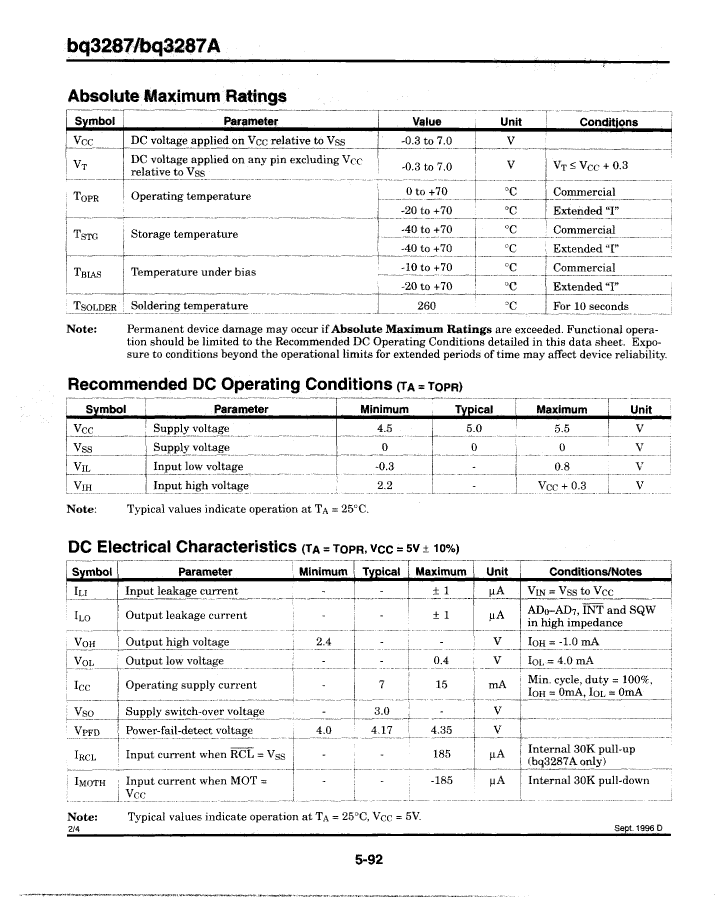

Preview

Download Datasheet

View All

BQ3287AMT Related Products

	BQ3287AMT	BQ3287MT-I	BQ3287AMT-I	BQ3287MT
Description	Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDIP24,	Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDIP24,	Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDIP24,	Real Time Clock, Non-Volatile, 1 Timer(s), CMOS, PDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Benchmarq Microelectronics Inc	Benchmarq Microelectronics Inc	Benchmarq Microelectronics Inc	Benchmarq Microelectronics Inc
Reach Compliance Code	unknown	unknown	unknown	unknown
External data bus width	8	8	8	8
Information access methods	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS
interrupt capability	Y	Y	Y	Y
JESD-30 code	R-PDIP-P24	R-PDIP-P24	R-PDIP-P24	R-PDIP-P24
JESD-609 code	e0	e0	e0	e0
Number of terminals	24	24	24	24
Number of timers	1	1	1	1
On-chip data RAM width	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Maximum output clock frequency	0.008192 MHz	0.008192 MHz	0.008192 MHz	0.008192 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	114	114	114	114
Maximum slew rate	15 mA	15 mA	15 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
shortest time	SECONDS	SECONDS	SECONDS	SECONDS
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Volatile	NO	NO	NO	NO
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
Other features	RAM CLEAR I/P	-	RAM CLEAR I/P	SELECTABLE INTEL/MOTOROLA TIMING; 10 YEARS DATA RETENTION; ACCURACY 1 MIN/MONTH @ 25 DEGREE C
