206403144011856: DescriptionCard Edge Connector, 144 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

206403144011856 Overview

Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle

206403144011856 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Board mount options	PEG
body width	0.339 inch
subject depth	1.061 inch
body length	3.213 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	6403
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.067 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	144
Base Number Matches	1

Preview

Download Datasheet

View All

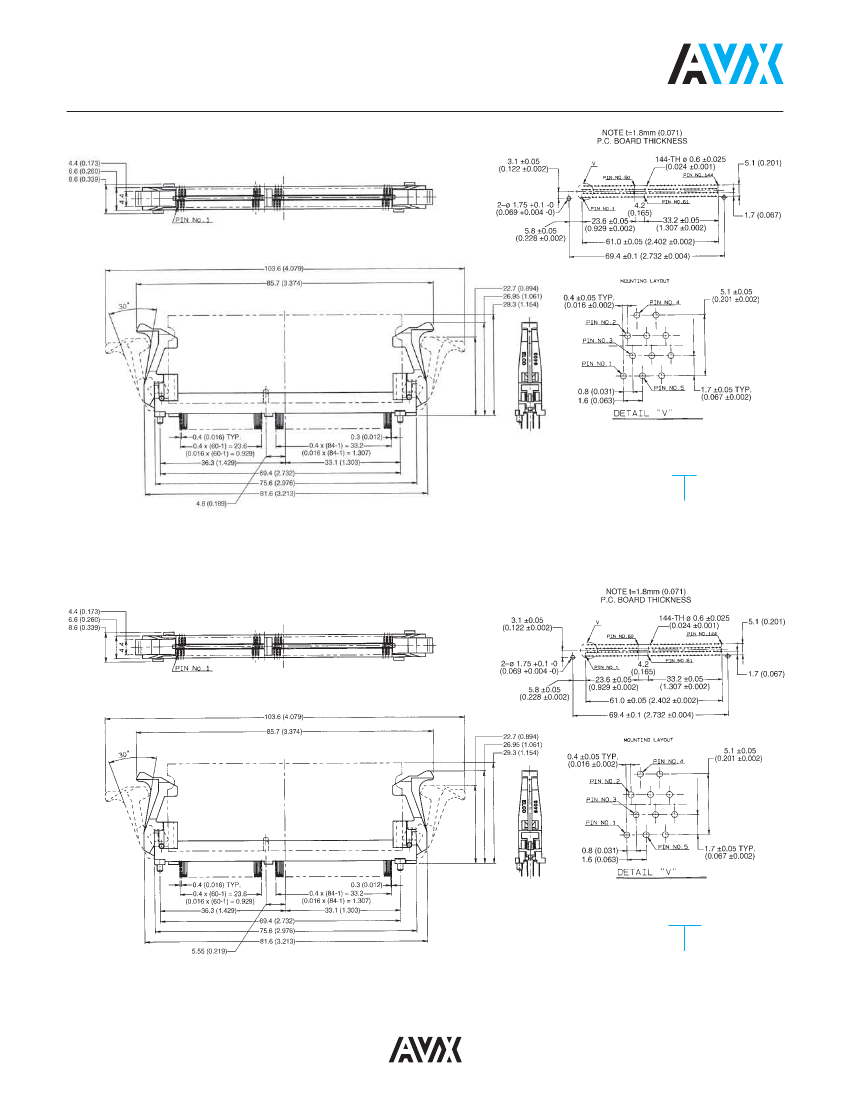

S.O. DIMM Connectors

Series 6403 144P Straight Through Hole Type

3.3V

HOW TO ORDER

20

6403

144

XXX

856

5.0V

Variation

ST. Through Hole Type

000: Without boss

001: With boss

QUANTITY: 15/TRAY

150/BOX

HOW TO ORDER

20

6403

144

XXX

856

Variation

ST. Through Hole Type

010: Without boss

011: With boss

QUANTITY: 15/TRAY

150/BOX

48

206403144011856 Related Products

	206403144011856	206403144010856	206403144001856
Description	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle	Card Edge Connector, 144 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Latch, Receptacle
Reach Compliance Code	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
body width	0.339 inch	0.339 inch	0.339 inch
subject depth	1.061 inch	1.061 inch	1.061 inch
body length	3.213 inch	3.213 inch	3.213 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Durability	25 Cycles	25 Cycles	25 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO	NO	NO
Manufacturer's serial number	6403	6403	6403
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch
Mixed contacts	NO	NO	NO
Installation option 1	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	4	4	4
Number of rows loaded	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	0.067 mm	0.067 mm	0.067 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.3 A	0.3 A	0.3 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	144	144	144
Base Number Matches	1	1	1
