BZW06 Series
New Product
Vishay Semiconductors
formerly General Semiconductor
T
RANS
Z
ORB
®
Transient Voltage
Suppressors
F126
Stand Off Voltage
5.8 to 376V
Peak Pulse Power
600W
Features
0.034 (0.86)
1.220 (31)
1.024 (26)
MIN.
0.028 (0.71)
DIA.
0.250 (6.35)
0.238 (6.05)
0.120 (3.05)
0.116 (2.95)
DIA.
1.220 (31)
1.024 (26)
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• Glass passivated junction
• Uni and Bidirectional Types Available
• Excellent Clamping Capability
• Low incremental surge resistance
• Fast response time: theoretically (with no parisitic
inductance) less than 1.0ps from 0 Volts to V
(BR)
for unidirectional and 5.0ns for bidirectional types
• High temperature soldering guaranteed:
265°C/10 seconds, 0.375" (9.5mm) lead length,
5lbs. (2.3 kg) tension
Mechanical Data
Case:
F126 molded plastic body over passivated
junction
Terminals:
Solder plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
For unidirectional types the color band
denotes the cathode, which is positive with respect
to the anode under normal TVS operation
Mounting Position:
Any
Weight:
0.015 oz., 0.4 g
Packaging Codes – Options (Antistatic):
51 – 1K per Bulk box, 10K/carton
54 – 4K per 13" paper Reel
(52mm horiz. tape), 12K/carton
73 – 2K per horiz. tape & Ammo box, 20K/carton
Dimensions in inches and (millimeters)
Devices for Bidirectional Applications
For bi-directional use add suffix letter “B” (e.g. BZW06P-6V4B).
Electrical characteristics apply in both directions.
Maximum Ratings and Thermal Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
Parameter
Peak pulse power dissipation with a 10/1000µs
waveform
(1)
(Fig. 1)
Peak pulse current with a 10/1000µs waveform
(1)
Steady state power dissipation at T
A
= 75°C
lead lengths, 0.375" (9.5mm)
(2)
Peak forward surge current, 10ms single half sine-wave
unidirectional only
Thermal Resistance
junction to lead
junction to ambient L
lead
= 10mm
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
R
θJL
R
θJA
T
J
, T
STG
Value
600
See Next Table
3.0
100
60
100
–65 to +175
Unit
W
A
W
A
°C/W
°C
Operating junction and storage temperature range
Notes
:
(1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2
Rating is 500W between 40V and 188V types. For a surge greater than the maximum values, the diode will short circuit.
(2) Mounted on copper pad area of 1.6 x 1.6” (40 x 40mm) per Fig. 5
Document Number 88317
03-May-02
www.vishay.com
1
BZW06 Series
Vishay Semiconductors
formerly General Semiconductor
Electrical Characteristics
(T
A
=25°C unless otherwise noted)
Part Number
Undirectional
BZW06-5V8
BZW06-6V4
BZW06-8V5
BZW06-10
BZW06-13
BZW06-15
BZW06-19
BZW06-20
BZW06-23
BZW06-26
BZW06-28
BZW06-31
BZW06-33
BZW06-40
BZW06-48
BZW06-58
BZW06-70
BZW06-85
BZW06-102
BZW06-128
BZW06-154
BZW06-171
BZW06-188
BZW06-213
BZW06-256
BZW06-273
BZW06-299
BZW06-342
BZW06-376
Bidirectional
BZW06-5V8B
BZW06-6V4B
BZW06-8V5B
BZW06-10B
BZW06-13B
BZW06-15B
BZW06-19B
BZW06-20B
BZW06-23B
BZW06-26B
BZW06-28B
BZW06-31B
BZW06-33B
BZW06-40B
BZW06-48B
BZW06-58B
BZW06-70B
BZW06-85B
BZW06-102B
BZW06-128B
BZW06-154B
BZW06-171B
BZW06-188B
BZW06-213B
BZW06-256B
BZW06-273B
BZW06-299B
BZW06-342B
BZW06-376B
I
D
@ V
WM
(max)
µA
1000
500
10
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
5.8
6.4
8.5
10.2
12.8
15.3
18.8
20.5
23.1
25.6
28.2
30.8
33.3
40.2
47.8
58.1
70.1
85.5
102
128
154
171
188
213
256
273
299
342
376
V
(BR)
@ I
T
(min)
(1)
V
6.45
7.13
9.50
11.4
14.3
17.1
20.9
22.8
25.7
28.5
31.4
34.2
37.1
44.7
53.2
64.6
77.9
95.0
114
143
171
190
209
237
285
304
332
380
418
mA
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
C
@ I
PP
(max)
10/1000µs
V
10.5
11.3
14.5
16.7
21.2
25.2
30.6
33.2
37.5
41.5
45.7
49.9
53.9
64.8
77.0
92.0
113
137
165
207
246
274
328
344
414
438
482
548
603
A
57.0
53.0
41.0
36.0
28.0
24.0
19.6
18.0
16.0
14.5
13.1
12.0
11.1
9.3
6.5
5.4
4.4
3.6
3.0
2.4
2.0
1.8
1.5
1.7
1.4
1.4
1.2
1.1
1.0
V
C
@ I
PP
(max)
8/20µs
V
13.4
14.5
18.6
21.7
27.2
32.5
39.3
42.8
48.3
53.5
59.0
64.3
69.7
84.0
100
121
146
178
212
265
317
353
388
442
529
564
618
706
776
A
298
276
215
184
147
123
102
93.0
83.0
75.0
68.0
62.0
57.0
48.0
40.0
33.0
27.0
22.5
19.0
15.0
12.6
11.3
10.3
9.0
7.6
7.1
6.5
5.7
5.7
Max.
Temp.
Coefficient
of V
(BR)
(2)
%/C
0.057
0.061
0.073
0.078
0.084
0.088
0.092
0.094
0.096
0.097
0.098
0.099
0.100
0.101
0.103
0.104
0.105
0.106
0.107
0.108
0.108
0.108
0.108
0.110
0.110
0.110
0.110
0.110
0.100
Typical
Capacitance
C
(3)
pF
4000
3700
2800
2300
1900
1600
1350
1250
1150
1075
1000
950
900
800
700
625
550
500
450
400
360
350
330
310
290
280
270
360
350
Notes:
(1) Pulse Test: t
p
< 50ms
(2)
∆V
(BR)
=
αT
* (T
A
- 25) *V
(BR)
(25°C)
(3) V
R
= 0 V, f = 1 MH
Z
. For Bidirectional types, capacitance value is divided by 2
www.vishay.com
2
Document Number 88317
03-May-02
BZW06 Series
Vishay Semiconductors
formerly General Semiconductor

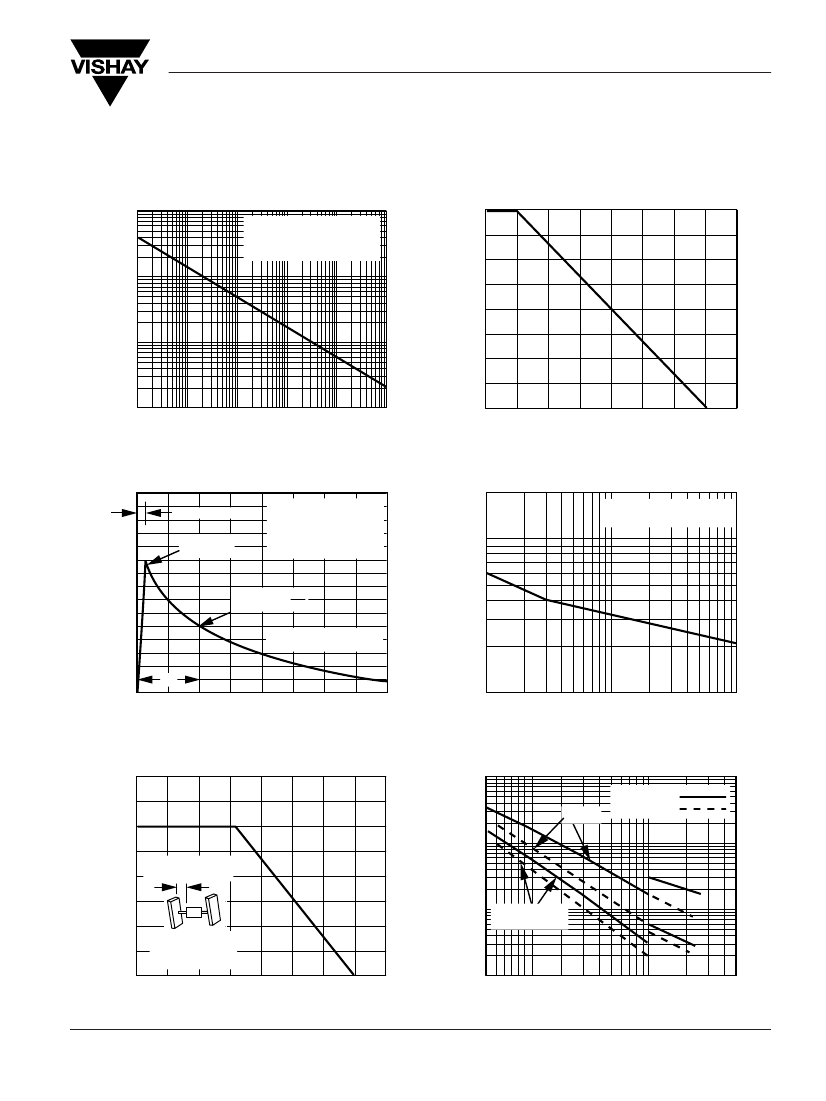

Ratings and
Characteristic Curves
(T
A
= 25°C unless otherwise noted)
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage, %
Fig. 1 – Peak Pulse Power
Rating Curve
P
PPM
— Peak Pulse Power (kW)
100
Fig. 2 – Pulse Derating Curve
100
Non-repetitive Pulse
Waveform shown in Fig. 3
TA = 25°C
10
75
50
1.0
25
0.1
0.1µs
1.0µs
10µs
100µs
1.0ms
10ms
0
0
25
50
75
100
125
150
175
200
td — Pulse Width (sec.)
T
A
— Ambient Temperature (°C)
150
I
FSM
— Peak Forward Surge Current (A)
Fig. 3 – Pulse Waveform
I
PPM
— Peak Pulse Current, % I
RSM
tr = 10µsec.
Peak Value
I
PPM
T
J
= 25°C
Pulse Width (td)
is defined as the point
where the peak current
decays to 50% of I
PPM
Fig. 4 - Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
200
8.3ms Single Half Sine-Wave
(JEDEC Method)
100
100
Half Value — IPP
2
I
PPM
50
10/1000µsec. Waveform
as defined by R.E.A.
td
0
0
1.0
2.0
3.0
4.0
10
1
10
100
t — Time (ms)
Number of Cycles at 60 Hz
Fig. 5 – Steady State Power Derating Curve
4.0
10,000
Fig. 6 – Capacitance
Unidirectional
Bidirectional
3.0
L = 0.375" (9.5mm)
Lead Lengths
C
J
— Capacitance (pF)
P
M(AV)
, Steady State
Power Dissipation (W)
V
R
= 0
1,000
2.0
100
1.0
1.6 x 1.6 x .040"
(40 x 40 x 1mm)
Copper Heat Sinks
0
0
25
50
75
100
125
150
175
200
V
R
= Rated
Stand-off voltage
10
5
100
500
T
L
— Lead Temperature (°C)
Document Number 88317
03-May-02
Reverse Voltage (V)
www.vishay.com
3
